PRODUCT DESCRIPTION
Eight current outputs with field-device communication and diagnostics

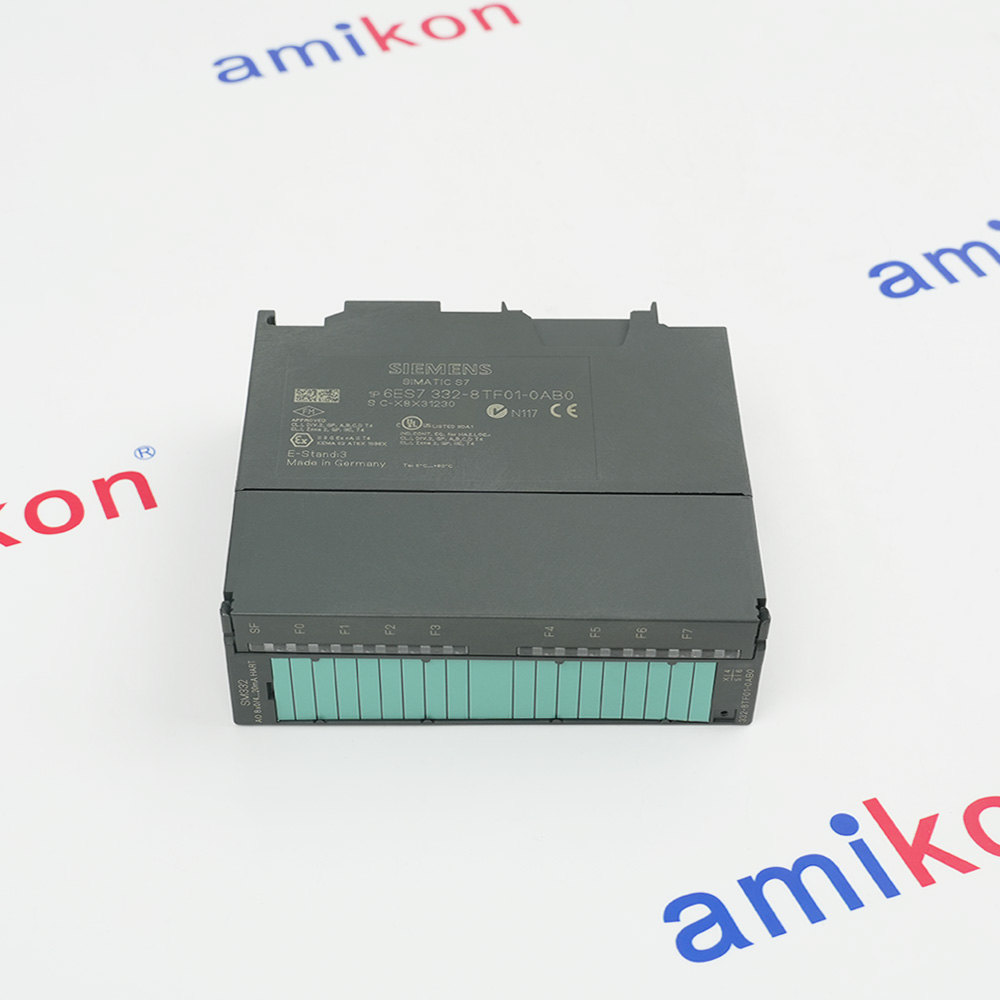

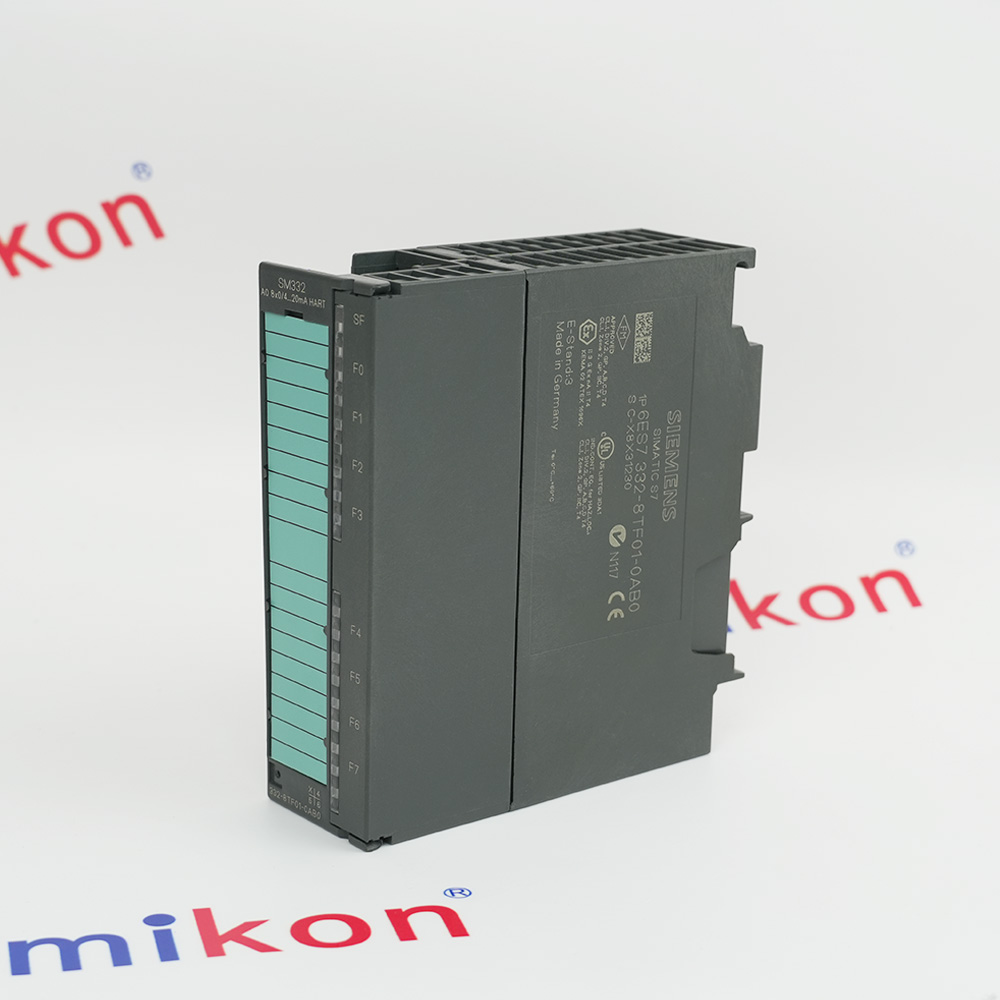

Siemens 6ES7332-8TF01-0AB0 is an SM 332 HART analog output module for ET 200M distributed I/O. Its eight channels provide configurable current outputs alongside communication with compatible field devices. Channel parameters, diagnostics and substitute values are assigned through the supported engineering environment.
The module supports analog output readback and documented redundant operating arrangements. HART communication requires sufficient loop current, while temperature affects the number of simultaneously usable outputs. The outputs are isolated from the backplane and load supply, but not individually from one another.
The module supports analog output readback and documented redundant operating arrangements. HART communication requires sufficient loop current, while temperature affects the number of simultaneously usable outputs. The outputs are isolated from the backplane and load supply, but not individually from one another.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7332-8TF01-0AB0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · PACKAGING
Food Packaging and Manufactured Goods Packing Operations
Packaging of food and beverage products for consumer markets.Packing manufactured goods for commercial supply and onward distribution. -
02 · PLASTICS PROCESSING
Plastic Materials Processing and Consumer Product Manufacturing
Plastic material extrusion and forming for industrial product manufacturing.Molding consumer plastic products for commercial supply and distribution. -
03 · METALS PRODUCTION
Metal Materials Manufacturing and Commercial Aluminum Processing
Metal rolling and finishing for commercial industrial material production.Aluminum processing and sheet production for downstream manufacturing markets.
Technical specifications for 6ES7332-8TF01-0AB0
-
Product Model6ES7332-8TF01-0AB0
-
Product ParametersEight-Channel HART Analog Output Module
-
ManufacturerSiemens
-
Analog output channels8
-
Current ranges0-20 mA and 4-20 mA
-
Output resolution15 bits for 0-20 mA; 15 bits plus sign for 4-20 mA
-
Rated load voltage24 V DC, reverse-polarity protected
-
Backplane current110 mA maximum
-
Typical power loss6 W
-
Module cycle time10 ms in AO mode; 50 ms in HART mode
-
Settling timeAO: 0.1 ms resistive, 0.5 ms with 10 mH; HART: 40-50 ms
-
Operational error±0.2% of output range over the temperature range
-
Basic error at 25°C±0.1% of output range
-
Maximum load750 ohm resistive; 10 mH inductive
-
Shielded cable length800 m maximum
-
HART communication currentAt least 1.17 mA output current
-
Simultaneous outputsHorizontal: 8 through 40°C, 4 through 60°C; vertical: 8 through 40°C
-
Front connector20 pins
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SM 332 HART ANALOG OUTPUT
Current-loop output with configured HART and diagnostic access
Use a documented ET 200M interface and compatible engineering configuration. The cited edition supports PROFIBUS DP and specified PROFINET IO arrangements, but field-device configuration and calibration access have interface-specific limitations.
Connect each load to its designated CH+ and CH- terminals. Account for supply, common-mode potential, load impedance, ambient derating and the minimum current needed for HART communication.
Configure output ranges, diagnostics, STOP response and any redundancy deliberately. Readback resolution differs from output resolution, and redundant failover includes the documented transient output behavior.
Features:
- ET 200M interface integration
- Load and temperature qualification
- Configured output diagnostics
The Siemens 6ES7332-8TF01-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Confirm the full 8TF01 identity, firmware and existing host configuration. Configuring it as the older 8TF00 changes documented STOP-to-RUN behavior in specified CPU 4xx arrangements.
Capture channel ranges, HART settings, output readback use, diagnostics and redundancy. Preserve load limits and deactivated unused channels.
Use the documented host and backplane replacement procedure. Online removal/insertion support and interrupt evaluation are conditional; verify output values and access functions after reintegration.
Features:
- Order and firmware verification
- Channel-configuration preservation
- Controlled output reintegration
The Siemens 6ES7332-8TF01-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- HART output wiring, unused channels, temperature derating, diagnostics, redundancy restrictions and firmware limits.
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7332-8TF01-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7332-8TF01-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Can the zero-to-twenty milliampere range communicate by HART?
The manual lists that range with HART capability, but communication requires an output current of at least 1.17 mA. A selected zero-based range does not guarantee HART communication at zero output. -
Are all eight outputs available at the highest horizontal temperature?
No. The manual permits eight simultaneous outputs through 40°C horizontally, reducing to four through 60°C. Vertical installation is limited to 40°C with eight simultaneous outputs. -
How should unused output channels be terminated?
Deactivate non-wired outputs in the STEP 7 output parameter block. The manual states that resistor termination is unnecessary for these unused output channels. -
What conditions apply to wire-break and short-circuit diagnostics?
Wire-break detection requires at least 250 µA commanded output. Clearing a pending message requires the fault to be removed and output raised above 250 µA. Short-circuit detection requires at least 4 mA and identifies loads below 30 ohm. -
Does redundant operation eliminate any output disturbance during a failure?
No. In the documented redundant arrangement each module normally supplies half the value. The output briefly drops to half after one fails before the surviving module supplies the full value. Additional HART masters, HART fast mode and user calibration are not permitted in that redundant mode. -
Can firmware be freely downgraded or updated during redundancy?
No. Firmware must not be updated while the module is used redundantly. A module at version 3.0.0 or later must not receive firmware below 3.0.0; the manual warns this can leave it faulty and requiring manufacturer repair.
