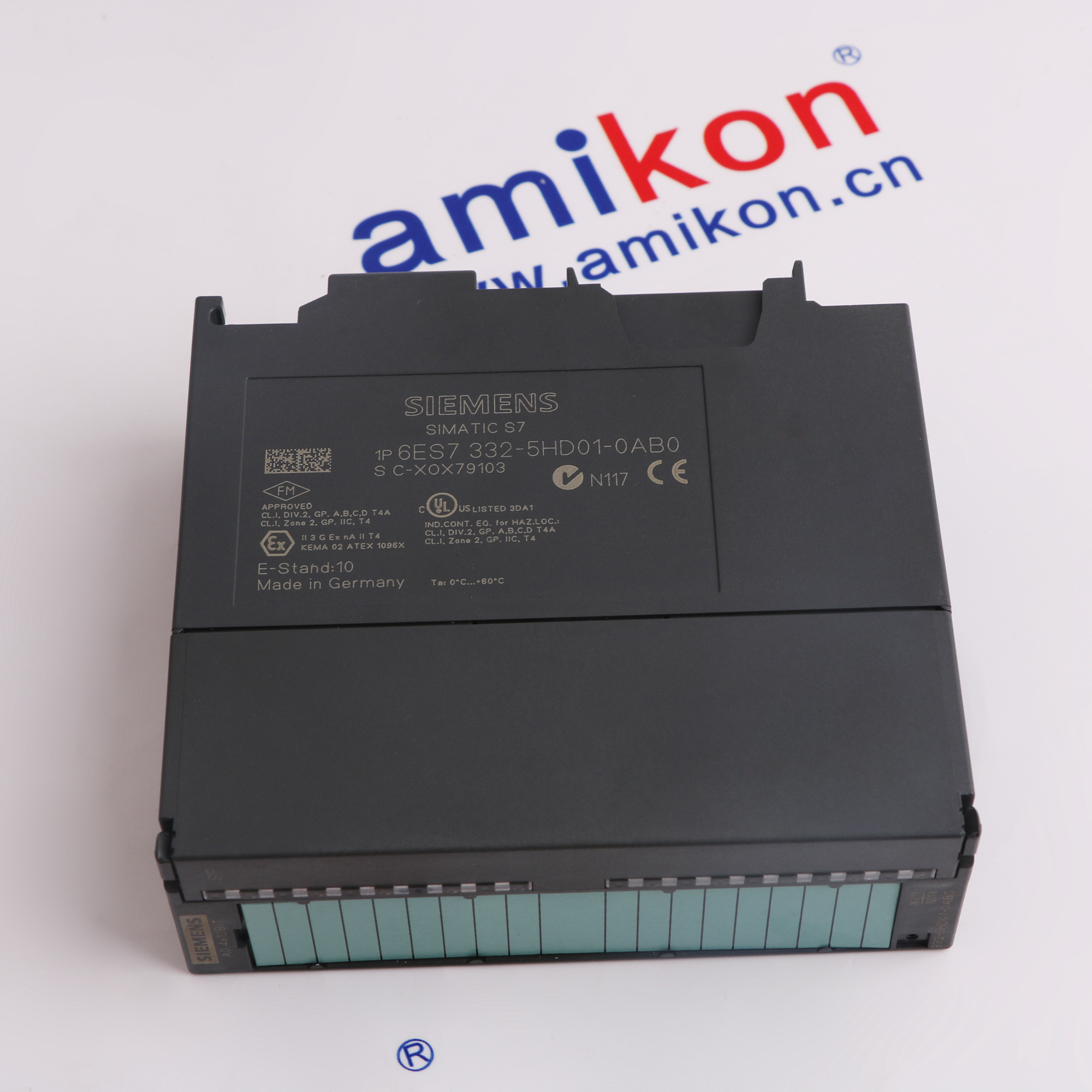

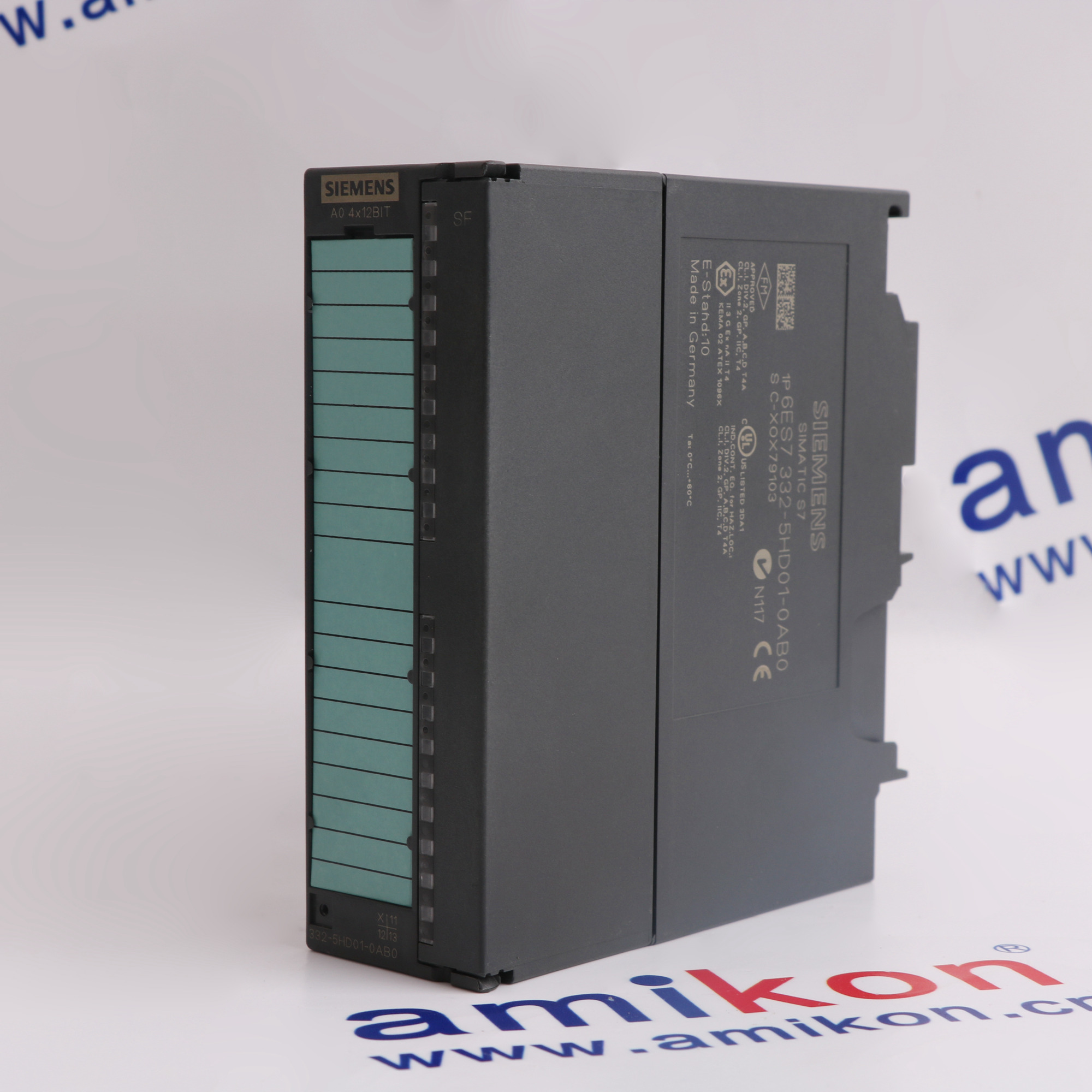

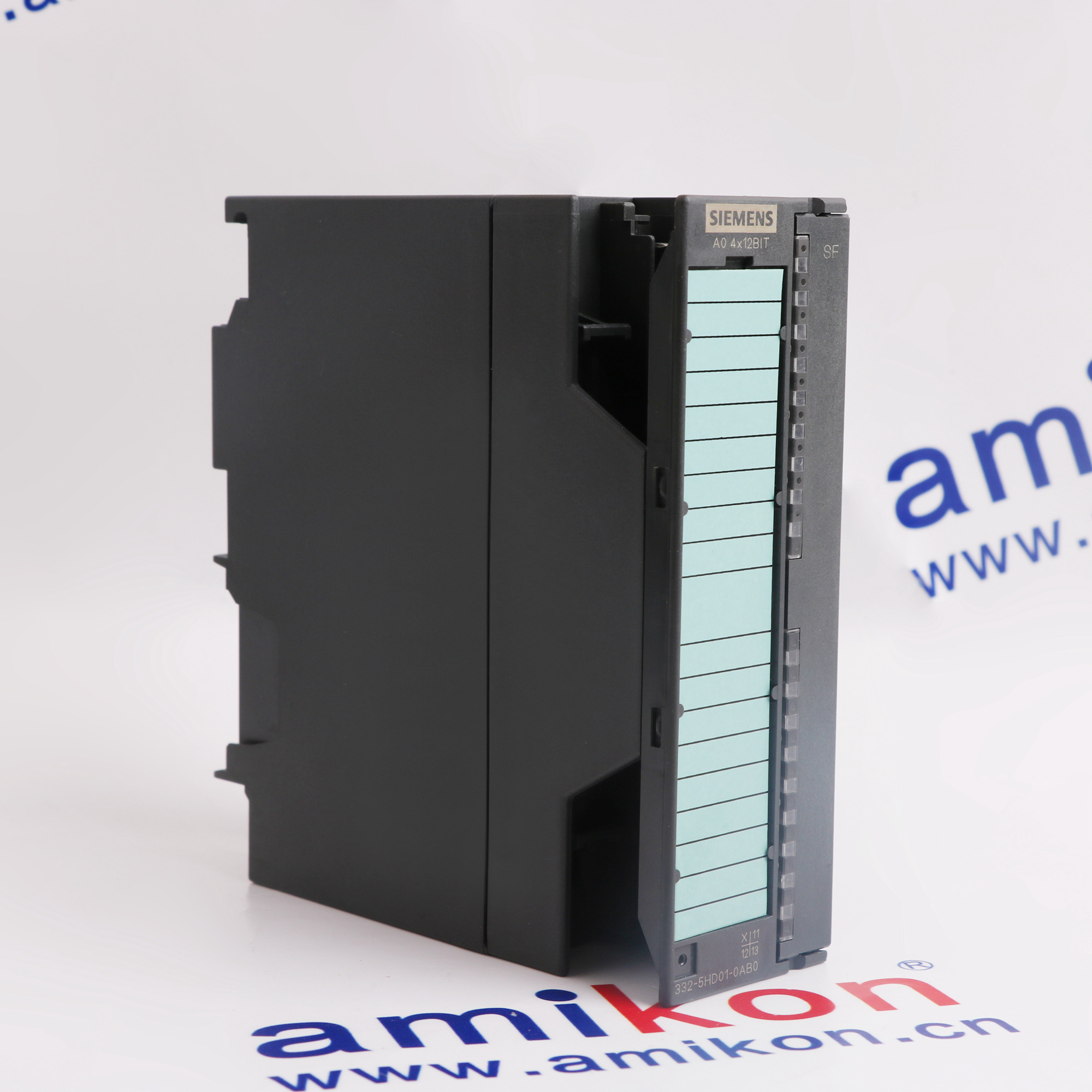

Siemens 6ES7332-5HD01-0AB0
Siemens 6ES7332-5HD01-0AB0
Siemens 6ES7332-5HD01-0AB0
Siemens 6ES7332-5HD01-0AB0
Siemens 6ES7332-5HD01-0AB0
Siemens 6ES7332-5HD01-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Friday, November 20

6ES7332-5HD01-0AB0

Four-channel voltage/current output module

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

6ES7332-5HD01-0AB0 Four-channel voltage/current output module

Siemens 6ES7332-5HD01-0AB0 is the SM 332 analog output module for SIMATIC S7-300. Four channels provide selectable voltage or current signals with range-dependent 11-bit-plus-sign or 12-bit conversion. The output circuits are isolated from the backplane bus and load supply.

Voltage selection includes 0-10 V, 1-5 V and +/-10 V; current selection includes 0-20 mA, 4-20 mA and +/-20 mA. Conversion takes 0.8 ms per channel. A 20-pin front connector, parameterizable diagnostic alarm and red SF indication complete the module configuration.
ACTUAL APPLICATIONS

Application fields for 6ES7332-5HD01-0AB0

Siemens 6ES7332-5HD01-0AB0 is the SM 332 analog output module for SIMATIC S7-300. Its broad field context spans chemicals, power generation, metals. The selected analog range, load impedance and S7-300 configuration determine suitability.
  • 01 · CHEMICALS

    Organic Chemistry and Industrial Water

    Organic Chemistry and Regional WaterInorganic Chemistry and Municipal Water
  • 02 · POWER GENERATION

    Electricity Generation and Thermal Energy

    Conventional Electricity and Regional HeatHydroelectric Power and District Energy
  • 03 · METALS

    Ferrous Metals and Mineral Metallurgy

    Primary Ferrous Metals and MetallurgyNonferrous Metals and Secondary Metallurgy

Technical specifications for 6ES7332-5HD01-0AB0

  • Product Model
    6ES7332-5HD01-0AB0
  • Product Parameters
    Four-channel voltage/current output module
  • In stock
    1 unit
  • Manufacturer
    Siemens
  • Analog output channels
    4
  • Voltage ranges
    0-10 V, 1-5 V and +/-10 V
  • Current ranges
    0-20 mA, 4-20 mA and +/-20 mA
  • Maximum conversion resolution
    12 bit; range-dependent sign representation
  • Load supply
    24 V DC
  • Maximum unloaded supply demand
    240 mA
  • Backplane consumption
    60 mA maximum at 5 V DC
  • Typical power loss
    3 W
  • Conversion interval
    0.8 ms per channel
  • Voltage load resistance
    1 kohm minimum
  • Current load resistance
    500 ohm maximum
  • Shielded signal cable
    200 m maximum
  • Front connection
    20-pin connector
  • Channel isolation arrangement
    Isolated from bus and load supply; no channel-to-channel isolation
  • Diagnostic facilities
    Parameterizable diagnostic alarm and red SF LED
View all additional

Alternative Names

6ES7332-5HD01-0AB0 SIMATIC S7-300 SM 332 Four-channel voltage/current output module
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SYSTEM INTEGRATION

Integrate 6ES7332-5HD01-0AB0 within SIMATIC S7-300 SM 332

Configure all four analog outputs in the S7-300 project for the required voltage or current range: 0 to 10 V, 1 to 5 V, -10 to +10 V, 0 to 20 mA, -20 to +20 mA, or 4 to 20 mA. Supply 24 V DC at L+ and use the required 20-pin front connector.
Route shielded output cables up to 200 m and match the connected load to the selected mode. Voltage outputs require at least 1 kohm and permit up to 1 uF; current outputs permit up to 500 ohm and 10 mH.
Parameterize the diagnostic alarm and verify the red SF group-error indication during commissioning. Check each channel across its configured range, allowing for the 0.8 ms conversion time and the documented settling time for resistive, capacitive, or inductive loads.

Features:

  • Analog output channels: 4
  • Voltage ranges: 0-10 V, 1-5 V and +/-10 V
  • SIMATIC S7-300 SM 332
Use 6ES7332-5HD01-0AB0 only within the documented SIMATIC S7-300 SM 332 arrangement and applicable installation instructions.
INTERCHANGEABILITY

Replace 6ES7332-5HD01-0AB0 within SIMATIC S7-300 SM 332

Match the complete 6ES7332-5HD01-0AB0 identity, four-output U/I arrangement, 20-pin front connector, 24 V DC load supply, and active-backplane-bus removal and insertion capability. A similar SM 332 order code does not confirm electrical interchangeability.
Confirm that the restored project uses the same voltage or current range on every channel and retains any parameterized diagnostic alarm. The replacement must provide 11/12-bit resolution and the required group-error response through the red SF LED.
Review the installed load and cable before transfer: voltage loads must be at least 1 kohm and no more than 1 uF, current loads no more than 500 ohm and 10 mH, and shielded cable length no more than 200 m. There is no channel-to-channel isolation, although channels are isolated from the backplane bus, L+, and electronics supply.

Features:

  • 6ES7332-5HD01-0AB0 complete order code
  • Diagnostic facilities: Parameterizable diagnostic alarm and red SF LED
  • Retain the documented SIMATIC S7-300 SM 332 connection arrangement
Use 6ES7332-5HD01-0AB0 only within the documented SIMATIC S7-300 SM 332 arrangement and applicable installation instructions.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

Features:

  • Exact-model technical data for 6ES7332-5HD01-0AB0
  • Document applicability checked against the complete identity
  • Directory links by subcategory and brand
Documentation for 6ES7332-5HD01-0AB0 must match the installed product identity and supplied configuration.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Product size
    4.00 x 11.70 x 12.40 cm
    Net weight
    0.20 kg
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8538900000
    Origin
    Germany
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7332-5HD01-0AB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • Are the four outputs on 6ES7332-5HD01-0AB0 individually isolated?

    No. They are isolated from the bus and load supply, but there is no channel-to-channel isolation.
  • Which signal ranges can 6ES7332-5HD01-0AB0 generate?

    The choices are 0-10 V, 1-5 V, +/-10 V, 0-20 mA, 4-20 mA and +/-20 mA, assigned in the module configuration.
  • How quickly does 6ES7332-5HD01-0AB0 convert an output value?

    Conversion is 0.8 ms per channel. Load-dependent settling time is additional and differs for resistive, capacitive and inductive circuits.
  • What front connector does 6ES7332-5HD01-0AB0 require?

    The module requires the S7-300 20-pin front connector. Its wiring must follow the selected voltage or current range.
  • Why could 6ES7332-5HD01-0AB0 show a red SF indication?

    SF is the group-error indicator. Read the parameterized diagnostic information and investigate the reported channel or supply condition.
  • What load limits apply to 6ES7332-5HD01-0AB0 analog outputs?

    Voltage outputs require at least 1 kohm; current outputs permit up to 500 ohm. Cable and reactive-load limits also apply.
  • How should an MRO distributor identify 6ES7332-5HD01-0AB0?

    State the complete 5HD01-0AB0 code, four-output U/I configuration, connector inclusion and label condition in the quotation.
  • Which photographs help a buyer source 6ES7332-5HD01-0AB0 correctly?

    A clear order-code label and front-connector view distinguish this SM 332 from other S7-300 analog-output variants.
