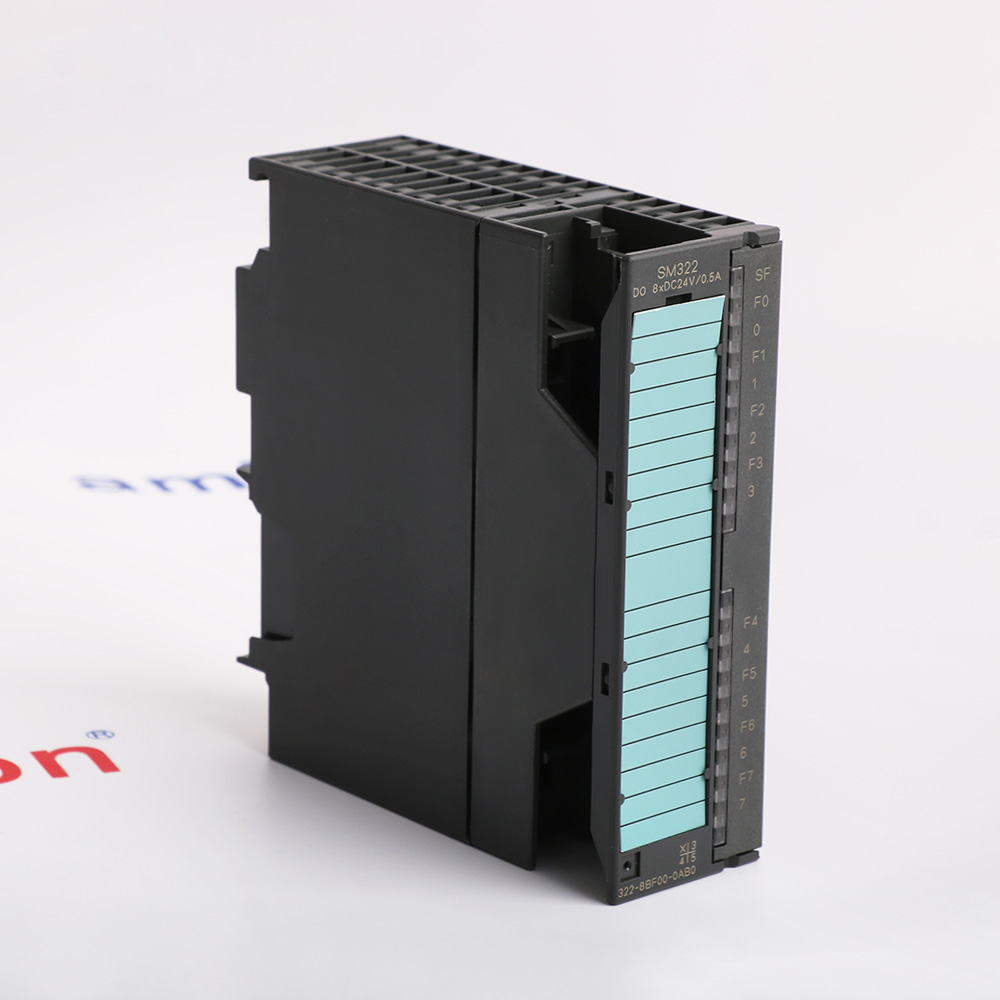

· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
Isolated relay outputs with contact suppression and configurable stop behavior
Siemens 6ES7322-5HF00-0AB0 is an SM 322 relay output module with eight individually isolated outputs. It switches documented AC and DC load types and provides channel status indicators, a group-fault display and programmable diagnostic interrupt support.
A jumper can connect an internal RC network for contact protection. Output behavior at CPU stop is configurable, including substitute values or retained values. Switching capacity and contact life depend on load voltage and load type, not simply the thermal current rating.
A jumper can connect an internal RC network for contact protection. Output behavior at CPU stop is configurable, including substitute values or retained values. Switching capacity and contact life depend on load voltage and load type, not simply the thermal current rating.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7322-5HF00-0AB0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · FOOD & BEVERAGE
Packaged Food Production and Commercial Beverage Processing
Production of packaged foods for commercial and consumer markets.Processing and preparation of beverages for retail distribution. -
02 · PACKAGING
Consumer Product Packaging and Commercial Goods Packing
Consumer product packaging for retail presentation and market distribution.Commercial goods packing for storage, shipment and industrial supply. -
03 · PLASTICS PROCESSING
Plastic Product Manufacturing and Industrial Material Processing
Manufacturing molded plastic products for consumer and industrial markets.Processing plastic materials through extrusion for commercial manufacturing demand.
Technical specifications for 6ES7322-5HF00-0AB0
-
Product Model6ES7322-5HF00-0AB0
-
Product ParametersEight-Channel Relay Output Module
-
In stock1 unit
-
ManufacturerSiemens
-
Relay outputs8, individually electrically isolated
-
Load-voltage range24-120 V DC; 24-230 V AC
-
Rated electronics supply24 V DC; reverse-polarity protection
-
Continuous thermal current5 A maximum; not a universal switching rating
-
Minimum load without SJ jumper10 V /10 mA
-
Backplane consumption100 mA maximum
-
L+ consumption160 mA maximum
-
Typical power loss3.5 W
-
Cable limits600 m unshielded; 1,000 m shielded
-
Front connector40 pins
-
RC contact suppression330 ohm and 0.1 microfarad; selected by SJ jumper
-
Mechanical switching frequency10 Hz maximum
-
Resistive and lamp switching frequency2 Hz maximum
-
Inductive switching frequency0.5 Hz maximum, IEC 947-5-1 DC13/AC15
-
CPU-stop behaviorSet substitute value or hold last value; substitute zero default
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SM 322 RELAY OUTPUT
Isolated load switching with configurable suppression and stop states
Eight isolated relay circuits connect through a forty-pin front connector. The exact diagram shows supply connections, relay terminals and optional SJ bridges for contact suppression.
Choose contact protection and load limits for the actual load class. The RC network changes off-state leakage, and the AC leakage condition can affect connected electronic inputs.
Configure output reaction to CPU stop and any substitute values. Enable diagnostic interrupts only when the corresponding processing is provided, and retain the SELV terminal-adjacency limitation.
Features:
- Individual relay isolation
- Selectable contact suppression
- Channel-specific stop response
The Siemens 6ES7322-5HF00-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Check the complete 5HF00 order number and forty-pin wiring. Other eight-channel SM 322 relay modules do not establish identical diagnostic or suppression features.
Record SJ jumper positions and each circuit's voltage, load type and required contact duty. Verify the output state expected at CPU stop before transferring configuration.
Recheck status indication and the configured diagnostic response after replacement. This review supports the exact manufacturer's technical chapter but does not establish remaining contact life or an unrestricted successor.
Features:
- Exact relay-module identity
- Jumper and load capture
- Stop-state verification
The Siemens 6ES7322-5HF00-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.
Features:
- Exact-model manufacturer data and relevant original manual pages
- Original relay wiring and SELV diagram with RC jumper, load-rating and diagnostic conditions.
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7322-5HF00-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7322-5HF00-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is every load allowed to switch at 5 A?
No. Five amperes is the maximum continuous thermal current. The switching tables distinguish voltage, resistive or inductive load and useful contact life; higher DC voltage has substantially lower permitted switching current. -
What does the SJ jumper do?
It connects an internal RC quenching element across the contact for overvoltage suppression. The network is 330 ohm and 0.1 microfarad. Without the jumper, the network's leakage path is disconnected. -
Why can an input remain on when connected to the relay output?
With an AC load and inserted SJ jumper, the manual states residual current of 11.5 mA. An RC network connected to an IEC Type 1 input can cause an unwanted signal state; the manual specifies removing the SJ jumper for that condition. -
Can SELV and higher voltages share adjacent terminals?
If one of two horizontally adjacent terminals uses SELV, the other may not exceed 120 VUC. Above that voltage, connector creepage and clearance do not meet the stated safe-separation requirement. -
Can output current be increased by parallel contacts?
No. Parallel connection for increased capacity is not supported. Redundant load control is supported only for outputs with the same load voltage. -
What happens when the CPU stops?
Configure the channel response as substitute value or hold last value. The default is substitute value, with substitute one disabled. Diagnostic interrupts are also disabled unless enabled.
