PRODUCT DESCRIPTION
Preassembled rack interface pair with a fixed one-metre connection

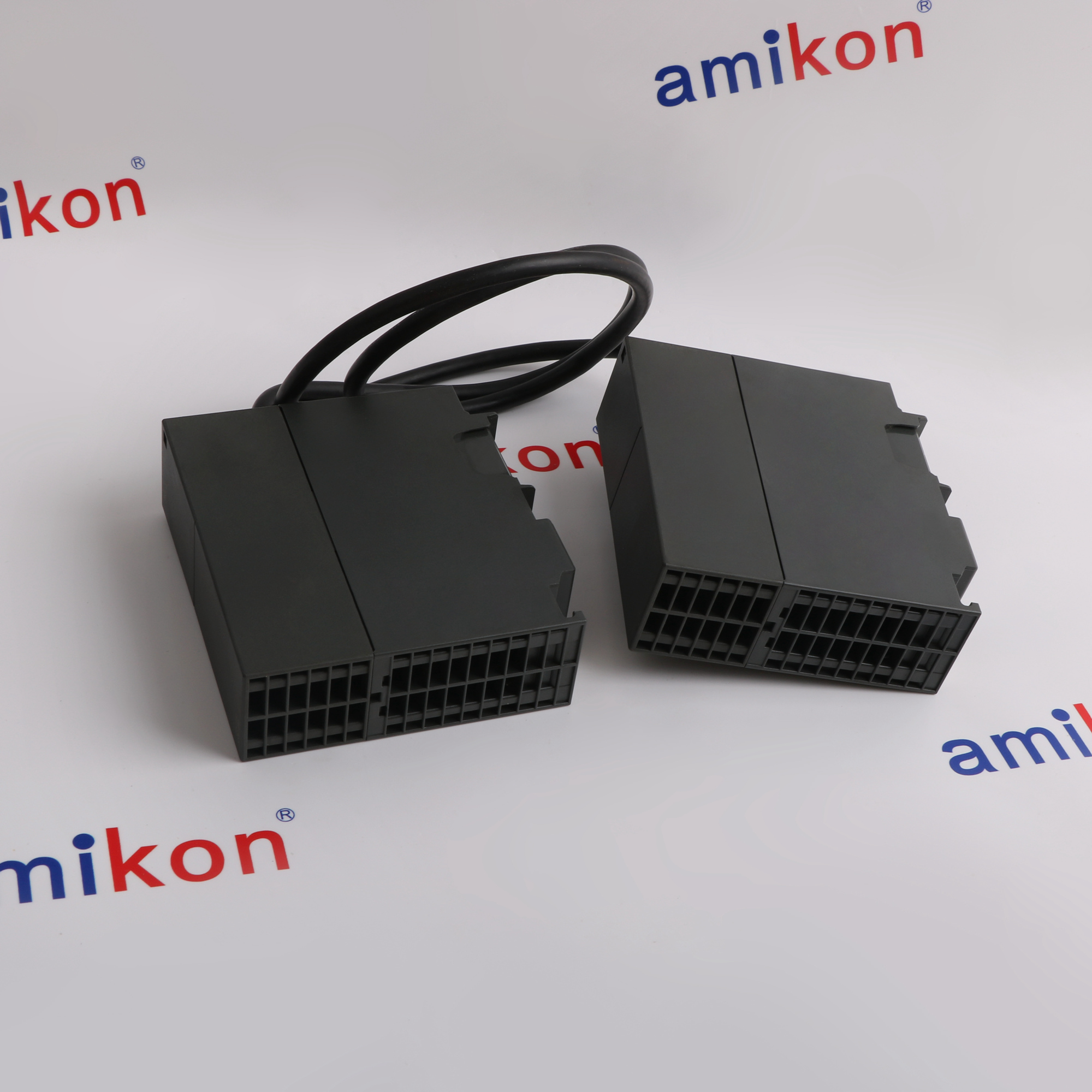

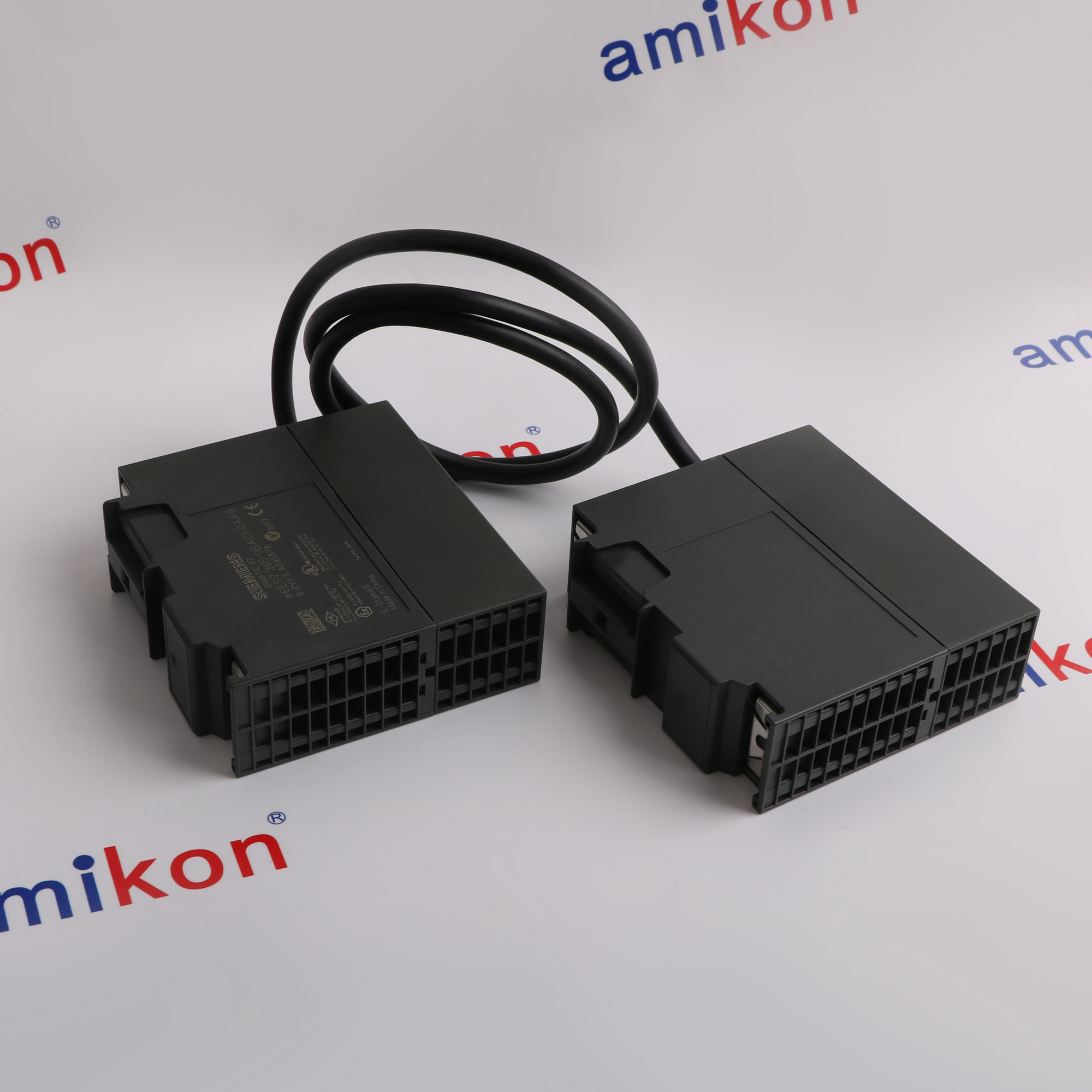

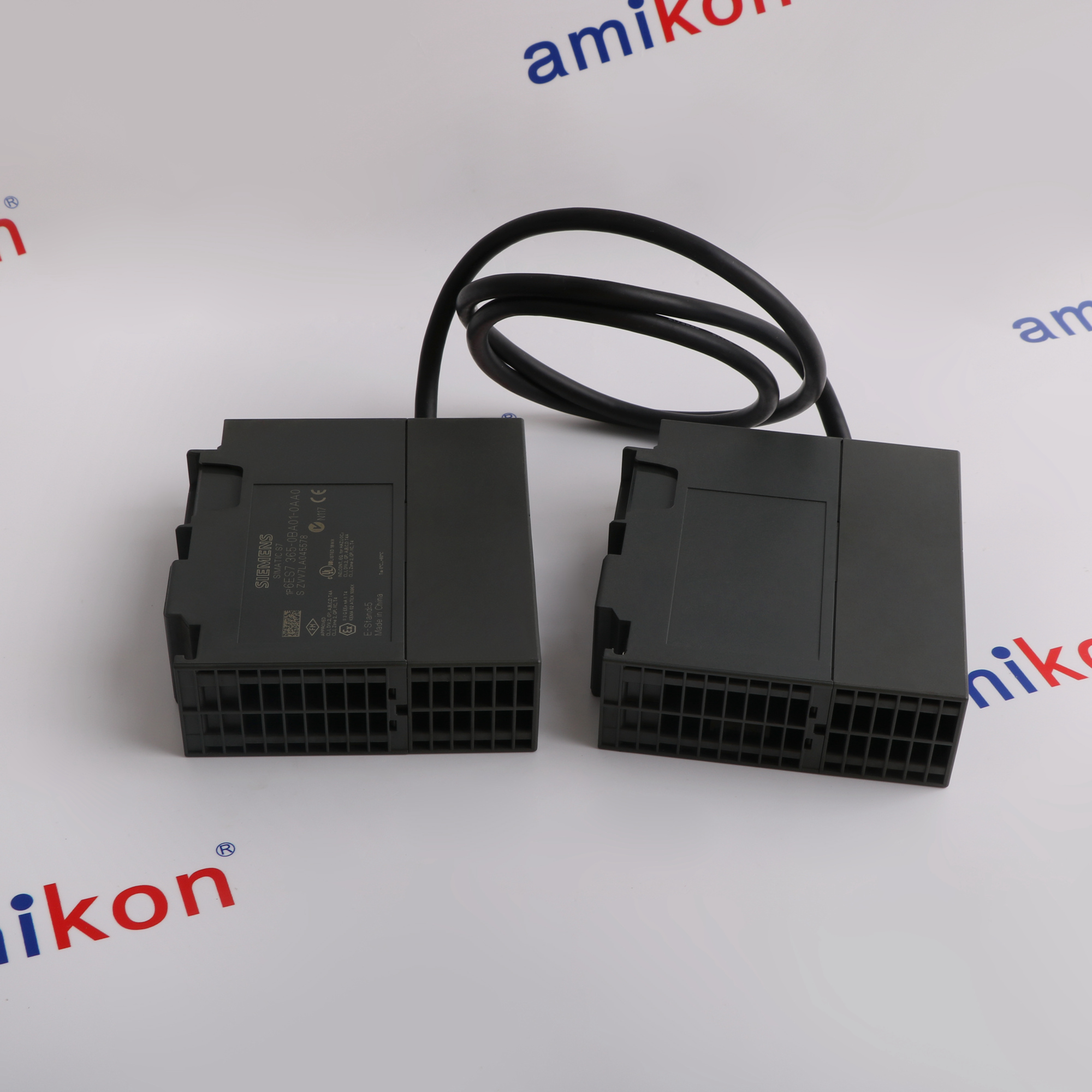

Siemens 6ES7365-0BA01-0AA0 is an IM 365 interface pair for a two-rack SIMATIC S7-300 arrangement. The preassembled sending and receiving modules connect rack zero with rack one through a permanently attached one-metre cable, preserving a defined local expansion layout.
The pair supports a total backplane supply allocation of 1.2 A, with no more than 0.8 A used by either rack. It does not extend the communication bus to rack one, restricting expansion-rack function modules that require that bus.
The pair supports a total backplane supply allocation of 1.2 A, with no more than 0.8 A used by either rack. It does not extend the communication bus to rack one, restricting expansion-rack function modules that require that bus.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7365-0BA01-0AA0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · FOOD & BEVERAGE
Food Processing and Beverage Production for Consumer Markets
Food preparation and processing for packaged consumer product supply.Commercial beverage manufacturing for retail and hospitality market distribution. -
02 · PLASTICS PROCESSING
Plastic Product Manufacturing and Industrial Material Processing
Manufacturing molded plastic products for consumer and industrial markets.Processing plastic materials through extrusion for commercial manufacturing demand. -
03 · METALS PRODUCTION
Metal Processing and Aluminum Sheet Production Operations
Rolling and finishing metal materials for industrial manufacturing demand.Production of aluminum sheet for commercial and industrial markets.
Technical specifications for 6ES7365-0BA01-0AA0
-
Product Model6ES7365-0BA01-0AA0
-
Product ParametersPreassembled Rack Expansion Interface Pair
-
ManufacturerSiemens
-
Module arrangementPreassembled pair for rack 0 and rack 1
-
Connection cable1 m, permanently connected
-
Total backplane supply allocation1.2 A maximum
-
Per-rack current allocation0.8 A maximum
-
Communication-bus extensionNot routed to rack 1
-
Backplane consumption100 mA
-
Typical power loss0.5 W
-
Status/error indicatorsNone
-
Module dimensions40 × 125 × 120 mm per module; not packaging dimensions
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
S7-300 RACK EXPANSION
Fixed local expansion between central and second rack
Fit the sending and receiving members in the rack positions shown by the original IM 365 front view. The supplied cable permanently connects the pair.
Budget total and per-rack backplane current separately. The 1.2 A total limit does not permit either rack to exceed 0.8 A.
Review the modules planned for rack 1 before expansion. The missing communication-bus path is a functional limitation, not simply a cabling detail.
Features:
- Central-to-expansion pair
- Fixed cable layout
- Rack-current budgeting
The Siemens 6ES7365-0BA01-0AA0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Confirm the complete 0BA01 order and the presence of both paired modules. Do not assume that a single loose interface is the complete documented order scope.
Check the fixed cable and both rack locations against the installed arrangement. Preserve the existing current distribution and expansion-rack module restrictions.
The exact chapter establishes technical compatibility boundaries but does not establish a current successor, factory origin or gross shipment weight.
Features:
- Complete pair identification
- Fixed-cable verification
- Rack-load compatibility
The Siemens 6ES7365-0BA01-0AA0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Paired rack placement, fixed cable layout, combined and per-rack current budgets, and communication-bus restrictions.
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7365-0BA01-0AA0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7365-0BA01-0AA0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does this order number identify one module or a pair?
It identifies the preassembled IM 365 pair for rack 0 and rack 1, including the permanently attached connecting cable. -
Can the connecting cable be extended beyond one metre?
The documented arrangement has a fixed 1 m cable and specifies 1 m as the maximum distance to the next interface. No cable extension is established by the exact chapter. -
Is 1.2 A available independently in each rack?
No. 1.2 A is the total allocation, and either rack may use no more than 0.8 A. Check both budgets together. -
Can any function module be fitted in rack one?
No. IM 365 does not route the communication bus to rack 1, so function modules requiring that bus cannot be installed there. -
Does the pair have status or error LEDs?
No. The manufacturer's technical table lists no status or error LEDs for IM 365. -
Are the published dimensions packed shipping dimensions?
No. 40 × 125 × 120 mm is the size of each module. Packaging dimensions and gross shipping weight were not established by this review.
