In Stock
Fast Shipping Available

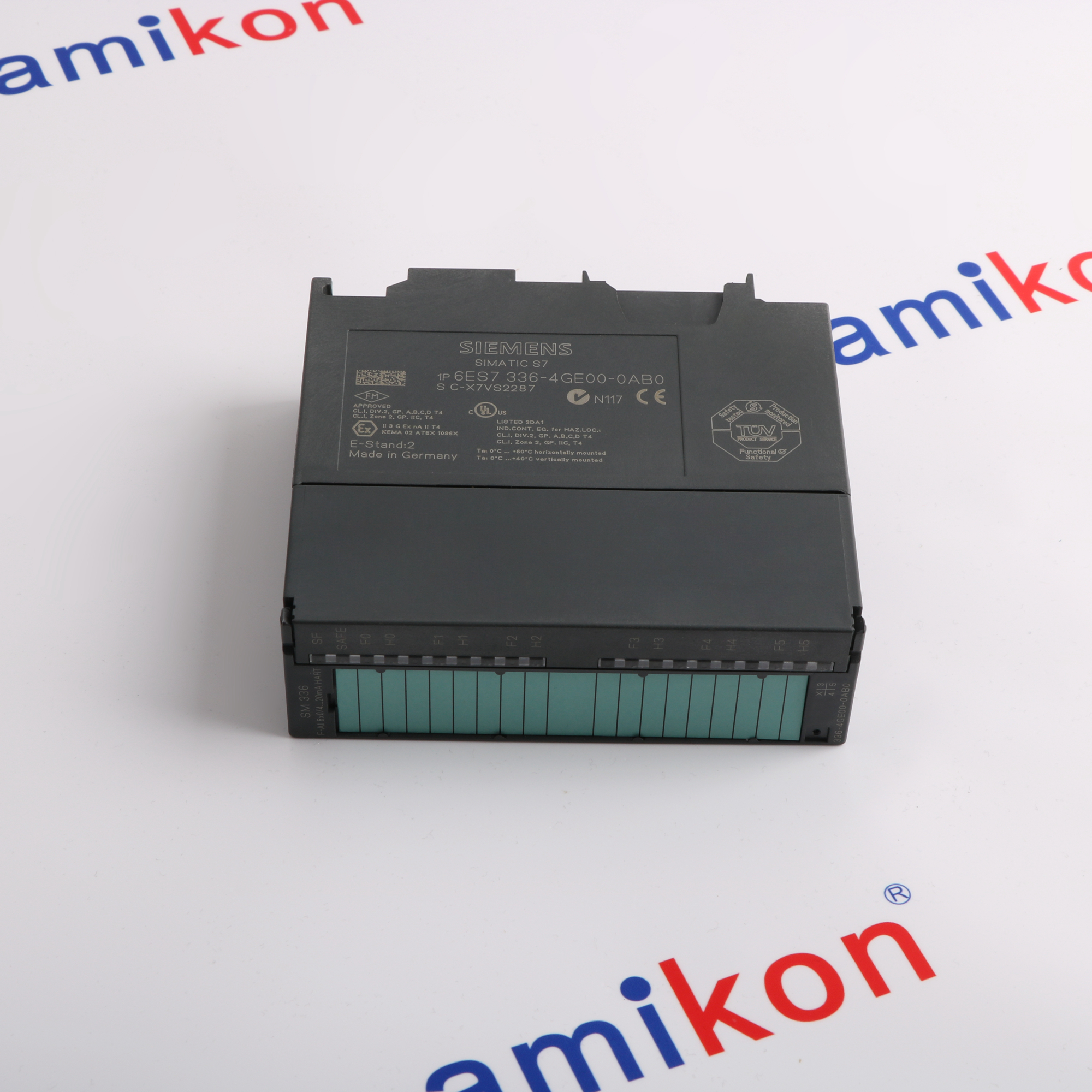

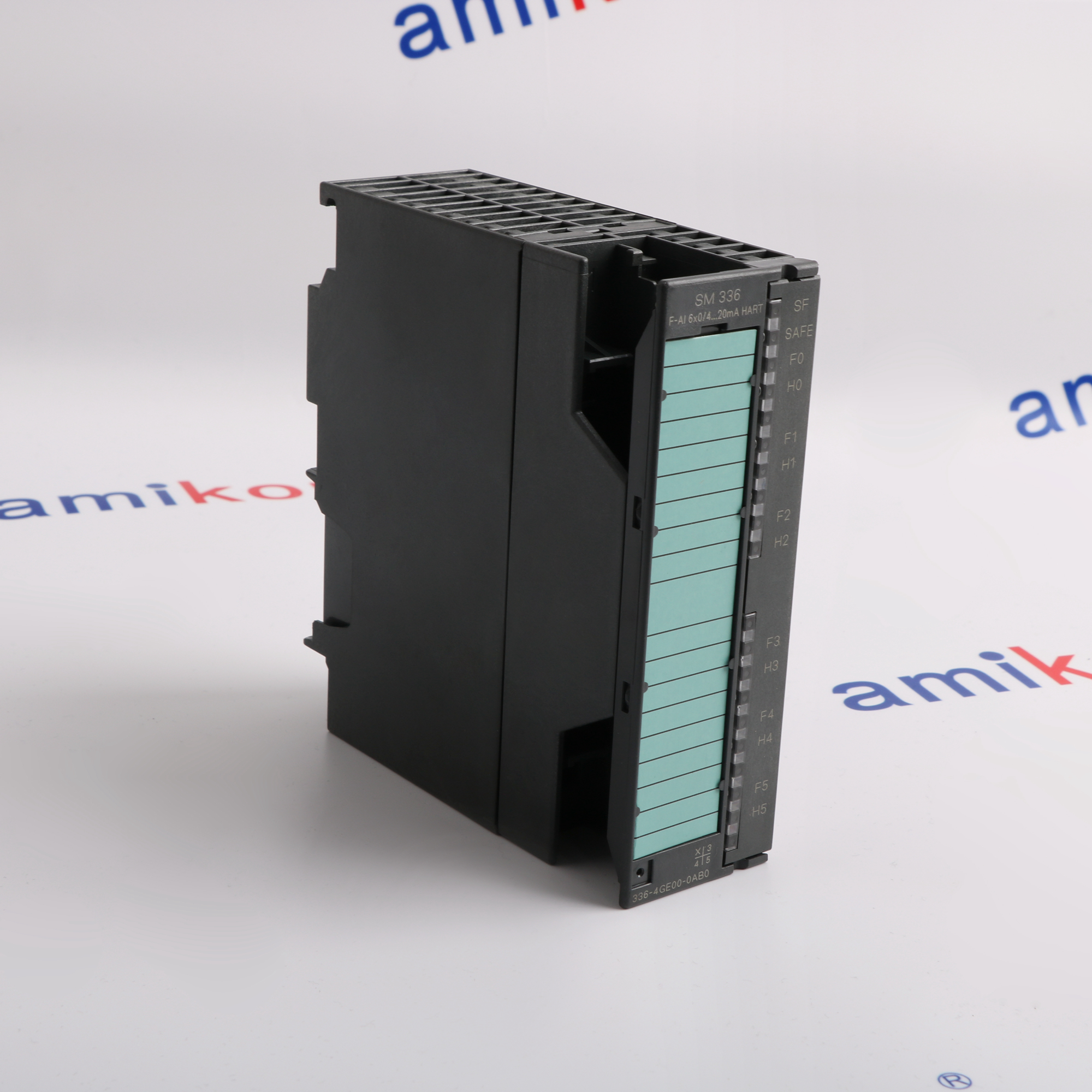

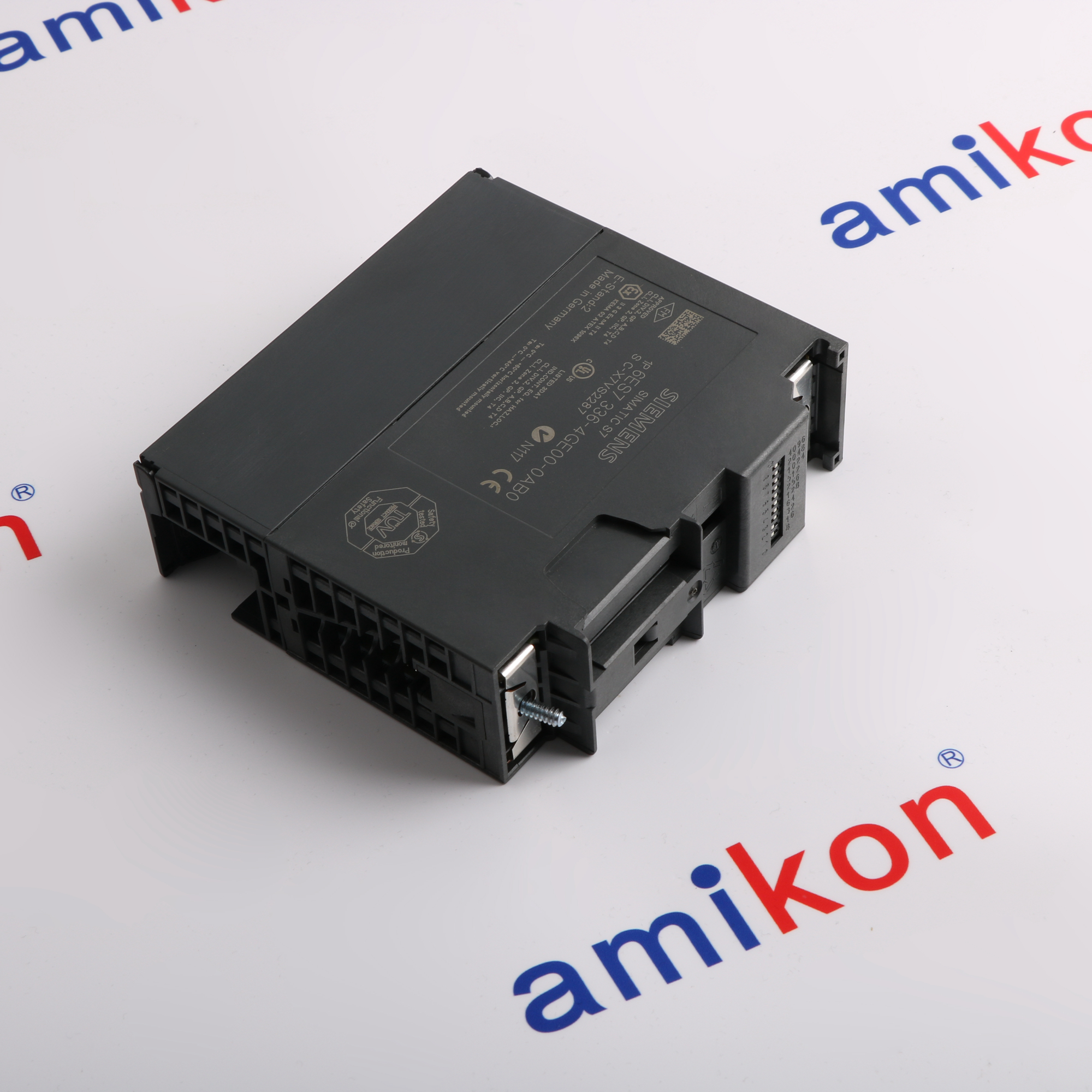

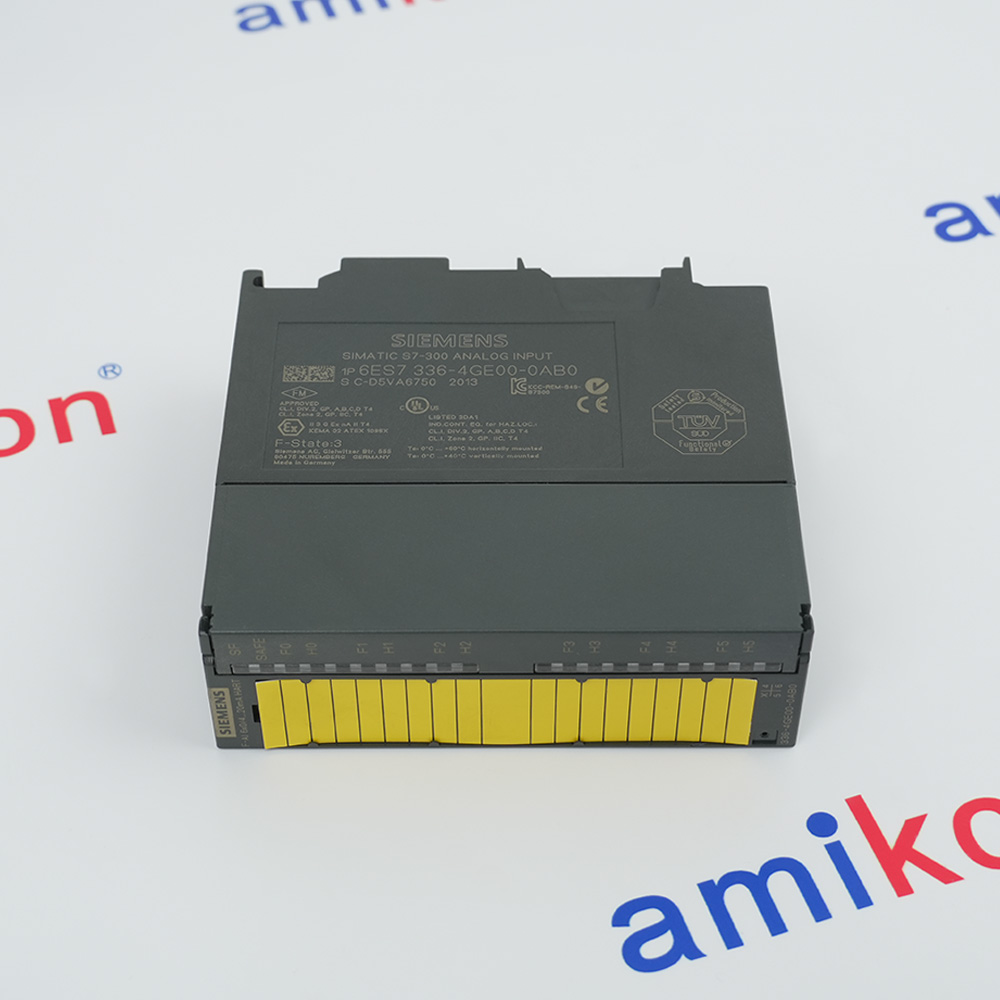

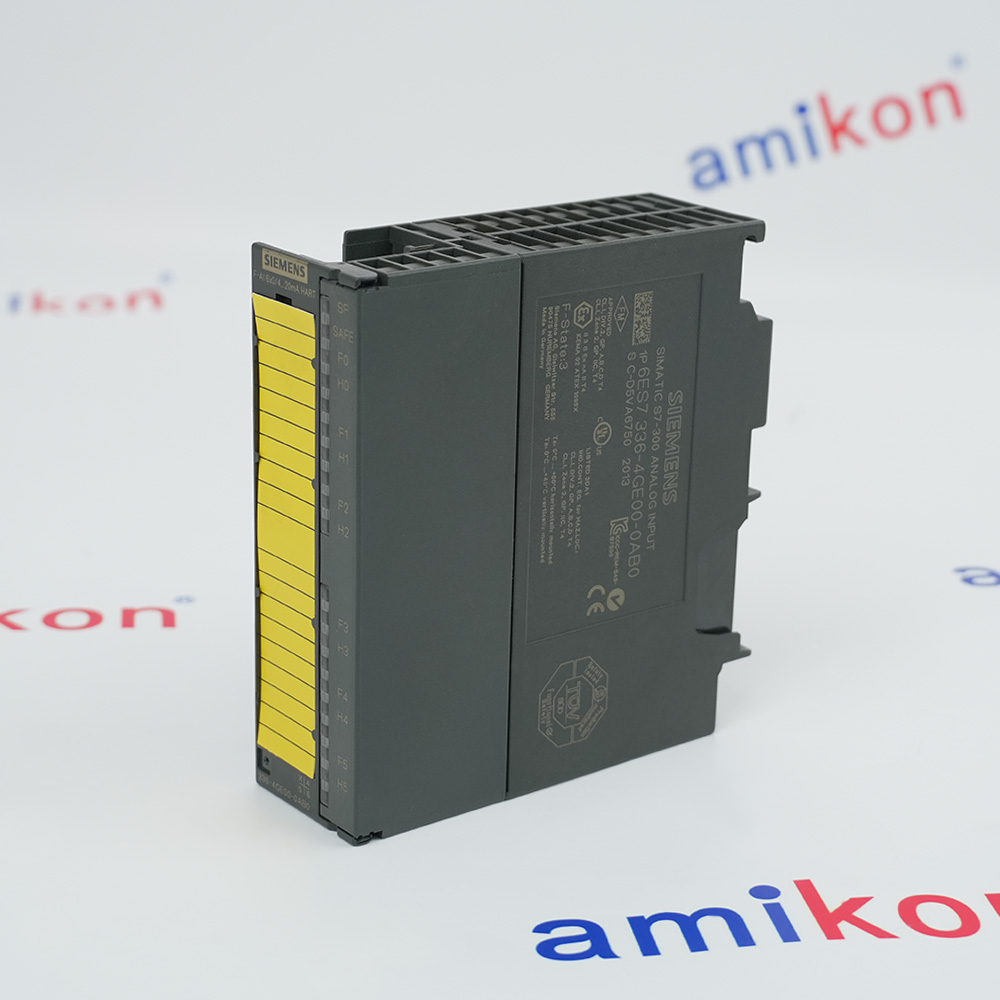

Siemens 6ES7336-4GE00-0AB0
Siemens 6ES7336-4GE00-0AB0
Siemens 6ES7336-4GE00-0AB0
Siemens 6ES7336-4GE00-0AB0
Siemens 6ES7336-4GE00-0AB0
Siemens 6ES7336-4GE00-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Friday, November 20

6ES7336-4GE00-0AB0

Fail-Safe HART Input Module

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

Six current inputs with fail-safe acquisition and HART access

Siemens 6ES7336-4GE00-0AB0 is an SM 336 fail-safe analog input module with six current measurement channels. It supports internally or externally powered two-wire and four-wire transmitters, with HART communication available for the documented four to twenty milliampere measurement range.

The module combines configurable diagnostics, monitored sensor supplies and grouped electrical isolation. Safety operation and HART parameter access remain separate functions: HART communication is not safety-oriented, and the HART Gate settings govern access alongside the required sensor qualification and safety configuration.
ACTUAL APPLICATIONS

Where 6ES7336-4GE00-0AB0 Fits Across Industrial Sectors

Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
  • 01 · METALS PRODUCTION

    Industrial Metal Rolling and Aluminum Material Production

    Industrial metal processing and rolling for commercial material supply.Aluminum sheet manufacturing and finishing for downstream production needs.
  • 02 · PACKAGING

    Commercial Packaging Production and Consumer Goods Packing

    Packaging production for food, beverage and other consumer goods.Packing industrial goods for commercial distribution and shipment preparation.
  • 03 · PLASTICS PROCESSING

    Plastics Manufacturing for Packaging and Industrial Goods

    Extrusion and molding of plastics for manufactured product supply.Processing plastic materials for commercial packaging and industrial goods.

Technical specifications for 6ES7336-4GE00-0AB0

  • Product Model
    6ES7336-4GE00-0AB0
  • Product Parameters
    Fail-Safe HART Input Module
  • In stock
    1 unit
  • Manufacturer
    Siemens
  • Input arrangement
    6 single-channel inputs or 3 two-channel measured signals
  • Measurement ranges
    0-20 mA without HART; 4-20 mA with or without HART
  • Resolution
    15 bits plus sign
  • Rated load supply
    24 V DC, reverse-polarity protected
  • Backplane current
    90 mA maximum
  • L+ current without load
    150 mA typical
  • Typical power loss
    4.5 W
  • Integration time
    20 ms at 50 Hz; 16.67 ms at 60 Hz
  • Operational error
    ±0.2% of 20 mA full scale, equivalent to ±40 µA
  • Basic error at 25°C
    ±0.1% of 20 mA full scale; HART superimposition adds ±0.12% of full scale
  • Input resistance
    150 ohm typical; 175 ohm maximum
  • Sensor supply outputs
    6 outputs, 300 mA rated per output; 1.8 A total
  • Electrical isolation
    Between channel groups 0/1/2 and 3/4/5; not within each group
  • Shielded twisted-pair cable
    1000 m maximum
  • Front connector
    20 pins
View all additional

Alternative Names

6ES7336-4GE00-0ABO 6ES7336-4GE00-OAB0 6ES7336-4GEOO-0AB0 6ES7336 4GE00 0AB0 6ES7336 4GE00 0ABO 6ES7336 4GE00 OABO 6ES7336 4GEOO 0ABO 6ES7 336-4GE00-0AB0 6ES7 336-4GE00-0ABO 6ES7 336-4GE00-OAB0 6ES7 336-4GEOO-0AB0 6ES73364GE000AB0
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SM 336 FAIL-SAFE HART INPUT

Safety measurement with separately controlled field-device access

Select the appropriate two-wire or four-wire transmitter connection and internal or external supply. External circuits require input protection, common-mode compliance and assessment of available transmitter voltage.
Configure the unique PROFIsafe destination address and the intended sensor evaluation. Internal sensor supplies are monitored; the achieved safety function still depends on qualified field devices and the complete configuration.
Treat HART parameter access separately from fail-safe measured values. Establish gate control and field-device write protection, and account for external handheld access when planning safe maintenance.

Features:

  • Qualified transmitter arrangements
  • Grouped galvanic isolation
  • Controlled HART parameter access
The Siemens 6ES7336-4GE00-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY

Verify the complete replacement identity before commissioning

Confirm the exact 4GE00 order number and covered product version. Do not substitute the older 1HE00 module using only its shared SM 336 designation.
Record transmitter supply, input protection, range, sensor evaluation, PROFIsafe address and HART settings. Preserve the installed channel grouping and unused-pair termination.
Use the host's documented replacement and reintegration procedure. Recheck analog values and HART access conditions before returning affected channels to the safety function.

Features:

  • Exact module identification
  • Safety and HART configuration capture
  • Controlled signal reintegration
The Siemens 6ES7336-4GE00-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

Features:

  • Exact-model manufacturer data and relevant original manual pages
  • Fail-safe current input connections, transmitter supply and input protection, available sensor voltage, unused paired-channel termination and HART Gate precautions.
  • Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7336-4GE00-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Packed size
    Confirm final packed dimensions
    Shipping weight
    Confirm final packed weight
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8538900000
    Origin
    Confirm supplied-unit origin
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about 6ES7336-4GE00-0AB0

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • Is this module usable as an ordinary standard-mode input?

    The exact chapter specifies safety operation only. Select the documented single or redundant sensor evaluation and complete the required safety configuration; do not transfer standard-mode options from 1HE00.
  • Can HART be used with the zero-to-twenty milliampere range?

    No. The documented 0-20 mA range has no HART support. HART operates with the 4-20 mA range, and its wider communication-current envelope is not an additional valid measurement range.
  • Are all six inputs isolated from one another?

    No. Isolation is between the two potential groups comprising channels 0/1/2 and 3/4/5. Inputs within the same group are not individually isolated.
  • What extra protection is needed with externally powered transmitters?

    External supply arrangements require the prescribed input-resistor protection and supply-stability assessment. A short circuit from external L+ to a measurement input can destroy its input resistor; follow the fuse and voltage conditions in the corresponding wiring scheme.
  • How is an unused member of a partially used input pair connected?

    For the documented 1oo1 case with only one channel of a pair used, connect the unused channel through a resistor so that a current of 4-20 mA flows. Follow the exact terminal arrangement rather than leaving that paired input open.
  • Does the HART Gate make HART a safety protocol?

    No. HART is not safety-oriented. When the gate is open for a device without write protection, check input plausibility or temporarily exclude that channel from the safety function as specified. An external handheld can bypass the module's HART Gate.
