PRODUCT DESCRIPTION

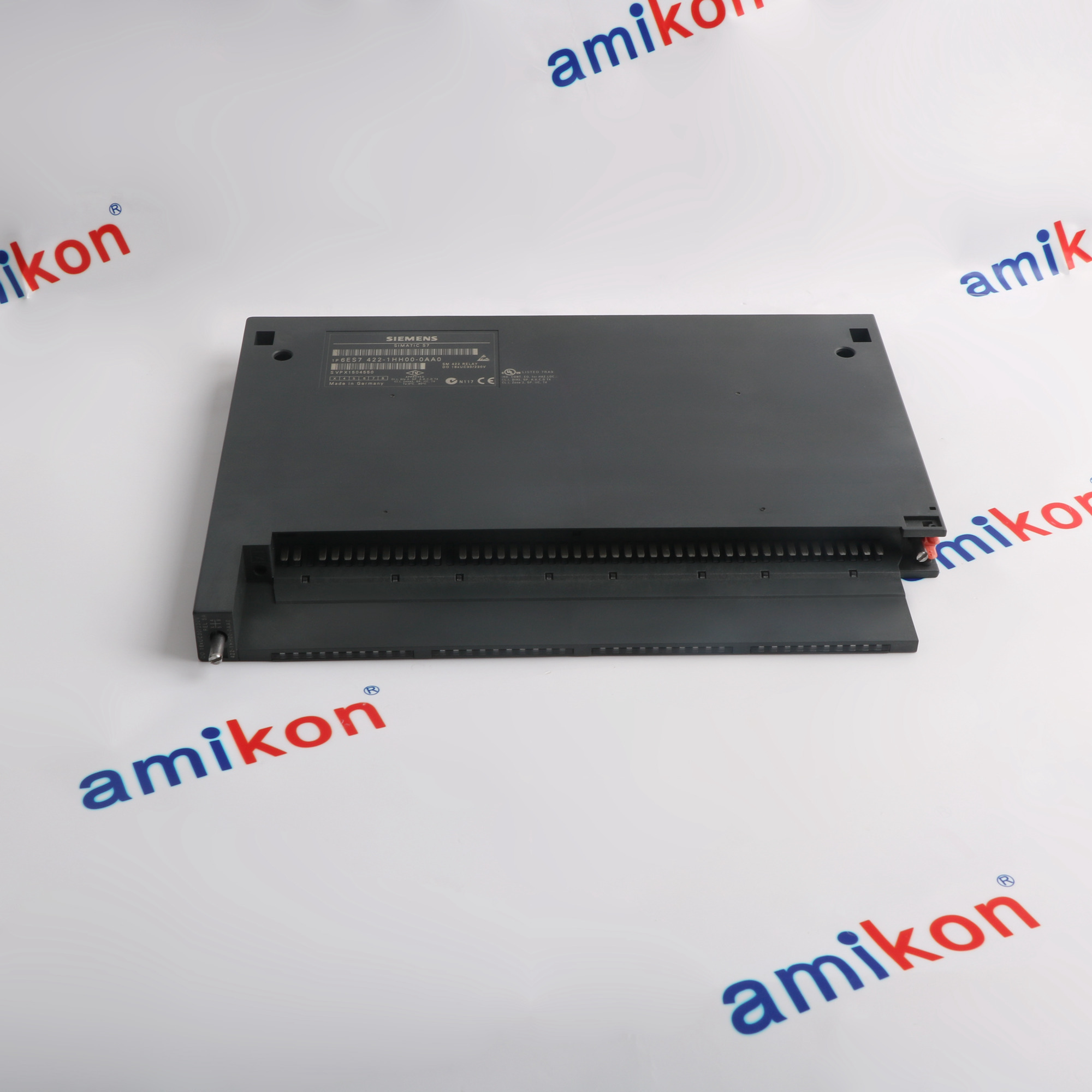

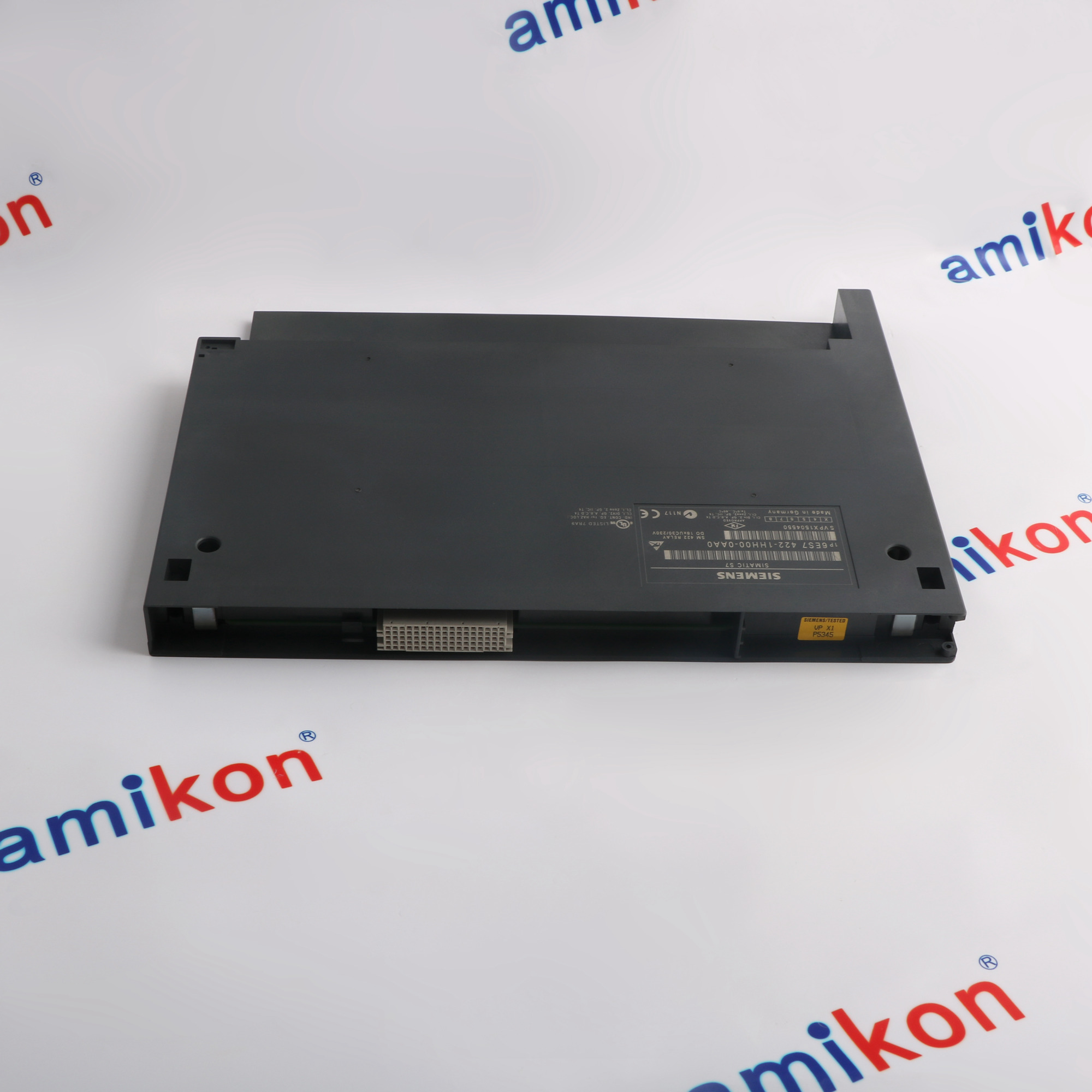

6ES7422-1HH00-0AA0 SM 422 sixteen-channel relay output module

Siemens 6ES7422-1HH00-0AA0 is an isolated SM 422 digital output module for the SIMATIC S7-400 automation platform. It supplies relay-based switching channels for discrete field loads in modular controller stations. The manufacturer data further identifies the system family as SIMATIC S7-400, the module designation as SM 422, the module type as Digital relay output module, the digital outputs as 16, the output technology as Relay contacts, the output isolation as Isolated channels, and the load voltage range as 5 to 230 V AC.

The module provides sixteen relay outputs for circuits from 5 to 230 V AC, with a documented load capability up to 5 A. The relay channels electrically separate the controller backplane from the connected field circuits. The remaining technical data identifies the load current as Up to 5 A, the signal direction as Controller to field, the backplane interface as S7-400 system bus, the field function as Discrete load switching, the channel grouping as Sixteen relay points, the output state as Binary switching, the controller format as Modular S7-400, and the application class as Industrial output control.
ACTUAL APPLICATIONS

Application fields for 6ES7422-1HH00-0AA0

6ES7422-1HH00-0AA0 is used across compatible installations in the following broad industrial application fields, subject to verified system design and operating requirements.
  • 01 · POWER GENERATION

    Thermal, Hydroelectric and Renewable Power Generation

    Thermal and hydroelectric power productionRenewable generation and energy integration
  • 02 · CHEMICAL PROCESSING

    Chemical and Petrochemical Manufacturing

    Industrial chemical productionPetrochemical production and processing
  • 03 · METALS & MINING

    Metal Processing and Mineral Resource Production

    Ferrous and nonferrous metal productionMineral extraction and processing

Technical specifications for 6ES7422-1HH00-0AA0

  • Product Model
    6ES7422-1HH00-0AA0
  • Product Parameters
    SM 422 sixteen-channel relay output module
  • In stock
    1 unit
  • Manufacturer
    Siemens
  • System family
    SIMATIC S7-400
  • Module designation
    SM 422
  • Module type
    Digital relay output module
  • Digital outputs
    16
  • Output technology
    Relay contacts
  • Output isolation
    Isolated channels
  • Load voltage range
    5 to 230 V AC
  • Load current
    Up to 5 A
  • Signal direction
    Controller to field
  • Backplane interface
    S7-400 system bus
  • Field function
    Discrete load switching
  • Channel grouping
    Sixteen relay points
  • Output state
    Binary switching
  • Controller format
    Modular S7-400
  • Application class
    Industrial output control
View all additional

Alternative Names

Siemens SM 422 sixteen-channel relay output module SIMATIC S7-400
