Technical specifications for 6DR5020-0NG13-0AA0
-
Product Model6DR5020-0NG13-0AA0
-
Product ParametersSIPART PS2 smart electropneumatic positioner
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size21.1x10.2x11cm
-
ManufacturerSiemens
-
Weight1.04 kg
-
Input signal4…20 mA (2-wire)
-
Power supply2-wire, powered by the 4…20 mA signal loop
-
Input impedance≤ 300 Ω (at 20 mA)
-
Resolution (A/D converter)≤ 0.05%
-
Sampling time12.5 ms
-
Transmission error≤ 0.2%
-
Temperature effect≤ 0.1% / 10 K
-
Solid particle content< 30 μm
-
Dew point requirement20 K below the lowest ambient temperature
-
Steady-state air consumption< 0.036 Nm³/h
Description

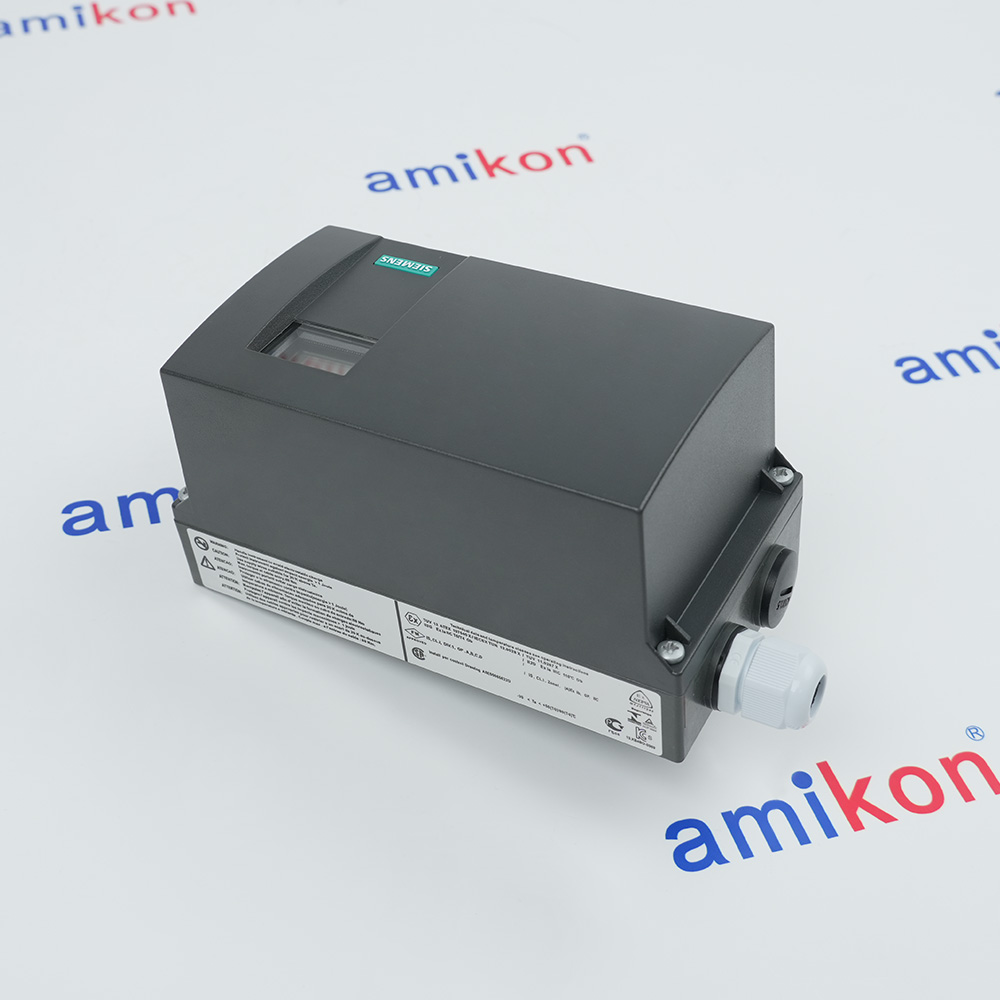

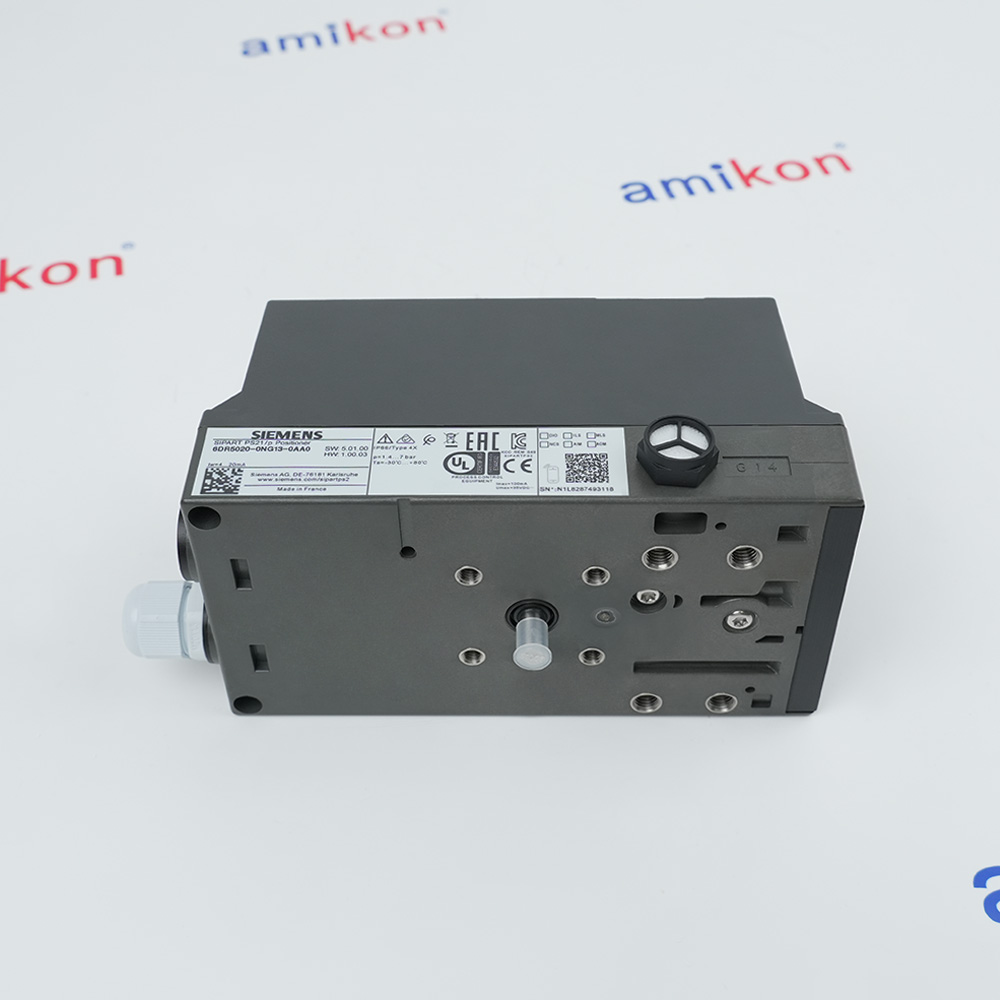

The SIEMENS 6DR5020-0NG13-0AA0 is a SIPART PS2 series smart electropneumatic positioner suitable for precise control of pneumatic linear and part-turn actuators. This product uses a 2-wire 4…20 mA signal input and requires no additional power supply; the signal loop simultaneously provides operating power for the device.
The positioner features a polycarbonate enclosure with a protection rating of IP66 / NEMA 4X, suitable for general industrial environments without explosion protection requirements. It incorporates a highly integrated microprocessor and achieves extremely low air consumption through piezo valve technology — during steady-state operation the air consumption is negligible, with instrument air consumed only when the valve is in motion, significantly reducing operating costs.
The positioner features a polycarbonate enclosure with a protection rating of IP66 / NEMA 4X, suitable for general industrial environments without explosion protection requirements. It incorporates a highly integrated microprocessor and achieves extremely low air consumption through piezo valve technology — during steady-state operation the air consumption is negligible, with instrument air consumed only when the valve is in motion, significantly reducing operating costs.
Alternative Names
6DR5020 0NG13 0AA0
6DR5 020-0NG13-0AA0
6DR5O2O-ONG13-OAAO
6DR5020-0NGI3-0AA0
6DR5O2O ONG13 OAAO
6DR5020 0NGI3 0AA0
Information
Overview
Manuals
Engineering Considerations
Product Applications
Mechanical Mounting
Features:
- SIPART PS2 Series Smart Electropneumatic Positioner
- 2-wire (4…20 mA), without HART protocol
- Double-acting actuator
- Enclosure: Polycarbonate (Makrolon)
Position detection is performed using an internal servo potentiometer. If an additional internal potentiometer is required for redundant position detection, it can be ordered with order code -Z K11. The product supports automatic initialization, which automatically determines the zero point, end position, direction of motion, and speed, and optimizes the minimum pulse time and dead zone parameters.
The 6DR5020-0NG13-0AA0 Siemens SIPART PS2 smart electropneumatic positioner may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6DR5020-0NG13-0AA0 SIPART PS2 smart electropneumatic positioner Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The operation interface is equipped with three pushbuttons and a two-line LCD display, supporting on-site parameter setting and diagnostics. Remote configuration and programming are also possible via SIMATIC PDM software. The positioner provides extensive diagnostic functions, including operating time logging, temperature measurement (current temperature, minimum/maximum temperature memory, operating time in each temperature range), setpoint alarm detection, online valve seat monitoring, cumulative travel monitoring, cycle counting, 100% valve position detection, and dead zone compensation.
- Water and Wastewater Management:Regulates flow, dosing & filtration valves
- Food and Beverage Production:CIP loops, mixing & steam lines
- Pulp and Paper Industry:Stock lines, water & additives flow
- Pharmaceutical and Biotech Plants:Clean utilities & blending processes
- Power and Energy Utilities:Cooling, condensate & feed water
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Actuator Bracket Rigidity: Use a high-strength mounting console with a sheet metal thickness of > 4 mm paired with reinforcement ribs. This minimizes structural flex and eliminates positional measurement tracking lag.
Linear Actuator Alignment: Use the standard IEC 60534 linear mounting kit. Fix the feedback lever assembly onto the valve stem connecting block. Ensure the lever operates perpendicular to the valve stem at exactly 50% of its full stroke to maintain linear control geometry.
Technical notes
This model is configured for double-acting actuator control, capable of simultaneously controlling the supply and exhaust of both pressure chambers, suitable for pneumatic actuators without spring return. The positioner includes a built-in Digital I/O Module (DIO), providing 1 digital input and 3 digital outputs (2 minimum/maximum limit values, 1 fault indication), and is optionally available with an M12 device plug (D-coding, order code -Z D55). It also integrates an Analog Output Module (AOM) and an Analog Input Module (AIM), supporting the connection of external position transmitters and the output of position feedback signals.
FAQs
-
What is the 6DR5020-0NG13-0AA0？
+The Siemens 6DR5020-0NG13-0AA0 is a SIPART PS2 smart electropneumatic positioner for pneumatic linear and part-turn actuators. It operates using a 2-wire, 4 to 20 mA input signal and features a polycarbonate enclosure without explosion protection. -
What type of actuator can I use this positioner with?
+It is designed for standard pneumatic linear and part-turn actuators and functions in double-acting configurations. -
What is the control input signal?
+It utilizes a standard 2-wire, 4 to 20mA analog control current. -
What are the connection thread sizes?
+The electrical connection is M20x1.5, and the pneumatic thread is G 1/4.
