- 9468/33-08-10

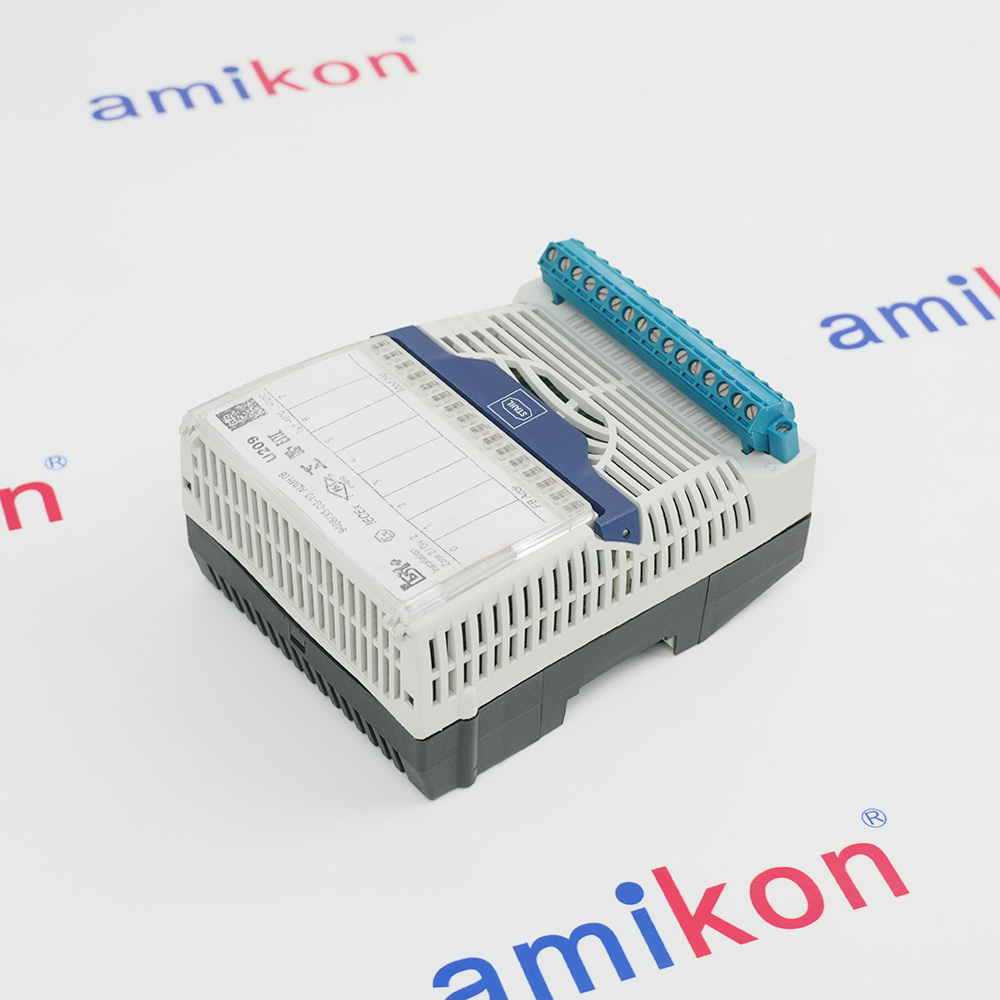

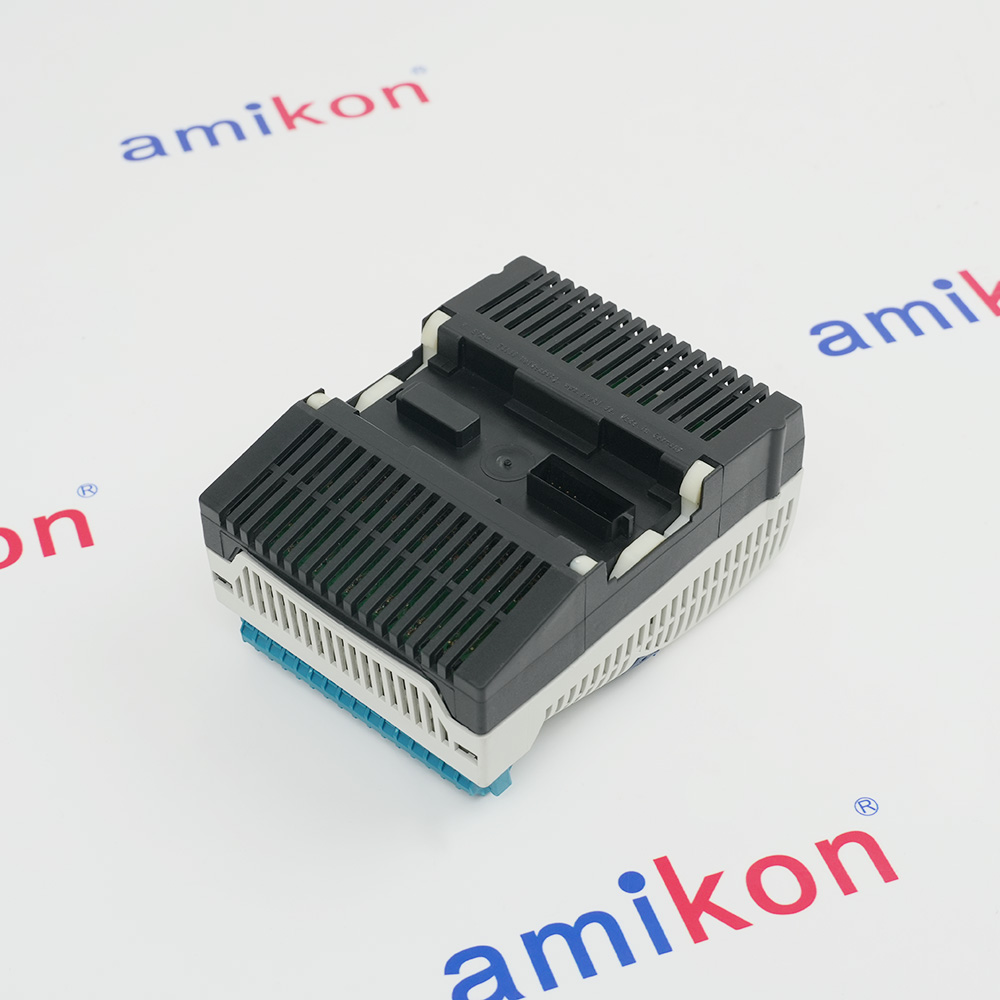

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 9468/33-08-10
-
Product Model9468/33-08-10
-
Product ParametersHART Analog Universal Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size9.5x12.8x6.5cm
-
ManufacturerStahl
-
Weight0.2 kg
-
Application range (zones)2
-
Ex interface zone0, 1, 2, 20, 21, 22
-
Max. voltage Uo/Voc24.4 V
-
Max. current Io (2-conductor)80 mA
-
Max. power Po (2-conductor)488 mW
-
Max. current Io (3-wire)81.8 mA
-
Max. power Po (3-wire)499 mW
-
Number of channels8 Ex i inputs/outputs
-
Min. signal0 mA
-
Supply voltage16 V, at 20 mA for 2-conductor transmitters
Description
9468/33-08-10
9468/33 series
HART Analog Universal Module
Zone 2, Cl. I, II, Div
9468/33 series
HART Analog Universal Module
Zone 2, Cl. I, II, Div
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Installation
Features:
- Eight channels can be used individually as inputs or outputs
- Intrinsically safe Ex ia IIC inputs/outputs with line fault monitoring
- Module in Zone 2, Cl. I, II, Div. 2 can be hot swapped
The 9468/33-08-10 STAHLRemote I/O Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
STAHL 9468/33-08-10 Remote I/O Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The R. STAHL 9468/33-08-10 (Art. No. 210660) is a HART analog universal module designed for IS1+ Remote I/O systems, specifically for use in hazardous areas. It is for mounting in Zone 2 or Class I, Div. 2. Each channel can be configured individually as an input or output for 2-/3-conductor HART transmitters, 4-conductor transmitters, or control valves/positioners.
- Process Control Units:0/4-20 mA signals for control valves & positioners
- Transmitter Systems:2/3/4-wire HART transmitters for pressure, flow & temp
- Offshore and Marine Equipment:Compact design for FPSOs & LNG tankers with limited space
- HVAC and Cooling Systems:Compatible with ExSys Cool 8701 for explosive atmospheres
- Machine Building & Manufacturing:Explosion-protected modular machines for petrochemical, pharma & food
- Hydrogen Production Facilities:Integrated into H2 production/transport requiring high explosion protection
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The module must be snapped onto an IS1+ BusRail (Series 9494). It is held in place by a red notch at the top and a black notch at the bottom.
Hot-Swapping: You can plug or remove the module while the system is energized (Hot Swap) even in Zone 2 / Division 2, provided the explosive atmosphere is not continuously present.
Orientation: It should be mounted vertically to ensure optimal heat dissipation.
FAQs
-
What is the STAHL 9468/33-08-10？
+The STAHL 9468/33-08-10 HART Analog Universal Module is an 8-channel intrinsically safe (Ex i) remote I/O module for Zone 2, handling 0/4-20 mA signals for transmitters (2-/3-/4-wire) and positioners. -
What is the primary application of the 9468/33-08-10 module?
+It is used for connecting intrinsically safe (Ex i) 2-/3-conductor HART transmitters, 4-conductor transmitters, or control valves/positioners (0/4-20 mA) to the IS1+ Remote I/O system in Zone 2. -
Can this module be used for4-conductor HART transmitters?
+Yes, but to operate an active 4-conductor HART transmitter, a 9164 type isolating repeater must be installed between each channel. -
What type of signals does the module support?
+The eight channels are universal, supporting 0/4 to 20 mA signals for both input (transmitters) and output (positioners).
