Technical specifications for EA402 913-402-000-013
-
Product ModelEA402 913-402-000-013
-
Product ParametersProximity measurement system
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4x18.6x26.1cm
-
ManufacturerVibro-Meter
-
Weight0.52 kg
-
Voltage−20 to −32 V
-
Current−13 mA ±1 mA
-
Supply input capacitance1 nF
-
Supply input inductance100 µH
-
Operating−35 to +85°C
-
Storage−40 to +85°C
-
Humidity95% max. non-condensing
Description

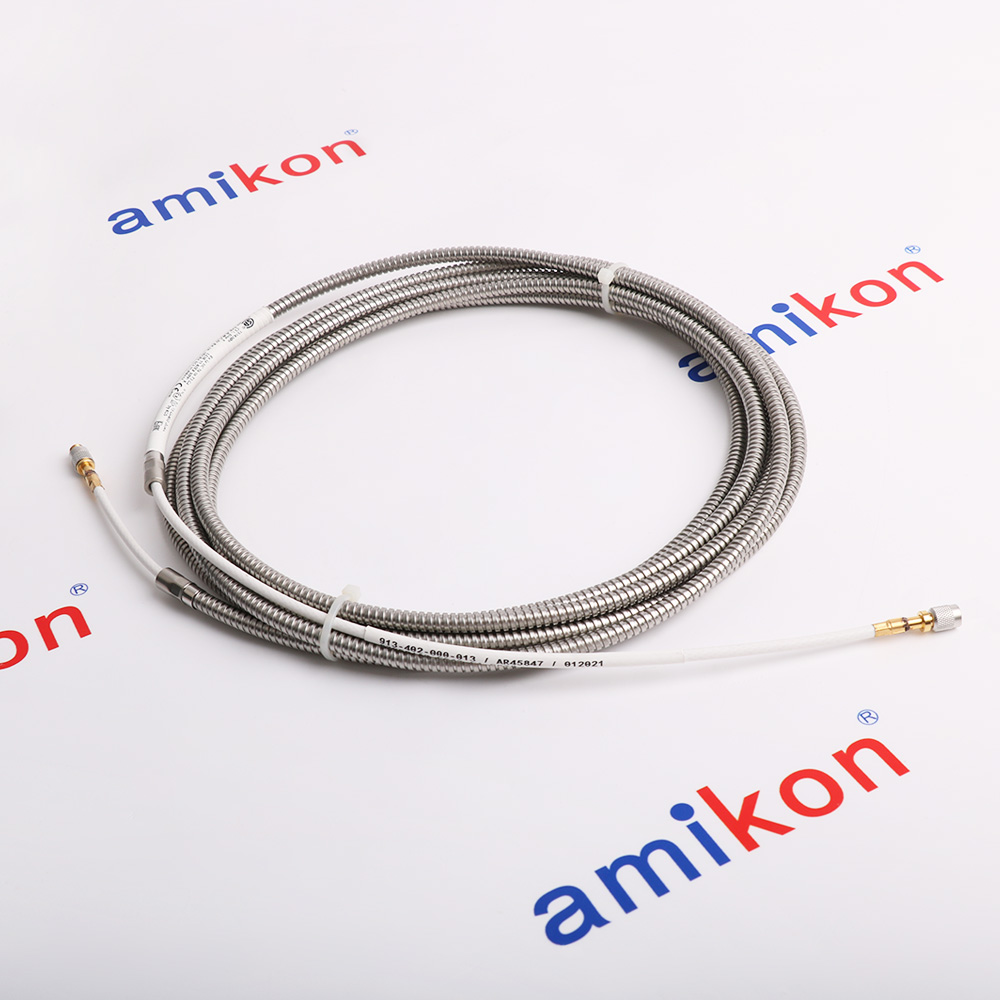

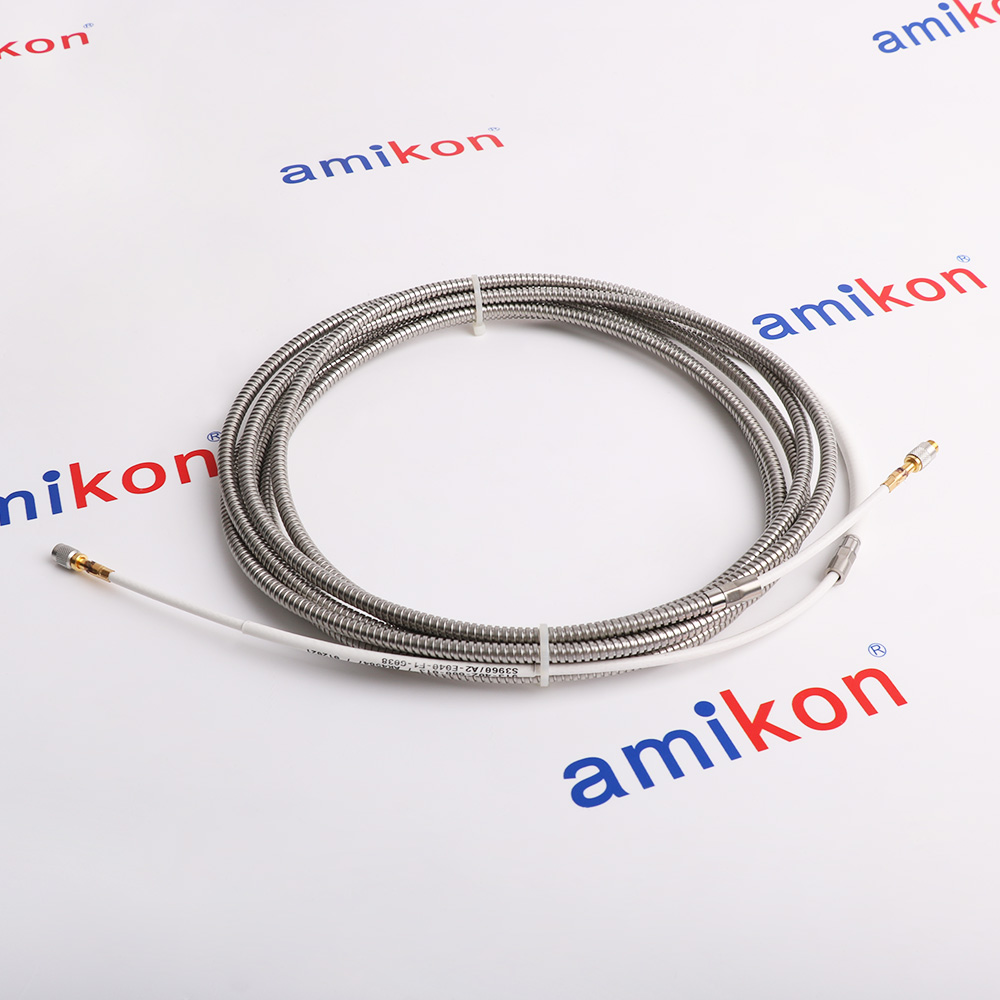

The Vibro-Meter EA402 913-402-000-013 is a precision extension cable used in Vibro-Meter eddy-current proximity measurement systems. It serves as the connection link between TQ-series proximity transducers and IQS-series signal conditioners, maintaining the calibrated characteristics required for accurate shaft displacement and vibration measurements.
The EA402 is specifically designed for use with TQ402 and TQ412 proximity transducers. When combined with an IQS450 or IQS900 signal conditioner, it forms a complete proximity measurement chain capable of non-contact measurement of shaft vibration, axial position, eccentricity, and shaft displacement in rotating machinery.
The EA402 is specifically designed for use with TQ402 and TQ412 proximity transducers. When combined with an IQS450 or IQS900 signal conditioner, it forms a complete proximity measurement chain capable of non-contact measurement of shaft vibration, axial position, eccentricity, and shaft displacement in rotating machinery.
Alternative Names
EA402 913 402 000 013
EA 402 913-402-000-013
EA4O2 913-4O2-OOO-O13
EA 402 9I3-402-000-0I3
EA4O2 913 4O2 OOO O13
EA402 9I3 402 000 0I3
Information
Overview
Manuals
Application Notes
Product Applications
Grounding & Shielding
Features:
- Non-contact measurement system based oneddy-current principle
- Ex certified versions for use in hazardous areas
- Conforms to API 670 recommendations
- Temperature-compensated design
- Voltage or current output with protectionagainst short circuits
The EA402 features high-quality construction with FEP-covered 70Ω coaxial cable (Ø3.6mm) and self-locking miniature coaxial connectors that should be hand-tightened when connecting. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables involving the EA402.
The EA402 913-402-000-013 Vibro-Meter Proximity Measurement System may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro-Meter EA402 913-402-000-013 Proximity Measurement System Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The probe operates continuously from –51°C to +177°C for both the probe tip and cable. Storage temperature spans the same range. Standard system lengths are 5.0 m and 9.0 m, achieved with appropriate probe and extension cable combinations.
The EA402 913-402-000-013 carries no agency approvals as standard. For hazardous area installations, specify the appropriate agency approval option.
The EA402 is used for radial vibration measurement, thrust position monitoring, differential expansion measurement, and speed/phase reference detection on critical rotating machinery including gas turbines, steam turbines, compressors, pumps, and motors. The target surface must be a minimum of 15 mm in diameter for proper field distribution with the 8.0 mm probe tip.
- Gas Turbine Combustor Monitoring:Tracks dynamic pressure pulsations to prevent acoustic fatigue
- Power Generation Facilities:Nuclear/hydro/thermal: safeguards high-vibration zones
- Oil Refining and Petrochemical Processing:Tracks rapid pressure fluctuations in compressors/pumps
- Automated Assembly Lines:Step-by-step diagnostics & cycle tracking for auto/electronics
- Hazardous Industrial Zones:Class I Div2: oil/gas, chemical mixers & paint booths
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cable Shield: The cable shield must be properly grounded at the designated instrumentation cabinet or terminal blocks to prevent Electromagnetic Interference (EMI) from disrupting the signal.
Routing: Route the extension cable separate from high-power, high-voltage, or variable-frequency drive (VDF) cables to avoid induced electrical noise.
Cable Ties: Use soft cable ties and avoid over-tightening with tools (like pliers), which can deform the coaxial geometry and alter signal impedance.
Technical notes
The EA400 series delivers a linear range of 2.0 mm (80 mils) with sensitivity of 4 mV/µm (100 mV/mil) or 8 mV/µm (200 mV/mil) depending on system configuration. System output is typically –2 VDC at the target gap. The sensor requires a companion signal conditioner and, for longer system lengths, a matching extension cable to complete the transducer system.
