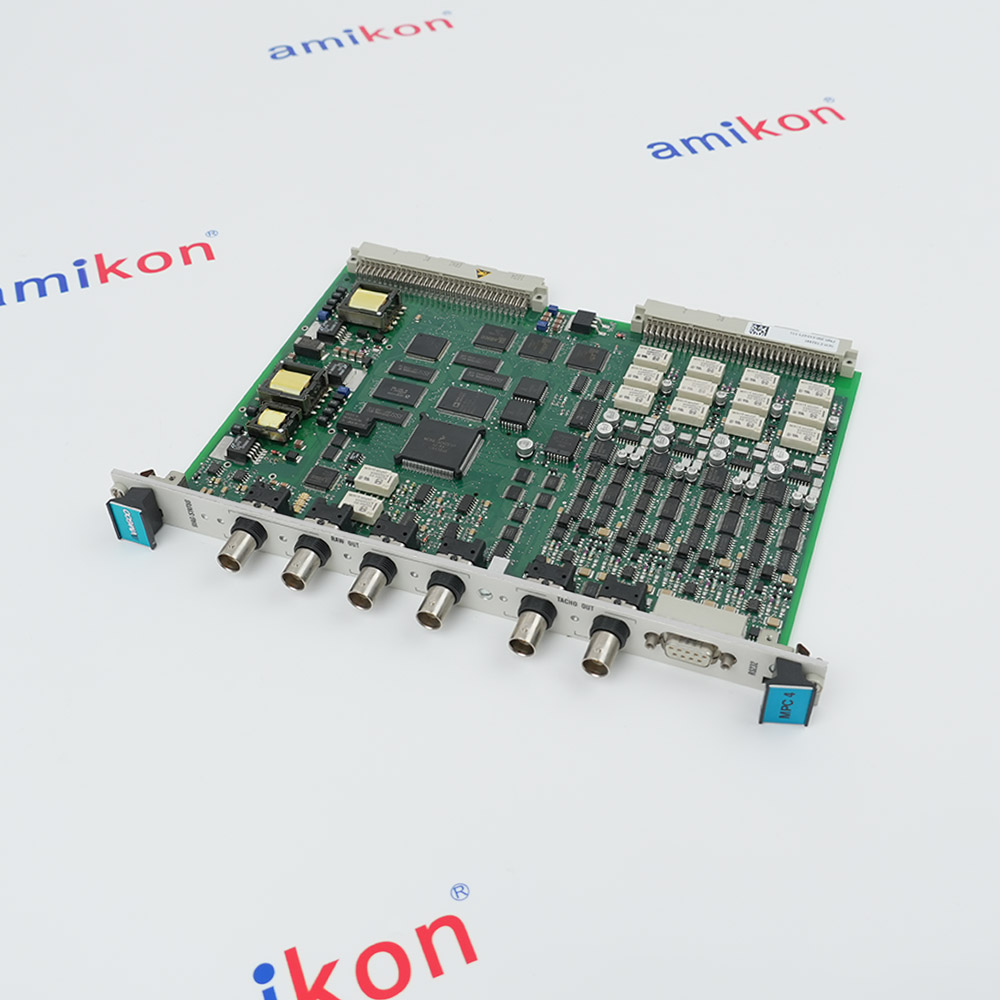

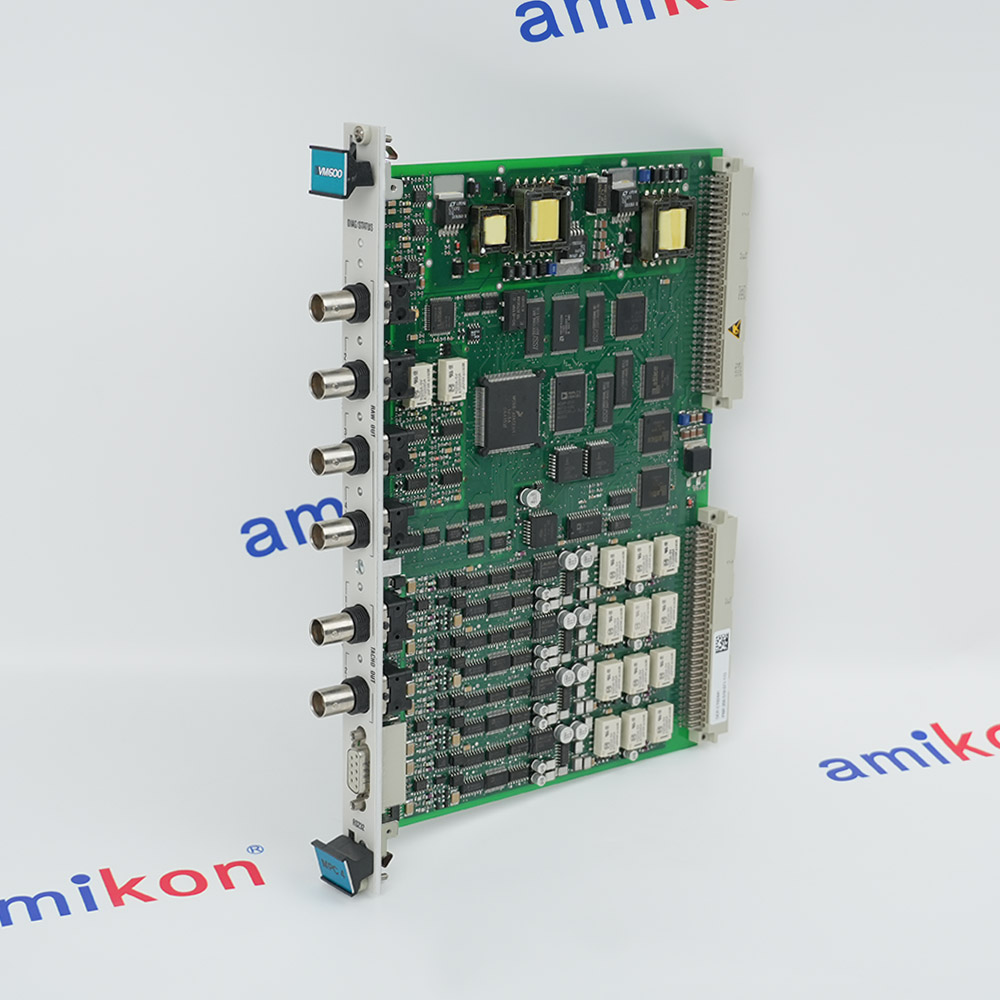

- VM600 MPC4 200-510-071-113
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for VM600 MPC4 200-510-071-113
-
Product ModelVM600 MPC4 200-510-071-113
-
Spare Model200-510-071-113
-
Product ParametersMachinery protection card
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x18.6x26.1cm
-
ManufacturerVibro-Meter
-
Weight0.52 kg
-
Number of inputs4 per MPC4 card
-
DC range0 to +20 V or 0 to −20 V
-
AC range±10 V max
-
Common mode voltage range−50 to +50 V
-
CMRR>60 dB at 50 Hz
-
Crosstalk−72 dB
-
Input impedance200 kΩ
-
DC signals0 to 25 mA
-
AC signals±8 mA max
Description
PROTECTION CARD
MACHINERY CONTROL
VM600 SERIES
MACHINERY CONTROL
VM600 SERIES
Information
Overview
Manuals
Technical notes
Product Applications
Wiring and Connectivity
Features:
- From the Vibro-Meter product line
- Continuously online machinery protection card
- Real-time measurement and monitoring usingstate-of-the-art DSP techniques
- 4 dynamic signal channels and 2 tachometer(speed) channels, all individuallyprogrammable
- Programmable broad-band and narrow-bandfilters
- Simultaneous amplitude and phase monitoringin order-tracking mode
- Programmable Alert, Danger and OK set points
- Adaptive Alert and Danger levels
- Front-panel BNC connectors for easy analysis ofbuffered “raw” sensor signals
- Front-panel LEDs indicate status and alarms
integration or differentiation (if required),rectification (RMS, mean value, true peak or truepeak-to-peak), order tracking (amplitude andphase) and measurement of the sensor-targetgap.The speed (tachometer) inputs accept signalsfrom a variety of speed sensors, including systemsbased on proximity probes, magnetic pulse pickup sensors or TTL signals. Fractional tachometerratios are also supported.
The VM600 MPC4 200-510-071-113 Vibro Meter Machinery Protection Card may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Vibro Meter VM600 MPC4 200-510-071-113 Machinery Protection Card Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The configuration can be expressed in metric orimperial units. Alert and Danger set points are fullyprogrammable, as are alarm time delay,hysteresis and latching. The Alert and Dangerlevels can also be adapted as a function of thespeed or any external information.A digital output is available internally (on thecorresponding IOC4T input/output card) for eachalarm level. These alarm signals can drive fourlocal relays on the IOC4T card and/or can berouted using the VM600 rack’s Raw bus or OpenCollector (OC) bus to drive relays on optionalrelay cards such as the RLC16 or IRC4.The processed dynamic (vibration) signals andspeed signals are available at the rear of the rack(on the front panel of the IOC4T) as analogoutput signals. Voltage-based (0 to 10 V) andcurrent-based (4 to 20 mA) signals are provided.The MPC4 performs a self-test and diagnosticroutine on power-up. In addition, the card’s builtin “OK system” continuously monitors the level ofsignals provided by a measurement chain (sensorand/or signal conditioner) and indicates anyproblem due to a broken transmission line, faultysensor or signal conditioner.
- Turbomachinery Protection:Monitors gas/steam turbines & large compressors in power/oil/gas
- Industrial Pump/Motor Monitoring:Desalination pumps & motors: imbalance & precise vibration analysis
- Pipeline Booster Stations:Reciprocating compressor: rod-load & pulsation dampener control
- Marine Engines:DIN-rail protection for crankshaft & engine vibration
- Wastewater and Process Industry:Monitors aeration blowers in harsh environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Signal Interface: Field wiring for sensors (accelerometers, proximity probes) and speed sensors is connected to the IOC4T card at the rear of the rack.
Buffered Outputs: Raw sensor signals are available via BNC connectors on the front panel of the MPC4 for diagnostic analysis.
Relays and Analog Outputs: The system provides processed outputs (4 to 20 mA or 0 to 10 V) and relay contacts for alarms and shutdowns
FAQs
-
What is the VM600 MPC4 200-510-071-113
+The VM600 MPC4 (200-510-071-113) is a core machinery protection card from Meggitt's Vibro-Meter series, monitoring up to four vibration/dynamic signals and two speed inputs, configurable via VME or RS-232 for safety systems, providing buffered analog outputs (0-10V/4-20mA) for monitoring and driving alarms on associated I/O cards (IOC4T, RLC16) for machine protection, with the specific part number being the standard, safety-certified version used in VM600 racks. -
What is the application of this card?
+It is used for monitoring vibration, position, and speed on rotating machinery in industrial environments. -
What are the key differences between MPC4 versions?
+The 200-510-071-113 is the standard version (labeled in blue). Others include the "separate circuits" version and the "safe" (SIL) version, which is labeled with a yellow/orange TÜV logo -
Does the card support alarm management?
+Yes, it features fully programmable Alert and Danger setpoints, including alarm time delays, hysteresis, and latching. -
How are the sensors powered?
+The MPC4 provides working power for various sensors, such as acceleration, speed, and eddy current transducers.
