- IQS450 204-450-000-001
In Stock
Ships by Sunday, June 14
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IQS450 204-450-000-001
-
Product ModelIQS450 204-450-000-001
-
Spare Model204-450-000-001
-
Product ParametersSignal conditioner
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentxiamen,china
-
In stock1 unit
-
Estimated Shipping Size8x5.3x3.6cm
-
ManufacturerVibro-Meter
-
Weight0.15 kg
-
Voltage at min. gap−1.6 V
-
Dynamic range16 V
-
Output impedance500 Ω
-
Short-circuit current45 mA
-
Current at min. gap−15.5 mA
-
Current at max. gap−20.5 mA
Description

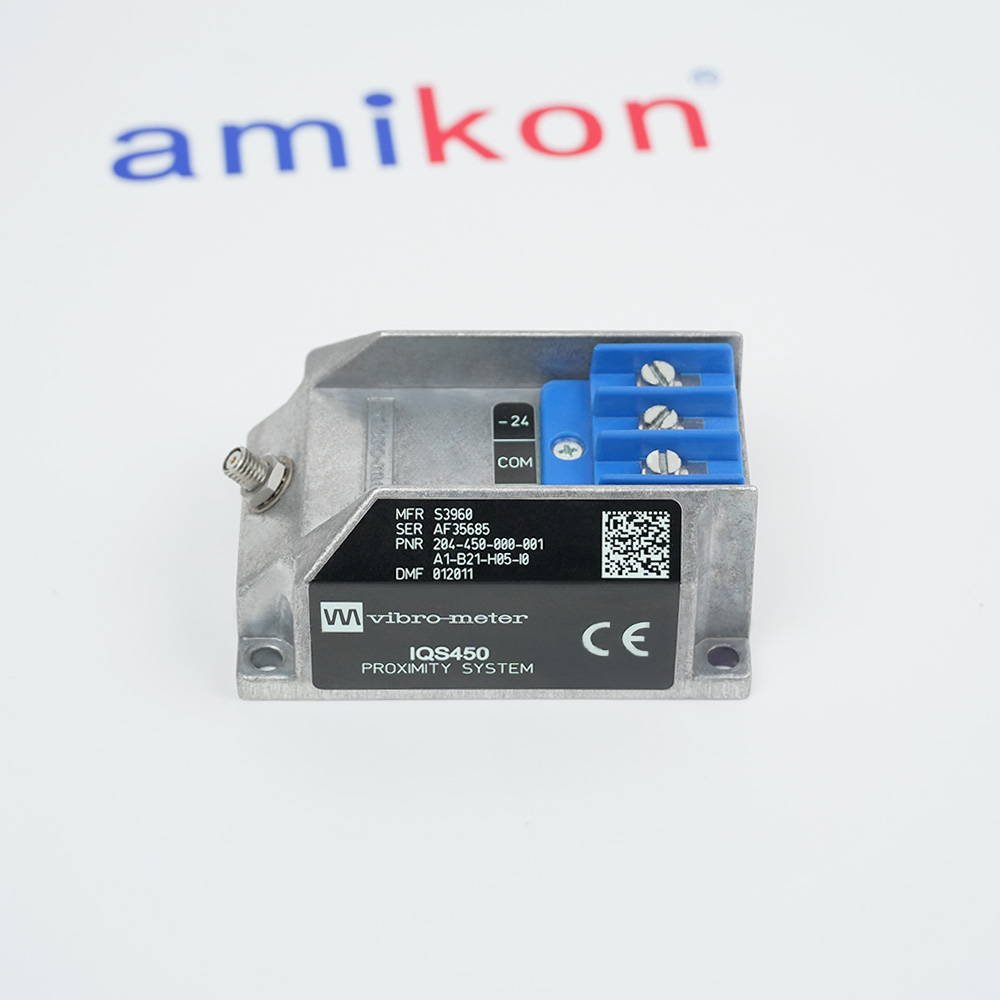

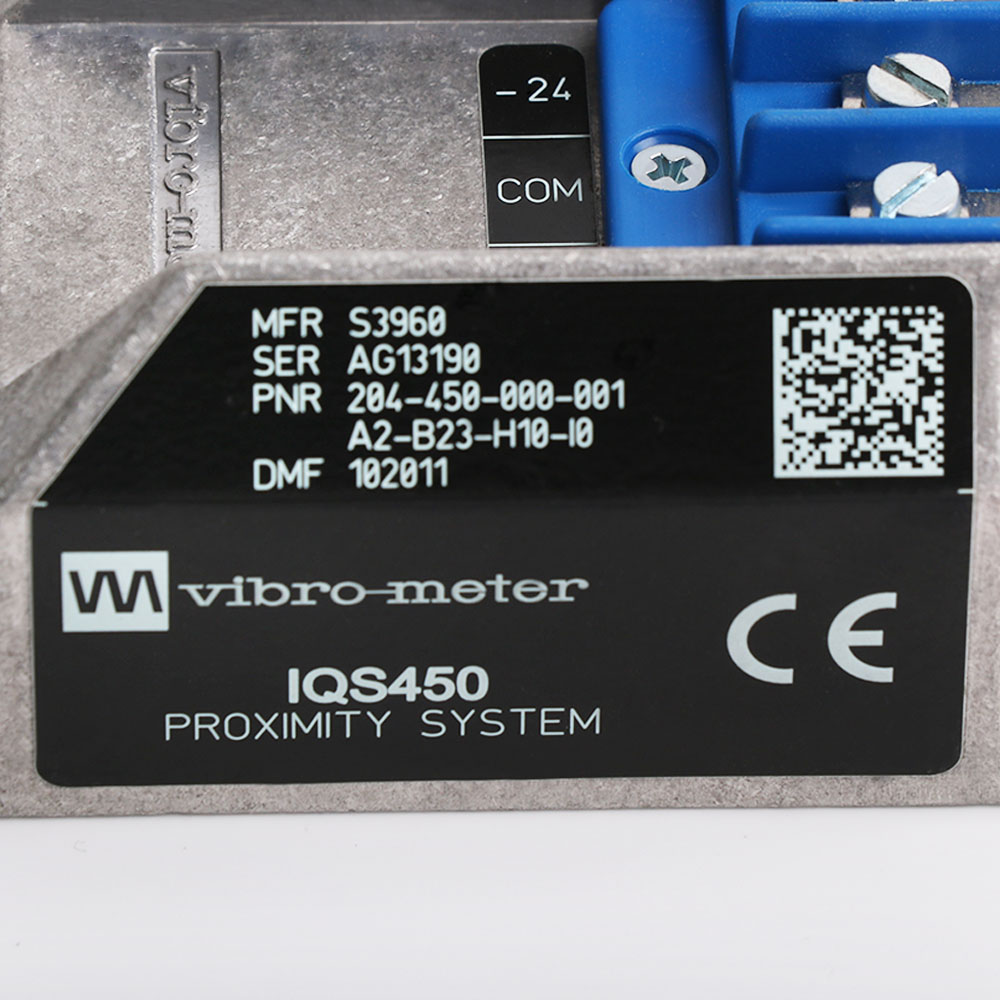

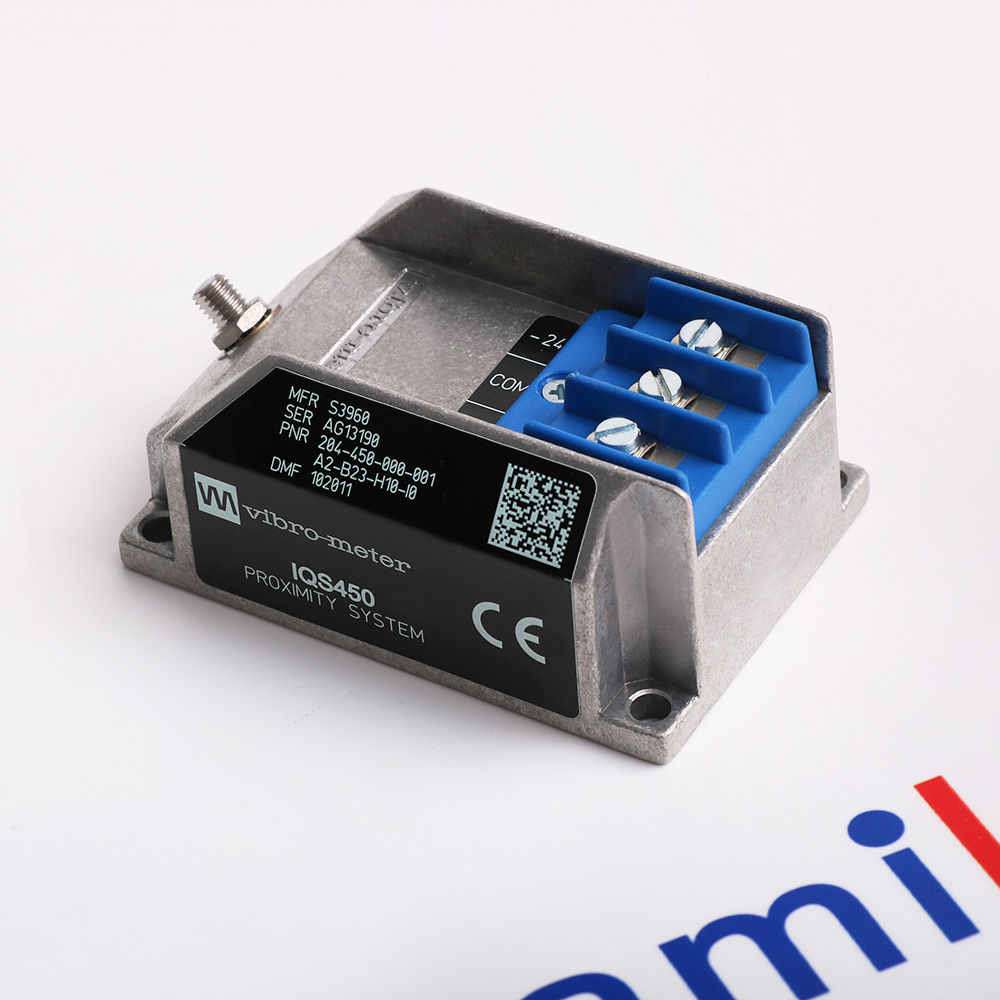

The VIBRO METER IQS450 204-450-000-001 is a proximity measurement system. It is from the Vibro-Meter product line by Meggitt. The system allows contactless measurement of the relative displacement of moving machine elements. It is particularly suitable for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbo-compressors and pumps.
The system is based around a TQ401 non-contact transducer and an IQS450 signal conditioner. Together, these form a calibrated proximity system in which each component is interchangeable. The system outputs a voltage or current proportional to the distance between the transducer tip and the target, such as a machine shaft.
The system is based around a TQ401 non-contact transducer and an IQS450 signal conditioner. Together, these form a calibrated proximity system in which each component is interchangeable. The system outputs a voltage or current proportional to the distance between the transducer tip and the target, such as a machine shaft.
Alternative Names
IQS450 204 450 000 001
1QS45O 204-450-000-00I
1QS450 2O4-45O-OOO-OO1
IQS450/204-450-000-001
Information
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- From the vibro-meter product line
- Non-contact measurement system based oneddy-current principle
- 1, 5 and 10 m systems
- Temperature-compensated design
- Voltage or current output with protectionagainst short circuits
The IQS450 204-450-000-001 VIBRO METER Signal conditioner may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
VIBRO METER IQS450 204-450-000-001 Signal conditioner Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IQS450 signal conditioner (204-450-000-002) from Meggitt's vibro-meter product line serves as the HF (high-frequency) modulator/demodulator for proximity measurement systems. It converts the eddy-current sensor signal into a usable voltage or current output proportional to the gap between the sensor and target. Due to coaxial cable characteristics, the nominal length of extension cables must be "electrically trimmed" during setup to ensure system performance.
- Rotating Shaft Monitoring: Measures relative vibration and the axial position of shafts in high-speed machinery
- Turbine Systems: Widely used in steam, gas, and hydraulic turbines (including Kaplan and Francis types)
- Power Generation: Applied to alternators and generators to ensure mechanical stability during operation
- luid Handling: Used in turbo-compressors and various types of pumps, including submerged pumps in high-pressure environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The Meggitt Vibro-Meter IQS450 signal conditioners (part numbers 204-450-000-001 and 204-450-000-002) are high-reliability, configurable devices for TQ4xx proximity sensors, designed for, but not limited to, hazardous areas. The -002 model commonly features enhanced explosive atmosphere protection (Ex i), while both support 3-wire voltage or 2-wire current outputs to measure relative displacement, vibration, and position in rotating machinery
IQS450 204-450-000-001: Standard industrial signal conditioner often used for non-hazardous or general industrial vibration monitoring.

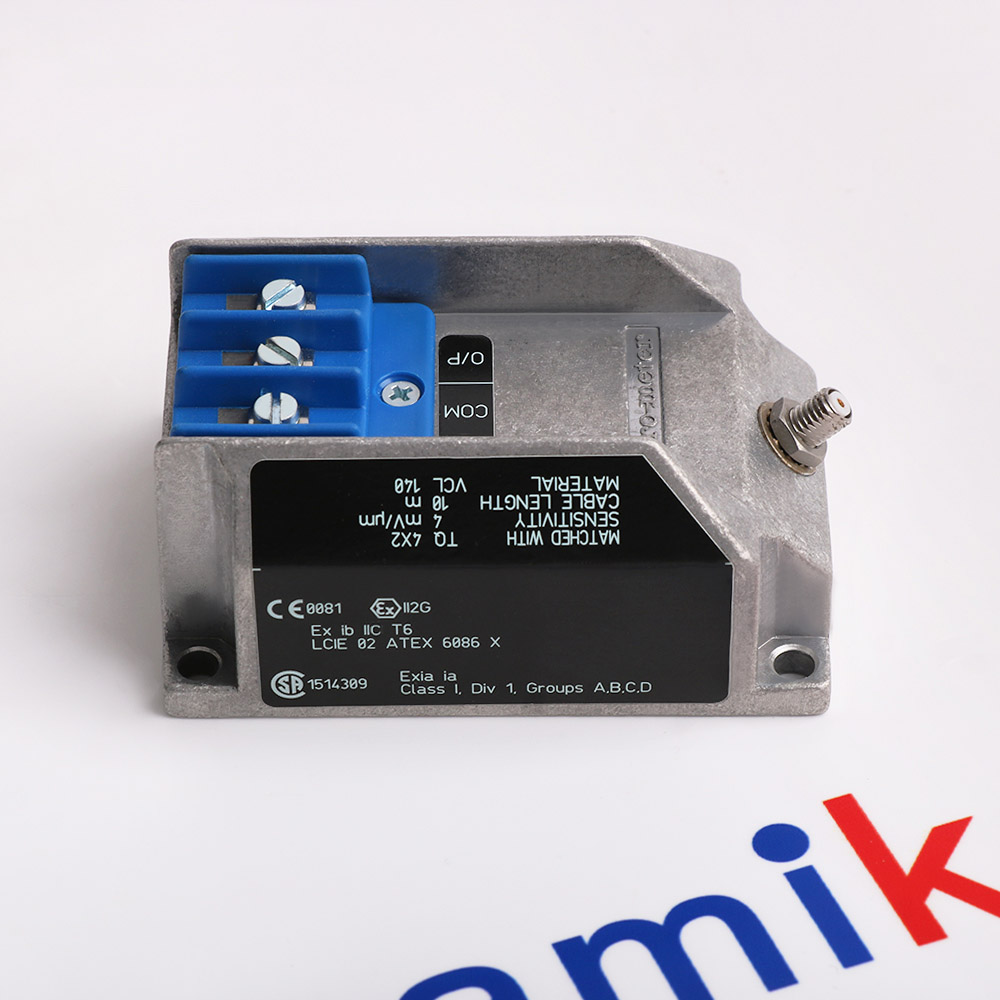

IQS450 204-450-000-002: Specifically often configured with "Ex i" (intrinsically safe) certification for hazardous environments, commonly specified in safety-critical, explosive atmospheres (A2).
Related Models: The IQS450 works within a system that includes the TQ442 and TQ401 series probes. It is used as a component of the wider Vibro-Meter series, including the MPC4 protection card.
Technical notes
The transducer body is available with metric or imperial thread. The TQ401 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) may be ordered. The TQ401 transducer can be matched with a single EA401 extension cable to effectively lengthen the front-end. Optional junction boxes, housings and connector protectors are available for the environmental and mechanical protection of the connection between the integral and extension cables.
FAQs
-
What is the IQS450 204-450-000-001 ？
+The Vibro-Meter IQS450 is a signal conditioner used in eddy-current proximity measurement systems -
What is the function of the IQS450 unit?
+It acts as a signal conditioner, providing a high-frequency driving signal to TQ4xx series probes and converting the electromagnetic field measurements into a linear voltage or current signal proportional to the gap. -
Is the IQS450 interchangeable?
+Yes, IQS450 conditioners are designed to be interchangeable with TQ4xx series probes (such as TQ402, TQ412, or TQ423) and EA40x extension cables, allowing for replacement without needing recalibration of the whole system. -
What components make up the full measurement system?
+The system generally consists of a TQ4xx series probe, an EA40x extension cable, and the IQS450 signal conditioner.
