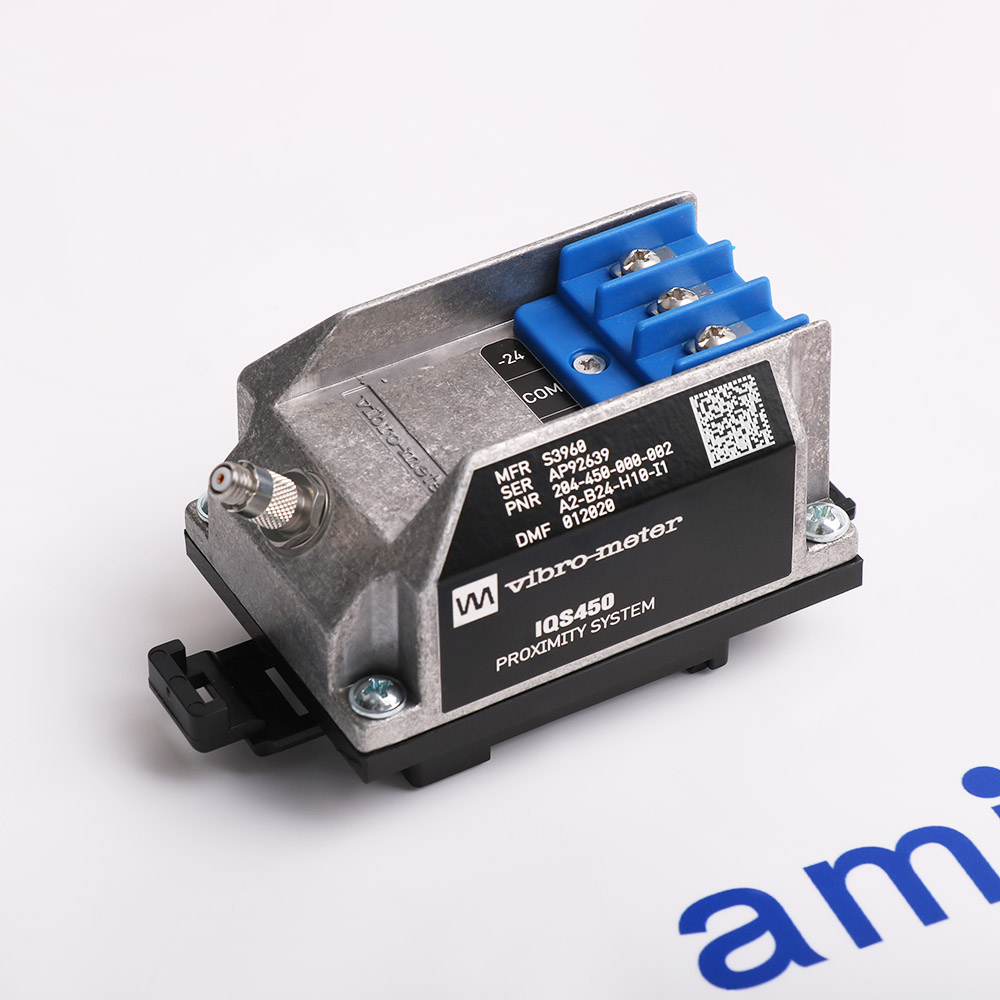

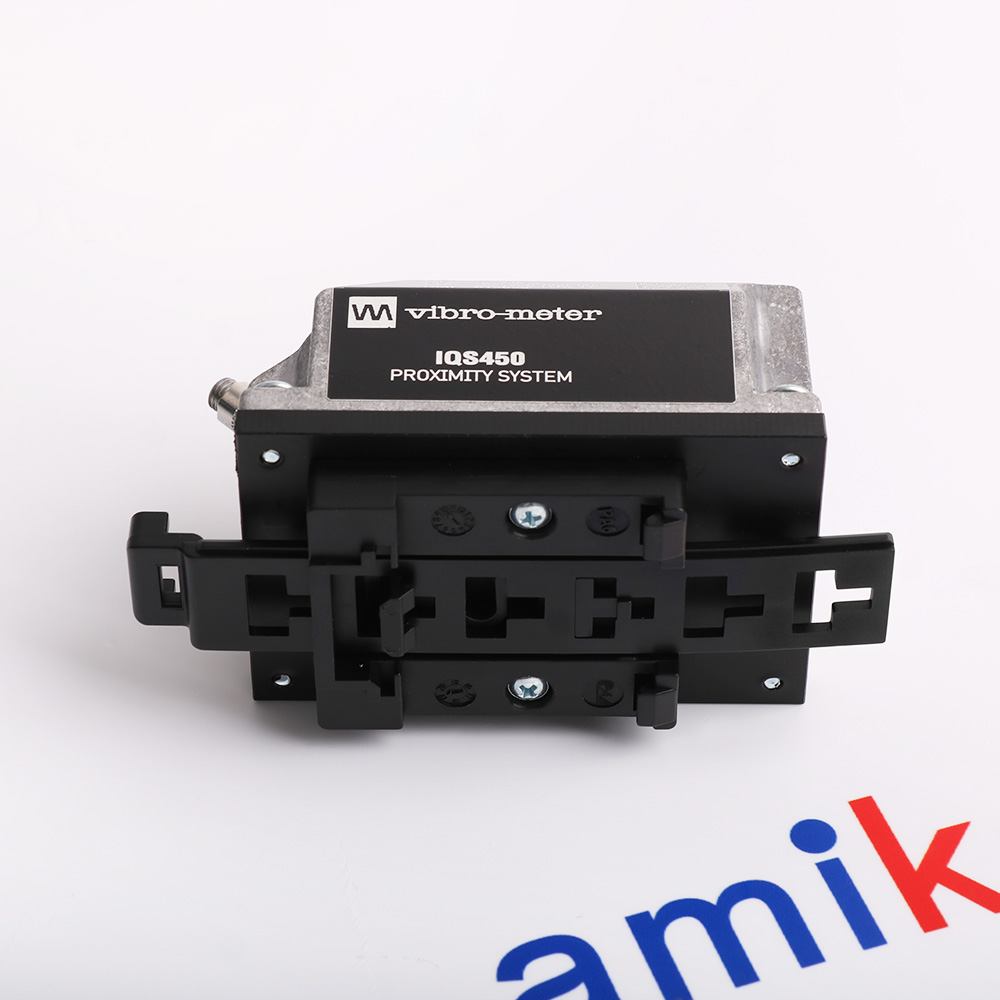

- IQS450 204-450-000-002
In Stock
Ships by Sunday, June 28
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IQS450 204-450-000-002
-
Product ModelIQS450 204-450-000-002
-
Product ParametersSignal conditioner
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4x18.6x26.1cm
-
ManufacturerVibro-Meter
-
Weight0.52 kg
-
Voltage−20 to −32 V
-
Current−13 mA ±1 mA
-
Supply input capacitance1 nF
-
Supply input inductance100 µH
-
Operating−35 to +85°C
-
Storage−40 to +85°C
-
Humidity95% max. non-condensing
Description
The TQ401, EA401 and IQS450 form a proximitymeasurement system from Meggitt’s vibro-meter product line. This proximity measurement systemallows contactless measurement of the relativedisplacement of moving machine elements.
The system is based around a TQ401 non-contactsensor and an IQS450 signal conditioner.Together, these form a calibrated proximitymeasurement system in which each componentis interchangeable. The system outputs a voltageor current proportional to the distance betweenthe transducer tip and the target, such as amachine shaft.
The active part of the transducer is a coil of wirethat is moulded inside the tip of the device, madeof Torlon (polyamide-imide). The transducerbody is made of stainless steel. The target materialmust, in all cases, be metallic.
The system is based around a TQ401 non-contactsensor and an IQS450 signal conditioner.Together, these form a calibrated proximitymeasurement system in which each componentis interchangeable. The system outputs a voltageor current proportional to the distance betweenthe transducer tip and the target, such as amachine shaft.
The active part of the transducer is a coil of wirethat is moulded inside the tip of the device, madeof Torlon (polyamide-imide). The transducerbody is made of stainless steel. The target materialmust, in all cases, be metallic.
Alternative Names
IQS 450 204-450-000-002
IQS450 204 450 000 002
IQS45O 2O4-45O-OOO-OO2
IQS 45O 2O4-45O-OOO-OO2
IQS-45O 2O4-45O-OOO-OO2
Information
Overview
Manuals
Application Notes
Product Applications
Comparison with Related Models
Features:
- From the vibro-meter product line
- Non-contact measurement system based oneddy-current principle
- 1, 5 and 10 m systems
- Temperature-compensated design
- Voltage or current output with protectionagainst short circuits
The IQS450204-450-000-002 VIBRO METER Signal conditioner may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
VIBRO METER IQS450 204-450-000-002 Signal conditioner Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IQS450 signal conditioner (204-450-000-002) from Meggitt's vibro-meter product line serves as the HF (high-frequency) modulator/demodulator for proximity measurement systems. It converts the eddy-current sensor signal into a usable voltage or current output proportional to the gap between the sensor and target. Due to coaxial cable characteristics, the nominal length of extension cables must be "electrically trimmed" during setup to ensure system performance.
- Rotating Shaft Monitoring: Measures relative vibration and the axial position of shafts in high-speed machinery
- Turbine Systems: Widely used in steam, gas, and hydraulic turbines (including Kaplan and Francis types)
- Power Generation: Applied to alternators and generators to ensure mechanical stability during operation
- luid Handling: Used in turbo-compressors and various types of pumps, including submerged pumps in high-pressure environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The Meggitt Vibro-Meter IQS450 signal conditioners (part numbers 204-450-000-001 and 204-450-000-002) are high-reliability, configurable devices for TQ4xx proximity sensors, designed for, but not limited to, hazardous areas. The -002 model commonly features enhanced explosive atmosphere protection (Ex i), while both support 3-wire voltage or 2-wire current outputs to measure relative displacement, vibration, and position in rotating machinery
IQS450 204-450-000-001: Standard industrial signal conditioner often used for non-hazardous or general industrial vibration monitoring.
IQS450 204-450-000-002: Specifically often configured with "Ex i" (intrinsically safe) certification for hazardous environments, commonly specified in safety-critical, explosive atmospheres (A2).
Related Models: The IQS450 works within a system that includes the TQ442 and TQ401 series probes. It is used as a component of the wider Vibro-Meter series, including the MPC4 protection card.
Technical notes
The IQS450 signal conditioner contains a highfrequency modulator/demodulator that suppliesa driving signal to the transducer. This generatesthe necessary electro-magnetic field used tomeasure the gap. The conditioner circuitry ismade of high-quality components and ismounted in an aluminium extrusion.
FAQs
-
What is IQS450 204-450-000-002?
+The Vibro-Meter IQS450 (204-450-000-002) is a signal conditioner for eddy-current proximity measurement systems -
What is the primary function of the IQS450?
+It acts as a modulator/demodulator that drives proximity transducers (like the TQ401 or TQ442). It generates an electromagnetic field to measure the gap between a sensor tip and a target material, converting that distance into a proportional voltage or current signal. -
What outputs does it support?
+It can be configured for either a 3-wire voltage output (ranging from -1.6 V to -17.6 V) or a 2-wire current output (ranging from -15.5 mA to -20.5 mA). -
What power supply is required?
+It requires a negative supply voltage between -20 V and -32 V.
