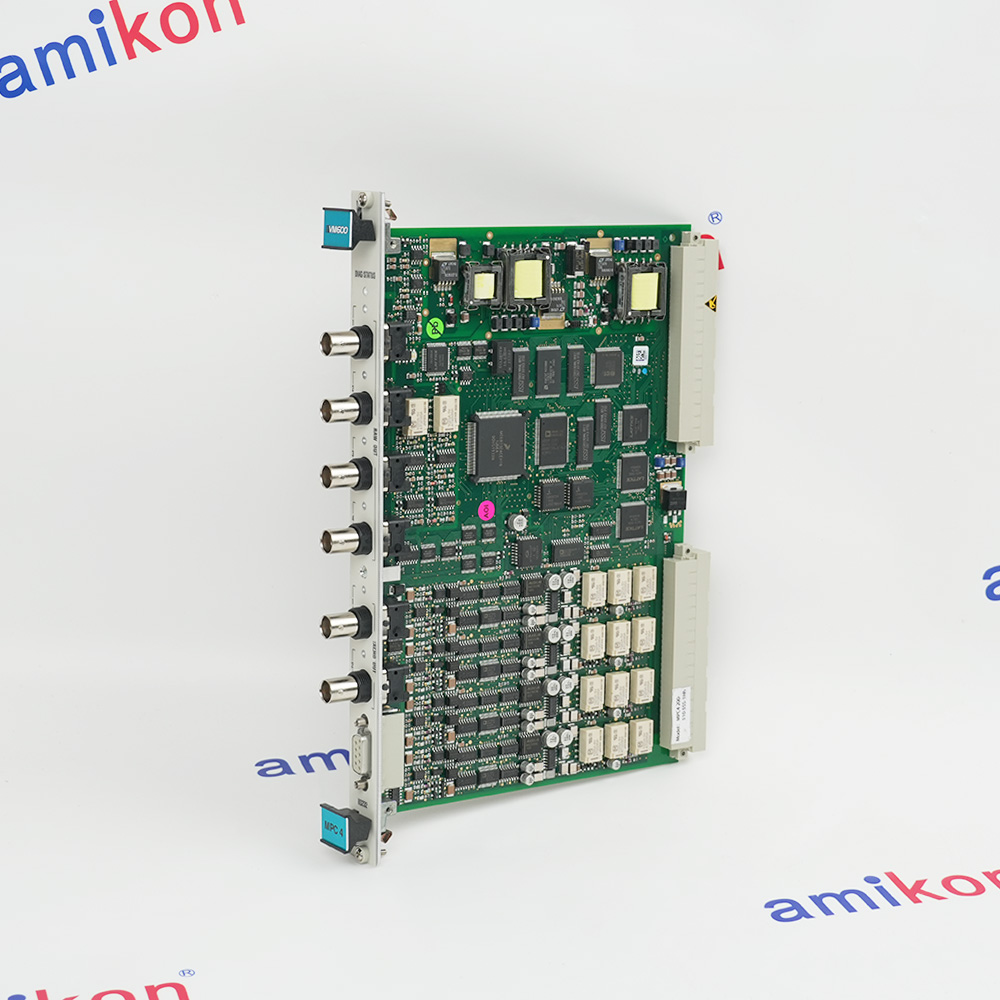

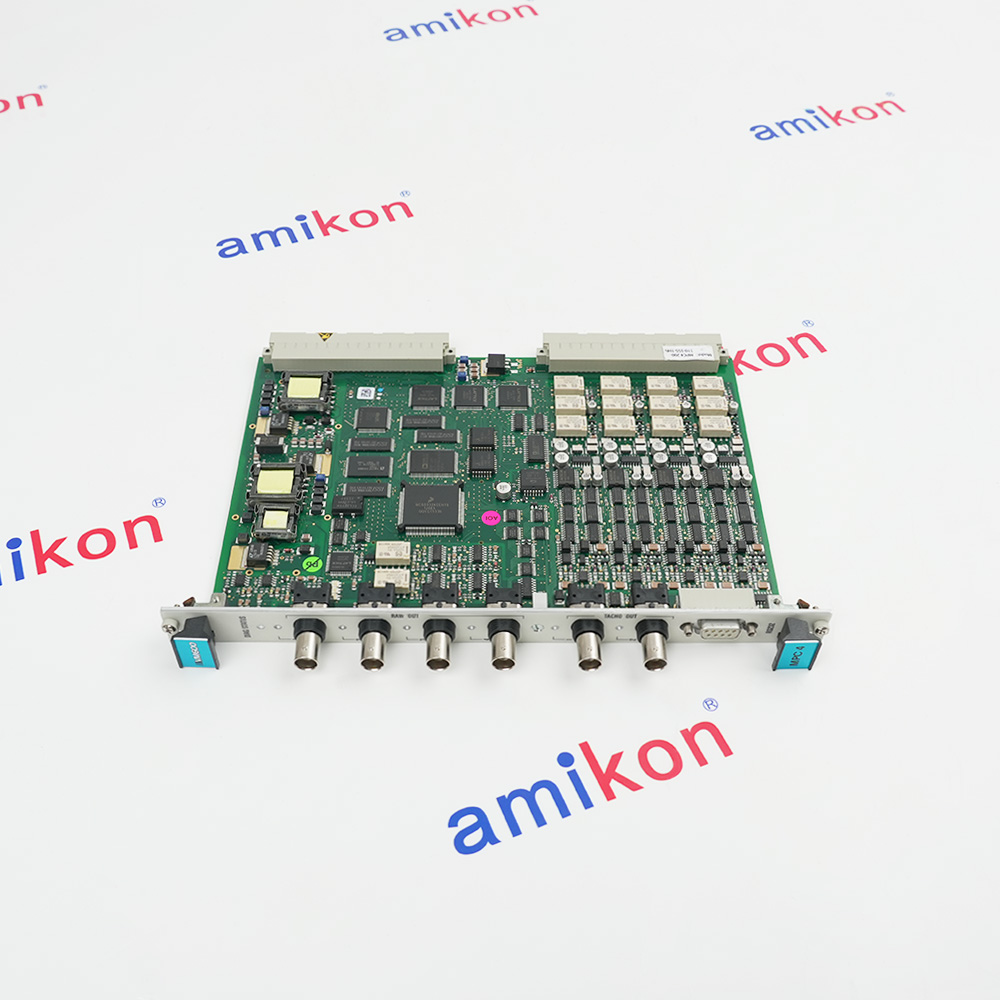

MPC4 200-510-SSS-1HH
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
200510SSS1HH
MACHINERY PROTECTION CARD
FOR 4 DYNAMIC AND 2 PHASE REFERENCE CHANNELS
MACHINERY PROTECTION CARD
FOR 4 DYNAMIC AND 2 PHASE REFERENCE CHANNELS
Technical specifications for MPC4 200-510-SSS-1HH
-
Product ModelMPC4 200-510-SSS-1HH
-
Spare ModelVM600 MPC4 200-510-SSS-1Hh
-
Product ParametersMACHINERY PROTECTION CARD
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2x19x26.1cm
-
ManufacturerVibro-Meter
-
Weight0.4 kg
-
Number of inputs4 per MPC4 card
-
DC range0 to +20 V or 0 to −20 V
-
AC range±10 V max
-
Common mode voltage range−50 to +50 V
-
CMRR>60 dB at 50 Hz
-
Crosstalk−72 dB
-
Input impedance200 kΩ
-
DC signals0 to 25 mA
-
AC signals±8 mA max
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the MPC4 200-510-SSS-1HH？+The MPC4 200-510-SSS-1HH is a Meggitt (Vibro-Meter) Machinery Protection Card (MPC4) standard version, used in VM600 systems for monitoring machine vibration and speed, featuring 4 dynamic inputs, 2 tachometer inputs, digital/analog outputs, and self-diagnostics, with "SSS" denoting firmware and "1HH" the hardware revision, designed to work with an IOC4T I/O card for protection functions, distinguishing it from newer SIL (Safety) versions by its VME interface.
-
What are its environmental operating limits?+Standard operating temperatures for similar VM600 modules generally range from 0 to +55 °C (+32 to +131 °F).
-
Is this product brand new?+Yes, MPC4 200-510-SSS-1HH is brand new, original, unused, and factory sealed
-
Do you have it in stock?+Yes, right now we have MPC4 200-510-SSS-1HH in stock ready for shipment, we can support video inspection.
Get a quick price fo MPC4 200-510-SSS-1HH
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Hardware Installation Instructions
Features:
- From the Vibro-Meter product line
- Continuously online machinery protection card
- Real-time measurement and monitoring usingstate-of-the-art DSP techniques
- 4 dynamic signal channels and 2 tachometer(speed) channels, all individuallyprogrammable
- Programmable broad-band and narrow-bandfilters
- Simultaneous amplitude and phase monitoringin order-tracking mode
- Adaptive Alert and Danger levels
- Front-panel BNC connectors for easy analysis ofbuffered “raw” sensor signals
The dynamic signal inputs are fully programmableand can accept signals representingacceleration, velocity and displacement(proximity), among others. On-board multichannel processing allows measurement ofvarious physical parameters, including relativeand absolute vibration, Smax, eccentricity, thrustposition, absolute and differential housingexpansion, displacement and dynamic pressure.
The VM600 MPC4 200-510-SSS-1HH VIBRO METER Machinery Protection Card may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
VIBRO METER VM600 MPC4 200-510-SSS-1HH Machinery Protection Card Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Versions of the IOC4T card are available with a conformal coating (“varnish”) applied to the circuitry of the card for additionalenvironmental protection against chemicals, dust, moisture and temperature extremes.In 2017, the MPC4 / IOC4T machinery protection card pairs were improved to (1) be RoHS compliant and (2) provide a reducedbuffered dynamic signal output impedance, which required a redesign of the underlying buffered “raw” dynamic signal outputcircuitry. Accordingly, the different versions of the MPC4/IOC4T machinery protection card pairs in use are:• Later versions of the MPC4 (PNRs 200-510-SSS-115, 200-510-SSS-214 and 200-510-SSS-313 or later) andIOC4T (PNR 200-560-000-114 and 200-560-000-212 or later), which are RoHS compliant and have an output impedance of 50 Ω.• Earlier versions of the IOC4T (PNRs 200-510-SSS-114, 200-510-SSS-213 and 200-510-SSS-312 or earlier) andIOC4T (PNR 200-560-000-113 and 200-560-000-211 or earlier), which are not RoHS compliant and have an output impedance of2000 Ω.
- Turbines:Gas, steam, and hydroelectric turbines.
- Generators:Monitors vibration and eccentricity in power plant generators.
- Compressors:Protects axial and centrifugal compressors in industrial processing.
- Pumps & Fans:Critical high-speed pumps and large-scale industrial ventilation fans.
- Motors:Large industrial motors driving heavy loads
- Propellers:Maritime applications involving large propulsion systems.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Pairing: The MPC4 and IOC4T must be installed in the same slot (MPC4 in the front, IOC4T in the rear).
Hot Swapping: While the rack is powered, you can technically "hot swap" the MPC4, but the manufacturer recommends bypass mode to avoid accidental machine trip.
Keying: Ensure the mechanical keying on the backplane matches the card version (200-510) to prevent inserting the wrong card type
