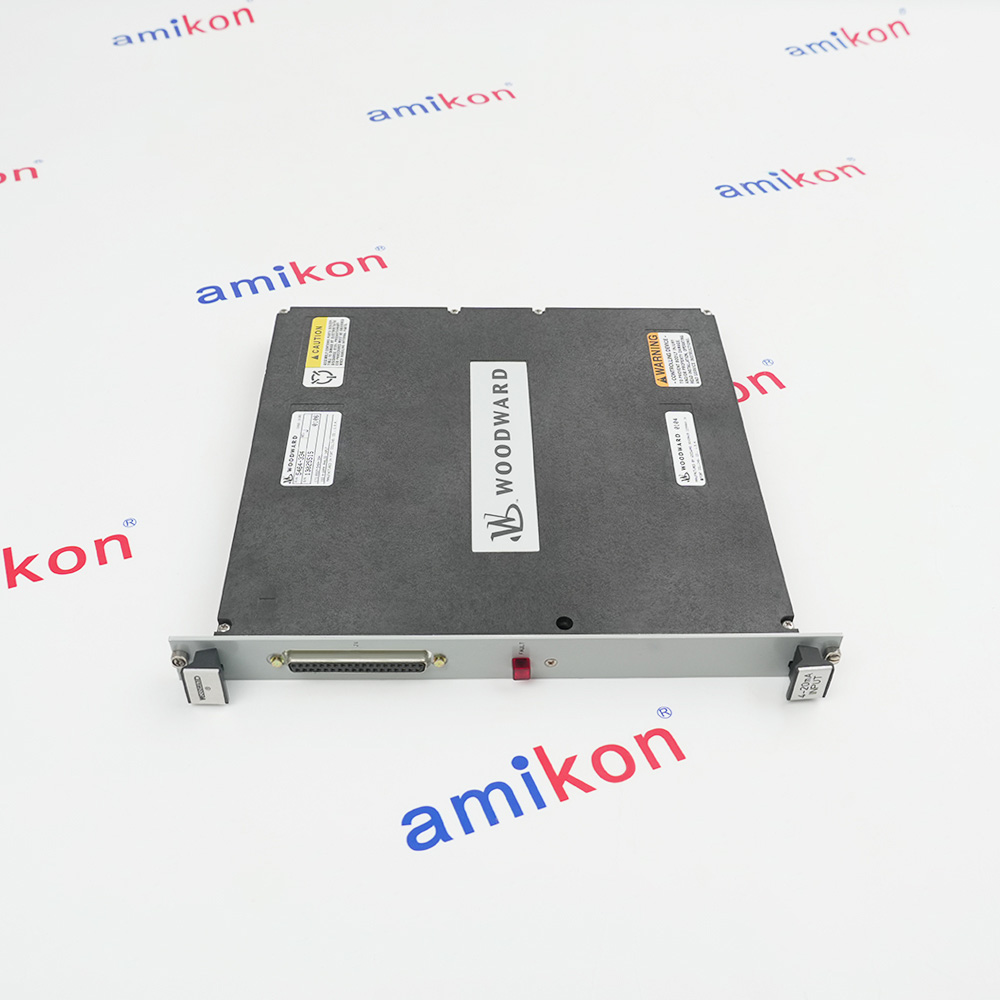

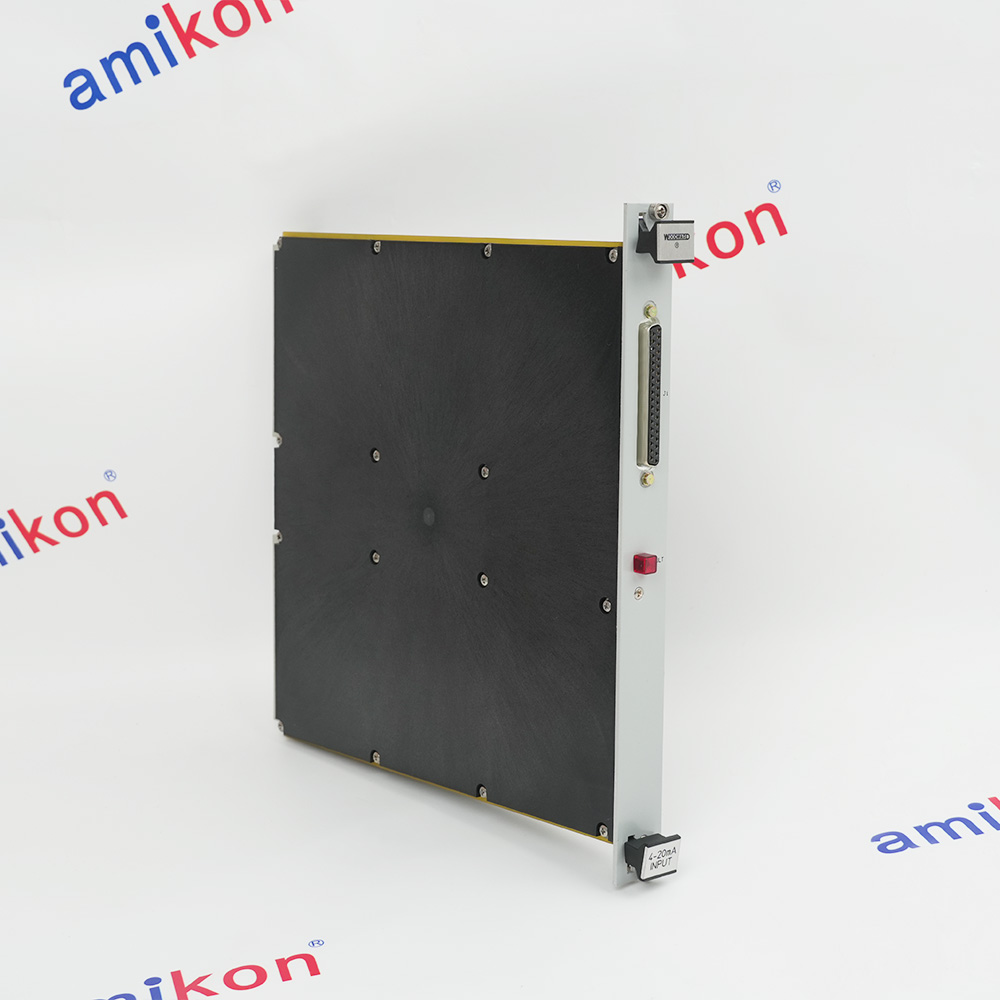

5464-334
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
5464334
INPUT MODULE
ANALOG
4-20 MA
8 POINT
INPUT MODULE
ANALOG
4-20 MA
8 POINT
Technical specifications for 5464-334
-
Product Model5464-334
-
Product ParametersANALOG INPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2.5x24.6x26.1cm
-
ManufacturerWoodward
-
Weight0.95 kg
-
Input Voltage24 Vdc
-
Maximum Operating Current12 V
-
Number of channels2
-
Operating Temperature-25°C to +70°C
-
lsolation Protection3000 VDC
-
Power Supply10- 60 VDC
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the Woodward 5464-33+The Woodward 5464-334 is an 8-Channel Isolated 4-20mA Analog Input Module, used for industrial control, converting sensor signals into digital data with electrical isolation for protection
-
Do you have it in stock?+Yes, right now we have Woodward 5464-334 in stock ready for shipment, we can support video inspection
-
What is the primary function of the 5464-334?+It is a 4–20 mA analog input module designed to accept eight isolated analog signals across eight channels.
-
What are the key technical features?+It offers8 channels, 200Vdc common-mode rejection, and supports both two-wire (loop-powered) or self-powered transducers.
-
Can the 5464-334 be used for cogeneration plants?+Yes, this module is compatible with control systems often used in cogeneration plants.
Get a quick price fo 5464-334
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Wiring and Connectivity
Features:
- Isolated Input Module
- 5400 Series used in Turbine Control Systems
- 4-20mA Analog Input 8 Channel Module
An isolated 4-20mA analog input 8-channel module is a device designed to accept analog signals within the range of 4 to 20 milliamps (mA). Each channel on the module is isolated, meaning that the signals in one channel are electrically separated from the signals in the other channels. This isolation helps prevent interference and ensure accurate and reliable measurements. The Smart I/O module incorporates its onboard microcontrollers. Upon initialization, the module's microcontroller deactivates the LED once power-on self-tests are completed, and the CPU has initialized the module. In the event of an I/O fault, the LED is illuminated to signal the occurrence
The 5464-334 WOODWARD Isolated Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
WOODWARD 5464-334 Isolated Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Woodward 5464-334 is an 8-channel Isolated 4-20mA Analog Input Module designed for 5400 Series Turbine Control Systems. It provides high-accuracy, electrically isolated signal conditioning for industrial applications, preventing crosstalk between channels with 3000 VDC isolation. The module is known for its reliability in critical environments. The module performs automatic calibration and temperature compensation by reading a precision voltage reference once per minute during idle periods.
- Power Generation:Monitors generator status, system alarms, and excitation systems.
- Oil & Gas / Petrochemical:Process control & machinery health monitoring in plants & offshore platforms.
- Renewable Energy:Integrated into wind turbines & PV inverters to optimize energy conversion.
- Marine Propulsion:Monitors propulsion systems and critical onboard machinery on ships.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Signal Requirements: The module accepts standard 4–20 mA signals across eight isolated channels.
Common Mode Rejection: This module provides 200 VDC common mode rejection. If you are interfacing with a non-isolated device that could exceed 200 VDC relative to the control common, you must use a loop isolator to prevent erroneous readings.
Powering Transducers: A 24 VDC power supply is typically available from the control system (e.g., 5009 control) to power external transducers.
