Technical specifications for 8280-192
-
Product Model8280-192
-
Product Parameters701A Digital Speed Control
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size37.3x21.3x5.8cm
-
ManufacturerWoodward
-
Weight1.8 kg
-
Power Supply Rating18–40 Vdc
-
Power Consumption8 watts nominal
-
Steady State Speed Band MPU60–15 000 Hz
-
proximity switch7.5–1000 Hz (8–2100 rpm)
-
Remote Speed Setting Input4–20 mA
-
Tachometer Output4–20 mA
-
Ambient Operating Temperature–40 to +70 °C (–40 to +158 °F)
-
Storage Temperature–55 to +105 °C (–67 to +221 °F)
-
EMI/RFI SpecificationUS MIL-STD 461C (Parts 5 & 9)
Description

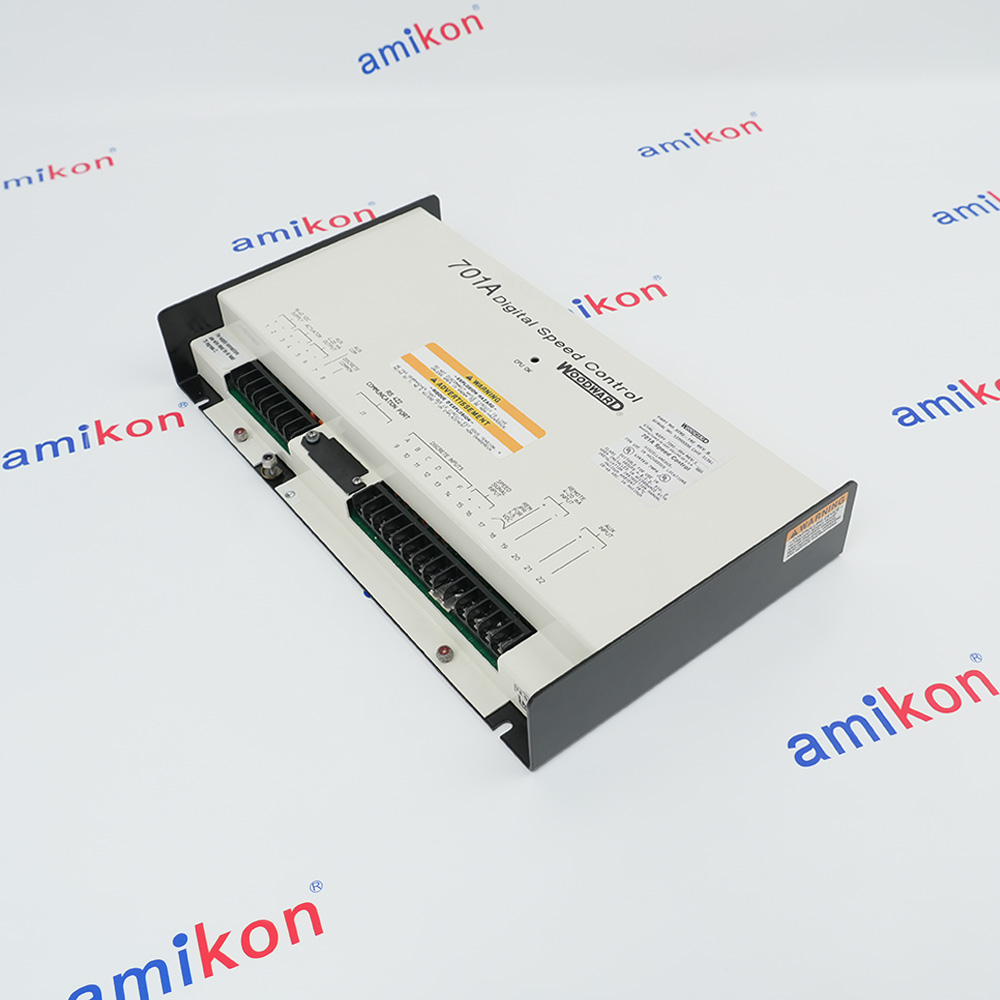

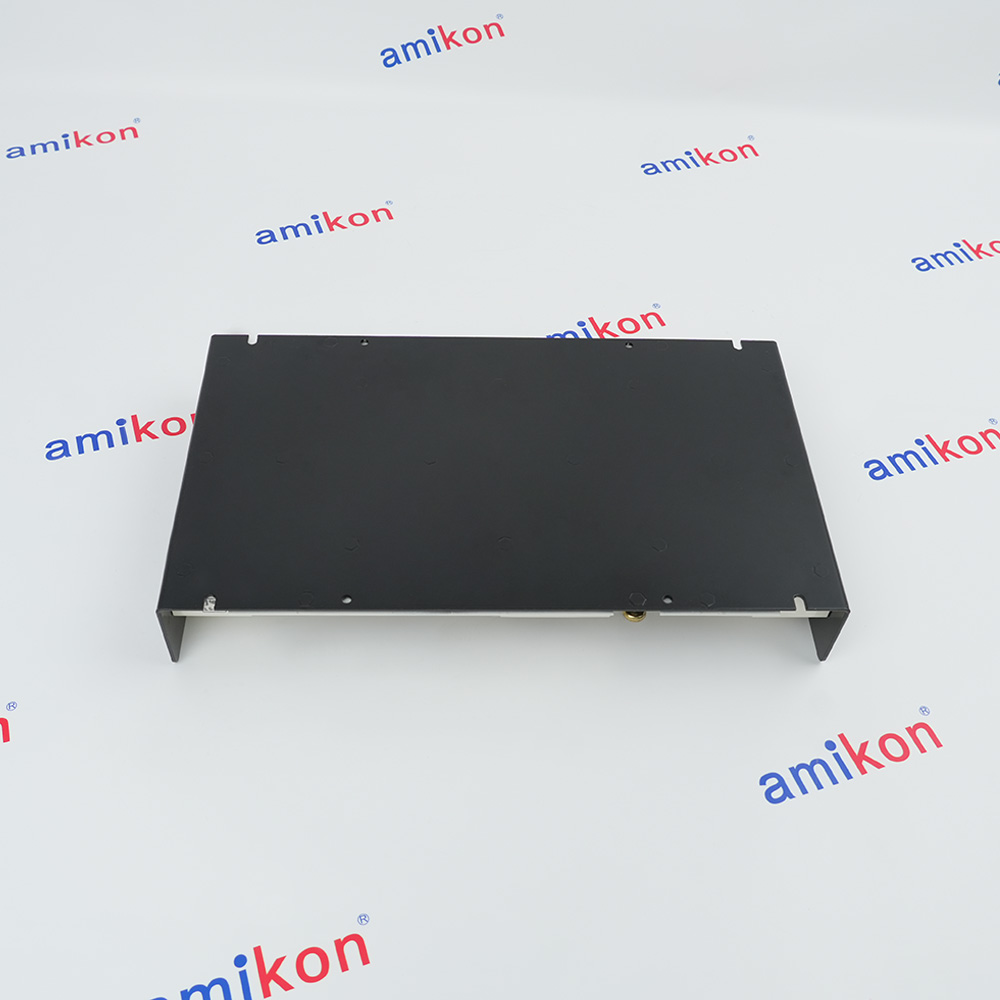

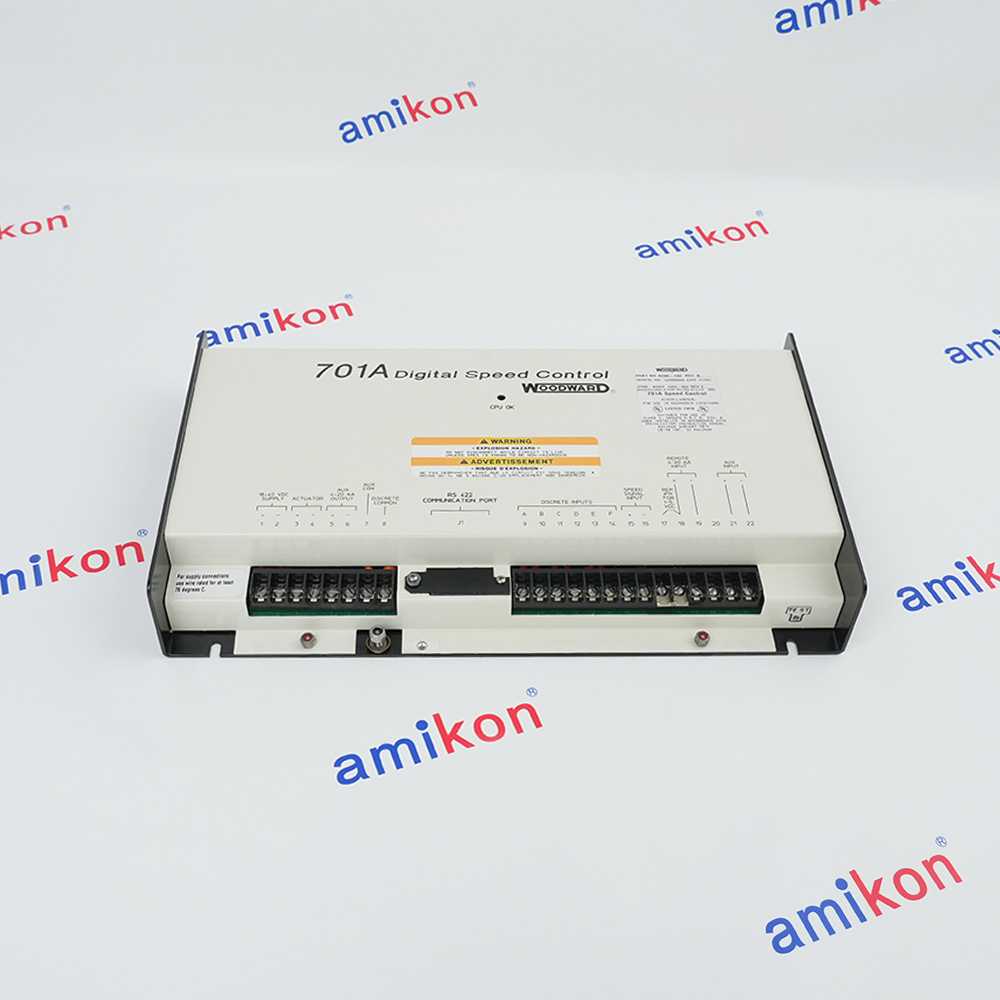

The WOODWARD 8280-192 is a 701A Digital Speed Control specifically for controlling the speed of reciprocating engines in mechanical drive or generator set service. The 8280-192 consists of a single printed circuit board housed in a sheetmetal chassis, with connections provided via two terminal strips and a 9-pin subminiature D connector, delivering a compact and reliable control solution for engine prime mover systems.
The 8280-192 operates from a low-voltage DC power supply with an input voltage range of 18–40 Vdc (24 or 32 Vdc nominal), consuming 8 watts as the nominal power consumption at rated voltage. The 8280-192 provides a 0–200 mA actuator output to position the fuel rack proportionally, enabling precise engine speed regulation under varying load conditions.
The 8280-192 includes a magnetic pickup (MPU) speed input for sensing engine speed, with the magnetic pickup versions limited to operating speeds providing 60 Hz magnetic pickup frequency or greater. The 8280-192 also incorporates a 4–20 mA remote speed reference setting input for external speed control, an internal speed reference for local control of speed, and an auxiliary voltage input for load sensor connection in load sharing applications.
The 8280-192 operates from a low-voltage DC power supply with an input voltage range of 18–40 Vdc (24 or 32 Vdc nominal), consuming 8 watts as the nominal power consumption at rated voltage. The 8280-192 provides a 0–200 mA actuator output to position the fuel rack proportionally, enabling precise engine speed regulation under varying load conditions.
The 8280-192 includes a magnetic pickup (MPU) speed input for sensing engine speed, with the magnetic pickup versions limited to operating speeds providing 60 Hz magnetic pickup frequency or greater. The 8280-192 also incorporates a 4–20 mA remote speed reference setting input for external speed control, an internal speed reference for local control of speed, and an auxiliary voltage input for load sensor connection in load sharing applications.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion & Mounting
Features:
- Low-Voltage DC Power Supply (18–40 Vdc)
- Magnetic Pickup (MPU) Speed Input
- 0–200 mA Actuator Output
- 4–20 mA Remote Speed Reference and Internal Local Reference
The control utilizes a 16-bit microprocessor for all control functions, including engine speed computation, control algorithm calculations, and speed ramp generation. It incorporates a special tracking filter in the speed sensing circuitry, specifically designed for reciprocating engines. This filter minimizes the effects of engine torsionals and irregularities in the sensing gear, providing exceptionally smooth steady-state control while retaining fast response to speed and load changes.
The 8280-192 WOODWARD 701A Digital Speed Control may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
WOODWARD 8280-192 701A Digital Speed Control Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The control features dual selectable dynamics. Two independent sets of dynamic parameters can be configured and switched via an external contact input. This is useful for engine systems with different operating conditions, such as open or closed clutches, pilot-fuel engines, or utility tie breaker status changes.
The 0–200 mA actuator output drives pneumatic, electric, or electrohydraulic actuators. The actuator sense (forward or reverse acting) is software selectable. Fuel limiting functions include maximum fuel limit, start fuel limit, idle fuel limit, and torque limiters with configurable breakpoints. A start speed setting allows the start fuel limit to be deactivated once the engine reaches a defined speed.
All adjustments are made using the Woodward 9907-205 Hand Held Programmer, which communicates via the RS-422 serial port (9-pin D connector, 1200 baud full duplex). The programmer displays two parameters simultaneously and updates continuously. After setpoints are adjusted, the control saves them permanently in nonvolatile memory that does not require batteries.
- Power Generation: Regulates engine speed under load changes for consistent frequency output
- Marine Propulsion: Controls main/auxiliary engines on vessels, handling rapid load shifts from sea conditions
- Industrial Compressors: Manages speeds of engines driving pipeline/process compressors to prevent overspeed or stalling
- Pumping Stations: Governs heavy-duty water/fuel pumps driven by reciprocating engines in remote plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting Location: Do not mount the control directly onto the engine. Choose a location free from heavy vibrations, excessive heat, and high electromagnetic fields.
ESD Precautions: Avoid clothing made of synthetic materials to prevent static buildup. Maintain physical contact with a grounded surface while handling the module, or wear an ESD wrist strap.
Enclosure Clearance: Ensure adequate space around the unit for ventilation and proper wire routing. Keep all wiring clean and organized to reduce physical stress on the terminal blocks.
Alternative Names
8280-19Z
8280-I92
828O-192
82B0-192
8Z80-192
B280-192
8280 192
8280 19Z
8280 I92
828O 192
82B0 192
8Z80 192
Technical notes
The 8280-192 features discrete input terminals that provide on/off command signals to the electronic control, including functions such as Raise Speed, Lower Speed, Idle/Rated selection, and Minimum Fuel. The 8280-192 is equipped with an RS-422 serial communication port that accepts the Hand Held Programmer (part number 9907-205) for adjusting control parameters, entering set points, and performing diagnostics.
FAQs
-
What is the WOODWARD 8280-192 ?
+The Woodward 8280-192 is a specific part number for the 701A Digital Speed Control. -
What is the power input requirement?
+The 8280-192 is a low-voltage version designed to operate on a nominal power supply of 18 to 40 Vdc. -
What type of engine or prime mover is this control used on?
+This model is universally suited for reciprocating engines, including gas, diesel, and dual-fuel engines. It interprets speed inputs via a magnetic pickup to provide precise control. -
What is its input voltage range?
+It operates on a low-voltage DC power supply ranging from 18 to 40 Vdc.
