- 8440-2152
In Stock
Ships by Sunday, August 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 8440-2152
-
Product Model8440-2152
-
Spare ModelLS-511-5/P1
-
Product ParametersCircuit BreakerControl & Protection
-
Tariff Code8537101190
-
Country of originusa
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size19x16.7x4.7cm
-
ManufacturerWoodward
-
Weight0.8 kg
-
Measuring frequency50/60 Hz (30 to 85 Hz)
-
Burden< 0.15 VA
-
Rated voltage phase – ground300 Vac
-
Surge volt4.0 kV
-
Power supply12/24 Vdc (8 to 40 Vdc)
-
Ambient temperature-20 to 70 °C / -4 to 158 °F
-
Ambient humidity95 %, non-condensing
-
Rated69/120 Vac
-
Measuring frequency50/60 Hz (30 to 85 Hz)
-
Input range12/24 Vdc (8 to 40 Vdc)
Description

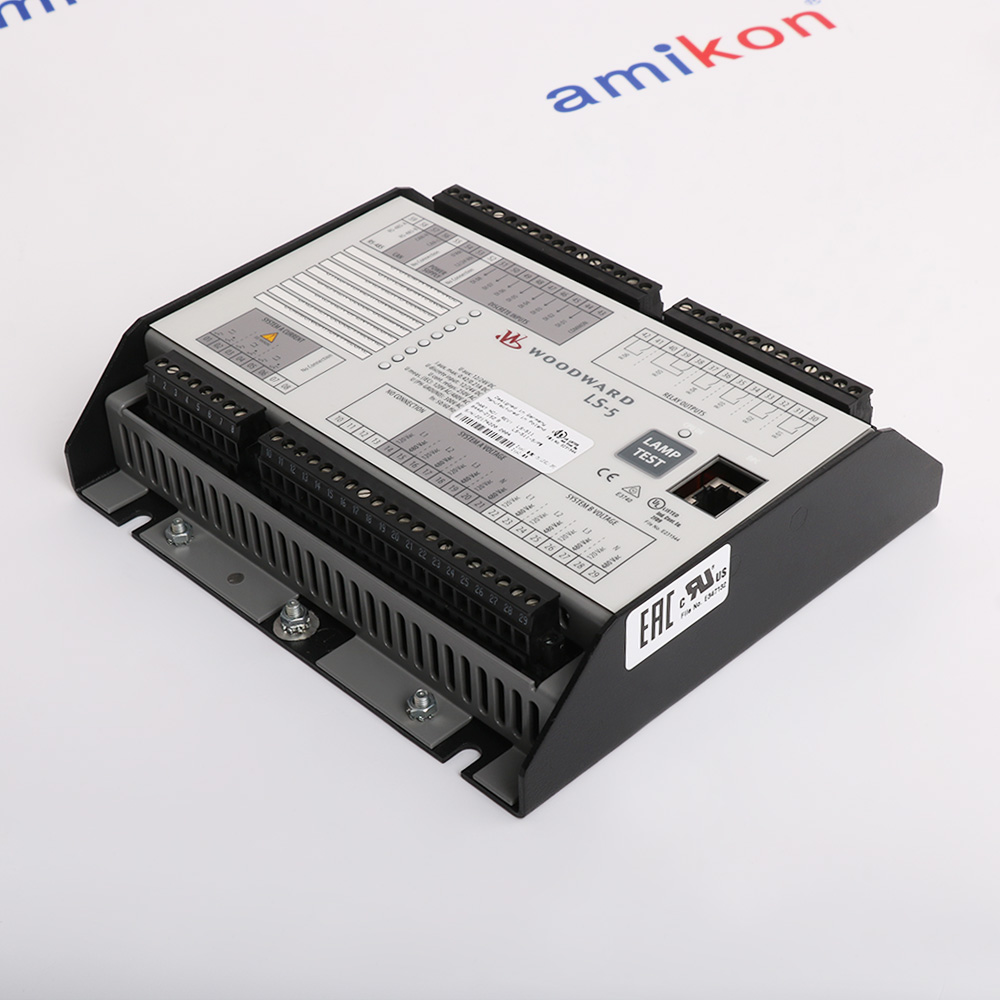

WOODWARD 8440-2152 LS-511-5/P1 is a circuit breaker control and protection relay from the LS-5 V2 series, for back-panel mounting in generator paralleling and power management applications. The unit manages a single generator circuit breaker (GCB) or mains circuit breaker (MCB) in systems controlled by Woodward easYgen-3000XT/3400XT/3500XT series genset controllers.
It is configured for 5A CT secondary current measurement with 3-phase + neutral voltage measurement capability. The unit incorporates a 32-bit adaptive PID controller and supports both automatic and manual operating modes.
The relay provides comprehensive protection including over-/undervoltage, over-/underfrequency, voltage asymmetry, phase shift, df/dt (ROCOF), QV monitoring, time-dependent voltage, and mains voltage increase per VDE-AR-N-4105. Synchronization functionality includes slip frequency/phase matching, vector group adjustment, and configurable dead bus closure direction.
It is configured for 5A CT secondary current measurement with 3-phase + neutral voltage measurement capability. The unit incorporates a 32-bit adaptive PID controller and supports both automatic and manual operating modes.
The relay provides comprehensive protection including over-/undervoltage, over-/underfrequency, voltage asymmetry, phase shift, df/dt (ROCOF), QV monitoring, time-dependent voltage, and mains voltage increase per VDE-AR-N-4105. Synchronization functionality includes slip frequency/phase matching, vector group adjustment, and configurable dead bus closure direction.
Information
Overview
Manuals
Application Notes
Product Applications
Physical Mounting (Insertion)
Features:
- LS-511-5/P1 single-breaker control module
- 5 A current transformer input version
- Automatic phase matching and slip frequency synchronization
- True RMS voltage, current, and frequency measurement
The module performs automatic synchronization between generator and bus by continuously monitoring voltage magnitude, frequency, phase angle, and slip frequency. It supports both phase matching and slip frequency synchronization before issuing breaker close commands, helping ensure reliable connection of generators to utility or islanded power systems.
The 38440-2152 LS-511-5/P1 Woodward Circuit BreakerControl & Protection may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Woodward 8440-2152 LS-511-5/P1 Circuit BreakerControl & Protection Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The relay provides comprehensive protection including over-/undervoltage, over-/underfrequency, voltage asymmetry, phase shift, df/dt (ROCOF), QV monitoring, time-dependent voltage, and mains voltage increase per VDE-AR-N-4105. Synchronization functionality includes slip frequency/phase matching, vector group adjustment, and configurable dead bus closure direction.
Communication is handled via a single CANopen bus interface for peer-to-peer communication with the master genset controller, plus one RS-485 interface. The unit features 8 discrete inputs, 6 relay outputs, and 8 configurable LEDs on the faceplate. An event recorder with real-time clock (battery backup) is included, along with circuit breaker closure and energy counters.
- Industrial Power Generation: Manages engines and generators for stable, reliable power output
- Mechanical Drives: Controls compressors, blowers, and heavy industrial machinery
- Pumps/Marine Propulsion: Delivers high-precision fluid control; /P1-MARINE variants withstand harsh marine environments with DNV/BV certifications
- Critical Standby Power: Deployed in data centres/hospitals to manage mains failures and rapid generator startup
- CHP/Cogeneration: Manages utility paralleling, peak shaving, and import/export thresholds between plant and grid
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting Type: DIN-rail back panel mount (using DIN-rail mounting kit, P/N 8923-1746).
Housing: Aluminum powder-coated, display-less chassis. (For front door mounting with an LCD display, consider the LS-521 variant).
Cooling/Clearance: Ensure adequate vertical and horizontal clearance around the unit for proper heat dissipation.
Alternative Names
8440-2I52
844O-2152
84A0-2152
8440 2152
8440-2I52
844O-2152
Technical notes
The 8440-2152 operates on a DC input range of 8–40 V with power consumption below 5 W. It is rated for operating temperatures from -40°C to +85°C and holds UL/cUL, CE, and EAC certifications. Marine approvals (LR & ABS) are pending.
FAQs
-
Does the LS-511 have built-in event logging?
+Yes, the unit features comprehensive event logging, making it easier to troubleshoot breaker operations and system events. -
What devices are compatible with this controller?
+The LS-5 series operates seamlessly as a standalone unit or in tandem with Woodward's easYgen-3400/3500 or easYgen-3400XT/3500XT genset controllers. Up to 16 LS-5 units can be networked together -
What is 8440-2152?
+The Woodward LS-511-5/P1 (Part No. 8440-2152) is a specialized circuit breaker control and protection module designed for engine-generator systems. -
What type of housing and mounting does the LS-511 use?
+It features a rugged sheet-metal/aluminum powder-coated housing without a built-in display. It is built specifically for in-cabinet back-panel mounting
