- AAI543-H50 S1
In Stock
Ships by Monday, August 17
Fast Shipping Available

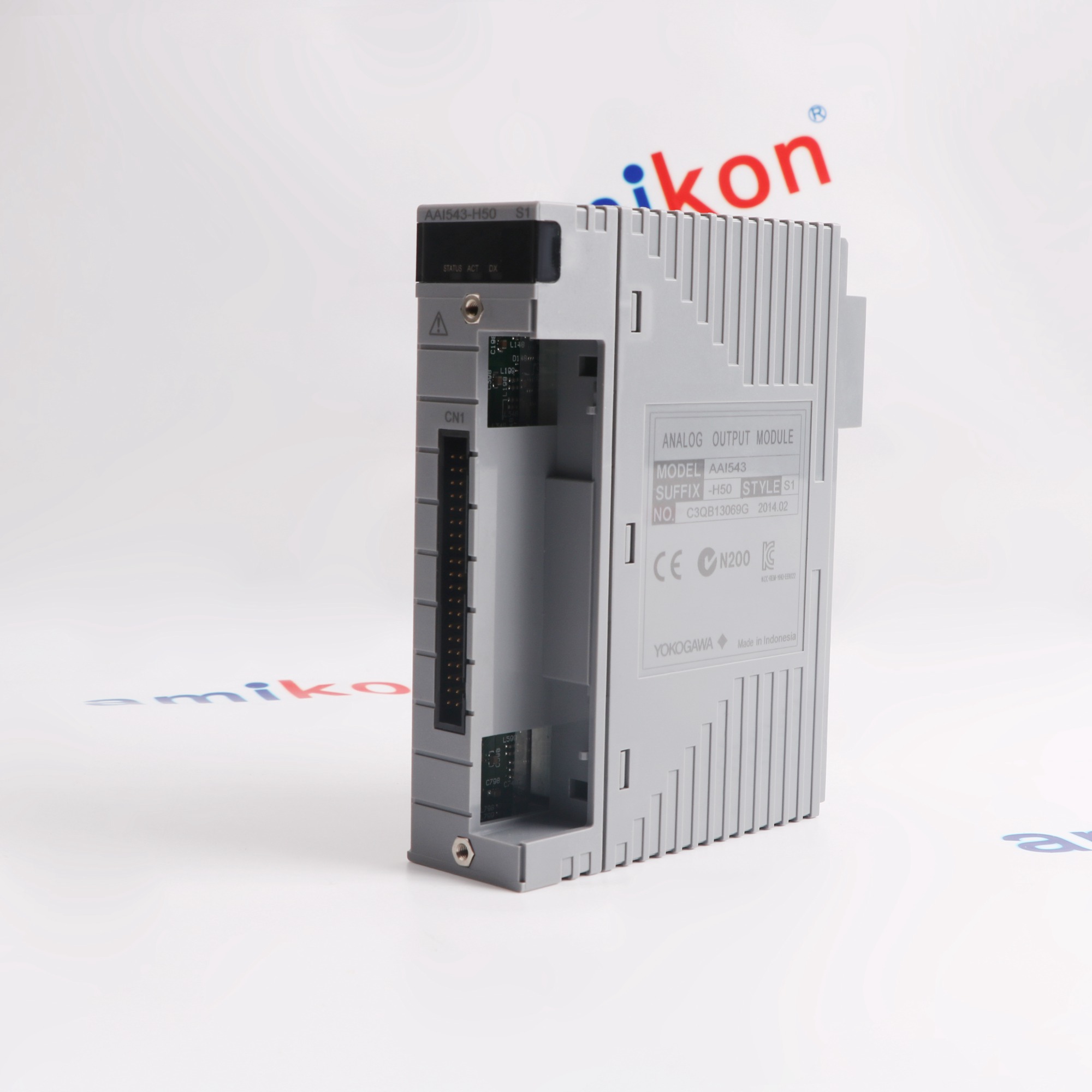

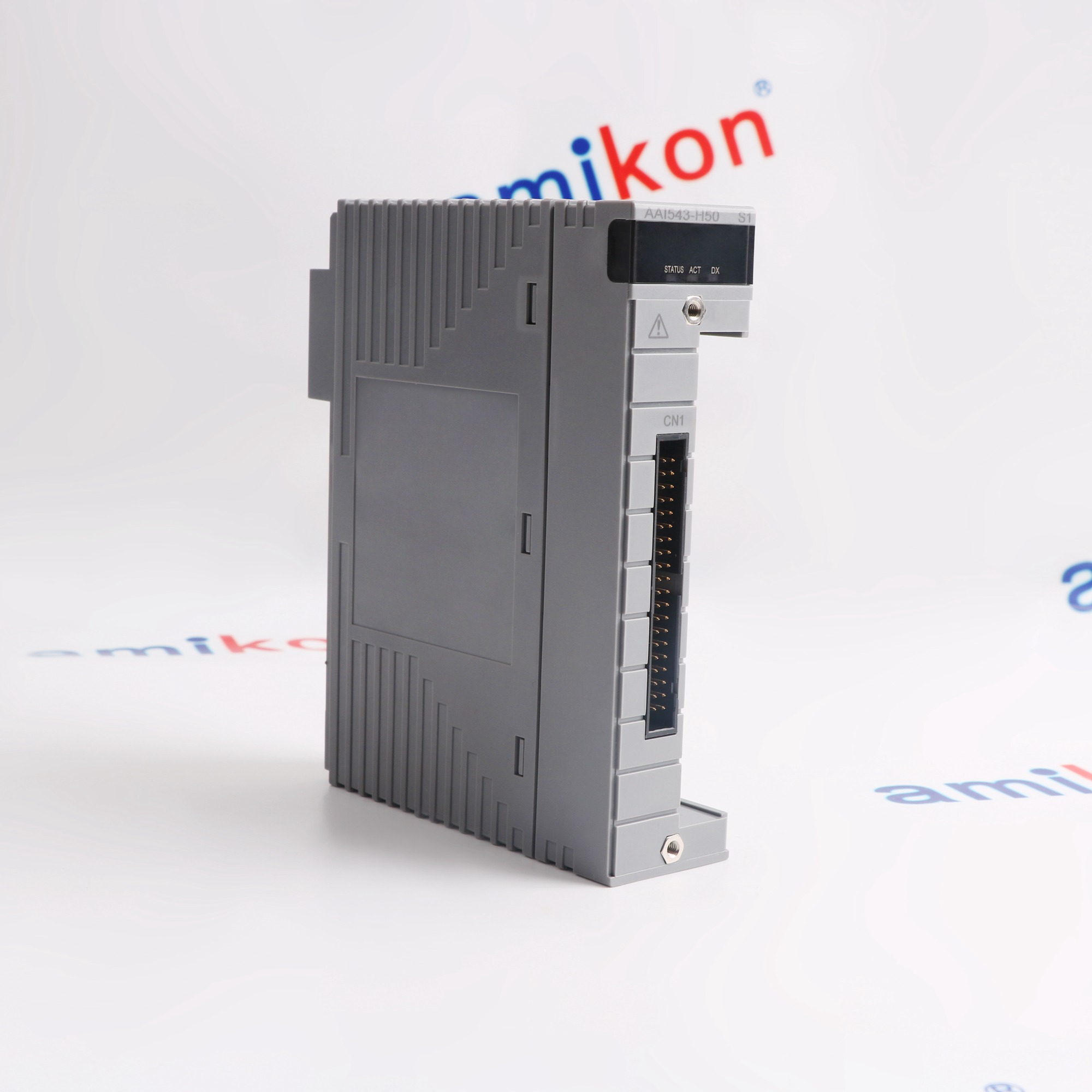

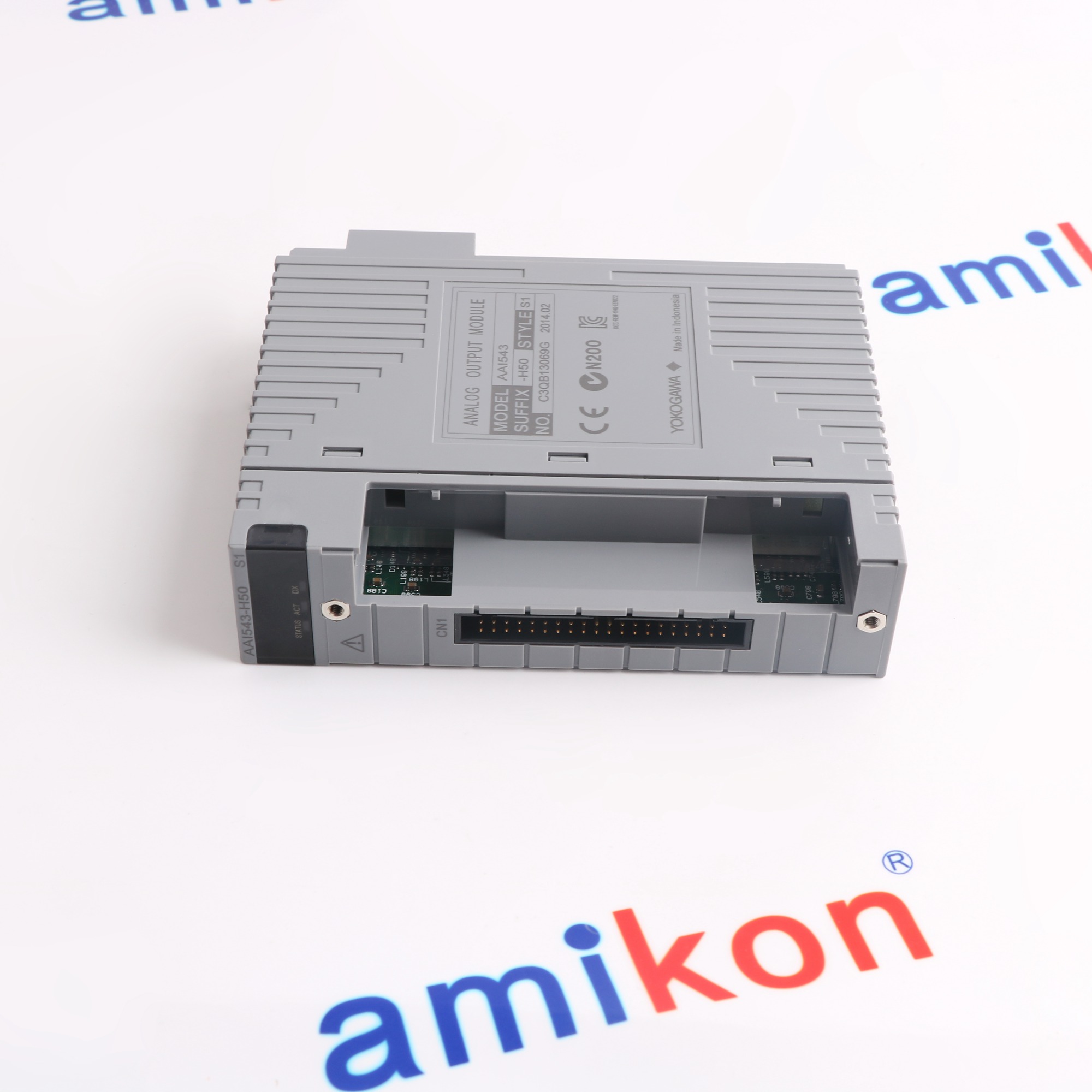

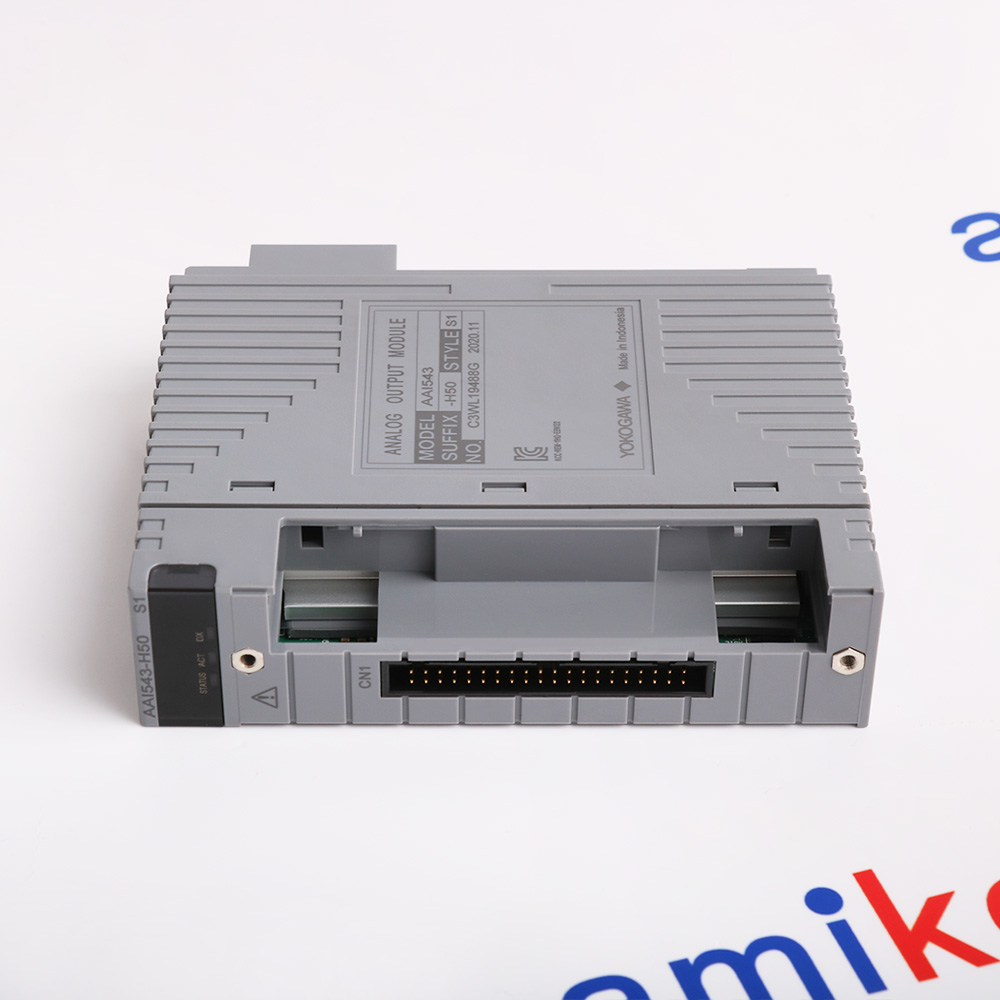

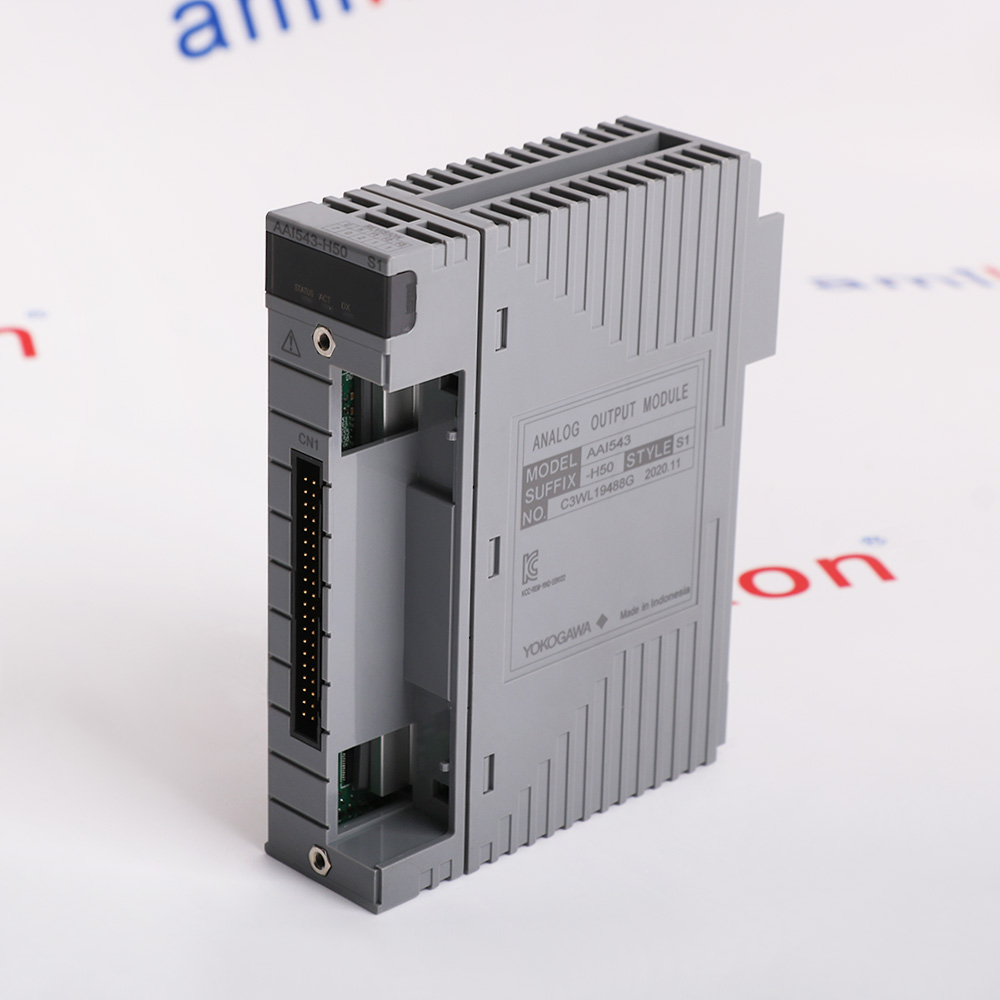

· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for AAI543-H50 S1
-
Product ModelAAI543-H50 S1
-
Spare ModelAAI543-H50
-
Product ParametersCurrent Output Module
-
Tariff Code8537101190
-
Country of originJAPAN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.2x10.6x13cm
-
ManufacturerYokogawa
-
Weight0.3 kg
-
Maximum current consumption230 mA (5 V DC), 540 mA (24 V DC)
-
External communicationPressure clamp terminal, MIL connector cable, dedicated cable
-
Between output and system1500 V AC, for 1 minute
-
Number of output channels16, isolated
-
Output signal4 to 20 mA
-
Allowable load resistance0 to 750 Ω
-
Accuracy±48 µA
-
Drift due to ambient temperaturechange±16 µA/10 ˚C
Description
The Yokogawa AAI543-H50 S1 Current Output Module is an isolated analog current output module for Yokogawa CENTUM CS 3000 and CENTUM VP distributed control systems. The AAI543-H50 S1 provides 16 isolated analog output channels with a standardized 4 to 20 mA DC output signal, allowing the module to transmit control signals to field devices such as control valves, actuators, and current-operated instruments. The module supports HART communication and can be installed in dual-redundant configurations for improved system availability.
The Yokogawa AAI543-H50 S1 Current Output Module uses isolated output circuits with a withstand voltage of 1500 V AC for 1 minute between output and system circuits. The AAI543-H50 S1 supports an allowable load resistance range of 0 to 750 Ω, provides a data update period of 10 ms, and achieves an output accuracy of ±48 μA, making it suitable for precise analog control applications in process automation systems.
The Yokogawa AAI543-H50 S1 Current Output Module uses isolated output circuits with a withstand voltage of 1500 V AC for 1 minute between output and system circuits. The AAI543-H50 S1 supports an allowable load resistance range of 0 to 750 Ω, provides a data update period of 10 ms, and achieves an output accuracy of ±48 μA, making it suitable for precise analog control applications in process automation systems.
Information
Overview
Manuals
Application Notes
Product Applications
Insertion Guidelines
Features:
- 16-Channel 4–20mA Isolated Current Output Module
- Dual-Redundant Configuration with Standard and Fast Switch-Over Response
- 500V AC Withstanding Voltage with Dedicated Cable
- Fast Switch-Over Response for Fast Response Field Devices
- Temperature-Derated Operation for High-Temperature Environments
The AAI543 can be used in dual-redundant configuration, enhancing system availability by providing backup output capability for critical process control applications. A dual-redundant configuration of the AAI543 is enabled by using two identical modules with the same switch-over response type (standard or fast). The AAI543 offers two switch-over response options: the AAI543-5/-E provides a standard switch-over response with a maximum period of 100ms when the field output falls below 4mA during switch-over, while the AAI543-6/-F provides a fast switch-over response with a maximum period of only 2ms.
The AAI543-H50 S1 Yokogawa Current Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa AAI543-H50 S1 Current Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The AAI543 provides a withstanding voltage of 500V AC between the output signal and the system when using a dedicated cable, ensuring adequate electrical isolation and protection for the control system. When the ML connector cable is used with the AAI543, the withstanding voltage depends on the electrical specifications of the cable.
The AAI543 is compatible with multiple field control station types, including AFV30S, AFV30D, AFV40S, AFV40D, AFV10S, and AFV10D. The AAI543 runs on the control functions of VP6F1700 for AFV30/AFV40 with Vnet/IP and FIO, and VP6E5100 Standard Builder for engineering configuration.
- Oil & Gas: Monitors valve positions, pump statuses, and safety shutdown switches
- Chemical Plants: Captures discrete signals from pressure/temperature switches in reactors/vessels
- Power Generation: Monitors emergency stops, breaker statuses, and turbine interlocks
- Manufacturing/Water: Controls filtration systems and tracks conveyor line sensors
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power State: The module supports 'hot-swapping' in basic configurations, but ensure the node unit or Field Control Unit (FCU) is powered securely to avoid voltage spikes.
Alignment: Carefully align the module card with the node unit slot and slide it smoothly into the backplane.
Securing: Once fully seated, securely tighten the top and bottom mounting screws to ensure proper grounding and to prevent loosening caused by industrial vibration.
Alternative Names
AAI543-H50 SI
AAI543-H5O S1
AA1543-H50 S1
AAI543 H50 S1
AAI543 H50 SI
AAI543 H5O S1
AA1543 H50 S1
AAI543-H50-S1
AAI543-H50-SI
AAI543-H5O-S1
AA1543-H50-S1
Technical notes
The Yokogawa AAI543-H50 S1 Current Output Module provides 16 isolated 4–20 mA output channels for transmitting analog control signals from the Yokogawa control system to field equipment. The AAI543-H50 S1 supports a load resistance range of 0 to 750 Ω and maintains an output accuracy of ±48 μA with a 10 ms data update period.
FAQs
-
What is the AAI543-H50 S1?
+The Yokogawa AAI543-H50 S1 is a 16-channel, isolated analog output module designed for industrial automation and process control systems. -
Can this module be used in a redundant configuration?
+Yes. The AAI543-H50 S1 supports dual-redundant configurations for high-reliability and fault-tolerant architectures. It provides a standard switch-over response to ensure seamless operation in the event of a module failure -
What is the circuit-open detection threshold?
+The circuit-open detection triggers when the output signal drops below 0.65 mA. This feature alerts the control system to disconnected or faulty field wiring. -
What types of external connections are supported?
+The module supports pressure clamp terminals, MIL connector cables, and dedicated KS cables (usually via an interface adapter block like the ATK4A-00).
