Technical specifications for EC402-50 S1
-
Product ModelEC402-50 S1
-
Spare ModelEC402-50
-
Product ParametersESB Bus Coupler Module
-
Tariff Code8537101190
-
Country of originJAPAN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.2x12.8x13cm
-
ManufacturerYokogawa
-
Weight0.2 kg
-
Operating Temperature-40°C to +85°C (-40°F to +185°F)
-
Humidity5–95% RH (non-condensing)
-
Current consumption0.5 A
-
Transmission speed128 Mbps
-
Number of connectable unitsMax. 9 units on the upper side, Max. 9 units on the lower side
-
Transmission distanceMax.10 m on the upper side, Max. 10 m on the lower side, total of Max. 20 m
Description

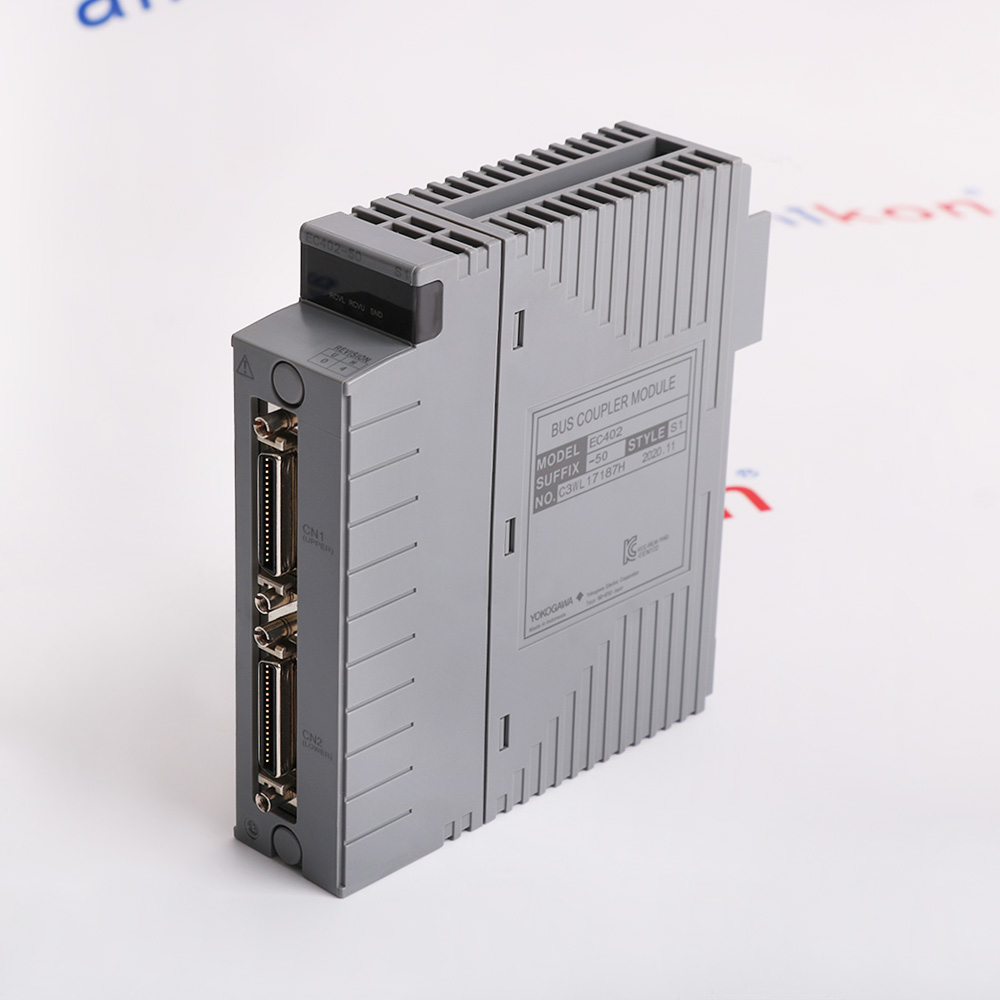

The EC402-50 S1 is an ESB Bus Coupler Module manufactured by Yokogawa for the CENTUM VP integrated production control system. The EC402-50 S1 serves as a communication module to connect the Field Control Unit (FCU) and the Node Unit for ESB Bus via the ESB bus, enabling high-speed data exchange between the controller and distributed I/O devices.

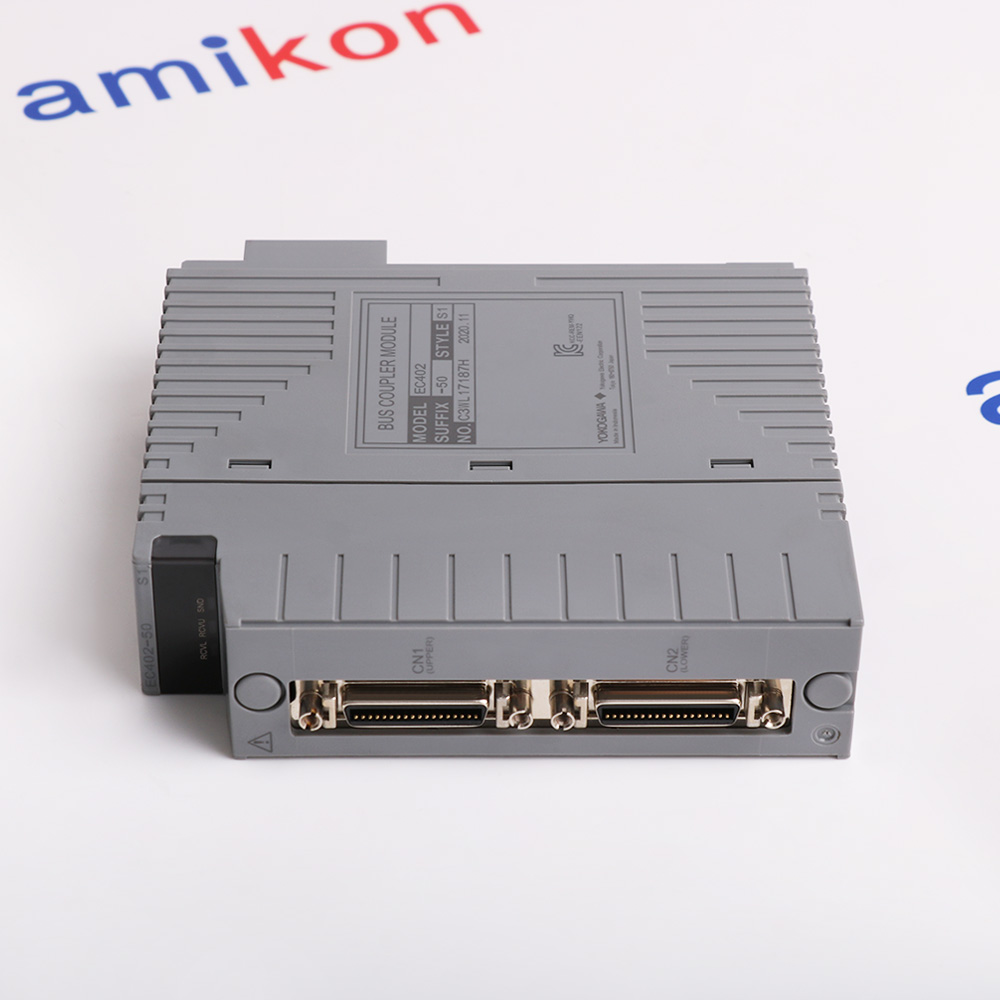

The EC402-50 S1 can be installed in the Field Control Unit for FIO (AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S, A2FV50D, A2FV70S, A2FV70D). The EC402-50 S1 features two ESB bus connector ports on the front of the module, accommodating a larger number of connected nodes than the previous EC401 model, which allows the EC402-50 S1 to offer a longer transmission distance for expanded network architectures.
For network configuration, the EC402-50 S1 supports both non-redundant and dual-redundant ESB bus setups. If the ESB bus is non-redundant, the EC402-50 S1 needs to be installed in the 7th slot of the compatible FCU, and slot 8 must be covered by a dummy module. When the ESB bus is dual-redundant, two EC402-50 S1 modules need to be installed in both the 7th and 8th slots, providing automatic failover capability for enhanced system availability.
The EC402-50 S1 can be installed in the Field Control Unit for FIO (AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S, A2FV50D, A2FV70S, A2FV70D). The EC402-50 S1 features two ESB bus connector ports on the front of the module, accommodating a larger number of connected nodes than the previous EC401 model, which allows the EC402-50 S1 to offer a longer transmission distance for expanded network architectures.
For network configuration, the EC402-50 S1 supports both non-redundant and dual-redundant ESB bus setups. If the ESB bus is non-redundant, the EC402-50 S1 needs to be installed in the 7th slot of the compatible FCU, and slot 8 must be covered by a dummy module. When the ESB bus is dual-redundant, two EC402-50 S1 modules need to be installed in both the 7th and 8th slots, providing automatic failover capability for enhanced system availability.
Information
Overview
Manuals
Application Notes
Product Applications
Step-by-Step Module Insertion
Features:
- ESB bus master interface with dual-port connectivity
- Dual-redundant ESB bus configuration support
- Extended node connectivity up to 13 units total
- Extended transmission distance up to 20 meters total
The EC402-50 S1 features two front-mounted ESB bus ports, allowing connection of a larger number of node units than the EC401 module while extending the total transmission distance. It supports communication speeds of 128 Mbps, accommodates up to 13 connected node units, and is installed in compatible Yokogawa Field Control Units such as the AFV30, AFV40, and A2FV50/A2FV70 series.
The EC402-50 S1 Yokogawa 2-port ESB Bus Coupler Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa EC402-50 S1 2-port ESB Bus Coupler Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The EC402-50 S1 is compatible with Yokogawa AFV30, AFV40, A2FV50, and A2FV70 Field Control Units used in N-IO and FIO systems. The S1 option provides ISA Standard G3 conformal coating, offering enhanced resistance to corrosive industrial environments. With high-speed communication, support for redundant network configurations, and seamless integration into the CENTUM VP platform, the EC402-50 S1 is widely used in oil and gas, chemical processing, power generation, water treatment, and other continuous process industries requiring dependable distributed control and I/O communication.
- Oil/Gas Refineries: Manages field signals from distributed sensor arrays safely
- Chemical/Petrochemical: Ensures synchronous communication between central processors and hazardous area gear
- Power Generation: Coordinates large-scale process variables with zero latency
- Water/Wastewater: Overcomes distance constraints across distributed treatment nodes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Isolate Static: Wear a grounded ESD wrist strap before touching the module to prevent electrostatic damage.
Align Rails: Locate Slot 7 (and Slot 8 if duplexed) on the FCU baseplate. Slide the module smoothly along the guide rails.
Seat Module: Press firmly until the rear connector seats perfectly into the backplane.
Secure Fasteners: Tighten the top and bottom integrated screws to lock the hardware into the rack.
Alternative Names
EC402-50 SI
EC402-5O S1
EC40Z-50 S1
EC4O2-50 SI
EC402 50 SI
EC402 50 S1
EC402 5O SI
EC40Z 50 SI
EC4O2 50 SI
Technical notes
The EC402-50 S1 achieves a transmission speed of 128 Mbps for I/O module data transmission, ensuring responsive communication for time-critical process control applications. The EC402-50 S1 supports up to 9 connectable units on the upper side and up to 9 units on the lower side, with a total maximum of 13 units depending on the FCS database configuration. The transmission distance of the EC402-50 S1 reaches up to 10 meters on the upper side and 10 meters on the lower side, for a combined total maximum of 20 meters.
FAQs
-
What is the EC402-50 S1 ？
+The Yokogawa EC402-50 S1 is an ESB (Ethernet Switch Bus) Bus Coupler Module used in the CENTUM VP Distributed Control System -
What is the primary function of the EC402-50 S1?
+The module acts as a communication bridge, facilitating seamless data exchange and command routing between the main Field Control Unit and remote I/O Node Units. -
What is the maximum distance the module can cover?
+It supports a total maximum transmission distance of 20 meters (10 meters on the upper side and 10 meters on the lower side). -
What does the S1 designate in the model number?
+The S1 often indicates compatibility with Yokogawa's redundancy configurations. Installing a pair of these modules in a compatible FCU (such as the AFV30S or AFV40S) allows for a dual-redundant ESB bus, ensuring the system continues to operate even if one module fails.
