- SDV531-S33 S3

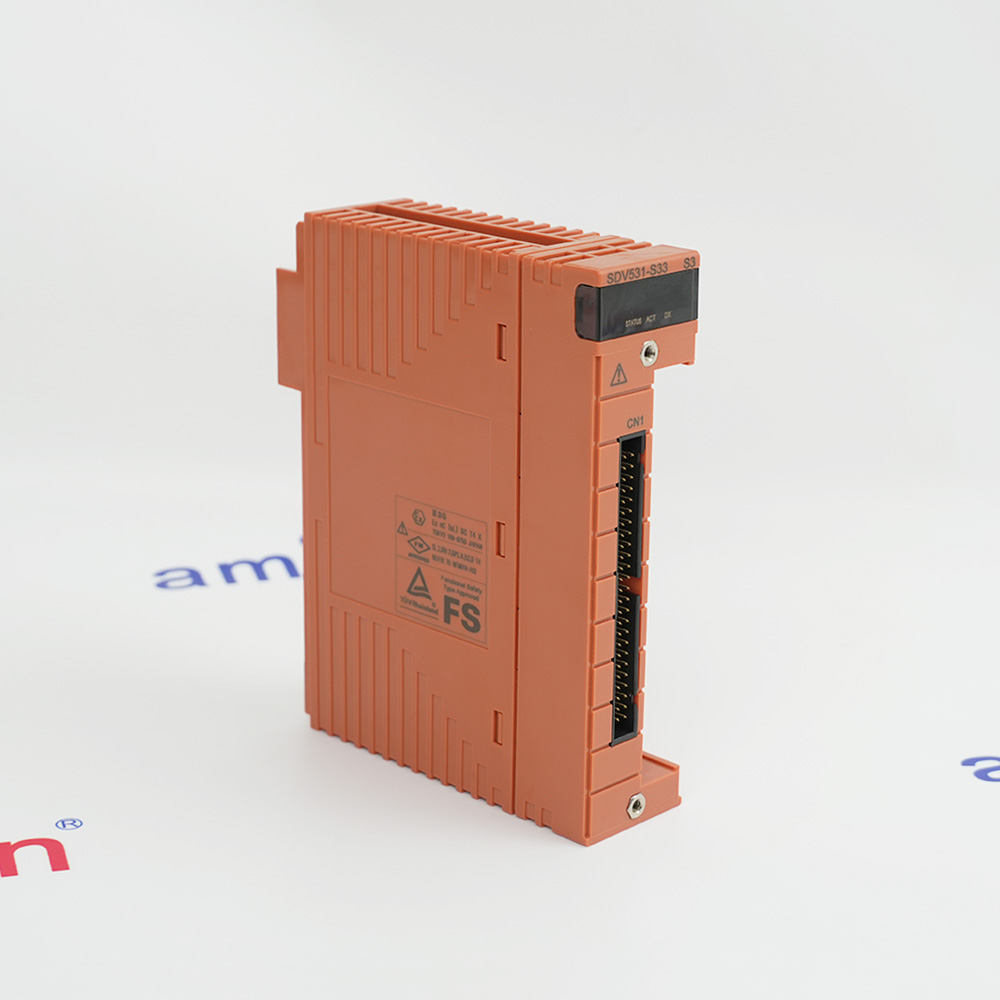

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for SDV531-S33 S3
-
Product ModelSDV531-S33 S3
-
Spare ModelSDV531-S33
-
Product ParametersDigital output module
-
Tariff Code8537101190
-
Country of originJapan
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.2x10.6x13cm
-
ManufacturerYokogawa
-
Weight0.25 kg
-
Number of outputs8-channel, module isolation
-
Output voltage24 V DC
-
Output voltage drop1 V maximum
-
External power supply rating24 V DC, 5 A minimum
-
Maximum leak current at output offstatus1.6 mA
-
Maximum load current0.6 A/output line
-
Minimum load current35 mA
-
Load resistance range40 to 685 Ω
Description
Digital output module
8-channel
24 V DC module isolation
for longdistance
8-channel
24 V DC module isolation
for longdistance
Information
Overview
Manuals
Technical notes
Product Applications
Key Installation and Setup Information
Features:
- 8-Channel Isolated Output
- Safety Instrumented System (SIS) Integration
- Line Monitoring Capability
- High Current Capacity
The output modules can be made dual-redundant respectively. They incorporate field wiring diagnostic functions, sothey require no wiring diagnosis elements.
The SDV531-S33 S3 Yokogawa Digital Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa SDV531-S33 S3 Digital Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
When short-circuit occurs on the field side, the Output Shutoff Switch is activated andthe output of all channels on the module becomes OFF. When the short-circuit erroris resolved, the outputs can be recovered by starting the output module from the SCSStatus Management Window and performing the Output Enable Operation. Then therecovered output channels will output the application logic values. Without performingthe Output Enable Operation, all the outputs will be kept OFF.
- Safety Instrumented Systems (SIS):SIL3 safety loops for safety control functions
- Emergency Shutdown Systems (ESD):Critical safety shutdown for industrial processes
- Oil & Gas Processing:Control valves, relays & solenoids
- Power Generation:Automated safety for power plant equipment
- Chemical & Pharmaceutical Processing:Safe reliable control for automated lines
- Factory & Building Automation:Digital output for production or HVAC
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Compatibility: This module is installed in Safety Node Units (SNB10D) or Safety Control Units (SSC60, SSC50, SSC10).
Replacement Notice: The SDV531-S33 has been replaced by the SDV531-S63.
Wiring/Terminal Blocks: The module can use pressure clamp terminals or dedicated signal cables for connection.
The terminal blocks come in single or dual-redundant configurations.
Redundancy: To create a dual-redundant configuration, two adjacent SDV531 modules are connected together.
FAQs
-
What is the SDV531-S33 S3 ?
+The Yokogawa SDV531-S33 S3 is a SIL3-compliant Digital Output Module for the ProSafe-RS Safety Instrumented System, typically used for high-reliability applications like emergency shutdown (ESD). -
What is the function of the SDV531-S33 S3?
+It acts as a digital output module for safety-critical applications requiring SIL3 reliability. -
Does it support dual-redundant wiring layouts?
+Yes. It can be paired with an adjacent module using a dual-redundant terminal block. This guarantees uninterrupted safety operations even if one module fails or is pulled for hot-swapping. -
Does the module support hazardous locations?
+It offers options for both with and without explosion protection, depending on the suffix code (e.g., -5 indicates no explosion protection).
