PRODUCT DESCRIPTION

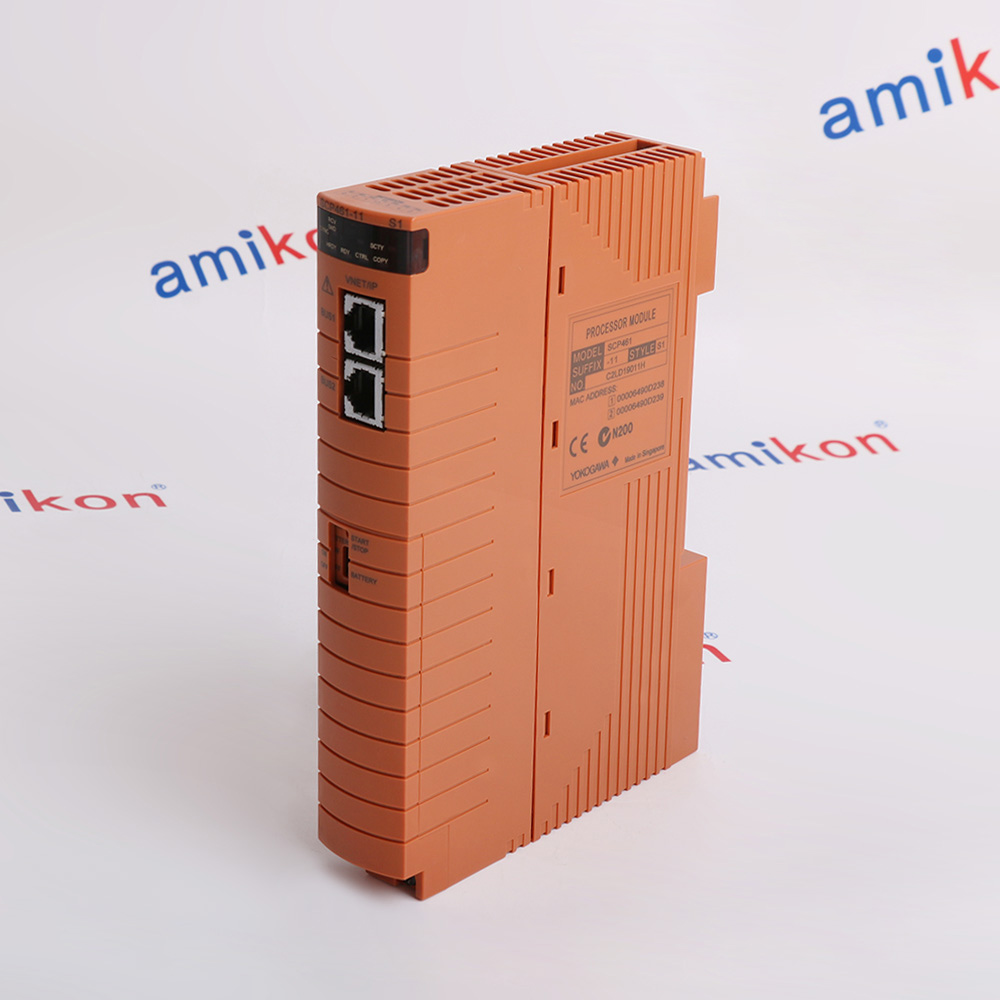

SCP461-11 S1 Safety control processor module
Yokogawa SCP461-11 S1 is a processor module in the ProSafe-RS safety instrumented system family for SSC60S/SSC60D safety control units. It executes the configured safety application and coordinates field I/O in process plants, including oil and gas production, chemical processing and power generation.
The module combines dual Vnet/IP network connections, front status indicators and hardware configuration switches. Application logic is retained in flash memory, while operating information is stored in nonvolatile memory and lithium-battery-backed management storage. A compatible pair of identical processor modules supports the documented redundant configuration; complete suffix, style, station hardware and software requirements must match.
The module combines dual Vnet/IP network connections, front status indicators and hardware configuration switches. Application logic is retained in flash memory, while operating information is stored in nonvolatile memory and lithium-battery-backed management storage. A compatible pair of identical processor modules supports the documented redundant configuration; complete suffix, style, station hardware and software requirements must match.
BEFORE YOU BUY
Confirm the complete safety control processor module
ACTUAL APPLICATIONS
Application context for SCP461-11 S1
SCP461-11 S1 is a ProSafe-RS processor for SSC60 safety control units, with dual Vnet/IP communication. The platform serves chemical production, power generation and petroleum processing. Safety functions depend on the installed application, compatible I/O and documented hardware and software combination.
-
01 · CHEMICAL & PETROCHEMICAL
Chemical Production and Petrochemical Processing
Industrial Chemical ManufacturingPetrochemical Production and Processing -
02 · POWER GENERATION
Electricity Generation and Industrial Heat Supply
Conventional Electric Power GenerationCombined Heat and Power -
03 · OIL & GAS
Petroleum Refining and Natural Gas Processing
Petroleum Refining and ProcessingNatural Gas Processing
Technical specifications for SCP461-11 S1
-
Product ModelSCP461-11 S1
-
Spare ModelSCP461-11
-
Product ParametersSafety control processor module
-
In stock2 units
-
ManufacturerYokogawa
-
Control network ports2 Vnet/IP
-
Network speed100 Mbps
-
Ethernet transmission modeFull duplex
-
Ethernet physical interface100BASE-TX
-
Network connectorRJ45
-
Network cable categoryCAT5e or higher
-
Controller-to-switch distance100 m maximum
-
Front configuration switch6-bit DIP
-
Status indicator bank8 numbered LEDs
-
Battery packS9185FA
-
Battery chemistryLithium
-
Battery replacement interval3 years at average ambient ≤30 ℃; 18 months at ≤40 ℃; 9 months at ≤50 ℃
-
Application-program storageFlash memory
-
Operating-data storageNVRAM
-
Redundant processor quantity2 identical modules
View all additional
Alternative Names
SCP461-11 S1
ProSafe-RS SCP461 processor
SSC60 safety controller CPU
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate SCP461-11 S1 safety control processor module
Yokogawa SCP461-11 S1 is a processor module in the ProSafe-RS safety instrumented system family for SSC60S/SSC60D safety control units. It executes the configured safety application and coordinates field I/O in process plants, including oil and gas production, chemical processing and power generation.
Match the documented control network ports (2 Vnet/IP) and network speed (100 Mbps) to the installed ProSafe-RS configuration. Preserve the complete suffix, hardware interfaces and required mating components.
Use the applicable Yokogawa mounting, connection and commissioning instructions. Save the existing configuration and validate the affected functions before returning the equipment to operation.
Features:
- Control network ports: 2 Vnet/IP
- Network speed: 100 Mbps
- Ethernet transmission mode: Full duplex
The SCP461-11 S1 safety control processor module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify SCP461-11 S1 safety control processor module
Before exchanging SCP461-11 S1, verify the complete article identification, installed hardware revision and documented safety control processor module role. Matching appearance alone does not establish interchangeability.
Record the installed ProSafe-RS connections and settings. Preserve the applicable configuration, application records and diagnostic information before disconnecting the current item.
After installing the verified SCP461-11 S1, restore the controlled configuration and perform the manufacturer-defined functional checks. Record the completed inspection and test results before release.
Features:
- Control network ports: 2 Vnet/IP
- Network speed: 100 Mbps
- Ethernet transmission mode: Full duplex
The SCP461-11 S1 safety control processor module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the SCP461-11 S1 safety control processor module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size3.20 × 14.40 × 19.80 cm
-
Shipping weight0.65kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginJapan
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about SCP461-11 S1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is SCP461-11 S1 a CENTUM XL processor?
SCP461-11 S1 is a ProSafe-RS processor associated with SSC60 safety control units. Its safety-controller identity differs from the CENTUM XL classification previously assigned to this page. -
What do the two SCP461 network connections represent?
The separate Bus 1 and Bus 2 connectors on SCP461-11 S1 provide the documented dual Vnet/IP connections. They are RJ45 100BASE-TX interfaces, not field analog input terminals. -
Which cable category is specified for SCP461-11 S1?
Yokogawa specifies CAT5e or higher twisted-pair network cable for the 100 Mbps full-duplex connection used by SCP461-11 S1. -
Does the SSC60 processor retain its application in flash?
The SCP461-11 S1 processor stores application information in flash and operating data in NVRAM. Maintain an external controlled application record before an exchange. -
What is the SSC60 processor battery article?
S9185FA is the specified lithium battery pack for SCP461-11 S1. Check its expiration label and the temperature-dependent replacement interval. -
Are two different SCP461 styles an approved redundant pair?
The documented redundant arrangement for SCP461-11 S1 uses identical compatible processor modules. A different style requires a manufacturer-approved station and software compatibility check. -
Which SSC60 details should accompany an order?
For SCP461-11 S1, include the full label, SSC60 unit designation, processor-pair configuration and installed software release with the required quantity. -

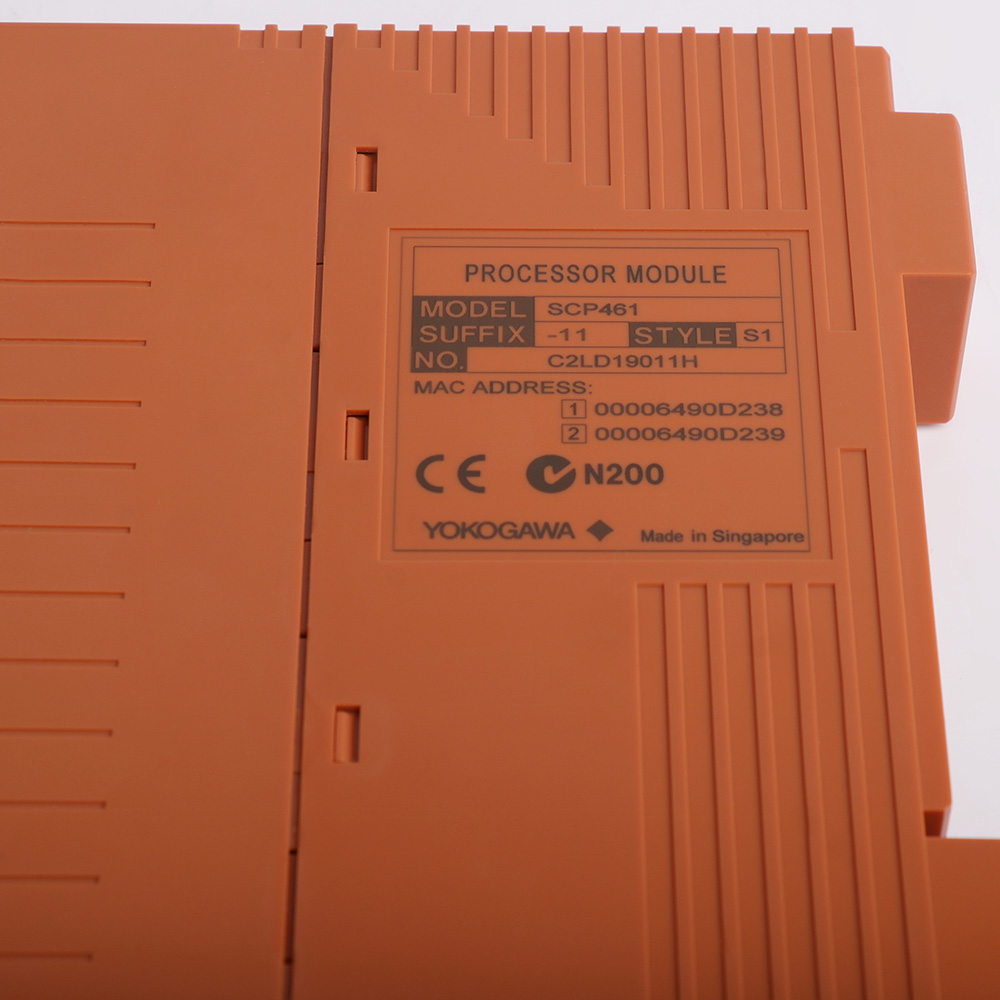

Which external features should be compared on receipt?
Check the SCP461-11 S1 article and style against the order, then inspect the front switch bank, indicators, network sockets and module contacts.
