PRODUCT DESCRIPTION

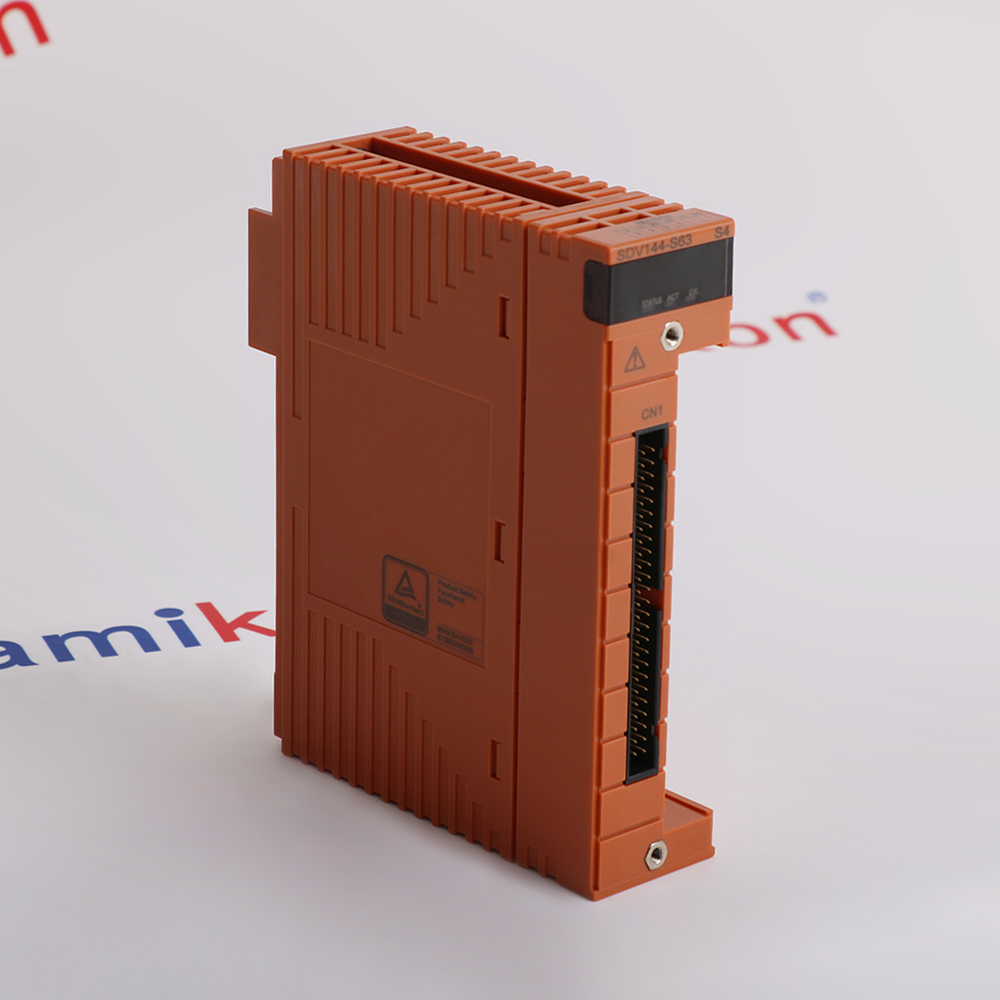

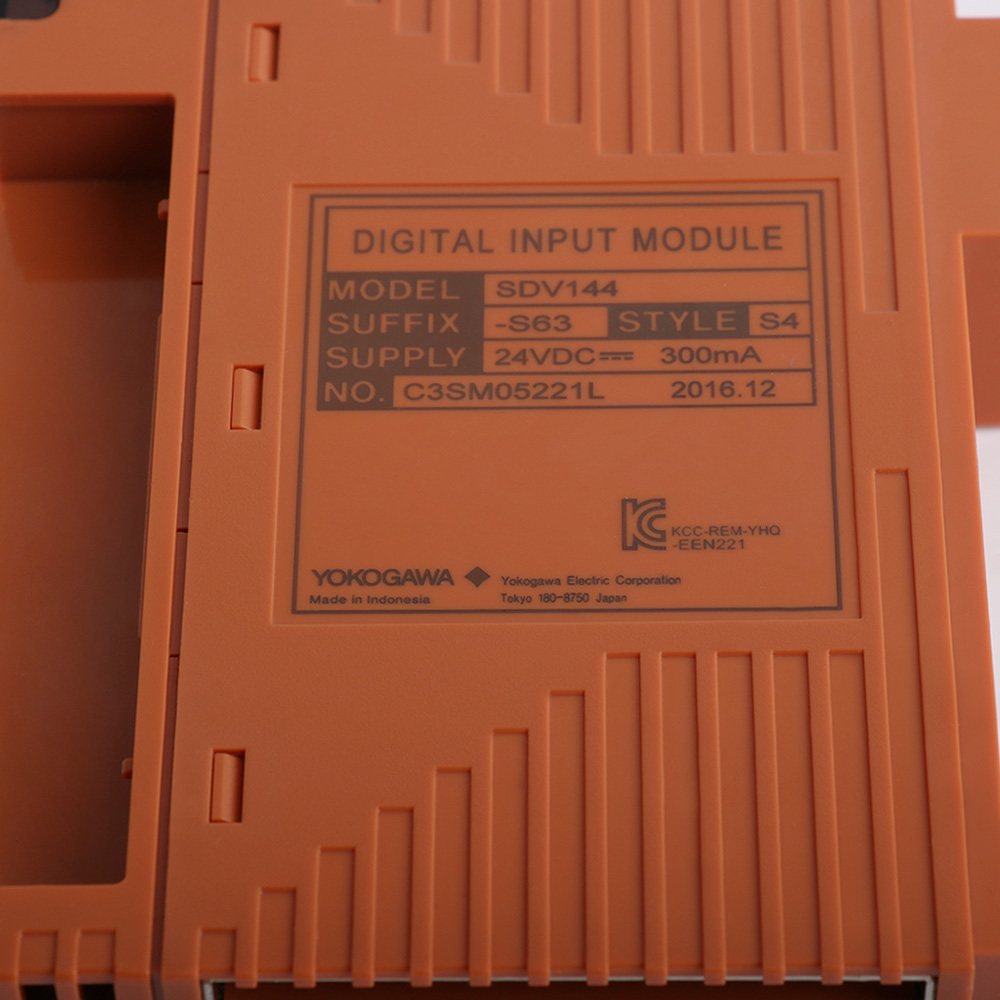

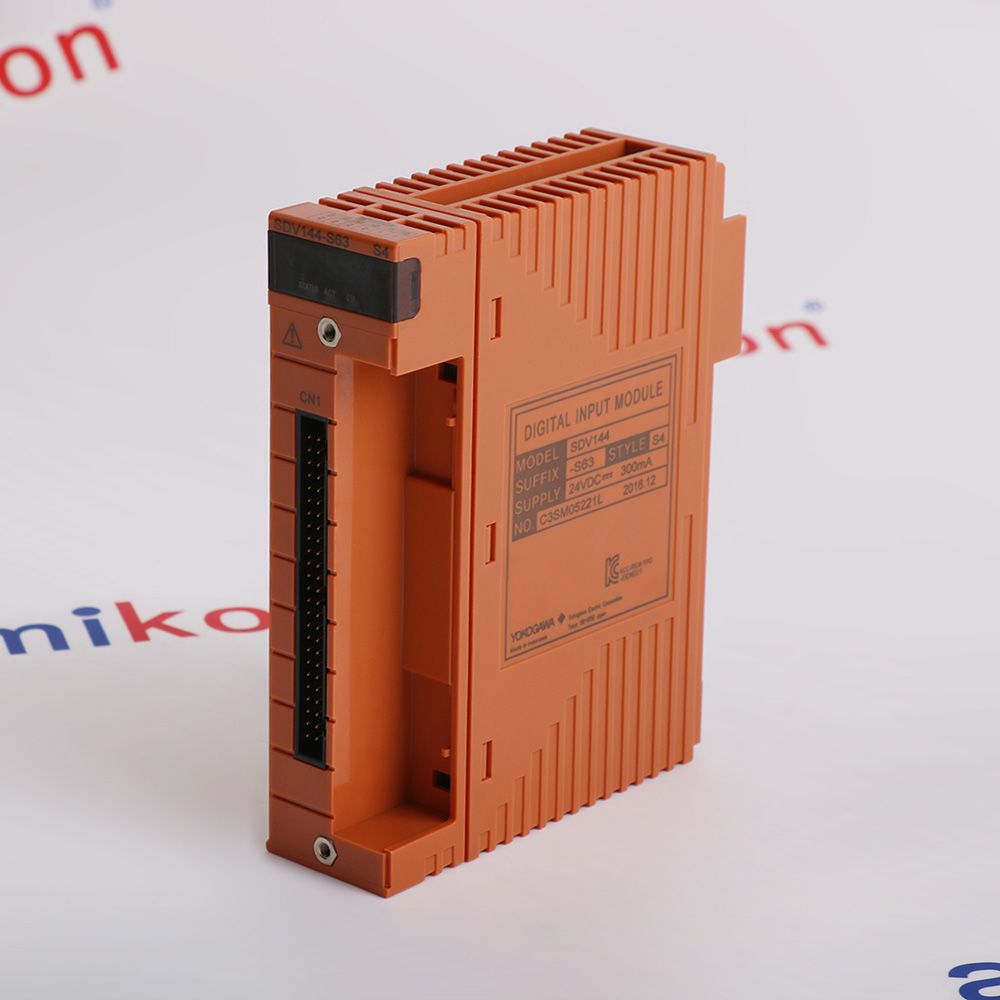

SDV144-S63 S4 digital input module
Yokogawa SDV144-S63 S4 is a digital input module documented for ProSafe-RS FIO digital I/O. It performs its assigned input, processing, operator-interface, control or cooling function through the manufacturer-specified electrical and mechanical interfaces. Verify the complete article identity and installed system configuration before replacement or commissioning.
BEFORE YOU BUY
Confirm the complete digital input module
ACTUAL APPLICATIONS
Application context for SDV144-S63 S4
Official manufacturer documentation supports these system uses when the complete ProSafe-RS FIO digital I/O configuration is verified.
-
01 · FIELD CONTACTS
Safety digital-input assemblies
ProSafe-RS Input SystemsDry-contact state acquisitionDual-redundant input service -
02 · WIRING DIAGNOSTICS
Open- and short-circuit checks
Input Diagnostic SystemsSCB100 parallel connectionSCB110 series connection -
03 · SAFETY INTERLOCKS
Discrete trip and permissive inputs
Safety Instrumented Systems24 V DC contact monitoring40 ms input response verification
Technical specifications for SDV144-S63 S4
-
Product ModelSDV144-S63 S4
-
Product Parametersdigital input module
-
In stock1 unit
-
ManufacturerYokogawa
-
Input Channels16, module-isolated
-
Input SignalNo-voltage contact
-
ON Resistance1 kΩ maximum
-
OFF Resistance100 kΩ minimum
-
Input Current6 mA ±20%
-
Contact Rating24 V DC +20%/-10%, 10 mA minimum
-
External Supply24 V DC +20%/-10%
-
Maximum Input30.0 V DC instantaneous
-
Response Time40 ms maximum
-
Withstand Voltage2 kV AC for 1 minute
-
5 V Consumption290 mA maximum
-
24 V Consumption140 mA maximum
-
Diagnostic ElementsSCB100 and SCB110 supported
-
Communication optionStandard non-HART type
-
Style codeS4
View all additional
Alternative Names
SDV144 S63 S4
ProSafe-RS digital input module
Yokogawa digital input module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match SDV144-S63 S4 to the installed ProSafe-RS FIO digital I/O
Yokogawa SDV144-S63 S4 is a digital input module for the ProSafe-RS FIO digital I/O. Its exact article suffix determines the supported interface, signal or communication function and the approved companion equipment.
Engineering should compare off resistance (100 kΩ minimum), input current (6 mA ±20%) and contact rating (24 V DC +20%/-10%, 10 mA minimum) with the installed system design. Confirm connector keying, addressing and configuration-tool support before connection.
Use the manufacturer documentation for the complete wiring and configuration sequence. Validate communication, signal conversion or control response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact identity: SDV144-S63 S4
- Product class: digital input module
- Family: ProSafe-RS FIO digital I/O
The Yokogawa SDV144-S63 S4 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete SDV144-S63 S4 identity before exchange
Replace SDV144-S63 S4 only after matching the complete article code, digital input module, installed ProSafe-RS FIO digital I/O role and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive or network configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Exact identity: SDV144-S63 S4
- Product class: digital input module
- Family check: ProSafe-RS FIO digital I/O
The Yokogawa SDV144-S63 S4 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for SDV144-S63 S4
- Yokogawa ProSafe-RS FIO digital I/O references reviewed
- Exact Yokogawa identity required before service
Documentation for Yokogawa SDV144-S63 S4 must match the installed equipment; confirm document applicability before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size3.28 × 10.75 × 13.0 cm
-
Shipping weight0.41 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginJapan
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about SDV144-S63 S4
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
SDV144-S63 S4: which label details matter?
Confirm the complete SDV144-S63 S4 code, the style code (S4) and the documented ProSafe-RS FIO digital I/O position. -
What signal does SDV144-S63 S4 handle?
The official specification identifies input signal as No-voltage contact; also verify input channels at 16, module-isolated. -
Which supply limits apply to SDV144-S63 S4?
Engineering should verify external supply at 24 V DC +20%/-10% and the applicable system-side supply before energising. -
How should SDV144-S63 S4 wiring be checked?
Record terminal or cable identity, polarity, shields and field-device connections, then compare them with the official Yokogawa drawing for SDV144-S63 S4. -
Can SDV144-S63 S4 be used redundantly?
The family documentation identifies the applicable redundant arrangement; the complete SDV144-S63 S4 suffix, companion hardware and engineering database must match. -
What proves SDV144-S63 S4 is commissioned?
Check channel operation, the documented contact rating (24 V DC +20%/-10%, 10 mA minimum), diagnostics and the connected safety function, then retain the measured results. -
What should a quote for SDV144-S63 S4 include?
Give the complete SDV144-S63 S4 code, style, option code, quantity, installed ProSafe-RS node and nameplate photographs so the supplier can avoid a near-match. -
How is delivered SDV144-S63 S4 accepted?
Inspect the exact label, connector and prevention-pin arrangement, transport condition and supplied accessories before the item enters MRO stock.
