PRODUCT DESCRIPTION

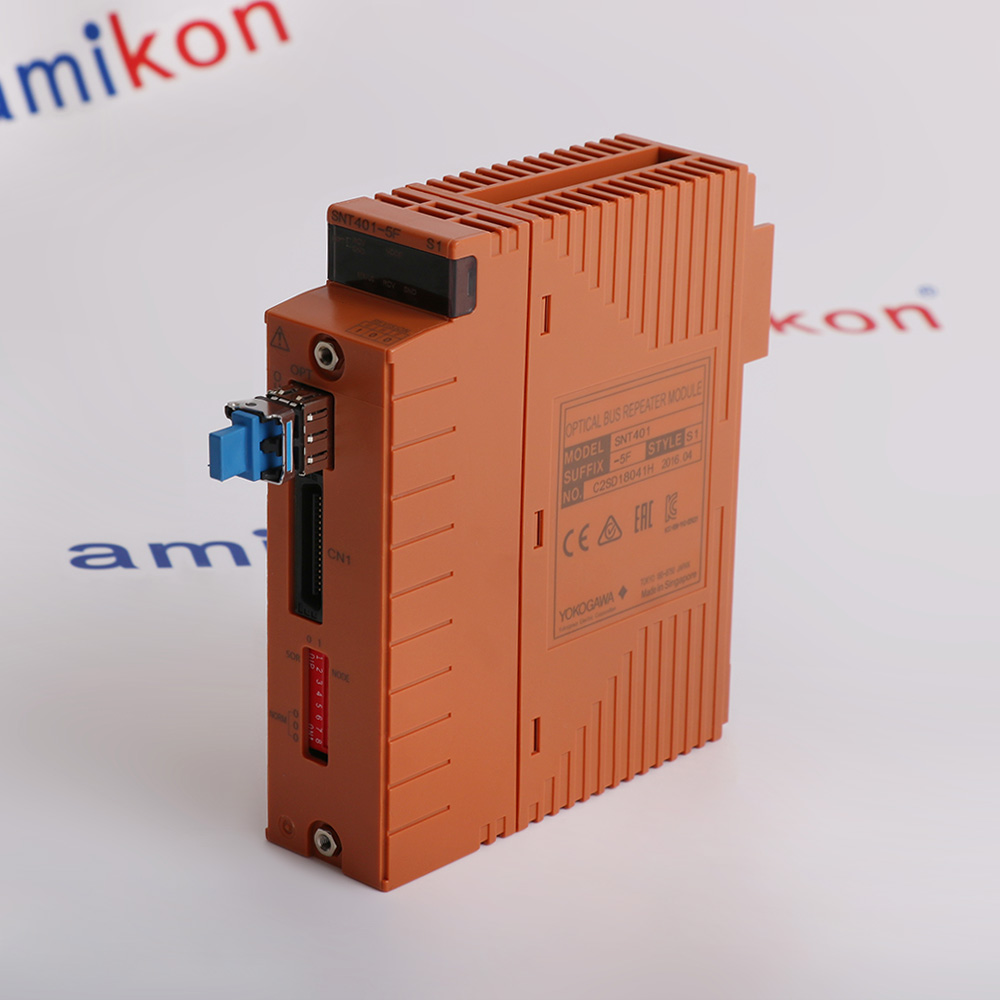

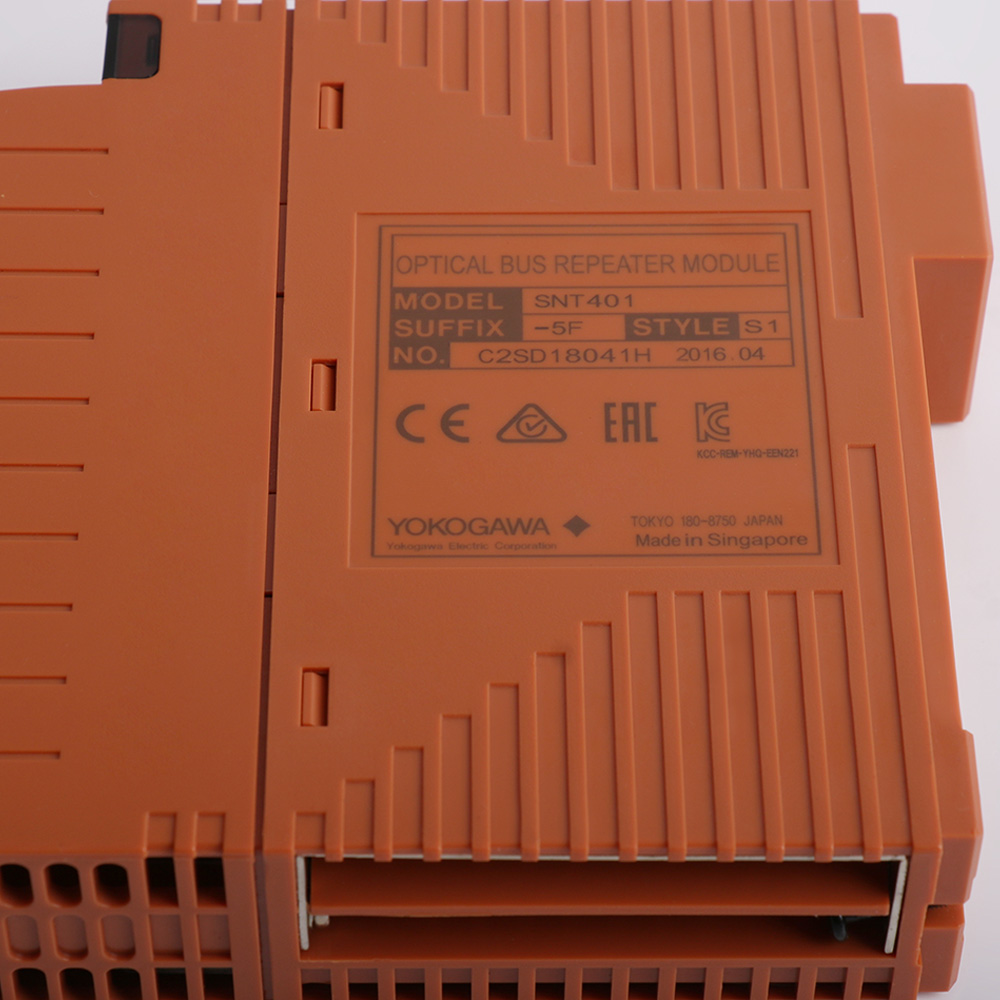

SNT401-5F S1 optical ESB bus repeater
Yokogawa SNT401-5F S1 is a optical ESB bus repeater documented for ProSafe-RS optical ESB bus modules. It performs its assigned input, processing, operator-interface, control or cooling function through the manufacturer-specified electrical and mechanical interfaces. Verify the complete article identity and installed system configuration before replacement or commissioning.
BEFORE YOU BUY
Confirm the complete optical ESB bus repeater
ACTUAL APPLICATIONS
Where SNT401-5F S1 Fits in Power, Chemicals And Oil And Gas
Power, chemicals and oil and gas uses depend on installation compatibility, operating conditions and project requirements.
-
01 · POWER GENERATION
Combined Cycle Electricity Generation and Plant Utility Operations
Combined cycle electricity generation for utility power supply operations.Heat recovery and steam production supporting thermal electricity generation. -
02 · CHEMICAL PROCESSING
Polymer Manufacturing, Oleochemical Production and Chemical Materials
Polyethylene manufacturing and polymer processing for industrial material production.Oleochemical production for renewable fuels and personal care ingredients. -
03 · OIL & GAS
LNG Receiving, Storage and Natural Gas Distribution
Liquefied natural gas receiving and storage for energy distribution.Natural gas regasification and delivery into regional supply networks.
Technical specifications for SNT401-5F S1
-
Product ModelSNT401-5F S1
-
Product Parametersoptical ESB bus repeater
-
In stock1 unit
-
ManufacturerYokogawa
-
Bus roleOptical ESB repeater master
-
Maximum optical distance5 km
-
Compatible master interfacesSEC401, SEC402 or SSB401
-
Matched slave modulesSNT501 or S2EN501
-
Installation arrangementDuplex pair in consecutive slots
-
Bus 1 slot ruleOdd-numbered slot
-
Bus 2 slot ruleEven-numbered slot
-
Explosion protectionNone for suffix -5
-
Environmental classISA Standard G3
-
Operating range-20 to 70 °C
-
Module width32.8 mm
-
Module height142.5 mm
-
Module depth130 mm
View all additional
Alternative Names
SNT401 5F S1
ProSafe-RS optical ESB bus modules optical ESB bus repeater
Yokogawa optical ESB bus repeater
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match SNT401-5F S1 to the installed ProSafe-RS optical ESB bus modules
Yokogawa SNT401-5F S1 is a optical ESB bus repeater for the ProSafe-RS optical ESB bus modules. Its exact article suffix determines the supported interface, signal or communication function and the approved companion equipment.
Engineering should compare matched slave modules (SNT501 or S2EN501), installation arrangement (Duplex pair in consecutive slots) and bus 1 slot rule (Odd-numbered slot) with the installed system design. Confirm connector keying, addressing and configuration-tool support before connection.
Use the manufacturer documentation for the complete wiring and configuration sequence. Validate communication, signal conversion or control response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact identity: SNT401-5F S1
- Product class: optical ESB bus repeater
- Family: ProSafe-RS optical ESB bus modules
The Yokogawa SNT401-5F S1 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete SNT401-5F S1 identity before exchange
Replace SNT401-5F S1 only after matching the complete article code, optical ESB bus repeater, installed ProSafe-RS optical ESB bus modules role and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive or network configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Exact identity: SNT401-5F S1
- Product class: optical ESB bus repeater
- Family check: ProSafe-RS optical ESB bus modules
The Yokogawa SNT401-5F S1 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for SNT401-5F S1
- Yokogawa ProSafe-RS optical ESB bus modules references reviewed
- Exact Yokogawa identity required before service
Documentation for Yokogawa SNT401-5F S1 must match the installed equipment; confirm document applicability before service.
