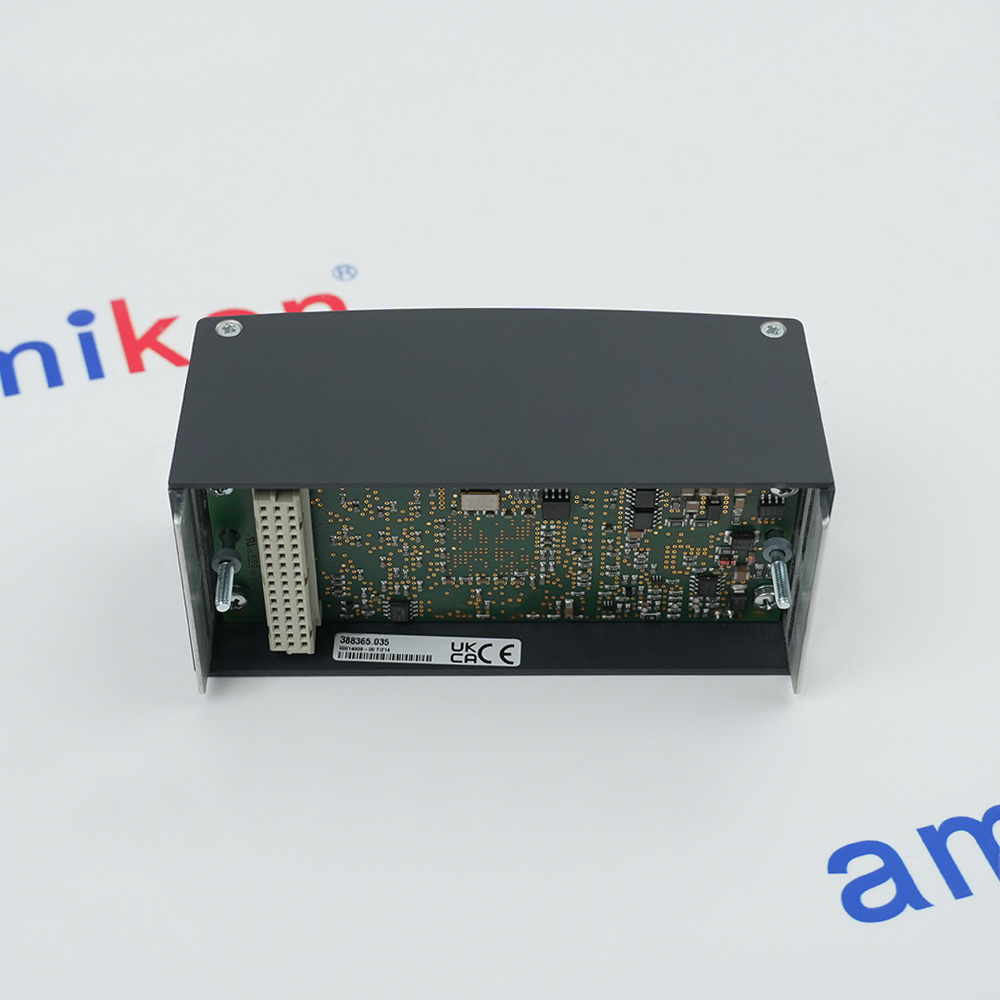

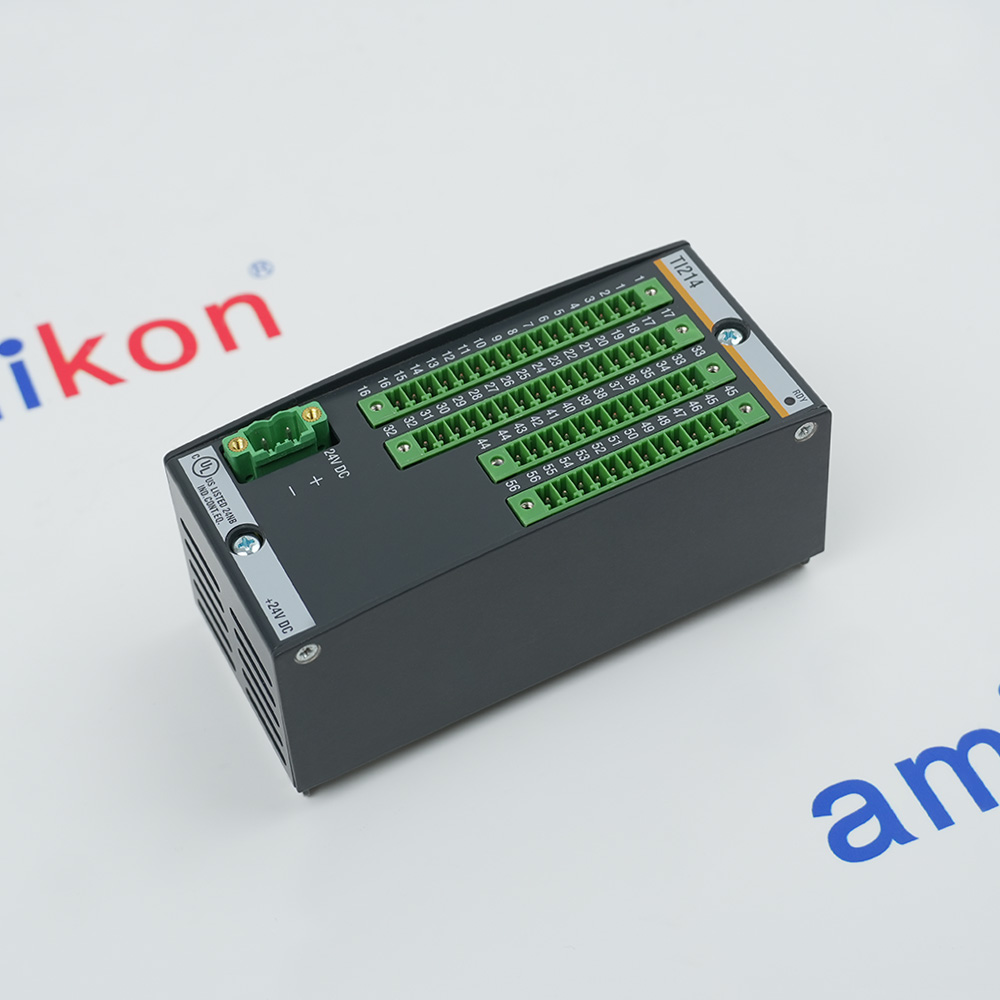

Technical specifications for TI214
-
Product ModelTI214
-
Product ParametersTemperature Input Module
-
Tariff Code8537101190
-
Country of originAustria
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size11x6x11.8cm
-
Manufacturerbachmann
-
Weight0.4 kg
-
Number14
-
Connection type Pt100/Pt10003-wire or 2-wire technology
-
Input filterLow-pass filter 1st orderCut-off frequency (3 dB) 17 kHz
-
Temperature range Pt100/Pt1000-100 °C to +800 °C
-
Temperature range thermocouplesJ/K: -30 °C to +1000 °C
-
Constant current Pt sensor2 mA (Pt100), 200 µA (Pt1000)
-
Digital resolution14 bits
-
External withstand voltage-36 V to +36 V
-
Galvanic isolation from the system500 V
-
Voltage range18 V DC to 34 V DC
-
Current consumption Typ160 mA at +24 V DC
-
Operating temperature-30 °C to +60 °C
-
Relative humidity, operation5 % to 95 % noncondensing
-
Storage temperature-40 °C to +85 °C
Description
The temperature recording modules TI214/x provide 14 temperature measuring channels in a single module width. With the TI214 either Pt100/Pt1000 sensors in 2 and 3 wire technology or type J or K thermocouples can be connected to each measuring channel. The
TI214/2 module allows for the connection of type N or S thermocouples. The sensor type can be individually selected for each channel. In this way, the most effective and cost-efficient solution can be implemented for the application program. The average determination of the measured value can be set between 16 fold and 64 fold for easy an reliable interference suppression.
With the module version TI214 the temperature of the switching cabinet can be measured on the same module with an inexpensive Pt100 sensor, while for example the temperature control systems are fitted with thermocouples.
TI214/2 module allows for the connection of type N or S thermocouples. The sensor type can be individually selected for each channel. In this way, the most effective and cost-efficient solution can be implemented for the application program. The average determination of the measured value can be set between 16 fold and 64 fold for easy an reliable interference suppression.
With the module version TI214 the temperature of the switching cabinet can be measured on the same module with an inexpensive Pt100 sensor, while for example the temperature control systems are fitted with thermocouples.
Alternative Names
TI21A
TI2I4
T1214
TI 214
Information
Overview
Manuals
Application Notes
Product Applications
Sensor Terminal Wiring Topography
Features:
- Resolution 14 bit (16 bit measured value averaging)
- Averaging of measured values for interference suppression
- Cable break detection for the inputs
- Isolation of all channels from the system
- Monitoring of the external power supply
- Cold spot temperature as ambient temperature
To ensure accurate measurements in industrial environments, the TI214 incorporates advanced signal filtering and configurable averaging functions. Users can select averaging factors between 16 and 64 samples to suppress electrical noise and improve measurement stability. The module also features wire-break detection and continuous monitoring functions that help identify sensor faults and maintain reliable process operation.
The TI214 BACHMANN Temperature Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
BACHMANN TI214 Temperature Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The TI214 utilizes 3-wire RTD measurement technology to compensate for cable resistance effects, providing accuracy comparable to more complex 4-wire measurement systems while maintaining lower installation costs. Galvanic isolation between the field inputs and the automation system improves protection against electrical disturbances and ground-loop problems commonly encountered in industrial installations.
Widely used in power plants, renewable energy systems, manufacturing facilities, process industries, and marine applications, the BACHMANN TI214 delivers reliable temperature monitoring and process feedback for critical control applications. Its combination of measurement accuracy, sensor flexibility, diagnostic functionality, and industrial durability makes it an effective solution for advanced automation systems.
- Wind Turbine Control Systems:Monitors windings, bearings & transformers
- Control Cabinet Self-Monitoring:Pt100 & TC on one module: cabinet/machine zones
- Industrial Furnace & Heating Control:Multi-zone ovens/drying: ATeC PID loops
- Plastics & Injection Molding:Type J/K thermocouples: melt/barrel profiling
- Marine & Offshore Energy:Diesel engine temps, exhaust & aux machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
RTD Pt100/Pt1000 (3-Wire): Connect the constant current excitation line to the primary positive channel terminal, and hook up the two remaining return/compensation lines to the corresponding channel negative and compensation inputs. This loops out lead-wire resistance over long cable distances.RTD Pt100/Pt1000 (2-Wire): If running a short-distance 2-wire configuration, place a physical jumper wire directly across the negative measuring terminal and the compensation terminal to close the evaluation loop.Thermocouples (Type J/K): Wire the positive element (Iron/Chromel) and negative element (Constantan/Alumel) directly to the channel inputs. For uninsulated thermocouples, verify that the sensing tip does not introduce a ground loop back through the machinery chassis.
Technical notes
The new 3-wire measuring evaluation of the Pt100/Pt1000 sensor compensates for the voltage errors of both symmetrical cable runs and enables the precision of complex 4-wire measuring technology to be implemented in an inexpensive 3‑wire technology. The Pt sensors can also be connected in simple 2-wire technology and this is sufficient for many applications with short measuring lines.
FAQs
-
What is the TI214?
+The BACHMANN TI214/x is an industrial temperature input module. It is designed to handle thermocouples and Pt sensors, offering 14-bit resolution, 16-bit measured value averaging, and cable break detection -
What types of sensors can be connected to the TI214?
+The module is designed for temperature measuring using Pt sensors (Pt100, Pt1000) and thermocouples. It supports simple 2-wire setups as well as highly precise 3-wire and 4-wire measuring configurations. -
Does the module detect wire or cable breaks?
+Yes. The TI214 is equipped with built-in cable break detection. If a sensor wire disconnects, the module recognizes it, allowing the controller to trigger a fault/alarm state. -
Is the module channels-to-system isolated?
+Yes. All input channels on the TI214 are galvanically isolated from the rest of the system, reducing noise, preventing ground loops, and protecting the processor in noisy industrial environments
