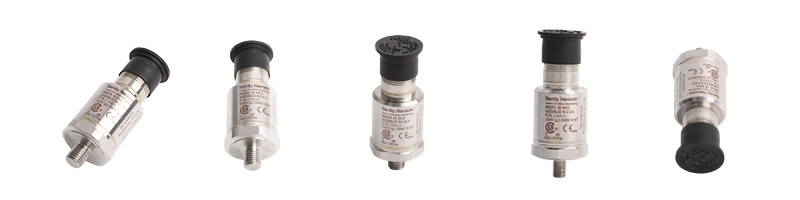

330500 Series

Velomitor Piezo‑Velocity Sensor

Connector: 2-pin Mil-C-5015 hermetically sealed with 316L stainless steel shell.
Polarity: When the sensor case motion is towards the connector, Pin A becomes positive with respect to Pin B.
03: 1/4 – 28 UNF mounting thread adapter.
04: Multiple agency approvals (CSA, ATEX).

Velomitor Interconnect Cable

Wire Gauge:24 AWG
Impedance:50 Ω ±10% (1 kHz)
Capacitance:≤100 pF/m (signal-to-shield)
Max Voltage:60 V DC (IEPE excitation)
Current Capacity:2–20 mA
Outer Diameter:4.8 ±0.2 mm
Bend Radius:≥50 mm (static)

Velomitor Piezo-velocity Sensor

Velomitor Piezo-velocity Sensor
04 1/4 - 20 UNC
04 Multiple approvals (CSA, ATEX)
MountedResonantFrequencyGreater than:12 kHz

Standard ArmoredInterconnect Cable

Stainless steel armor overshielded
0.382 mm2 (22 AWG)cable
with a moistureresistant female
connector atthe transducer end
and ringlugs at the monitor end
Temperature range -29 to121°C (-20 to 250°F)

Standard Interconnect Cable

2-conductor twisted,
22AWG (0.5 mm2) cable
with 2-socket moisture-resistant
femaleconnector at one end,
terminallugs at the other end
(used withmonitors or vibration datacollectors)
Cable operating temperature is-50˚C to 120˚C
Minimum length of 2.0 ft (0.6 m)
maximum length of 99 ft (30 m)

Velomitor Piezo-velocity Sensor

07 3/8 – 16 UNC
02 ATEX (European)
Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%.
TransverseSensitivity:Less than 5% of sensitivity
DynamicOutputImpedance:Less than 2400 Ω

Velomitor Piezo-velocity Sensor

01 1/2 - 20 UNF
04 Multiple approvals (CSA, ATEX)
Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%.
DynamicOutputImpedance:Less than 2400 Ω
Grounding:Case isolated

Velomitor Piezo-velocity Sensor

04 1/4 - 20 UNC
01 CSA/US/C
Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%.
DynamicOutputImpedance:Less than 2400 Ω
MountingTorque:32-46 kg cm
Case Material:316L stainless steel

Velomitor Interconnect Cable

Base Model: Velomitor Interconnect Cable
Length Suffix:-21 = 21feet
Standard PVC: -40°C to +100°C (-40°F to +212°F)
PUR/FEP Options: Up to +150°C (+302°F)
Voltage Rating:300V AC/DC
Capacitance:≤ 100 pF/meter (typ.)
Impedance:5–10 kΩ
Bend Radius:≥ 6× cable diameter

Velomitor Interconnect Cable

Base Model: Velomitor Interconnect Cable
Length Suffix: -16 = 16 feet (4.88 meters)
Standard PVC: -40°C to +100°C (-40°F to +212°F)
PUR/FEP Options: Up to +150°C (+302°F)
Voltage Rating:300V AC/DC
Capacitance:≤ 100 pF/meter (typ.)
Impedance:5–10 kΩ
Bend Radius:≥ 6× cable diameter

Velomitor Interconnect Cable

Part Number:84661-12
Length:12 feet (3.66 meters)
Conductor Size:0.382 mm² (22 AWG)
Voltage Rating:300V AC/DC
Temperature Range:-29°C to +121°C (-20°F to +250°F)

Velomitor Interconnect Cable

Length:25 feet
Conductors:2 twisted pairs (4 conductors)
Wire Gauge:22 AWG stranded copper
Connectors:5-pin MS-style
Voltage Rating:300V AC/DC
Operating Temp:-40°C to +105°C (-40°F to +221°F)
Capacitance:≤ 45 pF/ft (148 pF/m)
Impedance:100 Ω ±10% (50 Hz–10 kHz)
Signal Type:AC Velocity

Velomitor Interconnect Cable

Cross-Sectional Area: 0.382 mm²
AWG: 22 AWG
Voltage Rating: Typically 300V AC/DC
Current Rating: Typically ~7A at 25°C
Insulation Resistance: >1000 MΩ·km

Velomitor Piezo-velocity Sensor

00 No adapter
02 ATEX (European)
Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%
Velocity Range:1270 mm/s (50 in/s) peak
Output BiasVoltage:-12 ±3.0 VDC
DynamicOutputImpedance:Less than 2400 Ω

Velomitor Piezo-velocity Sensor

07 3/8 – 16 UNC
04 Multiple approvals (CSA, ATEX)
Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%
Velocity Range:1270 mm/s (50 in/s) peak
Output BiasVoltage:-12 ±3.0 VDC
DynamicOutputImpedance:Less than 2400 Ω

Standard ArmoredInterconnect Cable

Stainless steel armor overshielded
0.382 mm2 (22 AWG)cable
with a moistureresistant female connector
atthe transducer end
and ringlugs at the monitor end

Standard ArmoredInterconnect Cable

Stainless steel armor overshielded
0.382 mm2 (22 AWG)cable
with a moistureresistant female connector
atthe transducer end
and ringlugs at the monitor end

Velomitor Piezo-velocity Sensor

00 No adapter
01 CSA/US/C
Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%.
Dynamic OutputImpedanceLess than:2400 Ω
ShockSurvivability:5,000 g peak, maximum
Case Material :316L stainless steel

Interconnect Cable

Cable Length: 10 feet
Conductor Size: 18 AWG
Conductor Count: 2 conductors
Cable Type: Twisted, shielded
Temperature Range: -29°C to +121°C
Voltage Rating: 300V AC

Interconnect Cable

Cable Length: 16 feet
Connector Type: BNC Male to BNC Male
Impedance: 75 Ohms
Maximum Voltage Rating: 300 Volts
Operating Temperature Range: -40°C to +85°C

Velomitor Interconnect Cable

Cable Length:82 feet
Cable Type:2-conductor shielded cable
Conductor Gauge :22 AWG
Jacket Material:Polyvinyl Chloride (PVC)
Max Voltage Rating:300 V
Temperature Range:-20 °C to +105 °C

Interconnect Cable

Two-conductor 18 AWG
twisted, shielded cable
withright angle two-socket plugat one end
terminal lugs atthe other end
Used withmonitors and with 21128
Velocity Transducer Housing
Min. length: 2.0 ft (0.6 m)

Interconnect Cable

Right angle interconnectcable
Length: Typically 25 feet
Impedance: 50Ω or 75Ω
Operating: -40°C to +120°C (-40°F to +248°F)
Storage: -50°C to +150°C (-58°F to +302°F)

Interconnect cable

Two-conductor 18 AWGtwisted, shielded cable
withright angle two-socket plugat one end
terminal lugs atthe other end.
Used withmonitors and with 21128Velocity
Transducer Housing
Min. length: 2.0 ft (0.6 m)
Max. length: 99 ft (30 m)

Velomitor Piezo-velocity Sensors

03 1/4 - 28 UNF
01 CSA/US/C

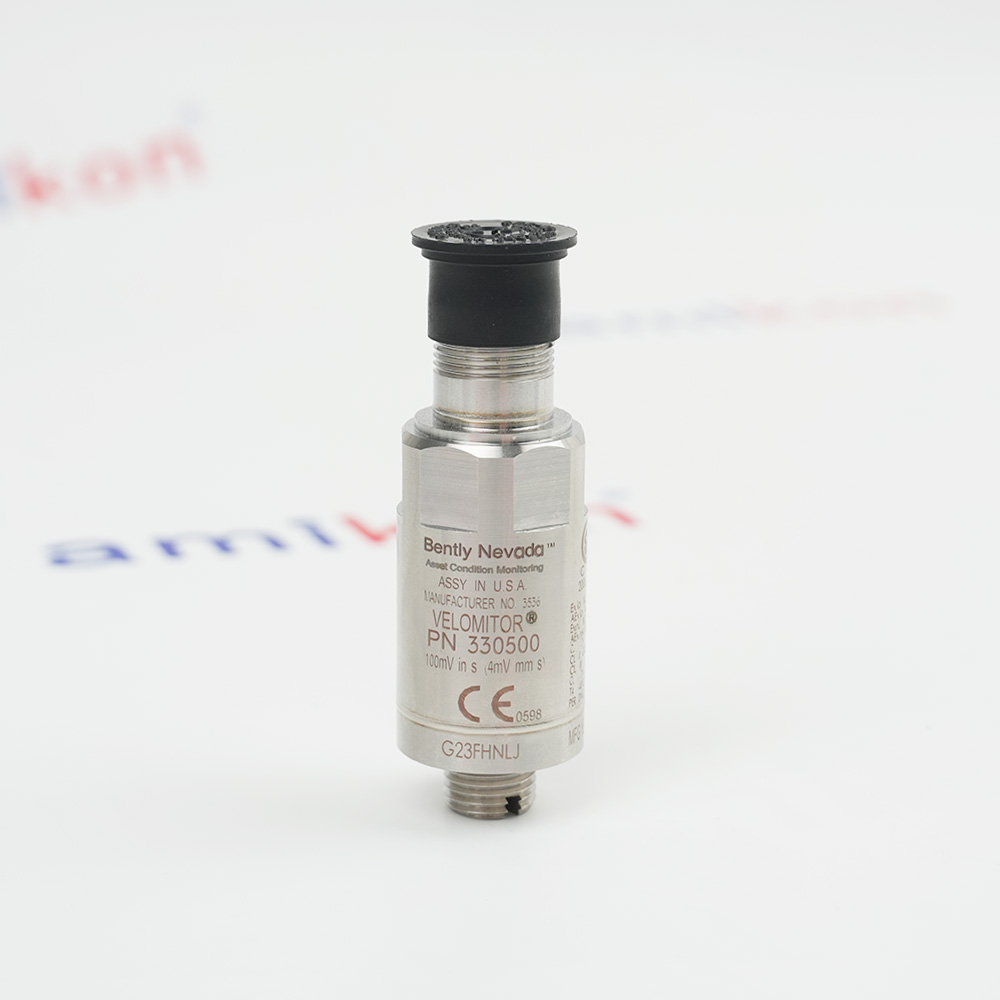

PIEZO VELOCITY SENSOR
100MV/IPS 4MV/MM/S
