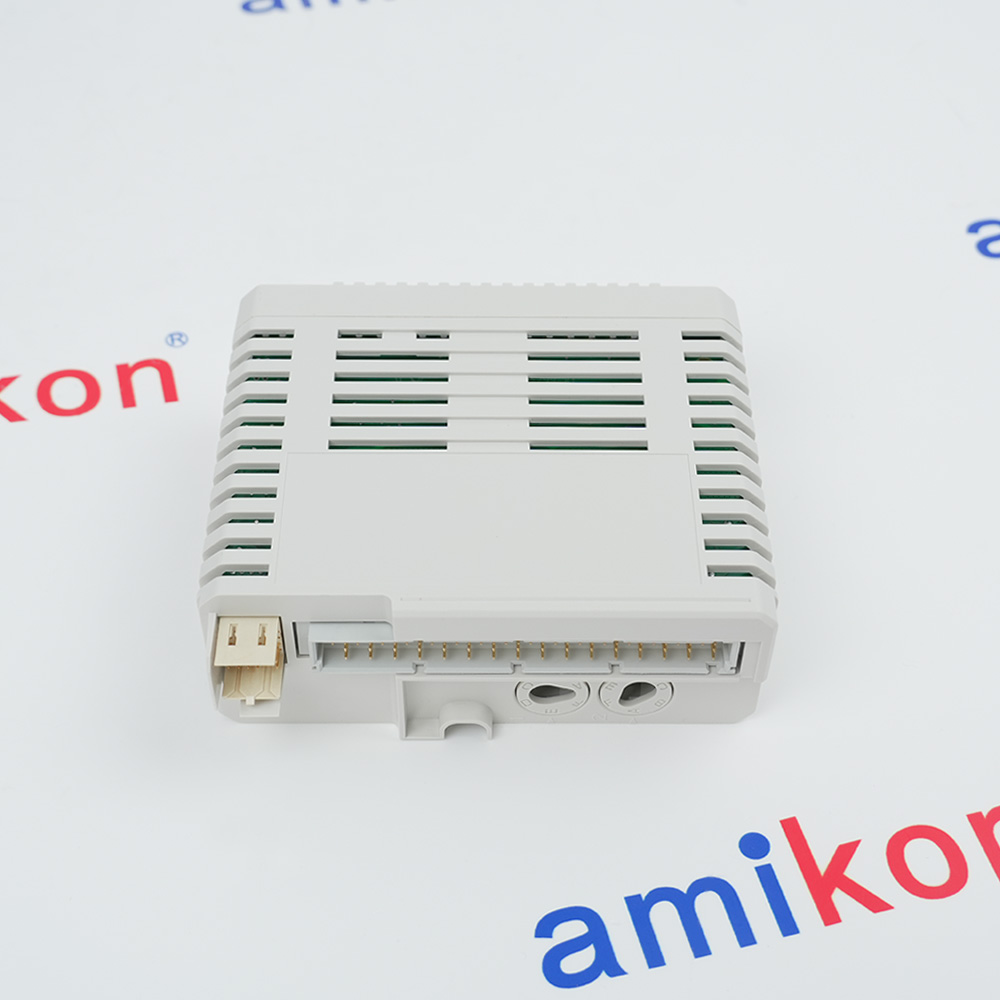

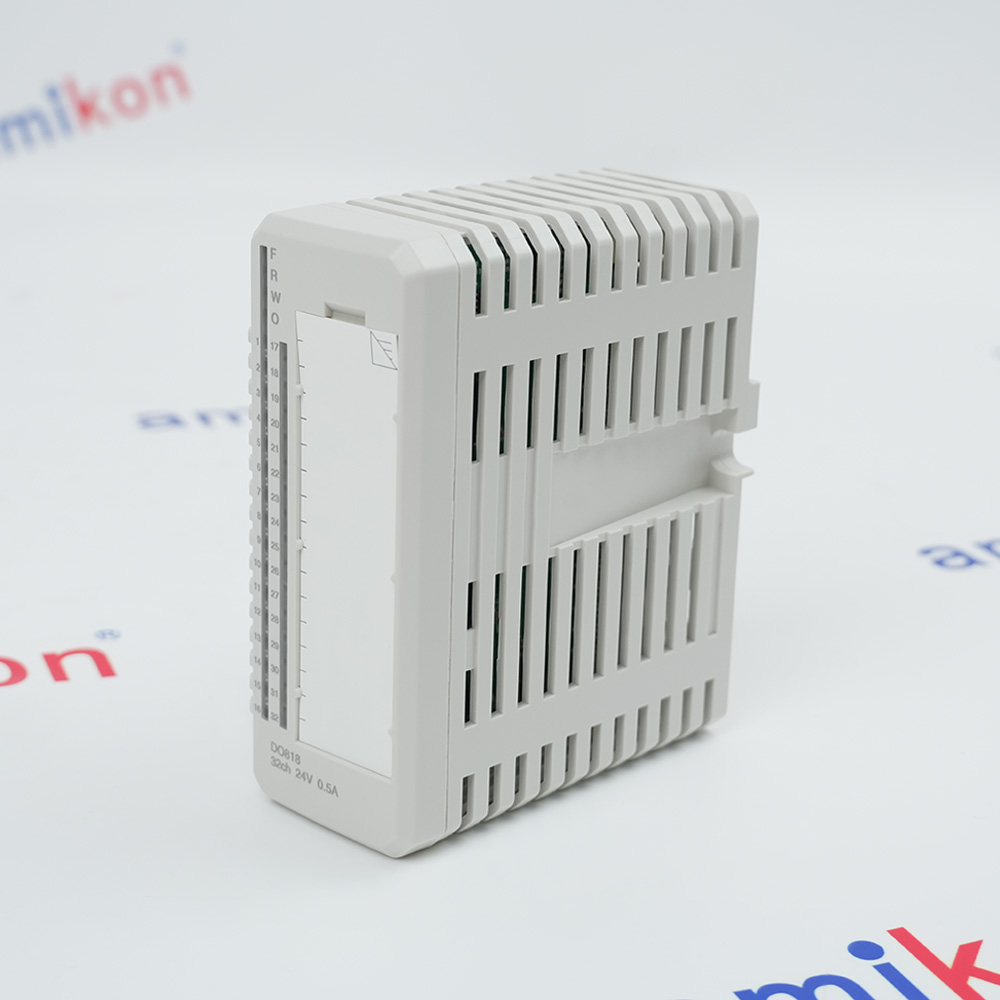

- DO818 3BSE069053R1
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DO818 3BSE069053R1
-
Product ModelDO818 3BSE069053R1
-
Spare Model3BSE069053R1
-
Product ParametersDigital Output Module
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.5x10.5x12cm
-
ManufacturerABB
-
Weight0.16 kg
-
TypeDigital Output
-
Signal specification24 V d.c. (12 - 32 V d.c.), 0.5 A
-
Number of channels32
-
Signal typeCurrent sourcing, current limiting
-
Output load< 0.32 Ω
-
Maximum field cable length600 meters (656 yards)
-
Rated insulation voltage50 V
-
Dielectric test voltage500 V a.c.
-
Power dissipationTyp 2.8 W
-
Current consumption +5 V ModulebusTyp 70 mA
-
Current consumption +24 V Modulebus0
-
Current consumption +24 V external40 mA
Description
32 channels for 24 V d.c.
2 isolated groups (RIV50V)
16 channels
one process voltage supervision input
12-32V dc (nominally 24V dc)
2 isolated groups (RIV50V)
16 channels
one process voltage supervision input
12-32V dc (nominally 24V dc)
Information
Overview
Manuals
Technical notes
Product Applications
Environmental & Mounting Constraints
Features:
- 32 channels for 24 V d.c.
- 2 isolated groups (RIV50V) with 16 channels and one process voltage supervision input in each group
- The process voltage range is 12-32V dc (nominally 24V dc) and the maximum continuous output current is 0.5A per channel
The DO818 3BSE069053R1 ABB Digital Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DO818 3BSE069053R1 Digital Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The DO818 is a 32 channel 24 V digital output module for the S800 I/O. This module has 16 digital outputs. The output voltage range is 12 to 32 volt and the maximum continuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are divided into two individually isolated groups with 16 output channels and one voltage supervision input in each group. Each output channel consists of a short circuit and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus.
- Oil & Gas (Upstream/Downstream):Flow manifolds, chemical injection & BMS
- Chemical & Petrochemical:Hazardous isolation, reactor venting & bulk transfer
- Power Generation & Water Treatment:Backwash valves, cooling fans & switchgear trips
- Pulp, Paper, & Mining:Sorting gates, lime kilns & E-stop cascades
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting Orientation: Mount the module horizontally onto standard DIN rails. Vertically mounted racks restrict ventilation and lower the maximum allowable operating temperature from 55°C (131°F) down to 40°C (104°F).
Air Spacing: Maintain at least 100 mm (4 inches) of clear space above and below the module rows to permit free convection airflow within the control panel.
Cabinet Environment: Ensure the cabinet installation complies with Pollution Degree 2 (IEC 60664-1). For corrosive process plants, the DO818 is coated to match G3 severity level protections.
FAQs
-
What is the DO818 3BSE069053R1？
+The ABB DO818 is a 32-channel, 24 VDC digital output module belonging to the ABB S800 I/O family. It is widely used in industrial automation and process control systems like the ABB Ability System 800xA. -
What safety protections do the outputs have?
+Each output channel features a high-side driver that is protected against short circuits, over-temperature, and over-voltage. Each group of 16 channels also includes inductive load suppression and optical isolation barriers. -
How are the 32 channels organized?
+The 32 channels are divided into two individually isolated groups. Each group contains 16 channels and one process voltage supervision input, providing flexibility to independently control different devices -
Which control systems natively support the DO818?
+It is a core component of the S800 I/O lineup, integrated into ABB Ability System 800xA and configured via Compact Control Builder AC 800M.
