AO845 3BSE023676R1
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

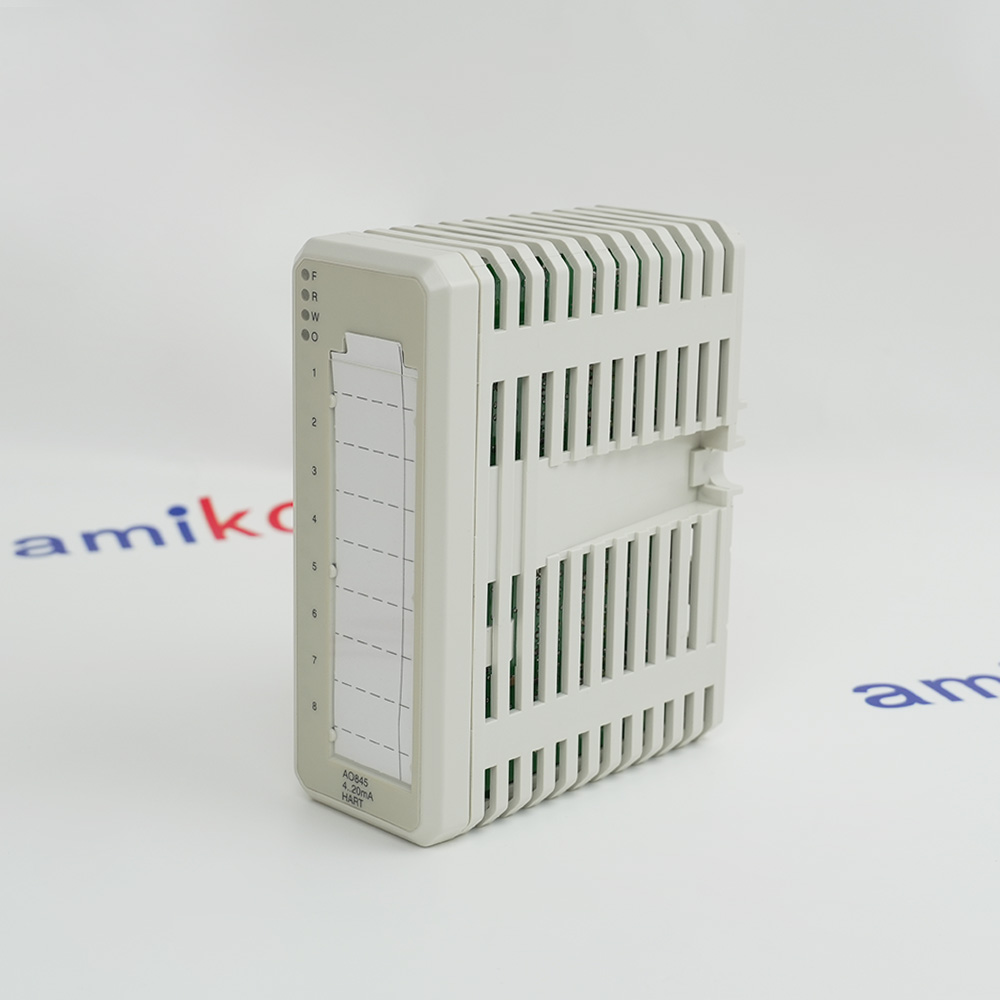

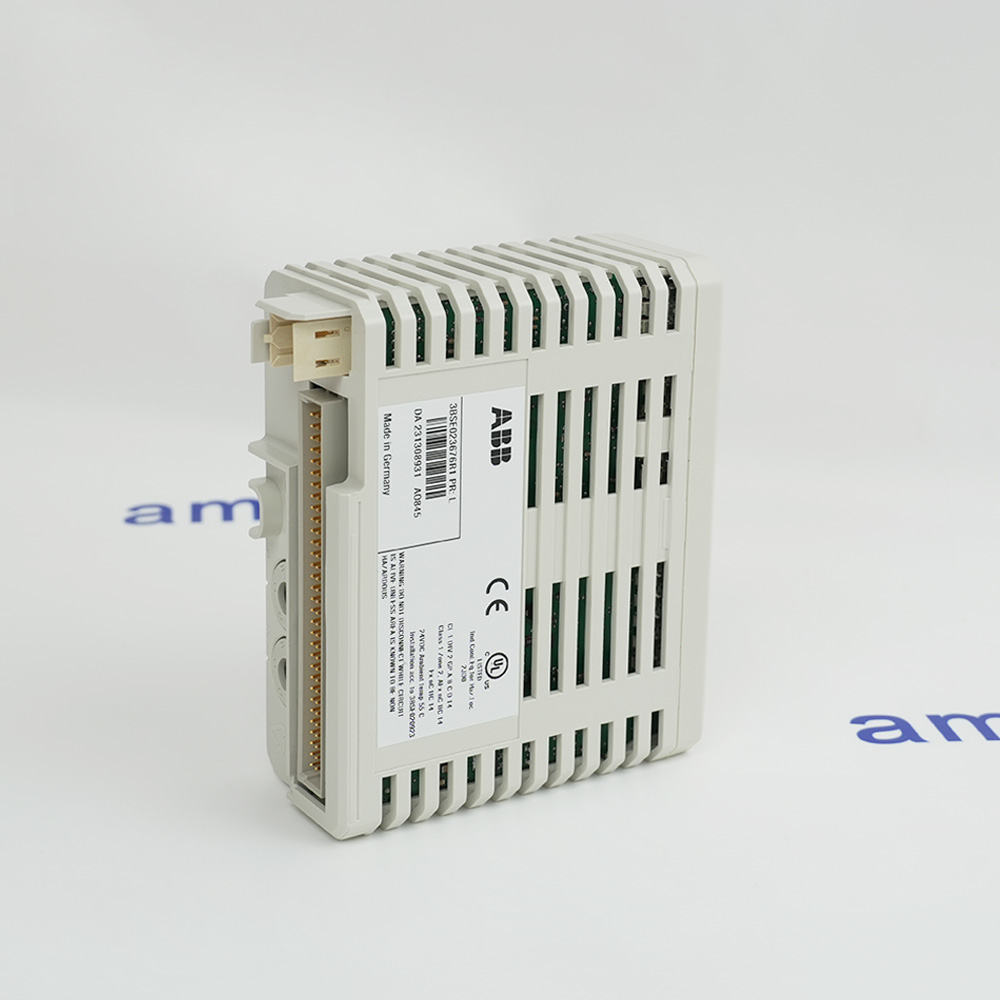

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
ANALOG OUTPUT MODULE
REDUNDANT
750 OHM
50 V
4-20 MA
12 BIT
REDUNDANT
750 OHM
50 V
4-20 MA
12 BIT
Technical specifications for AO845 3BSE023676R1
-
Product ModelAO845 3BSE023676R1
-
Spare Model3BSE023676R1
-
Product ParametersANALOG OUTPUT MODULE
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.5x10.5x11.8cm
-
ManufacturerABB
-
Weight0.2 kg
-
TypeAnalog Output
-
Signal specification4..20 mA
-
Number of channels8
-
Resolution12 bit
-
IsolationGroupwise isolated from ground
-
Under/over range-12.5% / +15%
-
Rated insulation voltage50 V
-
Dielectric test voltage500 V a.c.
-
Power dissipationTyp. 3.5 W
-
Current consumption +5 V Modulebus Max.125 mA
-
Current consumption +24 V external218 mA
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the AO845 3BSE023676R1)？+The ABB AO845 is an 8-channel analog output module used in ABB’s S800 I/O system, commonly integrated with System 800xA.
-
Does the AO845 support redundancy?+Yes. The AO845 is designed for single or redundant applications. In a redundant pair, if a fault occurs, the master can command the module to an error state.
-
Does the module support HART?+Yes, it features HART pass-through communication, allowing for seamless device management and diagnostics.
-
What types of self-diagnostics does the module perform?+The AO845 performs cyclic self-diagnostics. It detects external channel errors (e.g., process power supply too low, open circuit), internal channel errors, output transistor errors, short circuits, checksum errors, internal power supply issues, and watchdog trips.
Get a quick price fo AO845 3BSE023676R1
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting
Features:
- 8 channels of 4...20 mA
- For single or redundant applications
- 1 group of 8 channels isolated from ground
- Analog inputs are short circuit secured to ZP or +24 V
External Channel Error is reported (only reported on active channels) if the process power supply that supply voltage to output circuitry is too low, or the output current is less than the output set value and the output set value > 1 mA (open circuit). Internal Channel Error is reported if the output circuit can not give the right current value. In a redundant pair the module will be commanded to error state by the ModuleBus master. Module Error is reported in case of Output Transistor Error, Short Circuit, Checksum Error, Internal Power Supply Error, Status Link Error, Watchdog or Wrong OSP behavior.
The AO845 3BSE023676R1 ABB Analog Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AO845 3BSE023676R1 Analog Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The AO845/AO845A Analog Output Module has 8 analog outputs. State of outputscan be set to a predetermined (OSP) value if a communication error is detected. Themodule has advanced on-board diagnostics and HART pass-through functionality.It can be used in both single and redundant applications. Nominal output range is:4...20mA
- Automotive Component Production:CNC turning for engine blocks, brackets & gearbox parts
- Aerospace & Drone Engineering:3/5-axis mills for aluminum alloys & drone parts
- Die Casting & Mold Making:Zn/Al tooling for electronics & appliance fixtures
- Heavy Drilling & Metalwork:12/16-speed drills for structural steel fastening
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Hold the module by its plastic housing and align the top and bottom edge-guides with the tracks on the MTU.Press the module firmly straight back into the slot until the plastic locking latches engage with a clear, audible click.
