Technical specifications for DCF803-0035 3ADT209023R0001
-

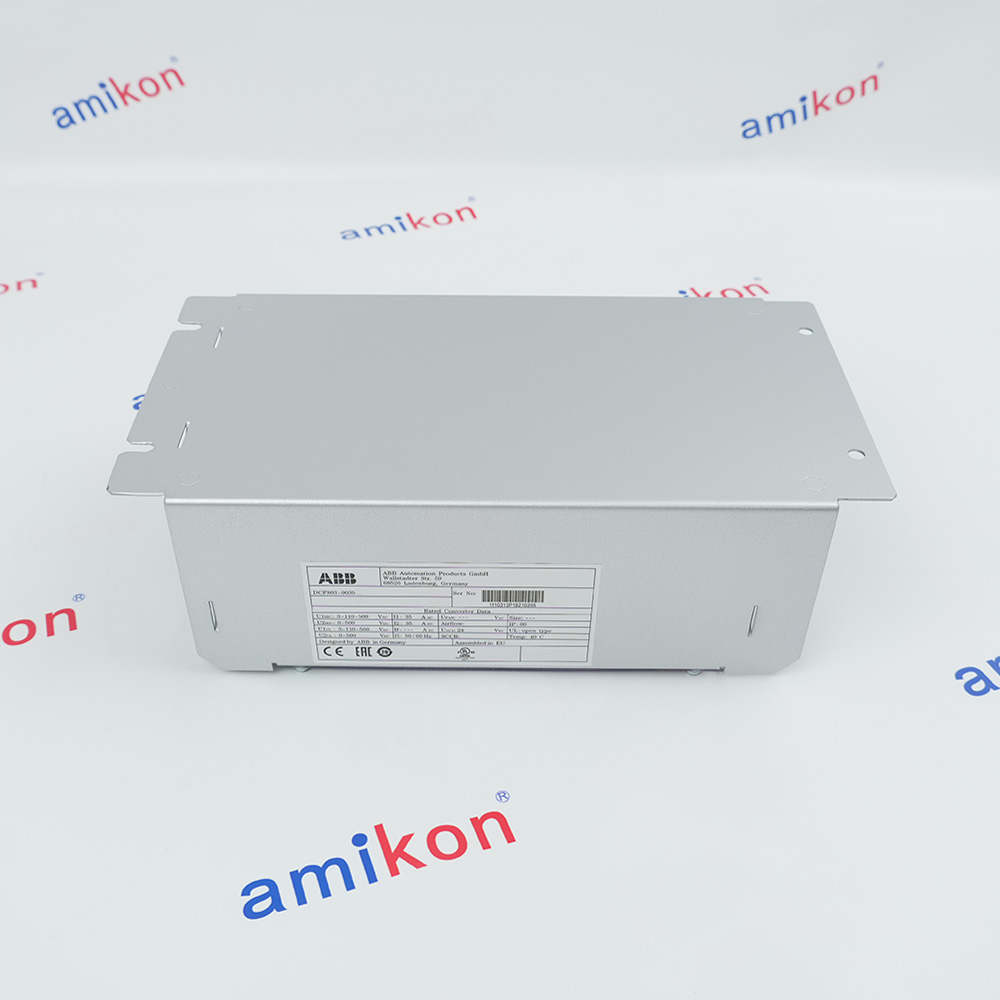

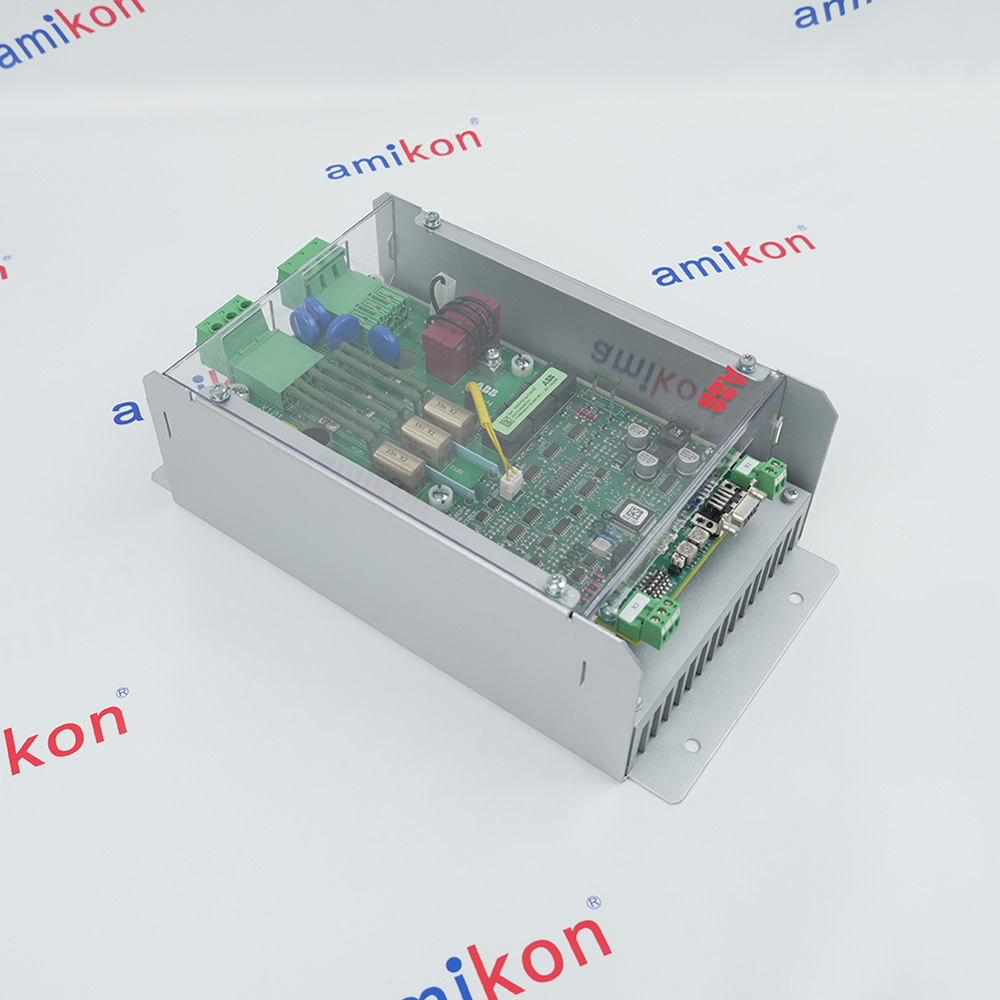

Product ModelDCF803-0035 3ADT209023R0001
-
Product ParametersField exciter
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size32x17x10.5cm
-
ManufacturerABB
-
Weight4.2 kg
-
Input Supply3 × 500 VAC, Three-phase
-
Rated Field Current35 A Continuous
-
Excitation SupplyExternal Three-phase
-
CommunicationDCSLink Serial Interface
-
Power Supply24 VDC
-
Insulation Voltage600 VAC
Description
The power section of the DCF803-0035 is a three-phase half-controlled bridge with free-wheeling diode, including snubbers based on the SDCS-FEX-4 board. The DCF803-0035 is prepared to operate as a 3-phase as well as single-phase converter; for single-phase operation, terminals U and W are connected. Line fuses and the line reactor and transformer for the DCF803-0035 must be located outside the housing, allowing flexible integration into existing electrical installations.
The DCF803-0035 features an autoscaling function of burden resistors based on the nominal field current of the motor, ensuring the current measurement circuit is automatically scaled for optimal accuracy. All parameters for the DCF803-0035 are set from the armature converter via drive-to-drive communication, and the field current reference, actual field current, current control, and status bits are cyclically sent via the same communication link. The firmware of the DCF803-0035 is stored in flash memory and contains the PI current controller for the field circuit, fault and reset logic, synchronization and PLL function, and the setting of the current measurement channel.
The DCF803-0035 features an autoscaling function of burden resistors based on the nominal field current of the motor, ensuring the current measurement circuit is automatically scaled for optimal accuracy. All parameters for the DCF803-0035 are set from the armature converter via drive-to-drive communication, and the field current reference, actual field current, current control, and status bits are cyclically sent via the same communication link. The firmware of the DCF803-0035 is stored in flash memory and contains the PI current controller for the field circuit, fault and reset logic, synchronization and PLL function, and the setting of the current measurement channel.
Information
Overview
Manuals
Application Notes
Product Applications
Half-Controlled 3-Phase Field Exciters
Features:
- Drive-to-Drive DCSLink Communication
- 35A DC Output Current Range
- 3-Phase 500V AC Input Capability
The DCF803-0035 is based on the SDCS-FEX-4 control board, which is equipped with its own synchronization and current control functionality. The control unit of the DCF803-0035 includes a micro controller H8 for current control, synchronization, and fault handling, along with two-channel measurement of actual field current in the DC circuit and high-ohmic measurement of AC voltage. The DCF803-0035 utilizes an H8 controller for drive-to-drive communication based on CAN standard, enabling the field exciter to be fully controlled and monitored by the armature converter.
The DCF803-0035 3ADT209023R0001 ABB Field exciter may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DCF803-0035 3ADT209023R0001 Field exciter Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB DCF803-0035 3ADT209023R0001 operates from a three-phase 500 VAC power supply and provides a continuous field current of 35 A. It utilizes a 1-quadrant half-controlled thyristor/diode bridge that delivers precise field current regulation for separately excited DC motors. The converter electronics are powered by 24 VDC supplied from the armature converter, reducing additional wiring requirements and ensuring coordinated operation between the armature and field control circuits.
The ABB DCF803-0035 3ADT209023R0001 supports fast-response excitation when sufficient voltage reserve is available and includes an integrated de-excitation function for controlled reduction of field current during shutdown or fault conditions. Integrated overvoltage protection helps safeguard the excitation circuit, while the microprocessor-based control continuously supervises operating parameters to maintain stable field regulation under changing load conditions.
- Metals/Steel Processing: Controls rolling mills, wire drawing machines, and heavy-duty coilers
- Pulp/Paper/Printing: Regulates calenders, winders, and section drives requiring continuous torque
- Mining/Material Handling: Drives heavy conveyors, stacker-reclaimers, and mine hoists
- Rubber/Plastics: Powers intensive mixers, extruders, and blow molding machinery
- Cranes/Marine Hoists: Manages high-inertia lifting with safe, responsive braking and torque regulation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The field exciters DCF803-0016, FEX-425-Int and DCF803-0035 are half controlled 3-phaseconverters. All field excitiers are based on the same control board SDCS-FEX-4. The board is equippedwith its own synchronization and current control. The current measurement circuit is automaticallyscaled depending on the rated field current of the motor. The field exciter is fully controlled andmonitored by the armature converter via drive-to-drive communication.The field exciter is prepared to operate as 3-phase as well as single-phase converter. For single-phaseoperation connect terminals U and W.
Alternative Names
DCF803 0035
DCF8030035
Technical notes
The ABB DCF803-0035 3ADT209023R0001 is intended for installation in industrial control cabinets as part of ABB DCS800 DC drive systems used in rolling mills, paper machines, cranes, mining equipment, metal processing lines, marine propulsion systems, and other heavy-duty DC motor applications. Its standardized design allows straightforward integration with DCS800 drives while providing dependable field excitation for high-performance DC motor control.
