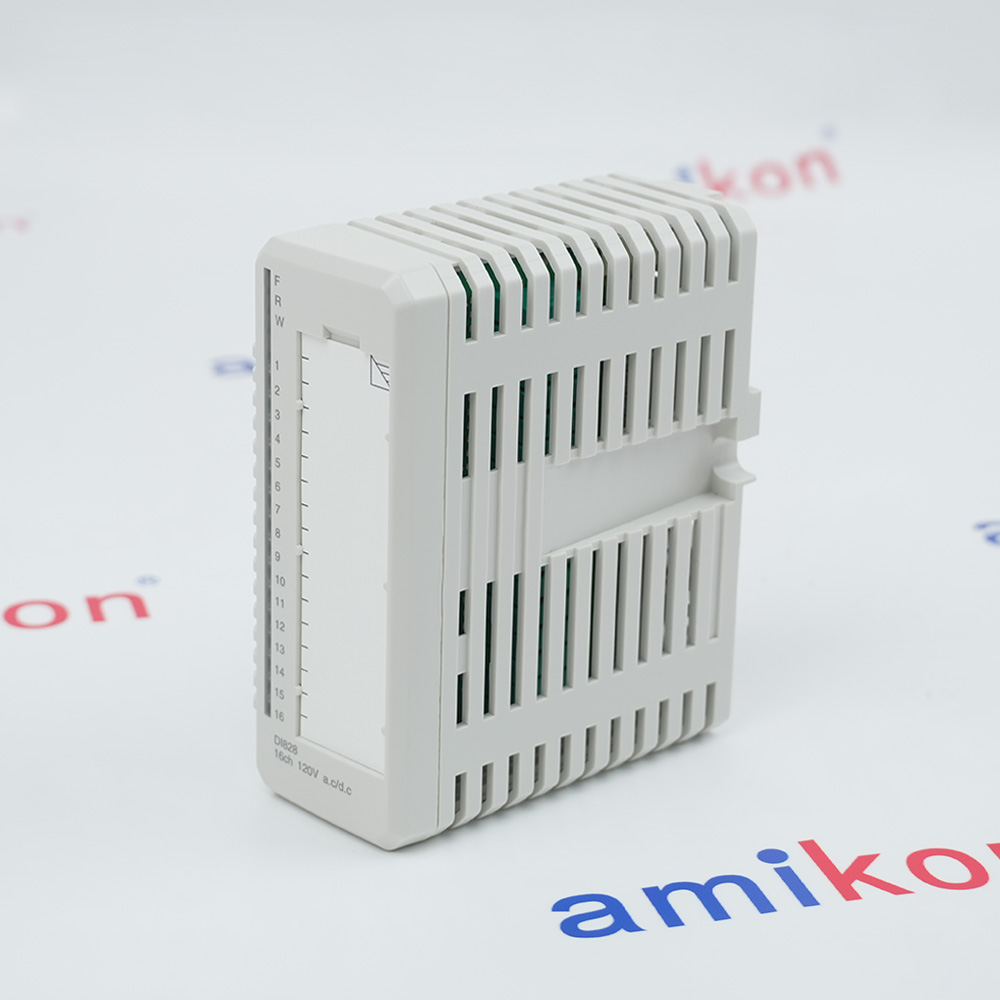

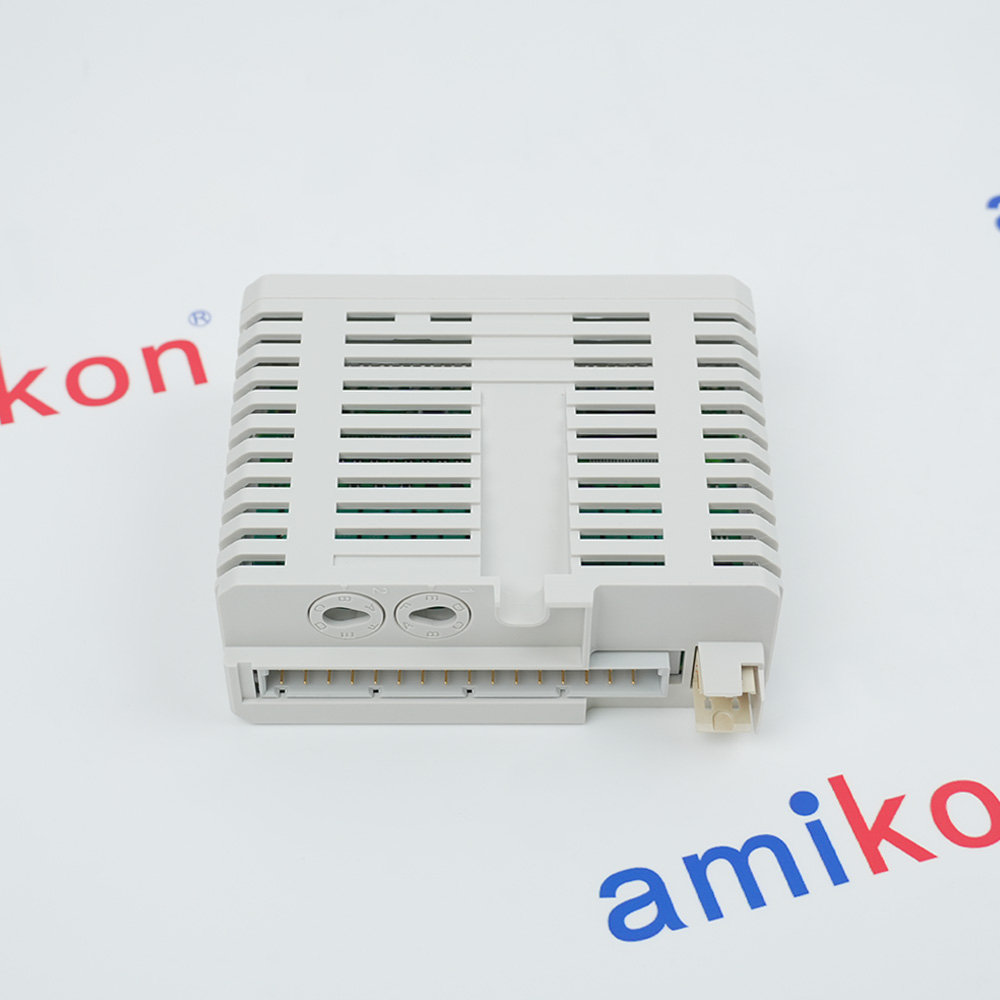

- DI828 3BSE069054R1
In Stock
Ships by Friday, August 7
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DI828 3BSE069054R1
-
Product ModelDI828 3BSE069054R1
-
Product ParametersDigital Input Module
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.5x10.5x11.8cm
-
ManufacturerABB
-
Weight0.2 kg
-
Signal specification120 V a.c. / d.c.
-
Number of channels16
-
Signal typeCurrent sinking
-
Input voltage range, "0"0..30 V a.c., 0..20 V d.c
-
Input voltage range, "1"77..130 V a.c., 75..130 V d.c.
-
Input impedance14.2 kΩ (a.c.) / 50 kΩ (d.c.)
-
IsolationIndividually isolated channels
-
Filter times (digital, selectable)2,5 ±0.5, 5 ±1, 10 ±2, 20 ±4 ms
-
Input frequencey range47..63 Hz
-
Analog filter On/Off delay5 / 10 ms
-
Temperature, Operating0 to +55 °C (+32 to +131 °F)
-
Temperature, Storage-40 to +70 °C (-40 to +158 °F)
-
Relative humidity5 to 95 %, non-condensing
-
Rated insulation voltage250 V
-
Dielectric test voltage2000 V a.c.
Description
The DI828 is an 16 channel 120 V a.c/d.c. digital input module for the S800 I/O. The module has 16 digital inputs. The AC input voltage range is 77 - 130 V and the input current is 8.5 mA at 120V AC. The DC input voltage range is 75 - 130 V and the input current is 2.4 mA at 120V DC. The inputs are individually isolated.
Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier and an analog filter. Channel 1 can be used as voltage supervision input for channels 2 - 8. Channel 16 can be used as voltage supervision input for channels 9 - 15.
If the voltage supervision is used and the voltage connected to channel 1 or 16 disappears, the channel error will be set for the channels and the Warning LED turns on. The error signal can be read from the ModuleBus.
Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier and an analog filter. Channel 1 can be used as voltage supervision input for channels 2 - 8. Channel 16 can be used as voltage supervision input for channels 9 - 15.
If the voltage supervision is used and the voltage connected to channel 1 or 16 disappears, the channel error will be set for the channels and the Warning LED turns on. The error signal can be read from the ModuleBus.
Information
Overview
Manuals
Application Notes
Product Applications
Module Insertion
Features:
- 16 Channels for 120V AC/DC Digital Inputs
- Individually Isolated Channels
- Signal Filtering with Analog Filter
- Voltage Supervision Capability
Every input channel of the DI828 3BSE069054R1 consists of current limiting components, EMC protection components, an input state indication LED, an optical isolation barrier, and an analog filter. These integrated components within the DI828 3BSE069054R1 provide comprehensive protection against electrical disturbances while delivering clear visual status indication for each channel.
The DI828 3BSE069054R1 ABB Digital Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DI828 3BSE069054R1 Digital Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The DI828 3BSE069054R1 offers voltage supervision functionality where Channel 1 can be used as a voltage supervision input for channels 2–8, and Channel 16 can be used as a voltage supervision input for channels 9–15. If the voltage supervision is used on the DI828 3BSE069054R1 and the voltage connected to Channel 1 or Channel 16 disappears, the channel error will be set for the corresponding channels and the Warning LED turns on. The error signal from the DI828 3BSE069054R1 can be read from the module, enabling proactive fault detection and diagnostics in the control system.
- Power/Electrical: Monitors high-voltage switchgear, breakers, and substation auxiliary contacts with 120V signal levels
- Oil/Gas Refining: Tracks distributed field sensors and valve positions across hazardous or sprawling refinery setups
- Chemical Processing: Captures binary status signals from liquid handling equipment, mixers, and storage tanks
- Water/Wastewater: Manages pumps, gates, and safety interlocks interfacing with ABB System 800xA DCS
- Heavy Manufacturing: Interfaces with rugged machinery, conveyors, and MCCs in high-noise harsh environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare the MTU: Ensure the TU851 termination unit is securely mounted and locked onto the DIN rail or mounting base.
Align the Module: Hold the DI828 module straight over the top and bottom guides of the TU851.
Push to Connect: Gently press the module straight down into the connector slot until the mechanical locking mechanism clicks into place.
Verify Seating: Check that the front panel aligns evenly with adjacent modules and the status LEDs are visible.
Alternative Names
DI828 3BSE069054RI
DI828 3BSE069O54R1
DI828 3BSEO69054R1
DI828 38SE069054R1
DI82B 3BSE069054R1
DI8Z8 3BSE069054R1
DIB28 3BSE069054R1
D1828 3BSE069054R1
OI828 3BSE069054R1
DI828-3BSE069054R1
DI828-3BSE069054RI
DI828-3BSE069O54R1
DI828-3BSEO69054R1
DI828-38SE069054R1
DI82B-3BSE069054R1
DI8Z8-3BSE069054R1
DIB28-3BSE069054R1
D1828-3BSE069054R1
Technical notes
The ABB DI828 3BSE069054R1 is intended for use with the TU851 Module Termination Unit (MTU) and integrates directly into ABB S800 I/O systems used with System 800xA, AC 800M, and other compatible ABB control platforms. The module is widely applied in power generation, oil and gas, chemical processing, water treatment, manufacturing, and other industrial process automation systems where high-voltage digital input monitoring is required.
FAQs
-
What termination unit does it require?
+It must be used with the TU851 Module Termination Unit. -
Does it feature voltage supervision?
+Yes, channel 1 can supervise channels 2 through 8, and channel 16 can supervise channels 9 through 15. If supervision voltage drops, a channel error sets and a warning LED illuminates -
What are the input voltage parameters?
+The AC range is 77 to 130 V AC, and the DC range is 75 to 130 V with an input current of roughly 8.5 mA at 120 V AC. -
What is the function of the DI828 module?
+It is a 16-channel digital input unit for the ABB S800 I/O architecture designed to process 120 V AC or DC signals from field devices.What term
