- 05701-A-0302
In Stock
Ships by Tuesday, July 28
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 05701-A-0302
-
Product Model05701-A-0302
-
Product ParametersSingle Channel Control Card
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.5x17x13cm
-
ManufacturerHoneywell
-
Weight0.18 kg
-
Alarm IndicatorsA1, A2, A3
-
Status IndicatorsFault and Inhibit
-
ControlAlarm Reset / Card Select push-button
-
Alarm Setpoint Resolution1% of full-scale steps
-
DC Supply18–32 V DC
-
Typical Power Consumption3.75 W, including catalytic sensor
-
Electronic DriftLess than ±2% over 6 months
Description

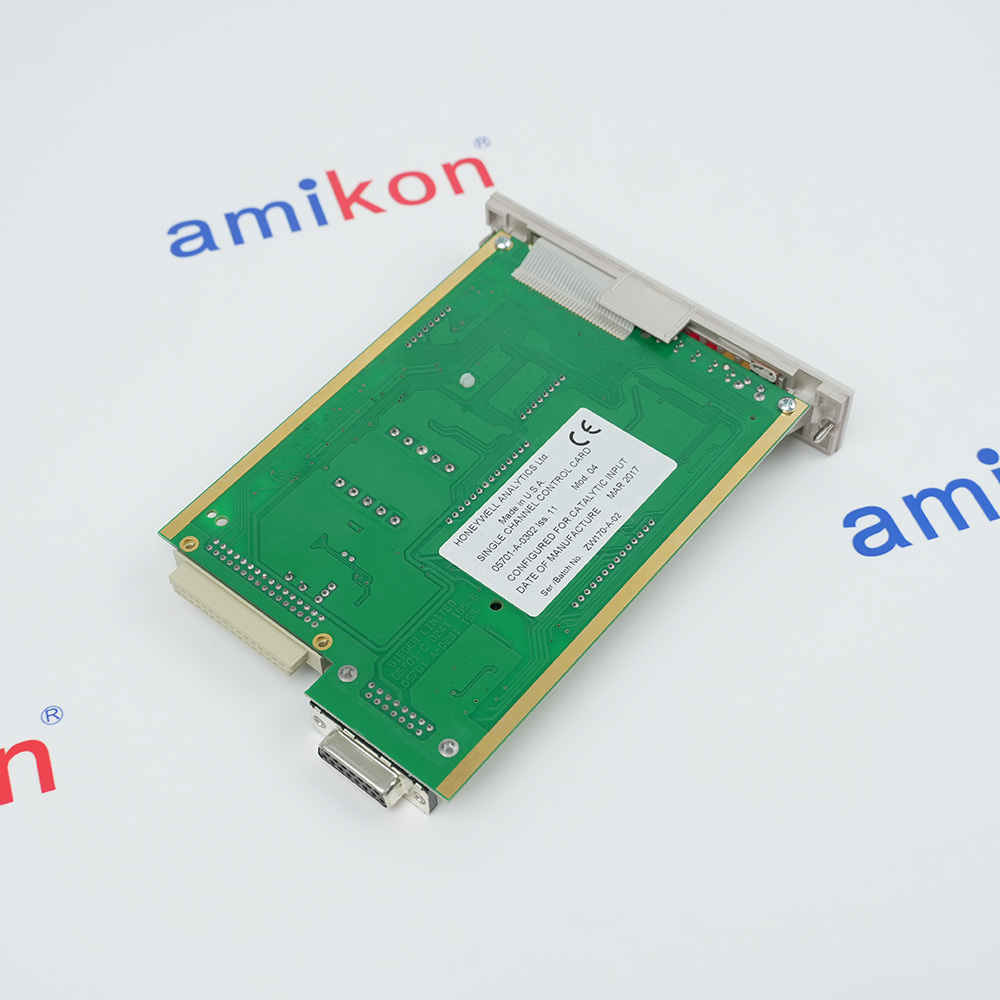

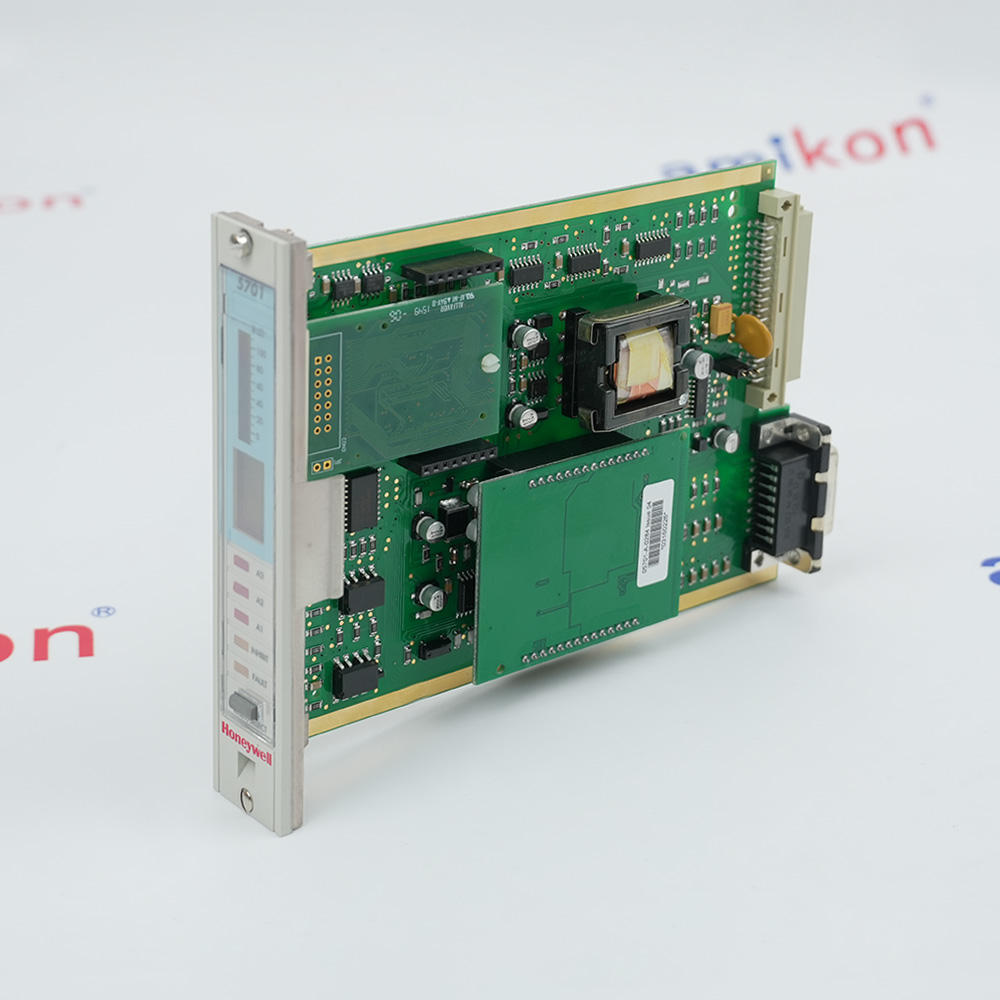

The HONEYWELL 05701-A-0302 Single Channel Control Card is designed for the Honeywell System 57 / 5701 gas detection system. The card provides a complete interface for monitoring one catalytic gas detector channel, including signal processing, gas concentration display, alarm comparison, status indication, and alarm reset functions.
The 5701 Single Channel Control Card providescontrol, display and alarm facilities for aconnected gas detector. The front panel displayindicates the gas reading and channel statuswhile LEDs are used for alarms. A push-buttonis provided for resetting the alarms and selectingthe card for use with the Engineering Card.
The operation of the control card is microprocessorcontrolled and is fully definable for a wide rangeof connected gas detectors and applicationrequirements. The software configuration setupis stored in an EEPROM.
The 5701 Single Channel Control Card providescontrol, display and alarm facilities for aconnected gas detector. The front panel displayindicates the gas reading and channel statuswhile LEDs are used for alarms. A push-buttonis provided for resetting the alarms and selectingthe card for use with the Engineering Card.
The operation of the control card is microprocessorcontrolled and is fully definable for a wide rangeof connected gas detectors and applicationrequirements. The software configuration setupis stored in an EEPROM.
Information
Overview
Manuals
Engineering Considerations
Product Applications
Card Insertion Guidelines
Features:
- Single Channel Microprocessor-Based Gas Detection Control
- Dual Sensor Input Compatibility
- Multi-Function Display System
- Comprehensive Alarm Handling
- Removable Without Disturbing Other Wiring
The 05701-A-0302 functions independently and contains all the necessary electronic circuitry to provide the sensor drive, alarm detection, and gas level display for that channel of gas detection. The 05701-A-0302 is fitted with a plug-in Sensor Drive Module to achieve compatibility with a range of different inputs and sensor types. There are two different Sensor Drive Modules for the 05701-A-0302: one for catalytic inputs and one for 4-20mA inputs.
The 05701-A-0302 Honeywell Single Channel Control Card may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 05701-A-0302 Single Channel Control Card Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 05701-A-0302 features a multi-function display system. The 05701-A-0302 has an analogue 25-segment display for gas concentration, a digital four-character numerical readout, a message four-character display for system messages, and an icon section with power and card selection indicators. The 05701-A-0302 also has LED indicators for gas alarm status (A1, A2, A3) and fault and inhibit alerts.
The 05701-A-0302 provides comprehensive alarm handling facilities. The 05701-A-0302 supports rising, falling, STEL and LTEL/RATE alarm outputs. The 05701-A-0302 has configurable alarm setpoints with a resolution of 1% FSD step size. The 05701-A-0302 also supports time delay on switch-on and/or switch-off of relay outputs.
The 05701-A-0302 operates from 18V to 32V DC power supply. The 05701-A-0302 has typical power consumption of 3.75W in catalytic mode (including catalytic sensor) and 3.25W in 4-20mA mode. The 05701-A-0302 has an electronic drift of less than ±2% over 6 months
- Combustible Gas Detection: Localized safety hub with A1/A2/A3 alarms for explosive gas concentrations
- Petrochemical/Oil Refining: Monitors VOCs and hydrocarbon leakages across processing units, tank farms, and pumping stations
- Chemical Processing: Monitors production areas where flammable processing gases pose atmospheric safety risks
- Power Generation: Deployed in turbine enclosures, boiler spaces, and fuel systems to prevent gas accumulation
- DCS/PLC Integration: Outputs 4-20mA signals via optional modules for broadcasting to plant automation networks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Off First: Always isolate and remove sub-rack power before inserting or extracting cards to prevent electronic arc damage.
Slot Alignment: Align the card's top and bottom plastic edges carefully with the sub-rack guide rails.
Firm Engagement: Push the card smoothly toward the rear until its multi-pin DIN connector seats firmly into the backplane matrix.
Securing Panel: Tighten the front panel retaining screws to ensure continuous ground connectivity and prevent vibrational shifting.
Hot-Swap Exception: Individual channel control cards can be extracted for maintenance without interrupting the operation or wiring of other active channels.
Alternative Names
05701-A-030Z
05701-A-03O2
05701-A-O302
0570I-A-0302
057O1-A-0302
O5701-A-0302
05701 A 0302
05701 A 030Z
05701 A 03O2
05701 A O302
0570I A 0302
057O1 A 0302
O5701 A 0302
05701A0302
Technical notes
The 05701-A-0302 is the catalytic version of the 5701 Single Channel Control Card. It is supplied with the corresponding plug-in catalytic sensor drive module, which provides the necessary sensor power and processes the signal from the connected catalytic gas detector. The 4–20 mA version uses the different part number 05701-A-0301.
FAQs
-
What type of display does it use?
+A multi-section liquid crystal display featuring a 25-segment analogue bar graph, a 4-character digital readout, and a 4-character message area. -
What type of sensor drive is fitted on the card?
+The card comes equipped with an attached 05701-A-0284 catalytic sensor drive module to handle catalytic bridge inputs. -
Does it have an on-board display?
+Yes. It features a four-part LCD screen displaying a 25-segment analog bar graph, a 4-character digital readout for concentrations, a 4-character system message field, and operational icons. -
What safety alarms does the card support?
+It supports a three-level gas concentration alarm system (A1, A2, and A3) alongside Short-Term Exposure Limit (STEL), Long-Term Exposure Limit (LTEL), and Rate alarms.
