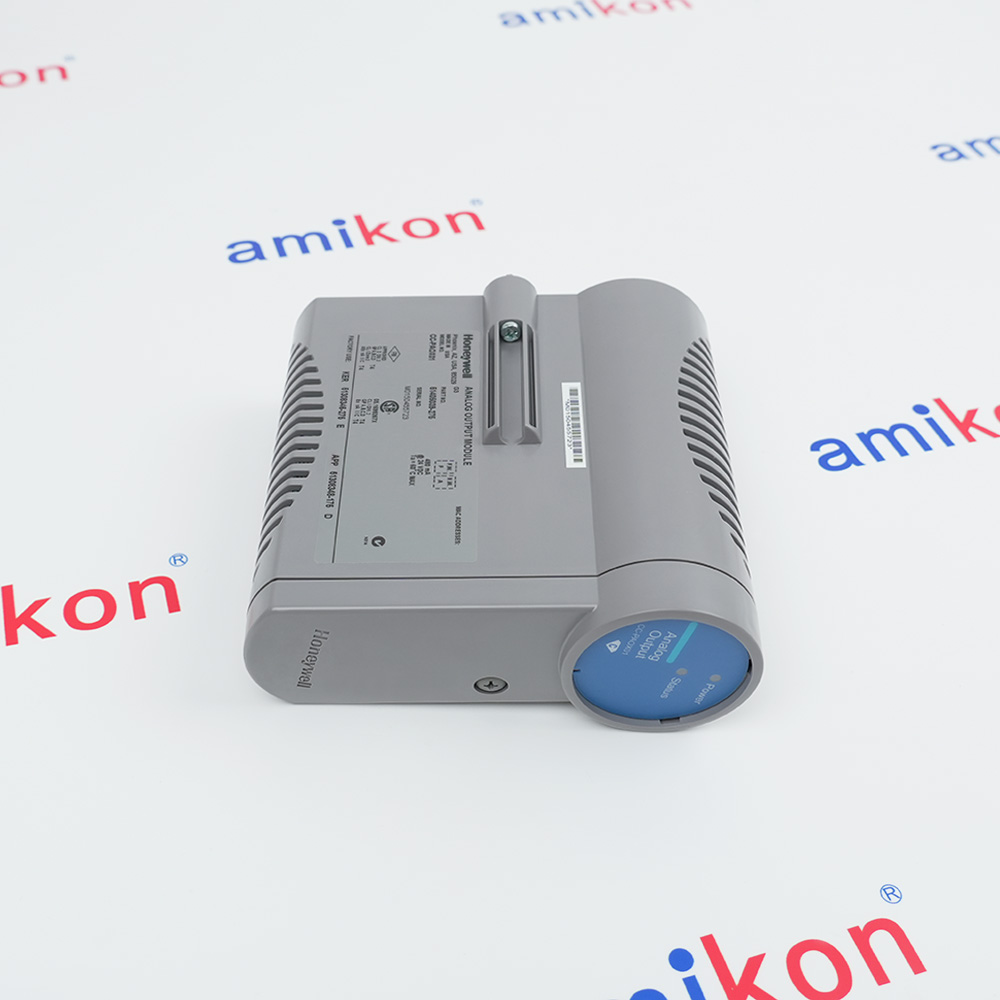

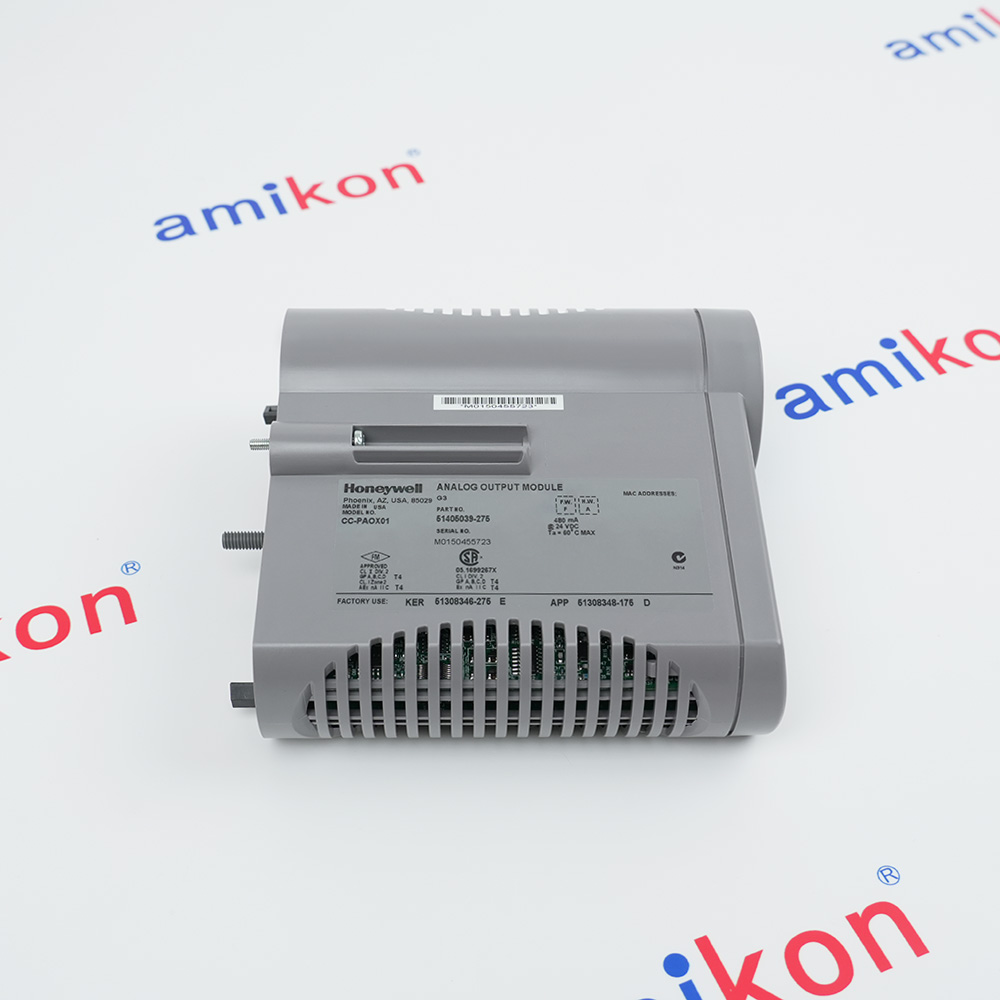

- CC-PAOX01 51405039-275
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for CC-PAOX01 51405039-275
-
Product ModelCC-PAOX01 51405039-275
-
Product ParametersANALOG OUTPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6x15.5x14.5cm
-
ManufacturerHoneywell
-
Weight0.4 kg
-
Output Type4-20 mA
-
Output Channels16
-
Output Ripple< 100 mV peak-to-peak at power line frequency
-
Output TemperatureDrift 0.005% of Full Scale/°C
-
Output ReadbackAccuracy ±4% of Full Scale
-
Output Current Linearity± 0.05% of Full Scale nominal
-
Resolution± 0.05% of Full Scale
Description
CCPAOX01
51405039-275
ANALOG OUTPUT MODULE
51405039-275
ANALOG OUTPUT MODULE
Information
Overview
Manuals
Technical notes
Product Applications
Software Configuration
Features:
- Extensive self-diagnostics
- Optional redundancy
- Non-incendive output
- Output read-back and alarm on discrepancy
- Safe-state (FAILOPT) behaviors configurable on aper channel basis
The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices. This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel toeither HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOMdevice electronics fails.
The CC-PAOX01 51405039-275 Honeywell Analog Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-PAOX01 51405039-275 Analog Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
HART Communication: Each of the 16 channels supports HART protocol version 5, 6, or 7, enabling the collection of secondary variables and device status from smart field instruments.
FAILOPT (Safe State): You can configure the module's behavior on a per-channel basis for instances of communication loss or controller failure:
Hold Last Value: Retains the current mA output.
Shed to Safe Value: Drops the output to a pre-defined safety value (typically 0 mA or 4 mA).
- Actuator and Valve Control:Drives valves, cylinders & solenoids to regulate process flows
- Variable Speed Drives:Sends speed references to motor drives & servo amps.
- Intelligent Field Device Integration:HART communication for smart instrument management
- Sequential and Logic Control:Manages combustion & motion control sequences
- Energy & Power:Manages power plants & combustion control systems
- Manufacturing & Heavy Industry:Supports smelting, steel production & textile machinery
- Infrastructure:Used in water treatment & automobile industry
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Block Type: The CC-PAOX01 typically uses the AO-HART block type for configuration and implementation.
Execution Environment: The module operates within the Control Execution Environment (CEE), usually associated with the C300 Controller.
Channel Mapping: Configure individual channels as Analog Outputs (4-20mA) within the Control Builder to match the field device requirements.
FAQs
-
What is CC-PAOX01 ?
+The Honeywell CC-PAOX01 is a 16-channel, non-HART analog output module designed for the Series C Experion PKS control system -
What type of signal does CC-PAOX01 output?
+It provides a 4-20 mA DC output signal. -
What happens if a channel fails?
+The module supports configurable "Safe-state" (FAILOPT) behaviors, allowing the user to set individual channels to HOLD LAST VALUE or SHED to a safe value upon failure. -
What are the power requirements for CC-PAOX01?
+It requires a 24V DC power supply. -
Does it support redundancy?
+Yes, the CC-PAOX01 supports optional redundancy for higher reliability.
