PRODUCT DESCRIPTION

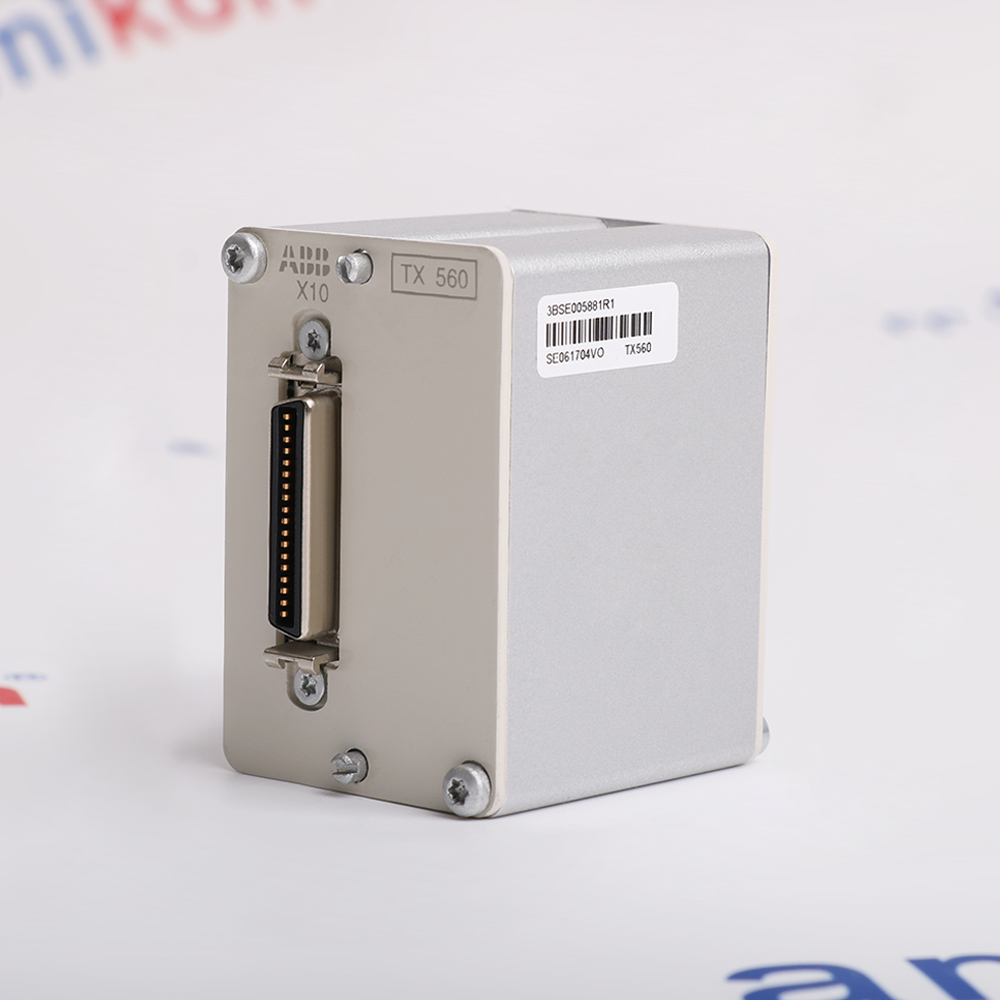

TX560 3BSE005881R1 Electrical bus termination box
ABB TX560 3BSE005881R1 is an electrical bus termination box for Advant S100 I/O bus extensions. It terminates the local bus in documented TC560 and TC560V1 optical-modem arrangements used to connect compatible controller and remote I/O configurations.

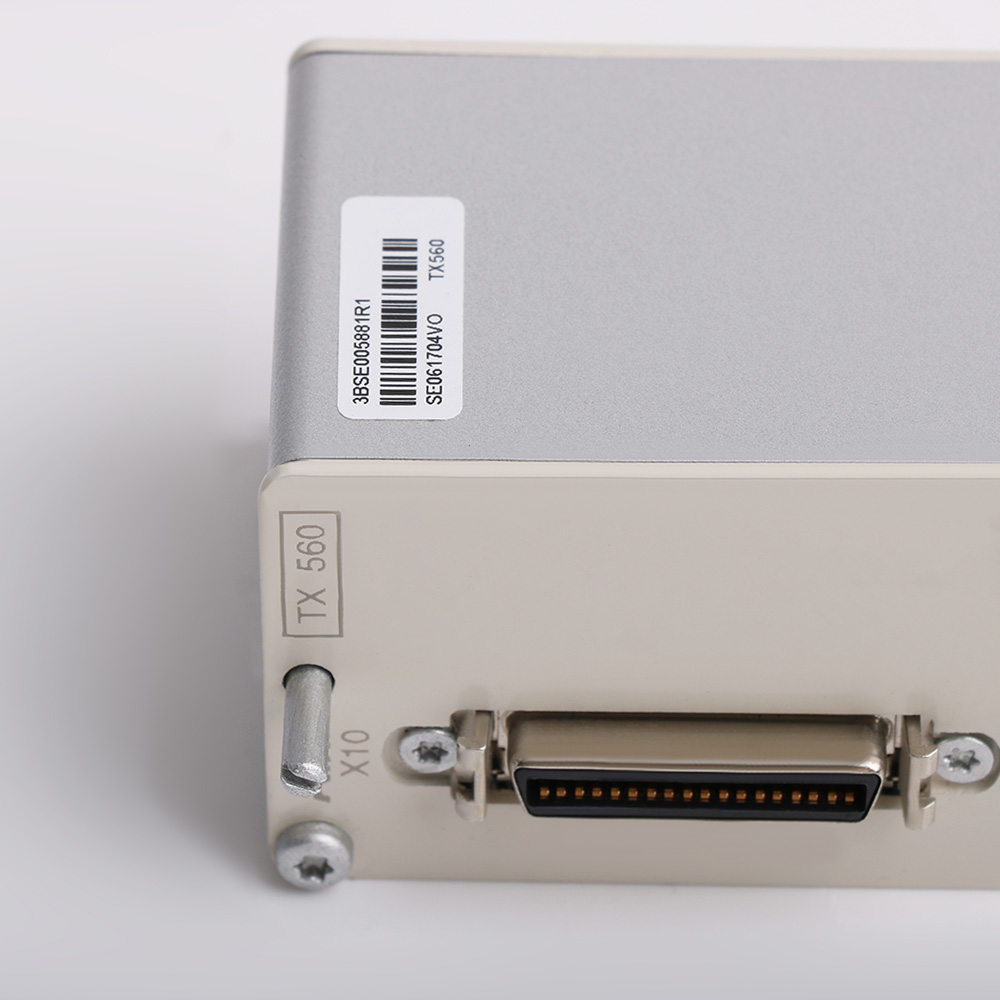

The metal enclosure carries one X10 electrical connector with two retaining screws and fits on the front of the near-side modem. The controller connection uses the specified TK580 cable assembly. Mounting requires at least 90 mm of space in front of the modem, and the modem power must be disconnected before fitting or removing TX560.
The metal enclosure carries one X10 electrical connector with two retaining screws and fits on the front of the near-side modem. The controller connection uses the specified TK580 cable assembly. Mounting requires at least 90 mm of space in front of the modem, and the modem power must be disconnected before fitting or removing TX560.
BEFORE YOU BUY
Confirm the complete electrical bus termination box
ACTUAL APPLICATIONS
Application context for TX560 3BSE005881R1
TX560 3BSE005881R1 is an electrical termination accessory for Advant S100 I/O bus extensions. Compatible Advant control configurations serve chemical production, pulp and paper manufacturing, and power generation. Selection depends on the installed local-bus arrangement and matching TC560 or TC560V1 interface.
-
01 · CHEMICAL PROCESSING
Industrial Chemical and Petrochemical Production
Industrial Chemical ManufacturingPetrochemical Production and Refining -
02 · PULP & PAPER
Industrial Pulp Production and Paper Manufacturing
Pulp Production and ProcessingPaper and Board Manufacturing -
03 · POWER GENERATION
Electric Power Generation and Heat Production
Thermal Electric Power GenerationCombined Heat and Power
Technical specifications for TX560 3BSE005881R1
-
Product ModelTX560 3BSE005881R1
-
Product ParametersElectrical bus termination box
-
In stock9 units
-
ManufacturerABB
-
Connector designationX10
-
Electrical connector count1
-
Connector retention2 retaining screws
-
Housing materialMetal
-
Modem mating interfaceTC560 / TC560V1 front face
-
Minimum modem-front clearance90 mm
-
Upstream cable assemblyTK580, 1.8 m
-
Hot-plug supportNo
View all additional
Alternative Names
TX560 3BSE005881R1
Advant S100 I/O bus accessories Electrical bus termination box
Electrical bus termination box TX560
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate TX560 3BSE005881R1 electrical bus termination box
ABB TX560 3BSE005881R1 is an electrical bus termination box for Advant S100 I/O bus extensions. It terminates the local bus in documented TC560 and TC560V1 optical-modem arrangements used to connect compatible controller and remote I/O configurations.
Fit the TX560 termination box to the front of the documented TC560 or TC560V1 modem. Allow at least 90 mm of clearance in front of the modem and use the specified TK580 controller-side connection. Verify the installed local-bus topology against the applicable S100 I/O drawing.
Disconnect modem power before connecting or disconnecting TX560. Configurations with DSBC 173A, DSBC 174 or DSBC 175 on the local bus require the documented DSTC 176 termination instead. Restore only the approved connections and check the affected I/O communication before returning the configuration to operation.
Features:
- Connector designation: X10
- Electrical connector count: 1
- Connector retention: 2 retaining screws
The TX560 3BSE005881R1 electrical bus termination box requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify TX560 3BSE005881R1 electrical bus termination box
Match the complete TX560 3BSE005881R1 label, X10 connector and near-side modem arrangement before exchange. TX560 and TK560 have different termination and interconnection roles; similar enclosures do not establish interchangeability.
Record the cable identification and local-bus topology. Disconnect TC560 or TC560V1 power before removing TX560, inspect both retaining screws and the mating connector, and preserve the required 90 mm front clearance.
Fit the verified termination accessory, secure its connector and restore the documented connections. Reapply modem power under the equipment procedure, check I/O communication and retain the inspection results with the maintenance record.
Features:
- Connector designation: X10
- Electrical connector count: 1
- Connector retention: 2 retaining screws
The TX560 3BSE005881R1 electrical bus termination box requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the TX560 3BSE005881R1 electrical bus termination box must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeHeight 10.8 cm; width 4.5 cm
-
Shipping weight0.12kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginSweden
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about TX560 3BSE005881R1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Where does TX560 terminate the S100 I/O extension?
TX560 terminates the electrical local-bus end in the documented near-side TC560 or TC560V1 modem arrangement. It is not the far-side optical modem. -
Can TX560 be connected with the modem powered?
No. ABB instructs that TC560 or TC560V1 power must be disconnected before TX560 is connected or disconnected. -
How much space is required in front of the modem?
The documented arrangement requires at least 90 mm in front of TC560 or TC560V1 to accommodate TX560 or TK560. This is installation clearance, not the termination box depth. -
Which cable connects the controller side to TX560?
The documented controller-to-TX560 arrangement uses TK580. ABB lists the TK580 assembly at 1.8 m; this cable length is not a dimension of TX560. -
When is DSTC 176 used instead of TX560?
The S100 I/O guide specifies DSTC 176 termination when DSBC 173A, DSBC 174 or DSBC 175 bus extenders are included on the local bus. Confirm the applicable configuration drawing. -
What connector and retention hardware should be inspected?
Inspect the single connector identified as X10 and its two retaining screws. Confirm the mating connector and enclosure condition before fitting the box to the specified modem. -
What information is needed to order this termination box?
Provide TX560 3BSE005881R1, quantity, installed modem identification and connector photographs. Specify separately whether a TK580 cable assembly is required. -
What should receiving inspection record for TX560?
Record the full TX560 article label, X10 connector condition, retaining hardware and metal-enclosure condition, then compare them with the ordered accessory and supplied photographs.
