Technical specifications for ACS355-03E-05A6-4
-

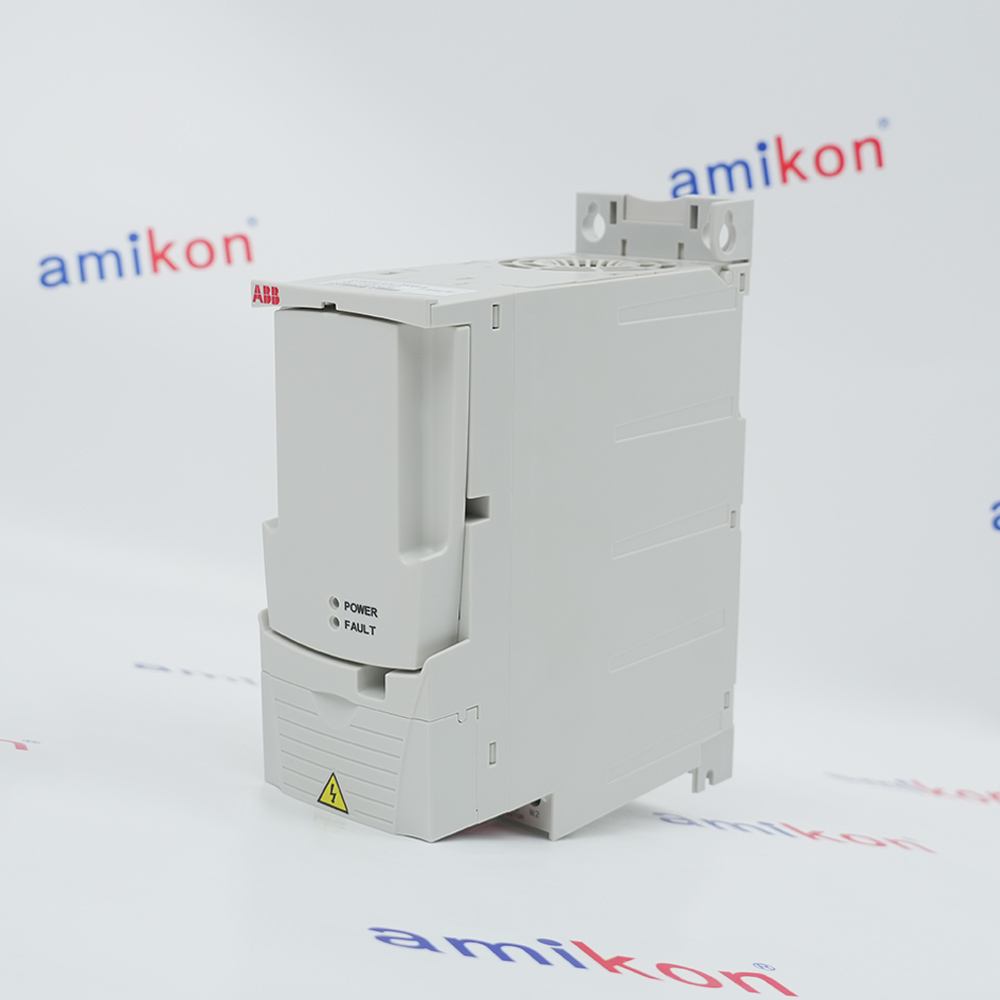

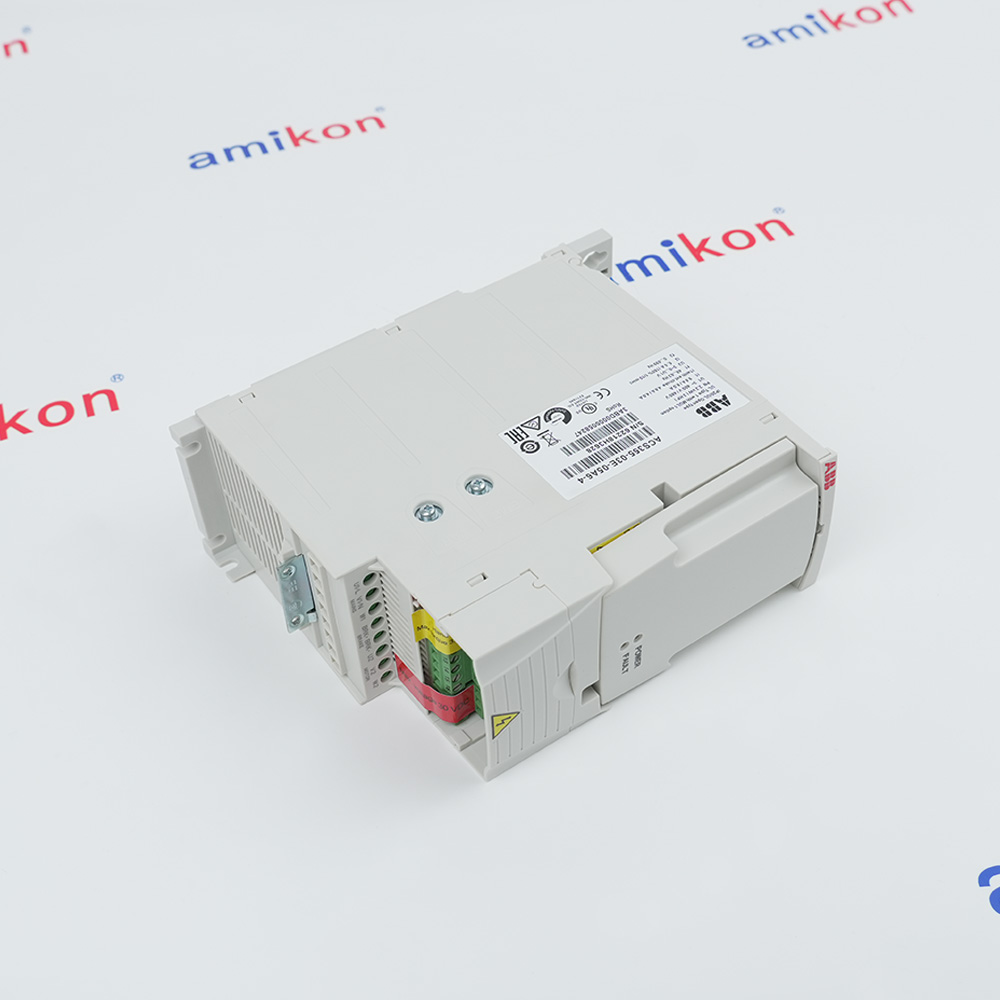

Product ModelACS355-03E-05A6-4
-
Product ParametersAC Drive
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size37x27x20cm
-
ManufacturerABB
-
Weight9.64 kg
-
Nombre de phases3-phase
-
Degré de protectionIP20
-
Type de boîtier NEMAOpen Type
-
Fréquence (f)47.5 ... 63 Hz
-
Taille du cadreR1
-
Tension d'entrée (Uin)380 … 480 V
-
Type de montageModule_NO UNIT$
-
Courant de sortie, utilisation normale (In)5.6 A
-
Puissance de sortie, utilisation normale (Pn)2.2 kW
Description
ACS35503E05A64
AC INVERTER DRIVE
400V
3 PHASE
WITHOUT KEYPADS
2.2 KW
5.6 A
400/415 VAC
R1 FRAME SIZE
IP20
AC INVERTER DRIVE
400V
3 PHASE
WITHOUT KEYPADS
2.2 KW
5.6 A
400/415 VAC
R1 FRAME SIZE
IP20
Information
Overview
Manuals
Technical notes
Product Applications
Electrical Wiring
Features:
- 2.2 kW / 3 HP Output with 5.6 A Rated Current on 380–480 V 3-Phase Supply
- Sensorless Vector Control for Induction & Permanent Magnet Motors up to 599 Hz
- Integrated Safe Torque Off (STO) to SIL 3 / PLe as Standard
- Built-In Brake Chopper & EMC Filter for Plug-and-Play Operation
- Ultra-Compact IP20 Design with Quick-Commissioning Application Macros
- Versatile I/O & Fieldbus Expandability
The ACS355-03E-05A6-4 part designation decodes as follows: ACS355 is the series name; 03E indicates a 3-phase input with EMC filter connected (metal grounding screw installed); 05A6 specifies the 5.6 A rated output current; and 4 denotes the 380–480 V voltage range. This configuration is the European/International variant with the EMC filter active by default, as opposed to the "U" suffix variant where the filter is present but disconnected with a plastic screw.
The ACS355-03E-05A6-4 ABB AC Drive may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB ACS355-03E-05A6-4 AC Drive Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
At the core of the drive's performance is its advanced motor control platform. The ACS355 supports both scalar V/f control for simple, cost-effective applications and sensorless vector control for demanding dynamic loads. In vector mode, the drive delivers static speed accuracy of 20% of motor nominal slip and dynamic accuracy of <1% with a 100% torque step, with a torque step rise time of <10 ms and non-linearity of ±5% at nominal torque. The output frequency spans 0 to 599 Hz with a default switching frequency of 4 kHz (selectable up to 16 kHz in 4 kHz steps), enabling smooth, quiet motor operation and precise speed control across a wide range. The drive is equally capable of controlling induction motors and permanent magnet (PM) motors, making it a versatile platform for modern high-efficiency motor technologies.
- Material Handling:Conveyors, sorters & warehouse logistics: precise speed/accel
- Food & Beverage:IP66/NSF for washdowns: resists dirt/dust/moisture
- Packaging & Printing:Labeling/wrapping/printing: quick macros
- Textile & Woodworking:High-freq sensorless vector for spinning/weaving/cutting
- Pumps, Fans, and Lifting:Cranes/hoists/pumps: braking chopper + STO
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: Connect your 3-phase input supply to the U1, V1, and W1 terminals.Motor: Connect your 3-phase motor cables to the U2, V2, and W2 terminals.Grounding: Always connect the protective earth (PE) cable to the designated grounding terminals and ensure the bare shield of the cables is grounded 360 degrees under the provided metal clamping plates to avoid radio frequency interference.
FAQs
-
What is the ACS355-03E-05A6-4？
+The ABB ACS355-03E-05A6-4 is a compact, 380-480 V three-phase variable frequency drive (VFD) designed for industrial machinery. -
Does the drive support vector control?
+Yes, the ACS355 can operate in both standard scalar (V/Hz) control mode for simple applications and advanced sensorless vector control mode for high dynamic performance and torque at low motor speeds. -
What are the built-in control modes?
+This drive supports both standard Scalar (V/Hz) control (for basic applications and multi-motor setups) and Sensorless Vector control (for single motors requiring precise torque and speed at low frequencies) -
What is Safe Torque Off (STO)?
+The STO function is a built-in safety feature that prevents the drive from generating torque in the motor, allowing machines to be safely shut down and preventing accidental restarts
