SPAJ142C
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe

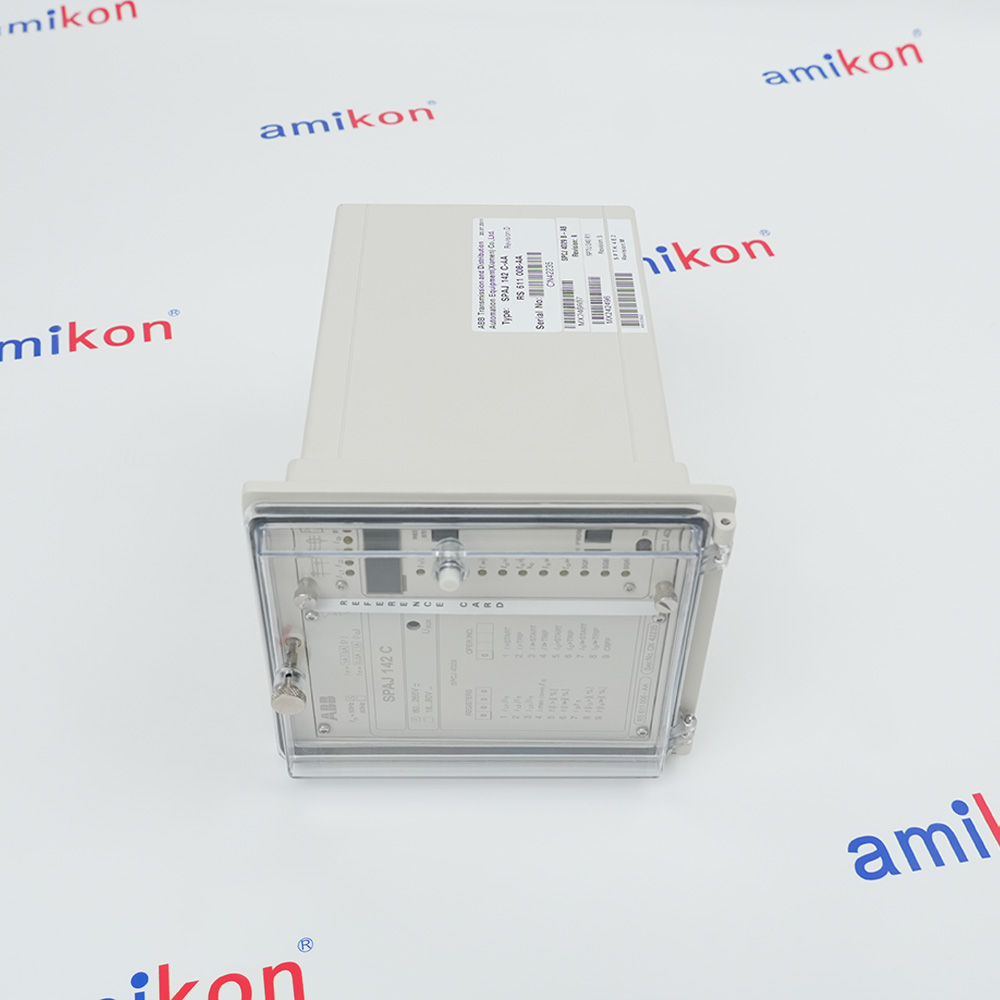

SPAJ 142 C
Three-phase
low-set phase overcurrent unit
Overcurrent and earth-fault relay
Three-phase
low-set phase overcurrent unit
Overcurrent and earth-fault relay
Technical specifications for SPAJ142C
-
Product ModelSPAJ142C
-
Spare ModelRS611006-AA
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size14x25.2x16cm
-
ManufacturerABB
-
Weight3.12 kg
-
Rated voltage250 V dc/ac
-
Carry continuously5 A
-
Make and carry for 0.5 s30 A
-
Make and carry for 3.0 s15 A
-
External control voltage level18...265 V dc or 80...265 V ac
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the SPAJ 142C ?+The ABB SPAJ 142C is a legacy combined overcurrent and earth-fault protection relay. It is primarily used for the selective short-circuit and earth-fault protection of radial feeders in electrical distribution systems.
-
What is the auxiliary supply voltage?+Two versions exist: 80–265 V AC/DC (type SPTU 240R1) and 18–80 V DC (type SPTU 48R1).
-
What curves are available for IDMT?+It supports Normal, Very, Extremely, and Long-time Inverse curves (BS 142/IEC 60255), plus RI and RXIDG curves.
-
What is the primary purpose of the SPAJ 142C?+It is primarily used for selective short-circuit and non-directional earth-fault protection in solidly earthed, resistance earthed, or impedance earthed power systems. It continuously measures phase and neutral currents to deliver tripping signals and auto-reclose functions
Get a quick price fo SPAJ142C
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Wiring and Connections
Features:
- 3‑ph low‑set OC DT or IDMT
- 3‑ph high‑set OC inst or DT
- Sensitive low‑set EF: DT or IDMT
- High‑set EF: inst or DT
- Built‑in CB failure protection
- Local/remote setting read/write
- Self‑supervision (electronics/micro)
The SPAJ 142 C ABB Overcurrent and earth-fault relay may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SPAJ 142 C Overcurrent and earth-fault relay Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
When a phase current exceeds the starting valueof the low-set overcurrent unit, the unit starts,simultaneously starting the corresponding timing circuit. When the set operating time haselapsed, a circuit-breaker tripping command isdelivered. Correspondingly, the high-set stageof the overcurrent unit starts when its startingvalue is exceeded, starting its timing circuit andperforming a tripping when the set time haselapsed.The low-set stage of the non-directional earthfault unit operates in the same way. Dependingon the protective scheme it either signals, performs a tripping or initiates a function of anexternal auto-reclose relay.
- Heavy Manufacturing:Protects radial feeders from short-circuits & earth faults
- Chemical and Process Industries:Isolates faults without full plant shutdown
- Mining and Extraction:IP54 aluminum enclosure for dusty/demanding environments
- Substation Automation Hubs:ABB remote monitoring & data recording via serial interface
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.

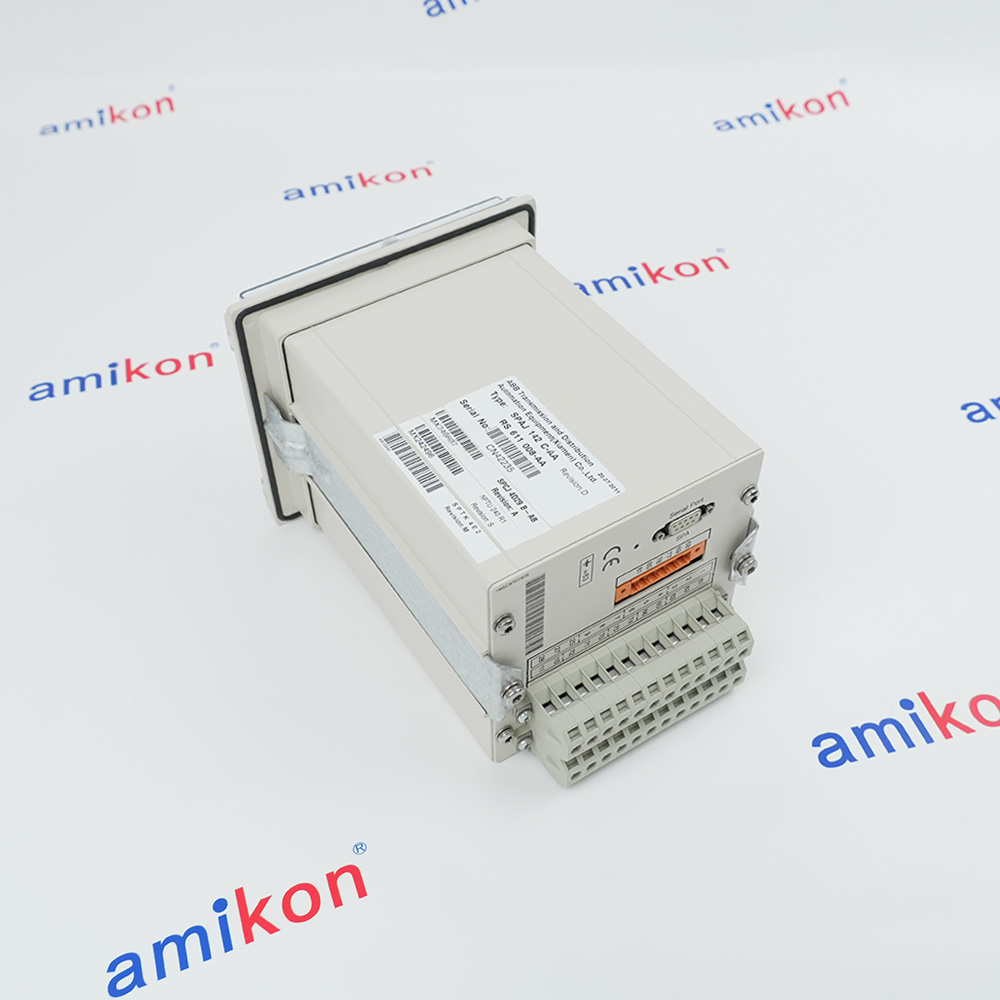

Heavy Duty Terminals: Used for current transformer (CT) measuring inputs, power supply, and trip outputs. These support wires up to 6 mm² (or two 2.5 mm² wires) without requiring terminal lugs.Signalling Outputs: Connected via a six-pole detachable connector.Communication: A 9-pin D-type connector is provided for serial bus connection to higher-level systems.
