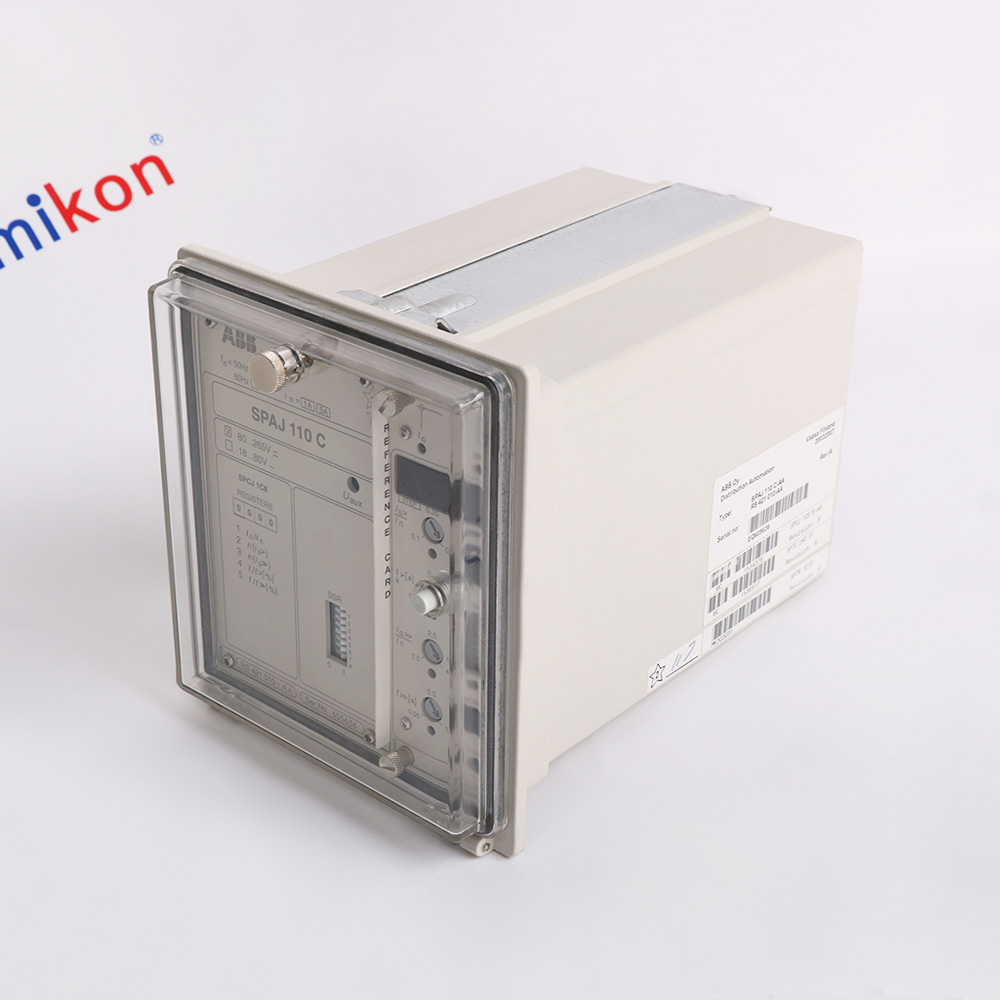

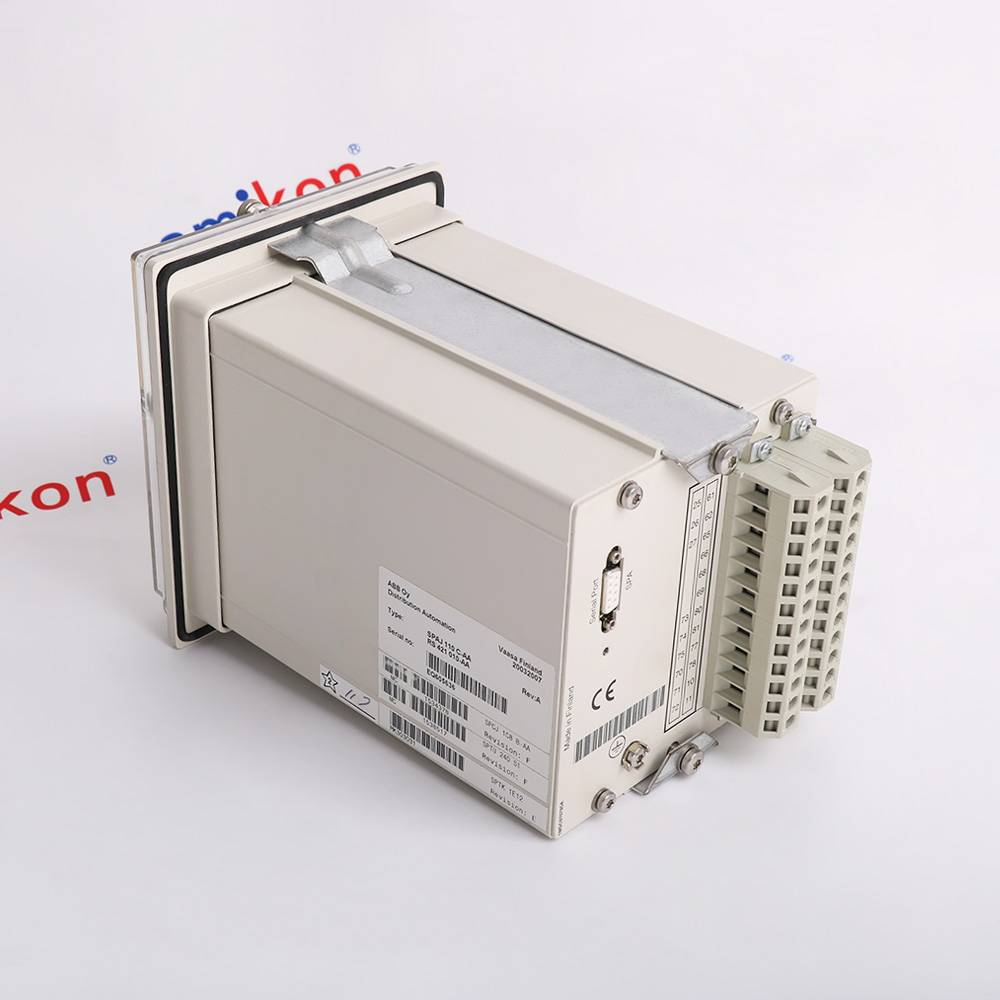

- SPAJ110 C-AA
In Stock
Ships by Tuesday, July 7
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for SPAJ110 C-AA
-
Product ModelSPAJ110 C-AA
-
Product ParametersEarth-fault relay
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size14x25x16.1cm
-
ManufacturerABB
-
Weight2.9 kg
-
Input impedance<100 mΩ
-
Rated frequency fn acc. to order50 Hz or 60 Hz
-
Terminals65-66, 68-69
-
Rated voltage250 V ac/dc
-
Carry continuously5 A
-
Make and carry for 0.5 s30 A
-
Make and carry for 3 s15 A
-
Control voltage level18...265 V dc or 80...265 V ac
-
Current consumption when input activated2...20 mA
Description
The earth-fault relay SPAJ 110 C is a secondaryrelay that is connected to the current transformers of the object to be protected. The earth-faultcurrent can be measured either via a set of threephase current transformers in a residual currentconnection or a window-type core-balance current transformer. When a core-balance currenttransformer is used, it should be secured that therepeatability of the current transformer is sufficient also at high earth-fault currents. When anearth-fault occurs, the relay delivers an alarmsignal, trips the circuit breaker or starts anexternal auto-reclose relay, depending on theapplication and the configuration of the relay.
When the energizing current exceeds the setstart value I0> of the low-set stage, the earthfault relay starts. When, at definite time operation, the set operate time t> or, at IDMT operation, the calculated operate time t>, expires, therelay operates. In the same way the high-set stagestarts once its set start value I0>> is exceededand, when the set operate time t>> expires, therelay operates.
When the energizing current exceeds the setstart value I0> of the low-set stage, the earthfault relay starts. When, at definite time operation, the set operate time t> or, at IDMT operation, the calculated operate time t>, expires, therelay operates. In the same way the high-set stagestarts once its set start value I0>> is exceededand, when the set operate time t>> expires, therelay operates.
Alternative Names
SPAJ110 C AA
SPAJ11O C-AA
SPAJ1I0 C-AA
SPAJI10 C-AA
SPAJ110C-AA
SPAJ11OC-AA
SPAJ1I0C-AA
SPAJI10C-AA
SPAJ110C AA
SPAJ11OC AA
SPAJ1I0C AA
SPAJI10C AA
Information
Overview
Manuals
Application Notes
Product Applications
Insertion and Mounting Options
Features:
- Low-set neutral overcurrent stage with definitetime or inverse time characteristic
- High-set neutral overcurrent stage with definitetime characteristic
- Flexible adaptation to different types of application
- Digital display of setting values, neutral currentmeasured, memorized fault values, etc
- Continuous self-supervision with auto-diagnostics of hardware and software
The SPAJ110 C-AA accepts 1 A or 5 A current transformer secondary inputs and is powered by a wide-range 80–265 VAC/DC auxiliary supply, making it suitable for a broad range of industrial and utility installations. Earth-fault current can be measured using either three phase CTs connected in residual configuration or a zero-sequence/core-balance current transformer for higher sensitivity.
The SPAJ110 C-AA ABB Earth-fault relay may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SPAJ110 C-AA Earth-fault relay Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A front-panel digital display provides access to relay settings, measured earth-fault current, stored fault values, and operating status. Integrated self-supervision continuously monitors the relay's hardware and software, automatically reporting internal faults to improve system reliability. When equipped with the optional SPA Bus communication interface, the relay can exchange operating data, measurements, and event information with substation automation and supervisory control systems
- Primary Feeders: Protects distribution lines from ground-faults that could disrupt facility power
- Transformer Protection: Acts as backup/primary earth-fault relay for medium-voltage substation transformers
- Generator/Motor: Provides neutral overcurrent protection for large rotating industrial machinery
- Capacitor Banks: Used with residual voltage for unbalance and fault protection in power correction
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Flush Mounting: Integrated directly into a panel cutout.Semi-Flush Mounting: Uses a raising frame to reduce the depth inside the panel.
Projecting Mounting: Uses a projecting mounting case type SPA-ZX 110 when panel-depth insertion is not preferred.
19-Inch Cabinets: Utilizes an ancillary mounting plate (type SPA-ZX 104, 105, or 106) to arrange multiple units.
Technical notes
The low-set stage of the earth-fault relay can begiven either definite-time or inverse-time characteristic. At inverse time characteristic fourinverse time curve sets with different degrees ofinversity are available: Normal inverse, Veryinverse, Extremely inverse and Long-time inverse. These curve sets comply with the BS 142and IEC 60255 standards.
FAQs
-
What is the SPAJ 110 C-AA?
+The ABB SPAJ 110 C-AA is a legacy, numerical secondary earth-fault relay used for selective primary or back-up protection in electrical power systems -
What does the -AA suffix mean?
+It defines the hardware variant, specifically identifying the circuit diagram type (RS 10092-AA / RS 421 010-AA) and the rated current/voltage terminal configuration. -
How does it measure current?
+It connects to secondary current transformers (CTs) using either three phase CTs in a residual configuration or a core-balance window-type CT. -
What auxiliary supply options exist?
+Internal plug-in modules determine power limits: type SPTU 240S1 handles 80–265 V AC/DC, while type SPTU 48S1 handles 18–80 V DC
