Technical specifications for 89AS30 GKWN000317R0100
-
Product Model89AS30 GKWN000317R0100
-
Spare Model89AS30R0100
-
Product ParametersAnalog Signal Multiplayer
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x19.6x12.8cm
-
ManufacturerABB
-
Weight0.2 kg
-
Supply voltage+24 V DC
-
Voltage input0 ... 10 V (max. 30 V)
-
Input resistance> 100 kOhm
-
Current input0 ... 20 mA, 4 ... 20 mA
-
Load resistanceRB 55 Ohm
-
Current consumption approx110mA+output currents
-
Selectable by means of jumpers15 V DC, max. 25 mA 24 V DC, max. 25 mA
-
Max. burdenRB 1000 Ohm
-
Voltage outputsA14, A24, A34 0 ... 10 V (max. 12 V)
-
Max. current5 mA
-
Connectorto DIN 41 612 / IEC 60603-21 x 48-pole edge connector, type F
Description

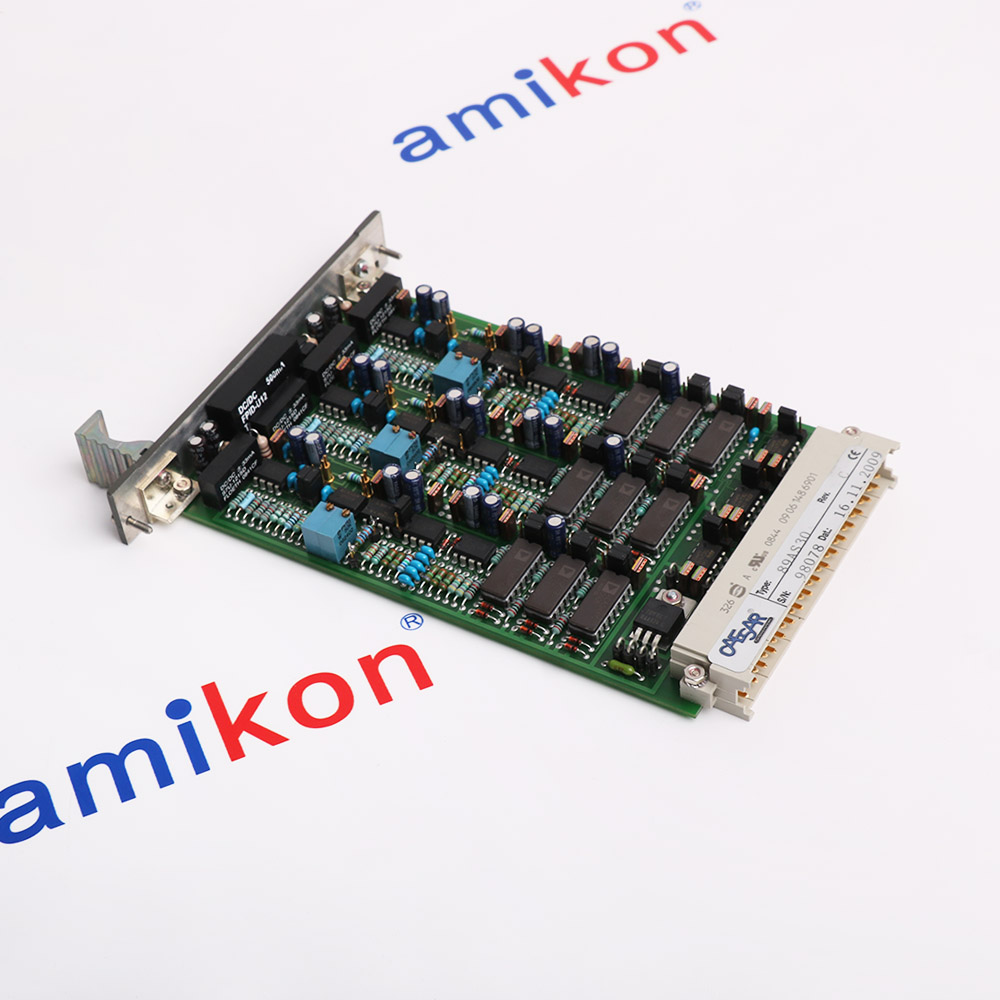

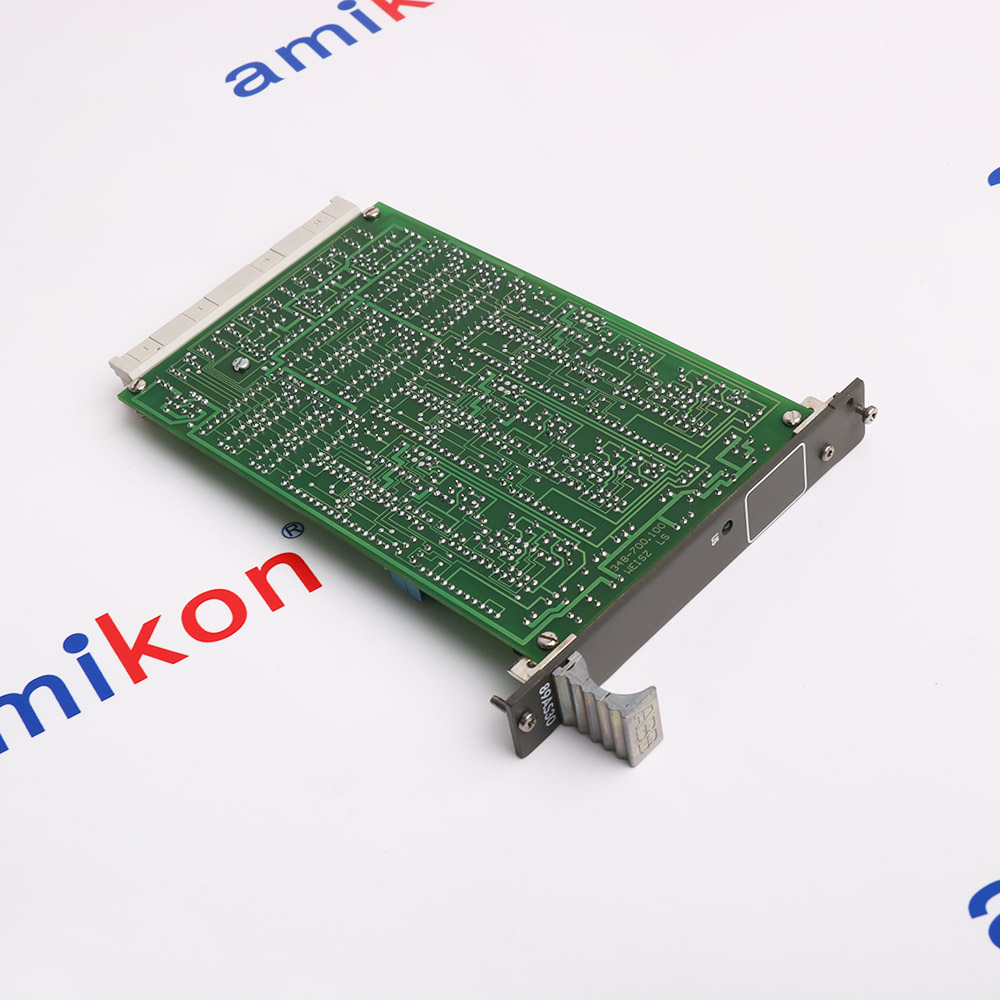

The ABB 89AS30R0100 Analog Signal Multiplier is an industrial analog signal-processing module used in ABB Procontrol P14 control systems. It is for applications where one analog process signal must be processed and distributed to multiple output channels for control, monitoring, indication, or other system functions.
The module is designed to process input signals of a level of 0 ... 20 mA or 4 ... 20 mA or 0 ... 10 V DC, the ranges beingselected by means of jumpers. From the input signal, three output signals of 0 ... 20 mA or 4 ... 20 mA are formed whichcan be selected individually by using jumpers; also a signal of 0 ... 10 V is formed.
The inputs are electrically isolated from the rest of the circuitry. For supplying transmitters and other devices, a voltage of15 V or 24 V DC is available for each input, also electrically isolated.The module contains three identical function units. The outputs are separated.
The module is designed to process input signals of a level of 0 ... 20 mA or 4 ... 20 mA or 0 ... 10 V DC, the ranges beingselected by means of jumpers. From the input signal, three output signals of 0 ... 20 mA or 4 ... 20 mA are formed whichcan be selected individually by using jumpers; also a signal of 0 ... 10 V is formed.
The inputs are electrically isolated from the rest of the circuitry. For supplying transmitters and other devices, a voltage of15 V or 24 V DC is available for each input, also electrically isolated.The module contains three identical function units. The outputs are separated.
Information
Overview
Manuals
Application Notes
Product Applications
Module Insertion
Features:
- Three Independent Function Units
- Jumper-Selectable Input Signal Ranges
- Electrically Isolated Inputs and Transmitter Supplies
- High Accuracy with Low Signal Delay
- EMC Directive 2014/30/EU Compliant
The 89AS30R0100 features inputs that are electrically isolated from the rest of the circuitry. For supplying transmitters and other devices, a voltage of 15 V or 24 V DC is available for each input on the 89AS30R0100, also electrically isolated. The 89AS30R0100 contains three identical function units, and the outputs are separated, ensuring independent signal processing for each channel.
The 89AS30 GKWN000317R0100 ABB Analog Signal Multiplayer may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 89AS30 GKWN000317R0100 Analog Signal Multiplayer Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 89AS30R0100 delivers a transmission error at input/output within the permissible temperature range and the permissible supply voltage tolerances of ≤0.3%, with a signal delay of less than 1 msec. The 89AS30R0100 is powered by a +24 V DC supply with a current consumption of approximately 110 mA plus output currents.
The 89AS30R0100 features a board size of 3 units, 1 division, 160 mm deep, with a connector to DIN 41612/IEC 60603-2 1 x 48-pole edge connector, type F, and a weight of approximately 0.3 kg. The 89AS30R0100 is in conformity with the provisions of the European EMC Directive 2014/30/EC, with conformity assured through the application of harmonized standards EN 61000-6-4:2007/A1:2011 for emission and EN 61000-6-2:2005/AC:2005 for immunity.
- Power Generation/Distribution: Routes vital control signals across conventional and renewable facilities
- Oil/Gas/Chemical: Multiplies/transmits temperature, pressure, flow signals in hazardous areas to DCS
- Water/Wastewater: Calculates/distributes flow rate and chemical dosing signals in treatment systems
- Heavy Manufacturing: Coordinates signal combinations in automated production line machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Rack Mounting: The 89AS30 module is designed to be inserted directly into a standard Procontrol P14 subrack.
Alignment: Carefully align the PCB or module housing with the guide rails in the subrack to prevent bending the backplane pins.
Locking: Slide the module smoothly along the rails until the rear edge-connector seats firmly into the backplane.
Secure the module front panel using the integrated locking mechanism or screws.
Alternative Names
89AS30 GKWN000317R01OO
89AS30 GKWN000317R0I00
89AS30 GKWN000317RO100
89AS30 GKWN0003I7R0100
89AS30 GKWNOOO317R0100
89AS3O GKWN000317R0100
B9AS30 GKWN000317R0100
Technical notes
The 89AS30R0100 provides voltage inputs of 0...10 V (max. 30 V) with an input resistance of greater than 100 kOhm, and current inputs of 0...20 mA or 4...20 mA with a load resistance of 55 Ohm. The transmitter supply on the 89AS30R0100 is selectable by means of jumpers to either 15 V DC (max. 25 mA) or 24 V DC (max. 25 mA) for each of the three channels
FAQs
-
What exactly does this module do?
+The 89AS30 module contains 3 identical, independent analog processing units per board. It takes an analog input from a field sensor, galvanically isolates it to prevent electrical noise/damage, and outputs multiple duplicate signals to different destinations -
Does it supply power to field devices?
+Yes. Each channel provides an integrated, electrically isolated auxiliary power supply line (15 V or 24 V DC) to directly power external sensors and transducers. -
Can it handle 4-core transducers?
+Yes. Connection of four-core transducers is supported, provided their current consumption is < 25 mA -
What is the 89AS30?
+The ABB 89AS30 / 89AS30R0100 (Product ID: GKWN000317R0100) is a specialised hardware component known as the Procontrol P14 Analog Signal Multiplier. -
+
