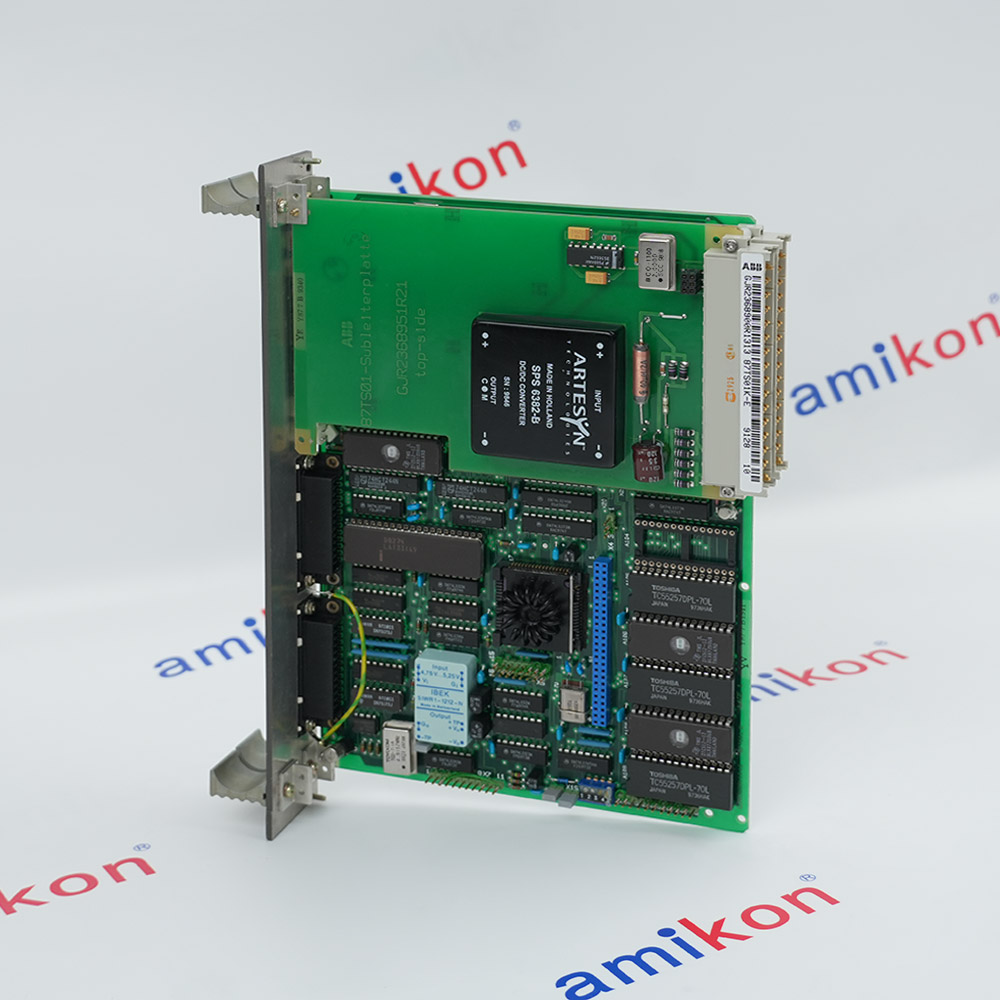

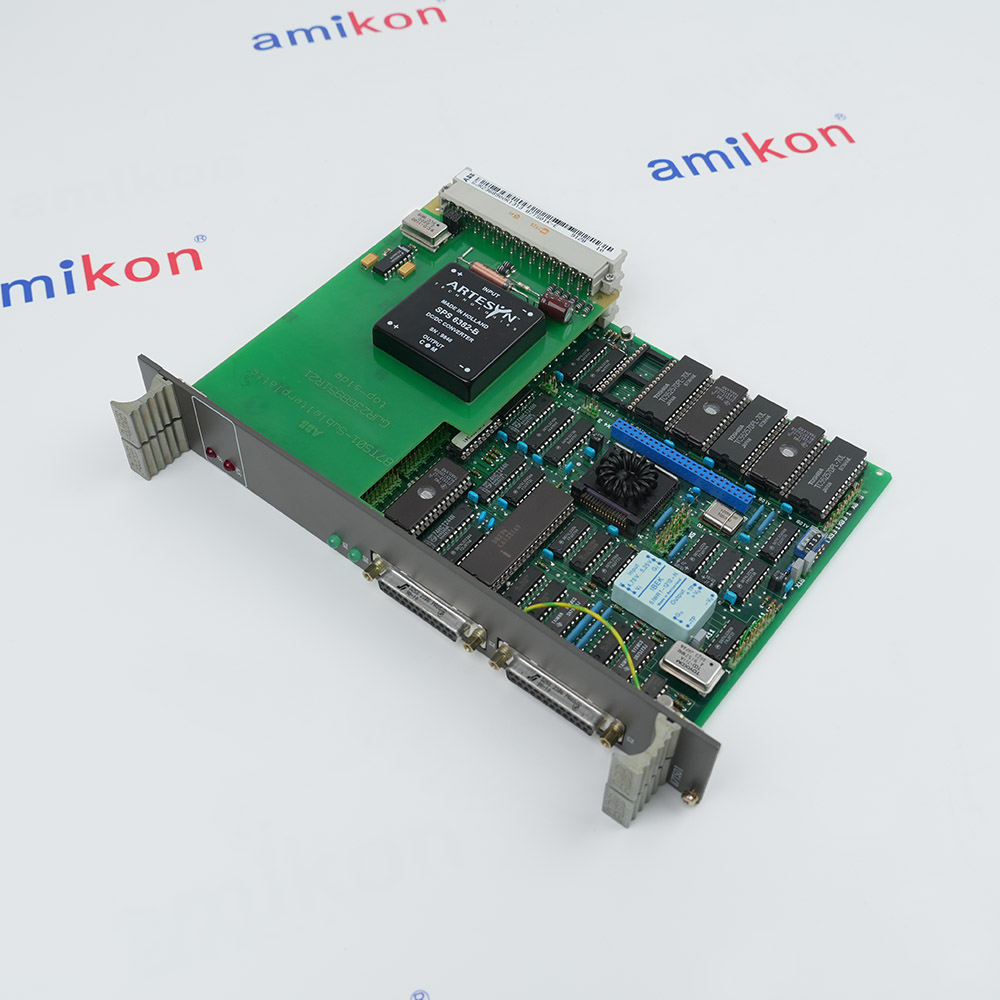

- GJR2368900R1313 87TS01K-E
In Stock
Ships by Friday, August 7
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for GJR2368900R1313 87TS01K-E
-
Product ModelGJR2368900R1313 87TS01K-E
-
Product ParametersCoupling Module
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x19.8x26.1cm
-
ManufacturerABB
-
Weight0.25 kg
-
Input Voltage25 V DC
-
Output Voltage12 V DC
-
Output Current10 mA
-
Short-Circuit Current150 mA
-
Operating Temperature0 °C to +55 °C
-
Storage Temperature–25 °C to +70 °C
-
Humidity5 ... 95 % RH (non-condensing)
Description
The ABB GJR2368900R1313 87TS01K-E Coupling Module is a communication interface module from ABB's ProControl distributed control system product line. It carries the ABB type designation 87TS01K-E and part number GJR2368900R1313, with the "Time Master FDDI/HSR" designation indicating support for Fiber Distributed Data Interface and High-Speed Ring communication protocols.
The module functions as a coupling device for connecting computers and external systems to the ProControl system. It is equipped with serial interfaces of type RS232c or RS422, enabling a process operator station (POS), programming/diagnosis/display system (PDDS), control diagnosis station (CDS), or another computer to communicate with the entire ProControl system. The module's scope of action extends over the entire ProControl system.
The module functions as a coupling device for connecting computers and external systems to the ProControl system. It is equipped with serial interfaces of type RS232c or RS422, enabling a process operator station (POS), programming/diagnosis/display system (PDDS), control diagnosis station (CDS), or another computer to communicate with the entire ProControl system. The module's scope of action extends over the entire ProControl system.
Information
Overview
Manuals
Application Notes
Product Applications
Insertion & Module Configuration
Features:
- RS232c and RS422 Serial Interface Connectivity
- System-Wide Communication Scope
- Redundant 24V DC Module Supply Compatibility
- Standard PROCONTROL Station Bus Interface
The 87TS01K-E module provides a standard PROCONTROL station bus interface together with serial communication interfaces based on RS-232C or RS-422 standards. Through these interfaces, external computers and automation equipment can exchange commands, process data, diagnostic information, and system status information with the PROCONTROL control network.
The GJR2368900R1313 87TS01K-E ABB Coupling Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB GJR2368900R1313 87TS01K-E Coupling Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The GJR2368900R1313 is equipped with a standard interface for the PROCONTROL station bus. This standard interface of the GJR2368900R1313 enables the module to participate in data communication within the PROCONTROL system. The GJR2368900R1313 checks telegrams received from the station bus for error-free transmission, ensuring data integrity and reliable communication across the network. Using the serial RS232c interface, the GJR2368900R1313 is capable of receiving instructions and data coming from a computer in accordance with a defined protocol, as well as transferring instructions and data to a computer.
The GJR2368900R1313 requires 2 divisions for mounting space. The GJR2368900R1313 can be plugged into subrack slots with address wiring 1 through 58 for the station bus. This modular mounting design of the GJR2368900R1313 facilitates easy installation, replacement, and system expansion within standard PROCONTROL racks. The GJR2368900R1313 follows ABB's modular design philosophy, allowing flexible system configuration and simplified maintenance procedures.
- Oil/Gas/Petrochemical: Controls hazardous-area compressors, blowers, and valves in explosive atmospheres
- Power Generation: Coordinates production, health tracking, and energy management in substations and renewables
- Water/Wastewater: Supports telemetry, leakage detection, and quality monitoring across municipal networks
- Mining/Minerals: Manages conveyors, hoists, and grinding processes in ABB MineOptimize systems
- Manufacturing/Handling: Manages assembly lines, robotic cells, cranes, and hoists
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Setting the Address: Up to five 87TS01 modules can be connected in parallel to the serial interface. You must assign a unique coupling module number so the computer can identify it. This is done using switch S1 (contacts 1 through 4).
Jumpers and Switches: Any other module-specific settings (like baud rates or communication profiles) are configured directly on the board using dual-in-line (DIL) switches or plug-in jumpers.
Physical Insertion: Carefully align the module with the subrack guides and slide it in until it firmly seats into the backplane connectors. Secure the module using the front panel locking screws.
Alternative Names
GJR2368900R1313 87TS0IK-E
GJR2368900R1313 87TSO1K-E
GJR2368900R1313 B7TS01K-E
GJR2368900R13I3 87TS01K-E
GJR2368900RI313 87TS01K-E
GJR23689OOR1313 87TS01K-E
GJR236B900R1313 87TS01K-E
GJRZ368900R1313 87TS01K-E
GJR2368900R1313 87TS01K E
GJR2368900R1313 87TS0IK E
GJR2368900R1313 87TSO1K E
GJR2368900R1313 B7TS01K E
GJR2368900R13I3 87TS01K E
GJR2368900RI313 87TS01K E
GJR23689OOR1313 87TS01K E
GJR236B900R1313 87TS01K E
GJRZ368900R1313 87TS01K E
GJR2368900R1313 87TS01KE
Technical notes
The 87TS01K-E module uses a standard interface for participating in data communication within the PROCONTROL system. All telegrams received from the station bus are checked for error-free transmission before processing. Using the serial RS232c interface, the module is capable of receiving instructions and data from a computer in accordance with a defined protocol, as well as transferring instructions and data back to the computer.
FAQs
-
What is the ABB 87TS01K-E?
+It is a specialized coupling module/device designed to interface and connect various control modules, I/O (Input/Output) devices, and communication networks within industrial environments. -
Which automation systems are compatible with this module?
+This module is native to ABB's legacy power generation control platforms (Procontrol P13), but shares interface capabilities across legacy ABB Distributed Control Systems (DCS) and custom industrial networks. -
What is the primary function of the GJR2368900R1313?
+The module acts as a serial interface and communication gateway. It allows external systems and control equipment to communicate and interface smoothly using the DIN 19244 standard protocol. -
What are the grounding requirements?
+The entire cabinet framing must be grounded using a copper earthing cable with a minimum cross-section of 35 mm² to avoid signal interference.
