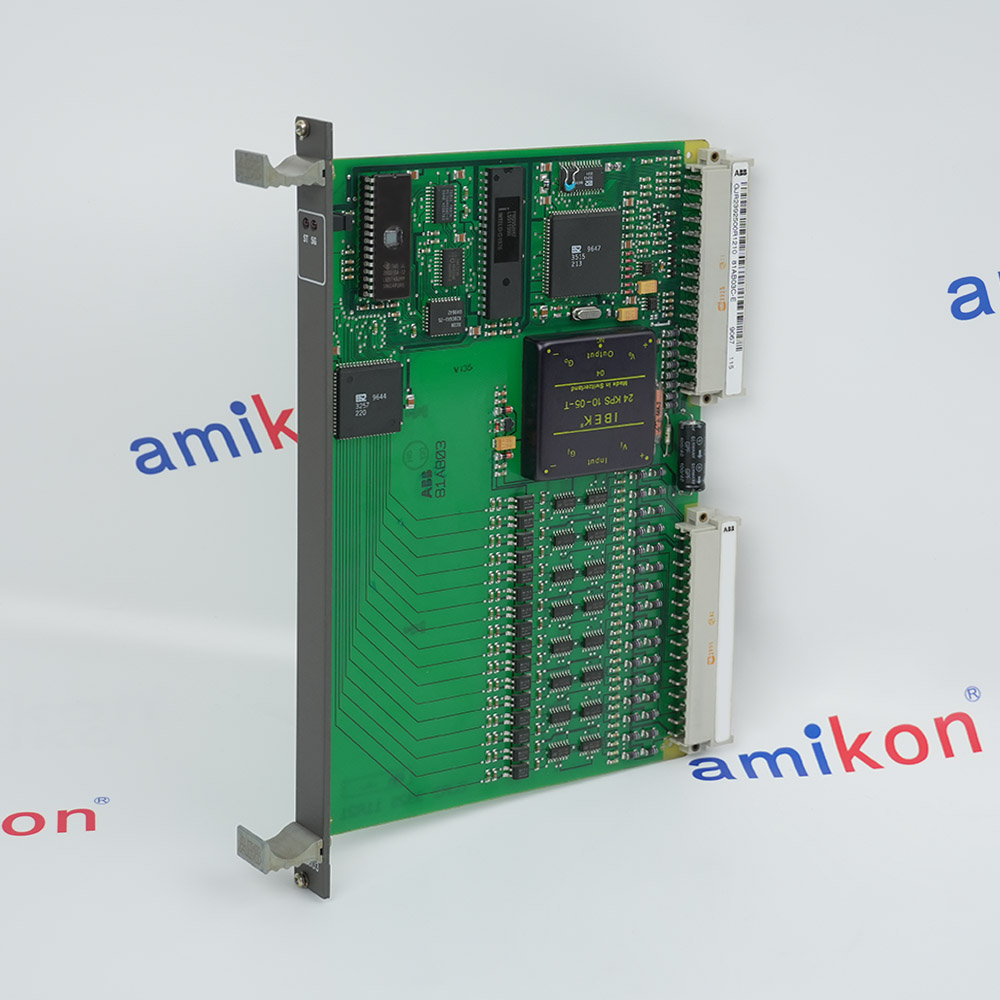

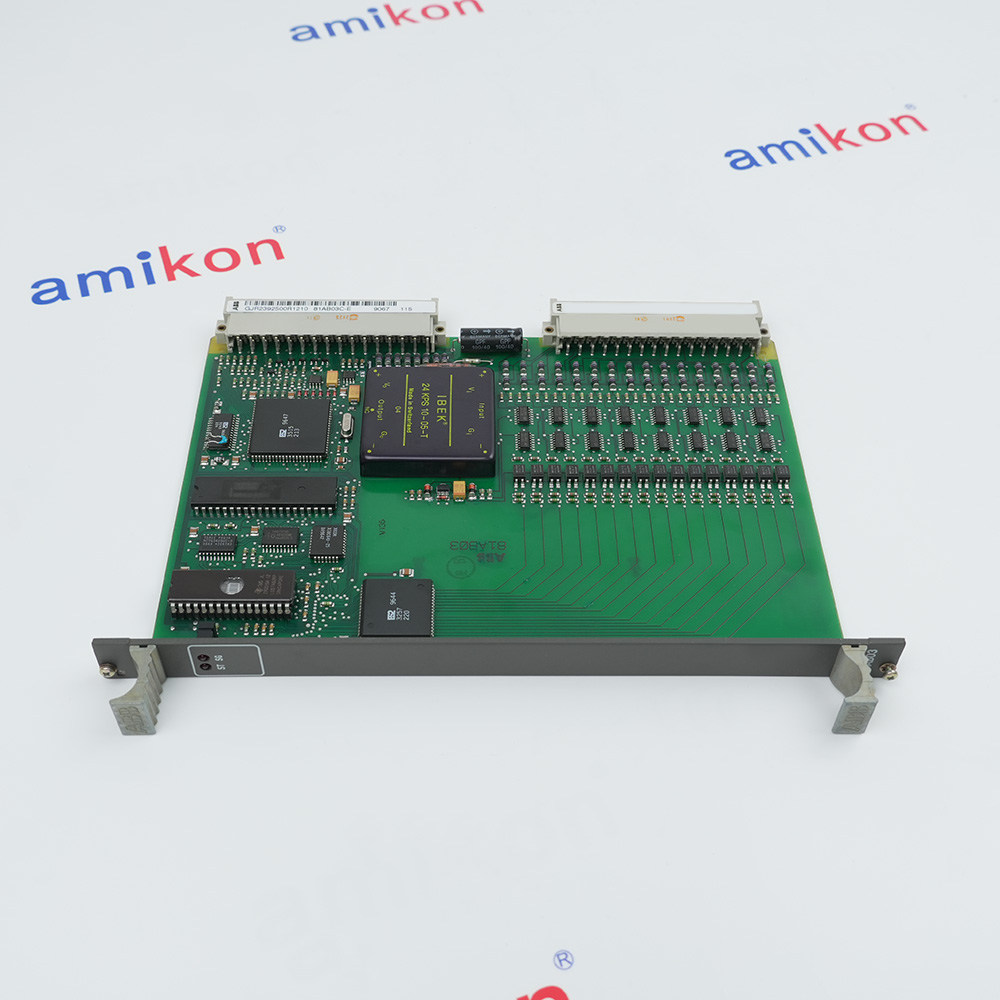

- GJR2392500R1210 81AB03C-E
In Stock
Ships by Tuesday, July 28
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for GJR2392500R1210 81AB03C-E
-
Product ModelGJR2392500R1210 81AB03C-E
-
Product ParametersBinary Output Module
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x19.8x26.1cm
-
ManufacturerABB
-
Weight0.35 kg
-
Number of Output Channels16
-
Channel TypeDO (Digital Output)
-
Output DeviceDarlington output transistor per channel
-
Output Voltage24 V DC
-
Output Current per Channel100 mA
-
Operating Temperature0 °C to +45 °C
-
Alternative Operating Temperature–20 °C to +55 °C
-
Storage Temperature–25 °C to +70 °C
-
Relative HumidityMax. 95 % RH (non-condensing)
Description
The GJR2392500R1210 is a Binary Output Module identified by ABB Type Designation 81AB03R1210, manufactured by ABB for the Procontrol distributed control system. The GJR2392500R1210 is designed to convert digital control signals from the DCS controller into electrical signals capable of controlling external field devices. The GJR2392500R1210 serves as the final control element in industrial automation systems, responsible for driving devices such as relays, contactors, solenoid valves, and indicator lamps.
The GJR2392500R1210 features 16 binary output channels. Each channel of the GJR2392500R1210 is equipped with one digital output (DO) rated for 24 V DC at 100 mA. This output configuration of the GJR2392500R1210 is specifically designed to activate electronic inputs, relays, and lamps in industrial control applications. The GJR2392500R1210 utilizes Darlington output transistors for each channel, providing reliable switching performance with sufficient current gain to drive typical industrial loads. The output capacity of the GJR2392500R1210 makes it suitable for signaling applications, relay coil activation, and lamp control in process automation systems
The GJR2392500R1210 features 16 binary output channels. Each channel of the GJR2392500R1210 is equipped with one digital output (DO) rated for 24 V DC at 100 mA. This output configuration of the GJR2392500R1210 is specifically designed to activate electronic inputs, relays, and lamps in industrial control applications. The GJR2392500R1210 utilizes Darlington output transistors for each channel, providing reliable switching performance with sufficient current gain to drive typical industrial loads. The output capacity of the GJR2392500R1210 makes it suitable for signaling applications, relay coil activation, and lamp control in process automation systems
Information
Overview
Manuals
Application Notes
Product Applications
Connection & Wiring Guidelines
Features:
- 16 Binary Output Channels
- 24 V DC, 100 mA Output per Channel
- Darlington Output Transistor Configuration
- Direct Replacement for Legacy Modules
- RoHS Compliant and Battery-Free Operation
The module is equipped with 16 independent digital output channels, with each channel providing a 24 VDC output rated at 100 mA. The outputs are suitable for driving electronic input circuits, relay coils, annunciators, and other low-power industrial devices. Each output channel operates independently, allowing multiple field devices to be controlled simultaneously through the automation system.
The GJR2392500R1210 is a direct replacement for several legacy ABB binary output modules. The GJR2392500R1210 replaces the 81AB01R1010, 81AB10R0100, and 81AB10R0200 modules, ensuring backward compatibility and simplified spare part management for existing Procontrol installations. This replacement capability of the GJR2392500R1210 allows maintenance teams to upgrade older systems without requiring complete hardware redesign, reducing downtime and maintenance costs.
The GJR2392500R1210 81AB03C-E ABB Binary Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB GJR2392500R1210 81AB03C-E Binary Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Each of the 16 output channels is equipped with a Darlington output transistor rated at 24 V DC and 100 mA. The module is designed to drive external devices such as electronic inputs, relays, solenoid valves, and indicator lamps. The outputs provide sufficient current for direct activation of low-power loads while maintaining signal integrity across the control system.
The module operates on 24 V DC power supply with low power consumption (less than 5 W). It mounts in a ProControl subrack, occupying 2 divisions. The module address is set automatically when plugged into the subrack. All telegrams received over the PROCONTROL station bus are checked for error-free transmission based on their parity bits, and telegrams sent from the module to the bus are provided with parity bits to ensure error-free transmission.
- Power Generation: Primary home for Procontrol P14 in fossil/nuclear/hydro plants for boiler/turbine/auxiliary control
- Heavy Process Automation: Functions in petrochemical, chemical, and water treatment continuous infrastructure
- Heavy Extraction: Utilized in mining and metal refineries for material handling equipment
- Pulp/Paper: Applied in automated processing lines requiring consistent signaling and fault tolerance
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Channel Configuration: It contains 16 discrete channels, each requiring individual wiring to your field devices (relays, lamps, or inputs).
Power Supply: The module requires a stable 24V DC supply connected to the appropriate power terminals to energize the internal relays and outputs.
Shielding & Grounding: For optimal reliability and to prevent noise, use shielded cables for I/O connections. Ensure the cable shields are grounded correctly at both ends if required by your specific system specifications.
Wiring termination: Connections are typically made using screw terminals or spring clamps on the front interface block. Always ensure the power is disconnected before terminating or modifying the wiring.
Alternative Names
GJR2392500R1210 81ABO3C-E
GJR2392500R1210 81A803C-E
GJR2392500R1210 8IAB03C-E
GJR2392500R1210 B1AB03C-E
GJR2392500R121O 81AB03C-E
GJR2392500R12I0 81AB03C-E
GJR2392500R1Z10 81AB03C-E
GJR2392500RI210 81AB03C-E
GJR23925OOR1210 81AB03C-E
GJR239Z500R1210 81AB03C-E
GJRZ392500R1210 81AB03C-E
GJR2392500R1210 81AB03C E
GJR2392500R1210 81ABO3C E
GJR2392500R1210 81A803C E
GJR2392500R1210 8IAB03C E
GJR2392500R1210 B1AB03C E
GJR2392500R121O 81AB03C E
GJR2392500R12I0 81AB03C E
GJR2392500R1Z10 81AB03C E
GJR2392500RI210 81AB03C E
GJR23925OOR1210 81AB03C E
GJR239Z500R1210 81AB03C E
GJRZ392500R1210 81AB03C E
Technical notes
Front panel indicators include ST (general disturbance) and SG (module disturbance). The ST signal indicates any disturbance in the module and data communication, while SG indicates module-specific hardware failures.Operating temperature ranges from 0 °C to +45 °C, with storage temperatures from –25 °C to +70 °C. The module carries CE marking and is RoHS compliant per EU Directive 2011/65/EU.
FAQs
-
What is the primary function of this module?
+The 81AB03-E module is utilized to safely convert digital control signals into actionable power to activate electronic inputs, contactors, relays, and indicator lamps in networked industrial environments. -
Which older models does this module replace?
+The GJR2392500R1210 is a direct, updated replacement for several older ABB module variants, including the 81AB01R1010, 81AB10R0100, and 81AB10R0200. -
What are the different letter suffixes (e.g., C-E, D-E, E-E) at the end of the part number?
+The suffixes (like 81AB03C-E or 81AB03D-E) usually denote minor hardware revisions or variations in the specific firmware/hardware index for the Procontrol system. They are generally interchangeable, but you should verify compatibility with your specific system rack configuration. -
How many channels does it have?
+It features 16 digital output channels.
