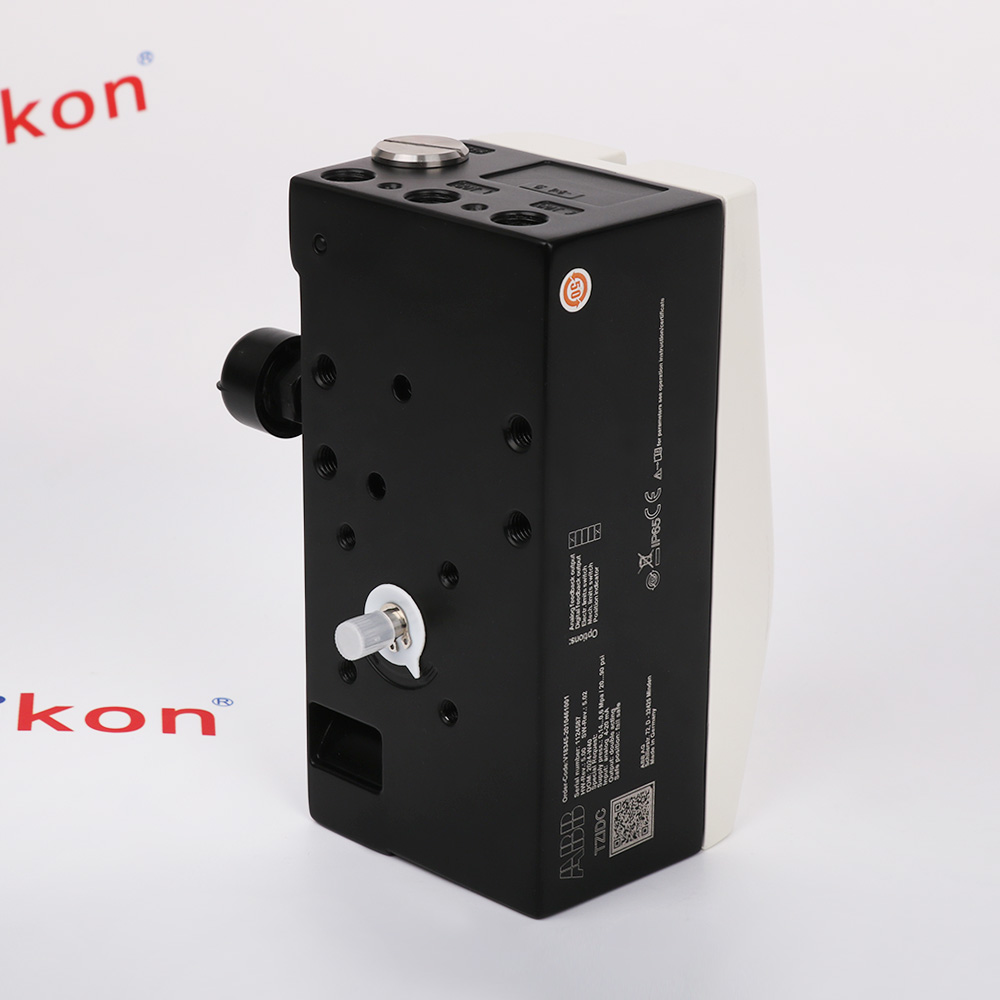

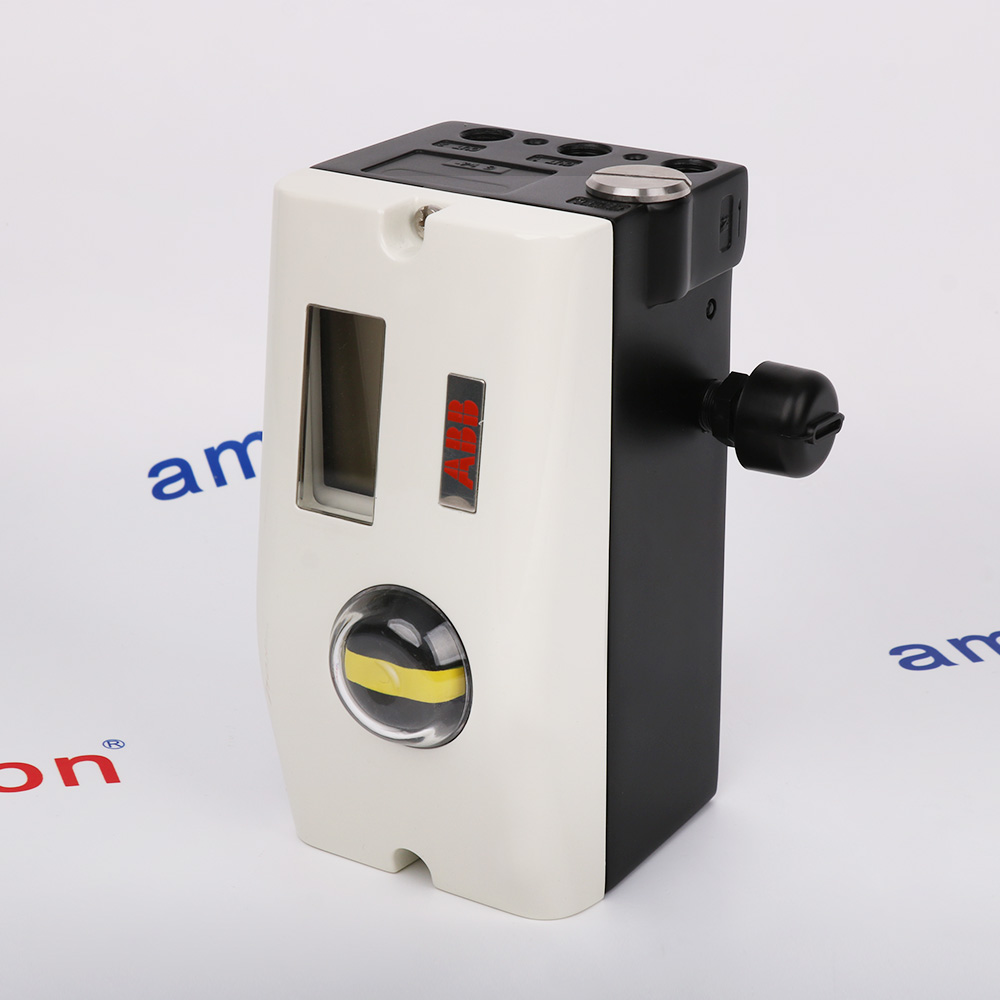

- V18345-2010461001
In Stock
Ships by Sunday, June 7
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for V18345-2010461001
-
Product ModelV18345-2010461001
-
Product ParametersELECTRO PNEUMATIC POSITIONER
-
Tariff Code8537101190
-
Country of originSweden
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size17.2x11.2x11.8cm
-
ManufacturerABB
-
Weight1.7 kg
-
Nominal range4 ... 20 mA
-
Split range configuration between20 ... 100 % of the nominal range
-
Max50 mA
-
Min3.6 mA
-
Starting at3.8 mA
-
Load voltage at 20 mA9.7 V
-
Impedance at 20 mA485 Ω
-
Control voltage0 ... 5 V DC
-
Supply voltage5 ... 11 V DC
Description
The TZIDC is an electronically configurable positioner withcommunication capabilities designed for mounting to pneumatic linearor rotary actuators. It features a small and compact design, a modularconstruction, and an excellent cost-performance ratio.Fully automatic determination of the control parameters andadaptation to the final control element yield considerable time savingsand an optimal control behavior.
Alternative Names
V18345-2010461OO1
V18345-201046100I
V18345-201046I00I
VI8345-2010461001
V18345-2O1O461OO1
VI8345-20I046I00I
Information
Overview
Manuals
Pneumatics
Product Applications
Pneumatic Piping Setup
Features:
- Electronically Configurable Positioner with HART Protocol
- Single Pushbutton Commissioning with Autoadjust Function
- Wide Operating Temperature Range
- Four Pneumatics Versions: Single/Double-Acting with Fail-Safe or Fail-Freeze
- Modular Design with Optional Feedback Modules
The ABB V18345-2010461001 is an electronically configurable positioner with communication capabilities. The ABB V18345-2010461001 is for mounting to pneumatic linear or rotary actuators. The ABB V18345-2010461001 features a small and compact construction. The ABB V18345-2010461001 has a modular construction. The ABB V18345-2010461001 has an excellent cost-performance ratio.
The V18345-2010461001 ABB ELECTRO PNEUMATIC POSITIONER may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB V18345-2010461001 ELECTRO PNEUMATIC POSITIONER Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
An I/P module with subsequent pneumatic amplifier is used to controlthe pneumatic actuator. The well-proven I/P module proportionallyconverts the permanent electrical setpoint signal from the CPU into apneumatic signal used to adjust a 3/3-way valve.The air flow for pressurizing or depressurizing the actuator iscontinuously adjusted. As a result, excellent control is achieved.When reaching the set point, the 3/3-way valve is closed in centerposition to minimize the air consumption.Four different pneumatics versions are available: for single-acting ordouble-acting actuators, each with “fail-safe” or “fail-freeze” function
- Oil and Gas Processing:Valve positioning for refineries & gas plants
- Chemical and Petrochemical Manufacturing:Sensitive fluid/gas control on reactors/pipelines
- Power Generation Facilities:Water/steam/boiler feed for safe pressure
- Water and Wastewater Treatment:Valves for sludge, dosing & distribution
- Metallurgy and Mining:Gas/cooling modulation in high-heat smeltingn
- Pulp and Paper Production:Stock prep, bleaching & steam control
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Because the V18345-2010461001 is a double-acting unit, both pneumatic outputs must be piped to actively manage the valve actuator:
Air Supply Connection (OUT I): Connect clean, dry, oil-free instrument air directly to the supply port labeled SUPPLY.
Pneumatic Output 1 (OUT I): Connect this air line directly to the primary chamber or "open" port of your double-acting actuator.
Pneumatic Output 2 (OUT II): Connect this line directly to the counter-acting chamber or "close" port of the actuator.
Leak Testing: Coat all threaded tube junctions with a leak-detection fluid to verify that no structural air drops occur at your process pressure limit.
Technical notes
The ABB V18345-2010461001 is a specific configuration of the ABB TZIDC Electro-Pneumatic Digital Positioner. It features double-acting fail-safe output, 4 to 20 mA two-wire HART communication, standard G 1/4 air pipe connections, an M20 x 1.5 cable thread, an integrated plug-in module for analog position feedback, and is built without explosion protection
FAQs
-
What is the V18345-2010461001 ？
+The ABB V18345-2010461001 is a specific configuration of the ABB TZIDC Electro-Pneumatic Digital Positioner. It features double-acting fail-safe output, 4 to 20 mA two-wire HART communication, standard G 1/4 air pipe connections, an M20 x 1.5 cable thread, an integrated plug-in module for analog position feedback, and is built without explosion protection -
What are the physical rotation angle limitations?
+The feedback shaft must move within the predefined arrow indicators. The maximum rotation angle is 60° for linear actuators and 120° for rotary actuators, with a strict minimum limit of 25° for both types. -
How can I communicate with the positioner remotely?
+Communication uses the HART Protocol. You can connect using a local communication interface (LKS) adapter connected to a PC serial port, or over frequency-modulated mode (FSK modem) connected anywhere on the 4–20 mA signal loop.
