PRODUCT DESCRIPTION

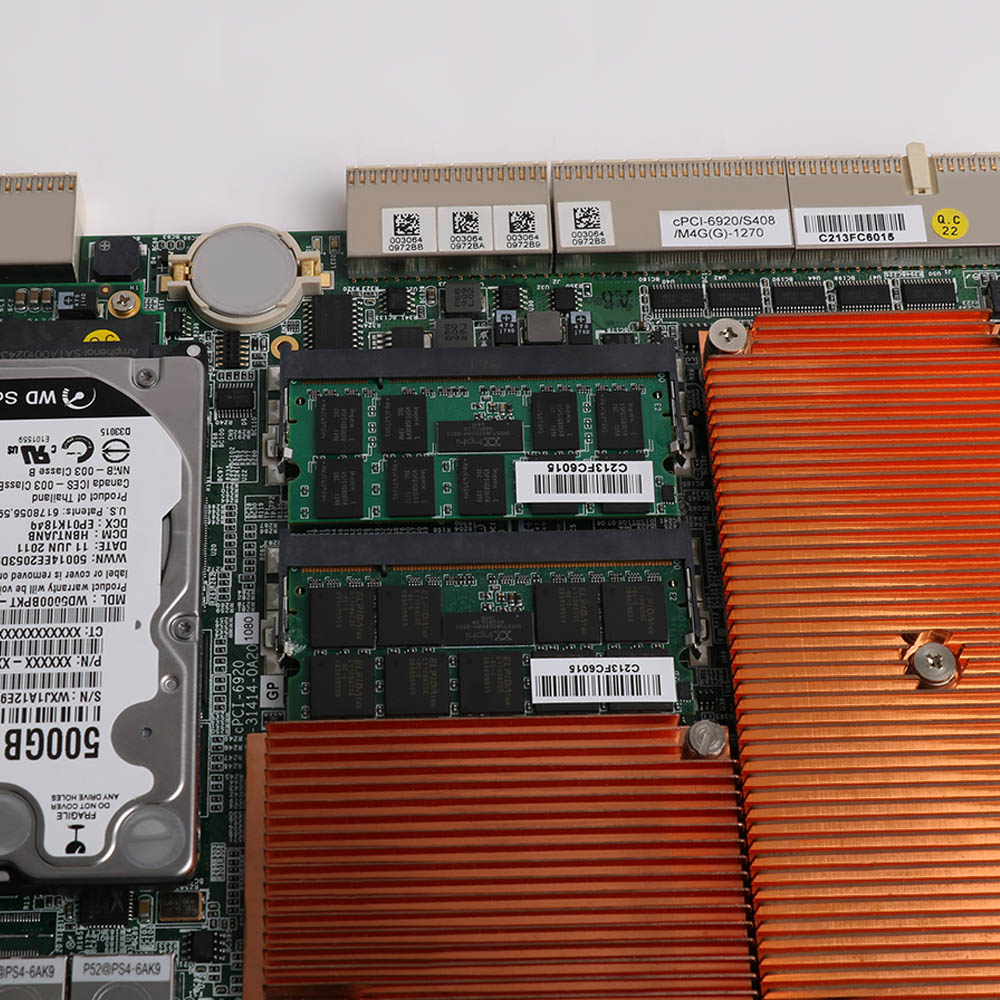

CPCI-6920/S408/M4G(G)-1270 6U CompactPCI processor blade
ADLINK CPCI-6920/S408/M4G(G)-1270 is a 6U CompactPCI processor blade in the ADLINK cPCI-6920 family. The exact order code identifies the documented interface and electrical configuration for this article.
Confirm the complete model, revision, connectors and installed configuration before replacement. Inspect all affected connections and complete controlled functional testing before return to service.
Confirm the complete model, revision, connectors and installed configuration before replacement. Inspect all affected connections and complete controlled functional testing before return to service.
BEFORE YOU BUY
Confirm the complete 6u compactpci processor blade
ACTUAL APPLICATIONS
Application context for CPCI-6920/S408/M4G(G)-1270
CPCI-6920/S408/M4G(G)-1270 supports documented use across the three industry fields below. Its form factor is 6U CompactPCI processor blade; the complete order code and installed configuration determine the applicable engineering arrangement.
-
01 · TELECOMMUNICATIONS
Telecommunications and Data Center Facilities
Carrier communication and switching facilitiesData center and network service facilities -
02 · DEFENSE & AVIATION
Defense, Aviation and Radar Facilities
Airborne and ground defense facilitiesRadar, telemetry and test facilities -
03 · RAIL TRANSPORT
Rail Transport and Signaling Facilities
Passenger rail and metro facilitiesRail signaling and communication facilities
Technical specifications for CPCI-6920/S408/M4G(G)-1270
-
Product ModelCPCI-6920/S408/M4G(G)-1270
-
Product Parameters6U CompactPCI processor blade
-
In stock1 unit
-
ManufacturerADLINK
-
Form factor6U CompactPCI processor blade
-
Processor familyLow-voltage Intel Xeon
-
Processor socketsOne socket in single-slot version
-
Front-side bus1066 MHz
-
Memory typeRegistered ECC SO-RDIMM
-
Installed memory configuration4 GB indicated by order code
-
Maximum single-slot memory8 GB
-
CompactPCI bus64-bit / 66 MHz
-
Expansion interface64-bit / 66 MHz PMC or PCIe x8 XMC
-
Ethernet portsFour PCI Express Gigabit Ethernet ports
-
Onboard storage4 GB USB NAND flash
-
Removable storageCompactFlash socket
-
Optional drive2.5-inch SATA HDD
-
Lifecycle statusEnd of life
-
Recommended replacementcPCI-6940
View all additional
Alternative Names
CPCI-6920/S408/M4G(G)-1270
ADLINK cPCI-6920 6U CompactPCI processor blade
cPCI-6920 6U CompactPCI processor blade form factor
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate CPCI-6920/S408/M4G(G)-1270 6u compactpci processor blade
CPCI-6920/S408/M4G(G)-1270 is a 6U CompactPCI processor blade in the ADLINK cPCI-6920 family. Confirm the complete article identity and compare its documented form factor of 6U CompactPCI processor blade with the installed requirement.
Review the documented processor family of Low-voltage Intel Xeon, connector allocation and approved wiring before installation. Preserve existing addressing, scaling and configuration records where they apply.
Commission the replacement under controlled conditions. Verify the processor sockets of One socket in single-slot version, status indications and every affected signal or communication path before service.
Features:
- Confirm the documented form factor
- Match the published processor family
- Validate the exact CPCI-6920/S408/M4G(G)-1270 identity
The CPCI-6920/S408/M4G(G)-1270 6u compactpci processor blade requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify CPCI-6920/S408/M4G(G)-1270 6u compactpci processor blade
Use the full CPCI-6920/S408/M4G(G)-1270 designation when selecting a replacement. Confirm that the proposed article matches the documented form factor of 6U CompactPCI processor blade.
Before removal, record the installed label, revision, connectors and location. Compare the documented processor family of Low-voltage Intel Xeon and retain the approved configuration.
After fitting, confirm the processor sockets of One socket in single-slot version, restore approved settings and document final inspection and functional-test results.
Features:
- Compare complete order code and revision
- Inspect connectors and installed configuration
- Complete controlled functional verification
The CPCI-6920/S408/M4G(G)-1270 6u compactpci processor blade requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the CPCI-6920/S408/M4G(G)-1270 6u compactpci processor blade must be checked for document applicability before installation or commissioning.
