Micro Memory Card - 512 KB

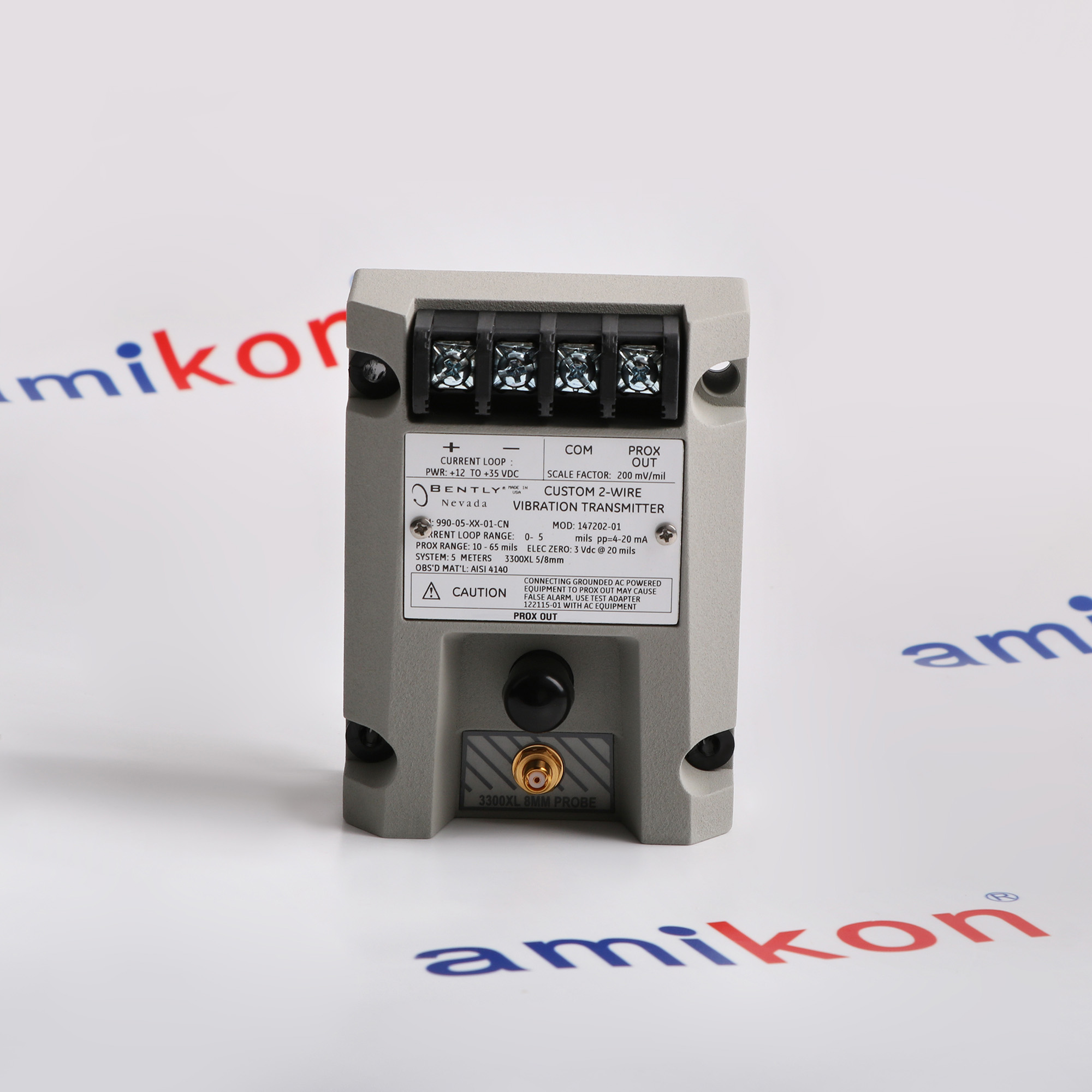

Vibration Transmitter

0 5 0-5 mils pp (0-125 μm pp)
0 1 35 mm DIN rail clips
C N CSA Division 2, ATEX Zone 0,
ATEXZone 2 and includes ABS maritimeapproval
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.

OP170B Panel

PanelView Plus 7 Graphic Terminal

Gate Driver Board

Operating Temperature Range:-40°C to +85°C
Voltage Rating (IGBT Voltage):up to 1700 V
Gate Drive Voltage:  15 V

Aero GT I/O Module

Operating Voltage:24 VDC
Current Draw:2A
Temperature Range: -20°C to 60°C

1715 8 Point Digital Output Module

Part Number/Catalog No:15-OB8DE
Product Line:Bulletin 1715 Redundant I/O module
Module Type:-Point Digital Output Module
I/O Module:8-Point Digital Output Module
Power Dissipation:3 Watts Maximum
Wire Size:18 to 16 AWG
Dimensions:166 x 42 x 118 millimeters
Weight:290 grams
Shock Rating:25 g when installed and operation
Mounting:DIN Rail
Output Signal:18 to 32 Volts DC

CS22 Slave module

PanelView Plus 7 Touch Screen

Product Line:Panelview Plus 7
Product Type:Human-Module Interface
Input Type:Touchscreen
Memory:512 Mb
Input Voltage:24 Volts DC
Backlight:LED
Input Voltage range:18-30 VDC
Power Consumption:50 W max (2.1 A at 24V DC)
Display Type:Color active-matrix TFT
Display Size:12.1 in. ; wide screen
