Inputs:4 high speed sub-millisecond differential
Module Type:High Speed Analog Input / Ouptut Module
Outputs:2 high speed current-voltage
Input signals ranges:± 10V
0…10V; 0…5V; 0…20 mA
Input Resolution:14 bits across ±10.5V DC
12 bits across 21 mA
No. of Outputs 2 high speed current/ voltage
Output Resolution:13 bits across 21 mA = 2.8 µA/bit;
14 bits across 21.8V = 1.3 mV/bit
Output Signal Ranges:± 10V; 0…20 mA

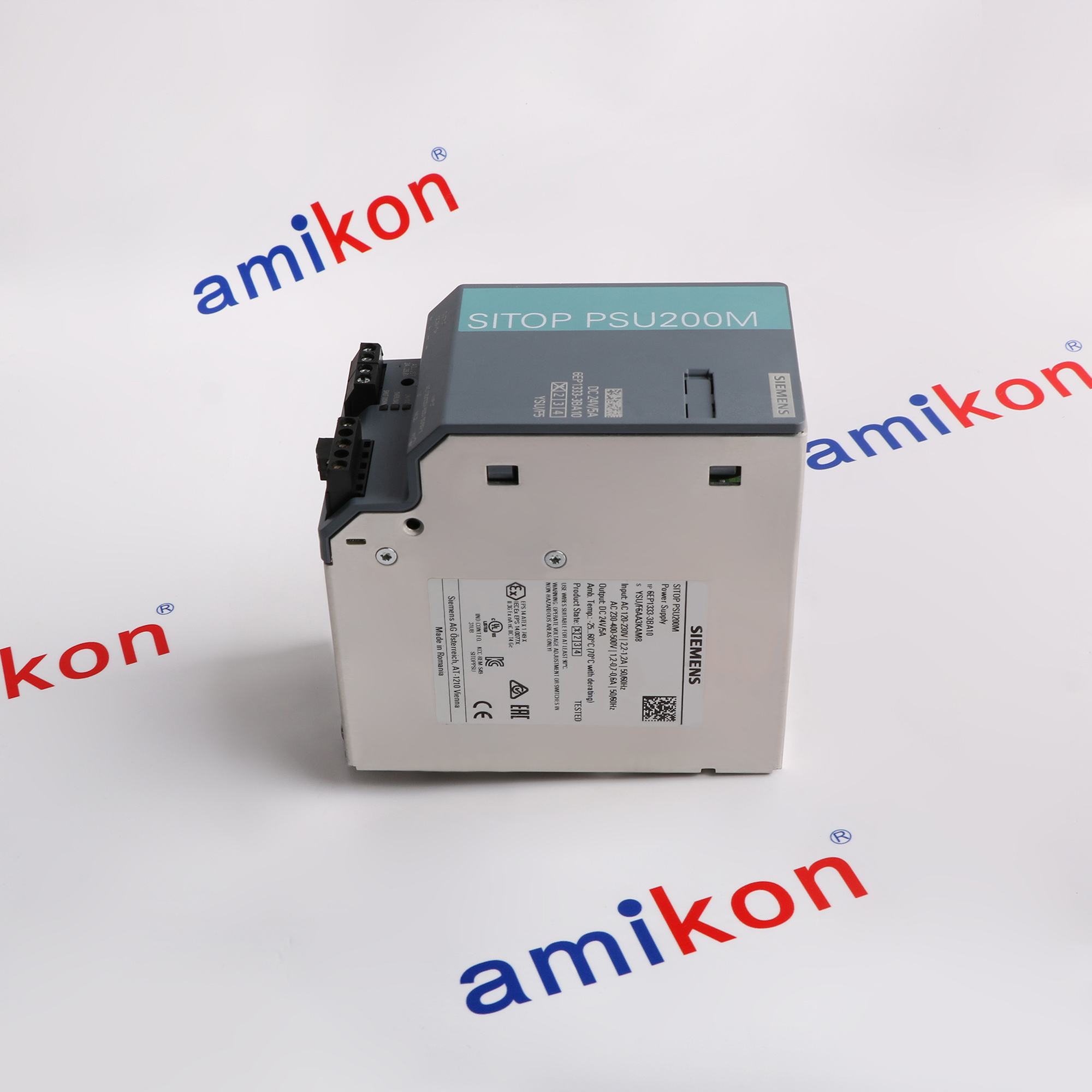

SITOP PSU200M 5 A
stabilized power supply
input: 120/230-500 V
AC output: 24V DC/5 A
1-phase and 2-phase AC or DC
supply voltage at DC 110 ... 220 V
input voltage at DC 88 ... 350 V
