Thermocouple input block

Series:Genius I-O
Part Number:IC660TBA101
Description:Terminal Assembly
Group to group isolation:300 Volts
Temperature:0-60 degrees Celsius
Power supply drop out time:115 Volts AC
Heat dissipation:7 watts
Block update time:400/800/1600 ms
Input circuit:6

Genius Terminal Assembly

Series:Genius I-O
Part Number:IC660TBA101
Description:Terminal Assembly
Group to group isolation:300 Volts
Temperature:0-60 degrees Celsius
Power supply drop out time:115 Volts AC
Heat dissipation:7 watts
Block update time:400/800/1600 ms
Input circuit:6

Current source analog output block

Series:Genius I-O
Part Number:IC660TBA026
Description:Output block
Inputs:6
Signal:4-20 mA
Output Accuracy:0.15 % at 25 degrees Celsius
Temperature:0-60 degrees Celsius
Heat Dissipation:12 Watts

Current-source analog output block

Series:Genius I-O
Part Number:IC660TBA025
Description:Analog Output block
Circuit:6
Signal Acceptance:2-30 mA
Frequency:50/60 Hertz
Temperature:0-60 degrees Celsius
Heat Dissipation:12 watts
Isolation:1500 Volts
Ripple Frequency:47-63 Hertz

Genius I/O module

Series:Genius I-O
Part Number:IC660TBA024
Description:I/O block
Voltage:24/48 Volts DC
Heat dissipation:12 Watts
Block to block isolation:1500 Volts
Max. current rating:600 mA
Ripple:10 % max
Temperature:0-60 degrees Celsius

Genius I/O module

Series:Genius I-O
Part Number:IC660TBA023
Description:Terminal Assembly
Voltage:24/48 Volts DC
Isolation 1500 Volts
Gate time frequency:400 ms
Dissipation:9 Watts

Genius I/O module

Series:Genius I-O
Part Number:IC660TBA021
Description:Terminal Assembly
Voltage:24/48 Volts DC
Temperature:0-60 degrees Celsius
Input resolution:0.1 C
Heat dissipation:7 Watts
LEDs:Unit OK, I/O Enabled

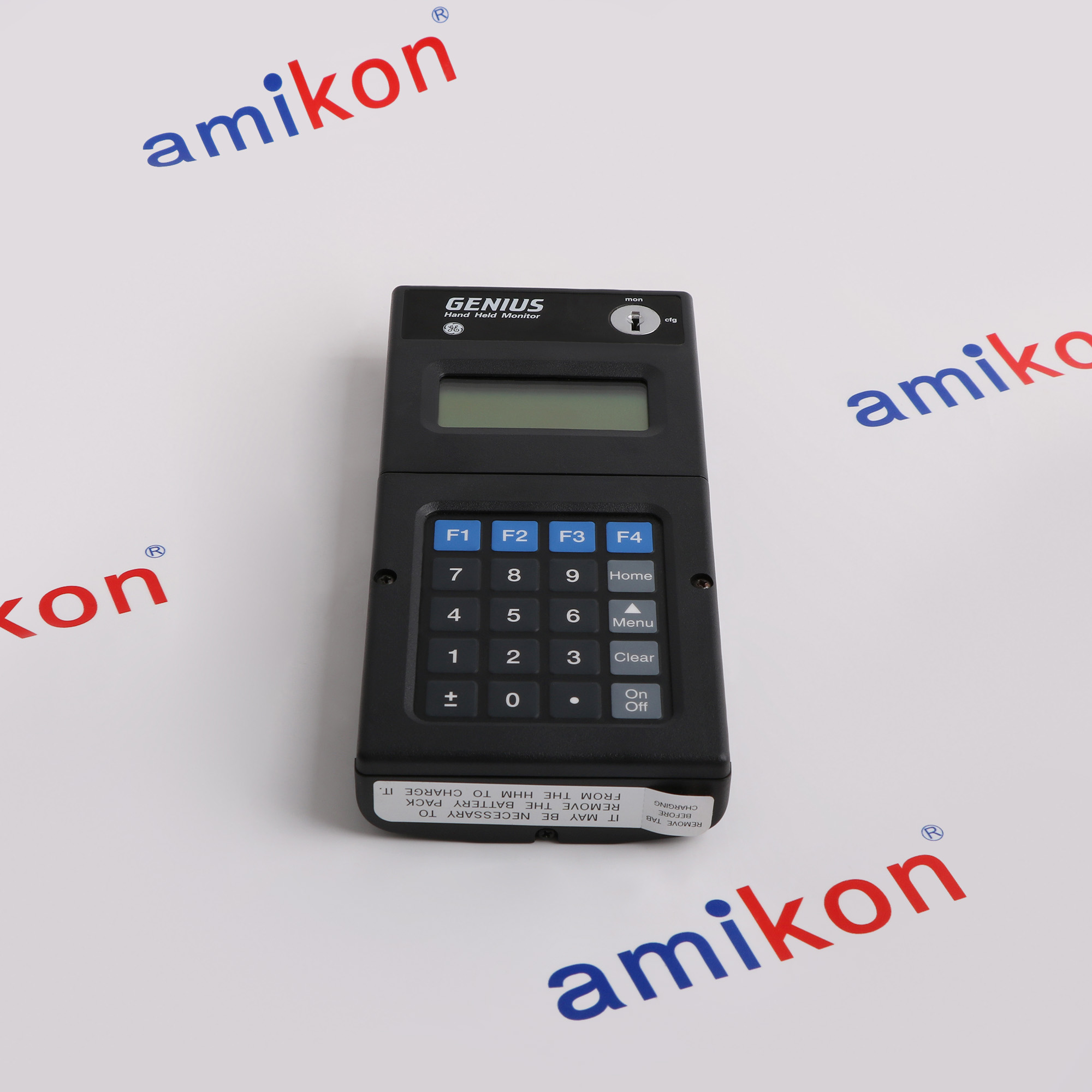

Hand-held monitor

Product Description Hand-held monitor
Required AC Power:115 to 230V AC, 47 to 63 Hz
Fully Charged Operation:6 hours
Display Characters:4 lines of 16 characters each
Keyboard:20 sealed keys
Data Rate:153.6 Kbaud standard

Genius I/O module

IC660ELS100
ELECTRONIC ASSEMBLY FOR GENIUS I/O BLOCK
115 VAC / 125 VDC
8 CIRCUIT
ISOLATED

Genius I/O module

IC660ELD100
ELECTRONIC ASSEMBLY
FOR GENIUS I/O BLOCK
8 CIRCUIT
115 VAC
50/60 HZ

Genius I/O module

IC660ELD021
ELECTRONIC ASSEMBLY FOR GENIUS I/O BLOCK
24/48 VDC SINK
8 CIRCUIT

Genius Network Interface module

Series:Genius I-O
Series:PC Interface Module (PCIM)
Part Number:IC660ELB912
Memory Requirement:16 Kbytes
Status LEDs:GENI OK, COMMS OK
Communication protocol:Genius Protocol
No. of supported devices:30 per daughtercard
Compatibility:IBM PC/ AT/ XT
LEDs indicators:GENI OK; COMMS OK

Genius I/O block

Series:Genius I-O
Part Number:IC660ELB905
Product Type:Network Adapter Interface Board
Block to Block Isolation:1500 V
Control Power:8 W
Frequency:47 to 63 Hz
Maximum Frequency Ripple:10 percent
Power Supply Dropout Time:1 Cycle
Humidity:5 to 95 percent (non-condensing)

ANALOG GENIUS I/O BLOCK

IC660ELA100
ELECTRONIC ASSEMBLY FOR GENIUS I/O BLOCK
FOR IC660CBA100
115 VAC
ANALOG GENIUS I/O BLOCK

Genius I/O block

Series:Genius I-O
Part Number:IC660EBS103
Product Line:Genius I/O
Block to Block Isolation:1500 V
Operating Temperature:0 to 60 degrees Celsius
Storage Temperature:-40 to 100 degrees Celsius
Frequency:47 to 63 Hz
Humidity:5 to 95 percent (non-condensing)
AC Power:Yes
DC Power:Yes

Genius I/O block

Series:Genius I-O
Part Number:IC660EBS102
Product Line:Genius I/O
Produt Type:Electronics Assembly
Nominal Voltage:115 V AC/125 V DC
Frequency:47 to 63 Hz
Required Control Power:8 W
DC Power:Yes
AC Power:Yes

Genius I/O block

Brand:GE Intelligent Platforms/GE Fanuc
Series:Genius I-O
Part Number:IC660EBS101
Product Type:Electronic Assembly
Block to Block Isolation:1500 V
Operating Temperature:0 to 60 degrees Celsius
Storage Temperature:-40 to 100 degrees Celsius
Frequency:47 to 63 Hz
Maximum Ripple:10 percent

Genius I/O block

Series:Genius I-O
Part Number:IC660EBR100
Product Type:Electronic Assembly
Frequency:47 to 63 Hz
Power Required:87 mA at 115 V AC
Power Supply Dropout time:1 cycle
Heat Dissipation:10.1 Watts with 16 Outputs
Min. Load Recommended:10 mA
Relay Type:Fixed Coil moving armature

Genius Block I/O module

Series:Genius I-O
Part Number:IC660EBD120
Series:Block I/O
Product Type:Electronics Assembly
Storage Temperature:-40 to 100 degrees Celsius
Nominal input voltage:115 VAC
Non-Condensing Humidity:5 to 95 percent
Input voltage range:93-132 VAC
Frequency:47 to 63 Hz
No. of discrete inputs:Twelve (12)
No. of discrete outputs:Four (4)
LED block:I/O Enabled, Unit OK
Circuit Overcurrent Threshold:4 Amps

Genius Block I/O module

Series:Genius I-O
Part Number:IC660EBD110
Series:Block I/O
Product Line:Genius I/O
Product Type:Electronic Assembly
Nominal input voltage:115 VAC
Input to Ground Isolation:1500 V
Input voltage range:93-132 VAC
Input Current:5 A
No. of discrete inputs:Sixteen (16)
Frequency:47-63 Hz

Genius Block I/O module

Series:Genius I-O
Part Number:IC660EBD101
Series:Block I/O
Brand:GE Intelligent Platforms/GE Fanuc
Product Line:Genius I/O
Product Type:Electronics Assembly
Block to Block Isolation:1500 V
No. of channels:Eight (8)
Input current:6 mA
Output current:2 Amperes
Standby Power:8.5 W
Nominal Operating voltage:115 VAC
Operating Voltage:93 to 132 V AC
Frequency:47 to 63 Hertz
Humidity:5-95% non-condensing

Electronic Assembly

Series:Genius I-O
Part Number:IC660EBD100
Product Line:Genius I/O
Product Type:Electronics Assembly
Standby Power:8.5 Watts
Operating Voltage:93 to 132 V AC
Frequency:47 to 63 Hz
Block to Block Isolation:1500 V
Heat Dissipation:16 W with 8 inputs
Operating Temperature:0 to 60 degrees Celsius

Electronics assembly block

Series:Genius I-O
Part Number:IC660EBD025
Product Line:Genius I/O
Product Type:Electronics Assembly
Circuits:2, 32-circuit
Block to Block Isolation:850 V
Block Output Current:16 Amps
Max. Output turn-on delay:0.5 microseconds
Operating Temperature:0 to 60 degress Celsius
Output Diagnostic:Switch Fault
Storage Temperature:-40 to 100 degrees Celsius
Non-Condensing Humidity:5 to 95 percent

Genius I/O Electronics Assembly

Series:Genius I-O
Part Number:IC660EBD024
Product Line:Genius I/O
Block to Block Isolation:850 V
Min. Heat Dissipation:11 Watts with 8 inputs
Storage Temperature:-40 to 100 degrees Celsius
Non-Condensing Humidity:5 to 95 percent
Max. Output Current:0.5 A per circuit
Output Diagnostics:Switch Fault
Required DC Power:150 mA (typical)
Max. Required DC Power:300 mA

Genius Block I/O module

IC660EBD023
ELECTRONIC ASSEMBLY FOR GENIUS I/O BLOCK
FOR IC660BBD023
24 VDC
SINK I/O
16 CIRCUIT
