ALL MANUFACTURERS

POWER SUPPLY

POWER SUPPLY
FOR POWERFLEX 7000 AC DRIVES
1500 WATT
SINGLE PHASE
100-240 V AC
50/60HZ
23 AMP

Stratix 5700 10 Port Managed Switch

Power Supply SP22

S5-95U Central Processing Module

ArmorPoint 4 Point Input Module

SITOP Power Supply

SITOP PSU100M 40 A
stabilized power supply
input: 120/230 V AC
output: 24 V DC/40 A
successor: 6EP3337-8SB00-0AY0

Discontinued Part. Check with GE IP on migration path.

3300 XL Standard Extension Cable

085 8.5 meters (27.9 feet)
03 Armored cable with connectorprotector
05 CSA, ATEX, IECEx  Approvals

NSv Proximitor Sensor

70 7.0 meters (23.0 feet) systemlength
05 Multiple approvals
3300 XL NSv Proximitor Sensor

Voltage Drive Circuit Board

POWER MASTER BOARD
VOLTAGE DRIVE CROWBAR CIRCUIT BOARD
Input Voltage:24V DC (±10%)
Output Voltage:0-10V (Programmable)
Current Rating:2A (Max Continuous)
Frequency Range:0-400Hz
Isolation Voltage:1500V AC

Automatic Voltage Regulators

Maximized operating time
Ensures safe machine operation
Guarantees the quality of delivered energy
Seamless integration with the power plant control systems

Fieldbus Communication Module

INPUT VOLTAGE RANGE (REDUNDANT)24 V dc +5%, -10%
CONSUMPTION7 W (maximum) at 24 V dc
HEAT DISSIPATION7 W (maximum) at 24 V dc
Vibration0.75 g (5 to 200 Hz)
TEMPERATURE-40 to +70°C (-40 to +158°F)
RELATIVE HUMIDITY5 to 95% (noncondensing)
ALTITUDE-300 to +12,000 m (-1,000 to +40,000 ft)

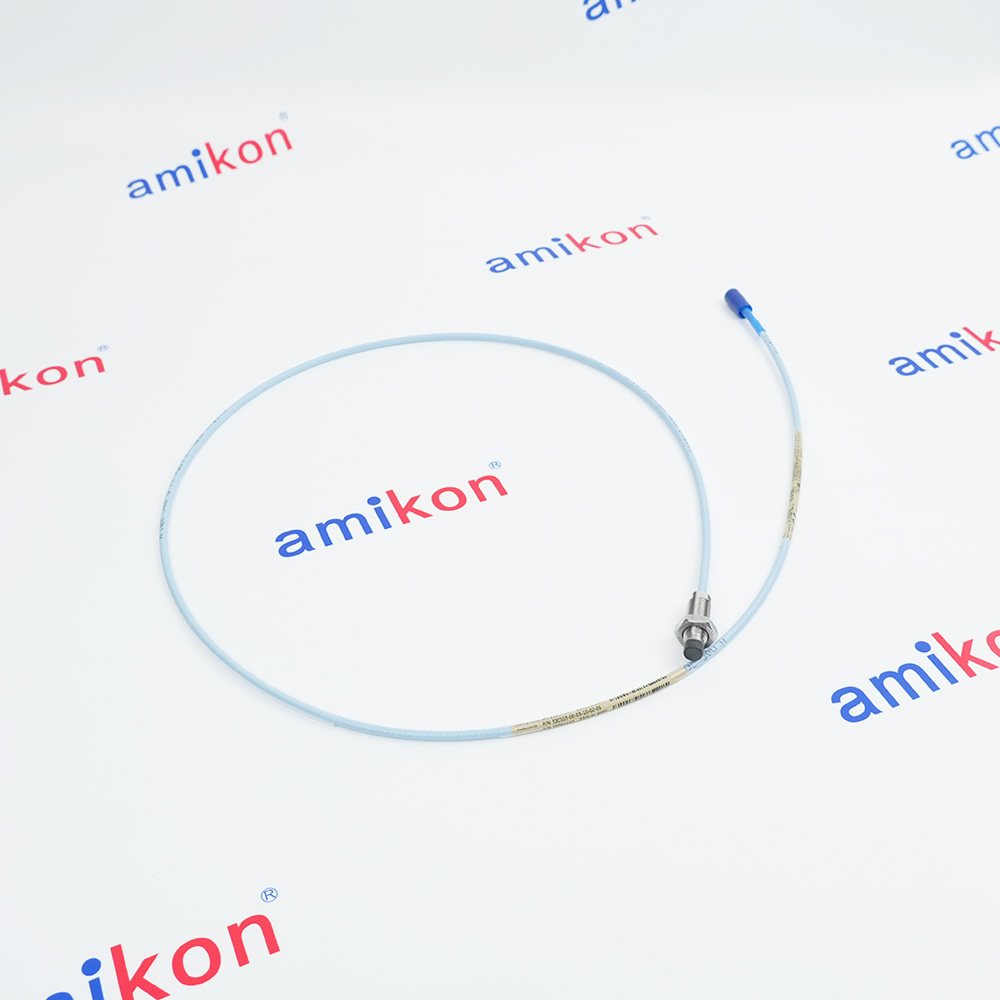

3300 XL 8 mm Proximity Probes

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 30 mm
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable
05 CSA, ATEX, IECEx  Approvals
