Allen-Bradley

AC/DC 3PH PWR SPLY W/CONF-COAT

Flex XT 4 Point Analog Output Module

PowerFlex 525 Drive - 3 HP

PowerFlex 700 AC Drive 30 A at 15 kW 20B

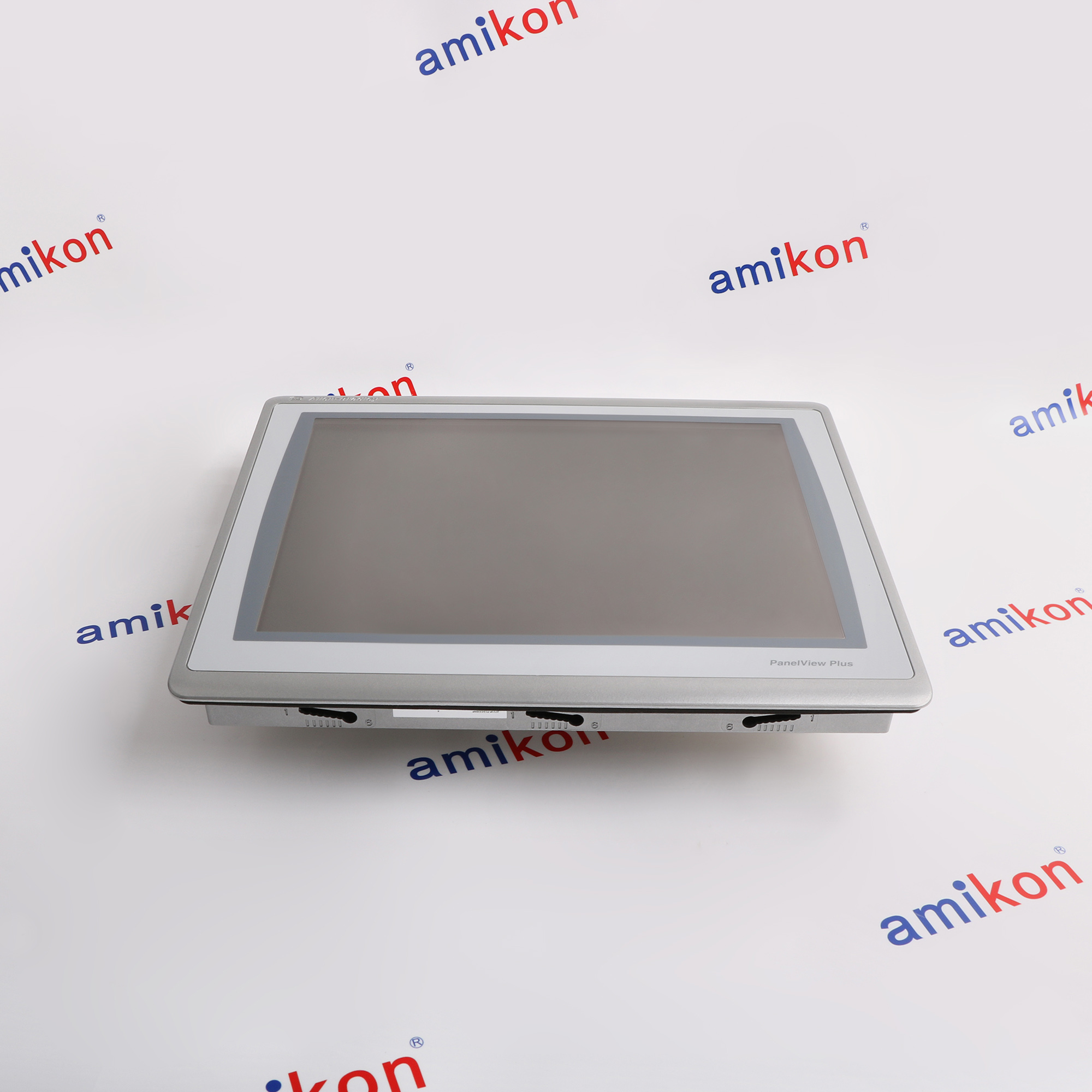

PanelView Plus 7 Standard 700

PanelView Plus 7 Graphic Terminal

PanelView Plus 7 Performance terminals
Operator Input:Touch
Touch screen: Analog resistive touchscreen
Actuation rating:1 million presses
Operating force:100 grams
Display Type:Color active-matrix TFT
Input Voltage range:18-30 VDC
Power Consumption:50 W max (2.1 A at 24V DC)

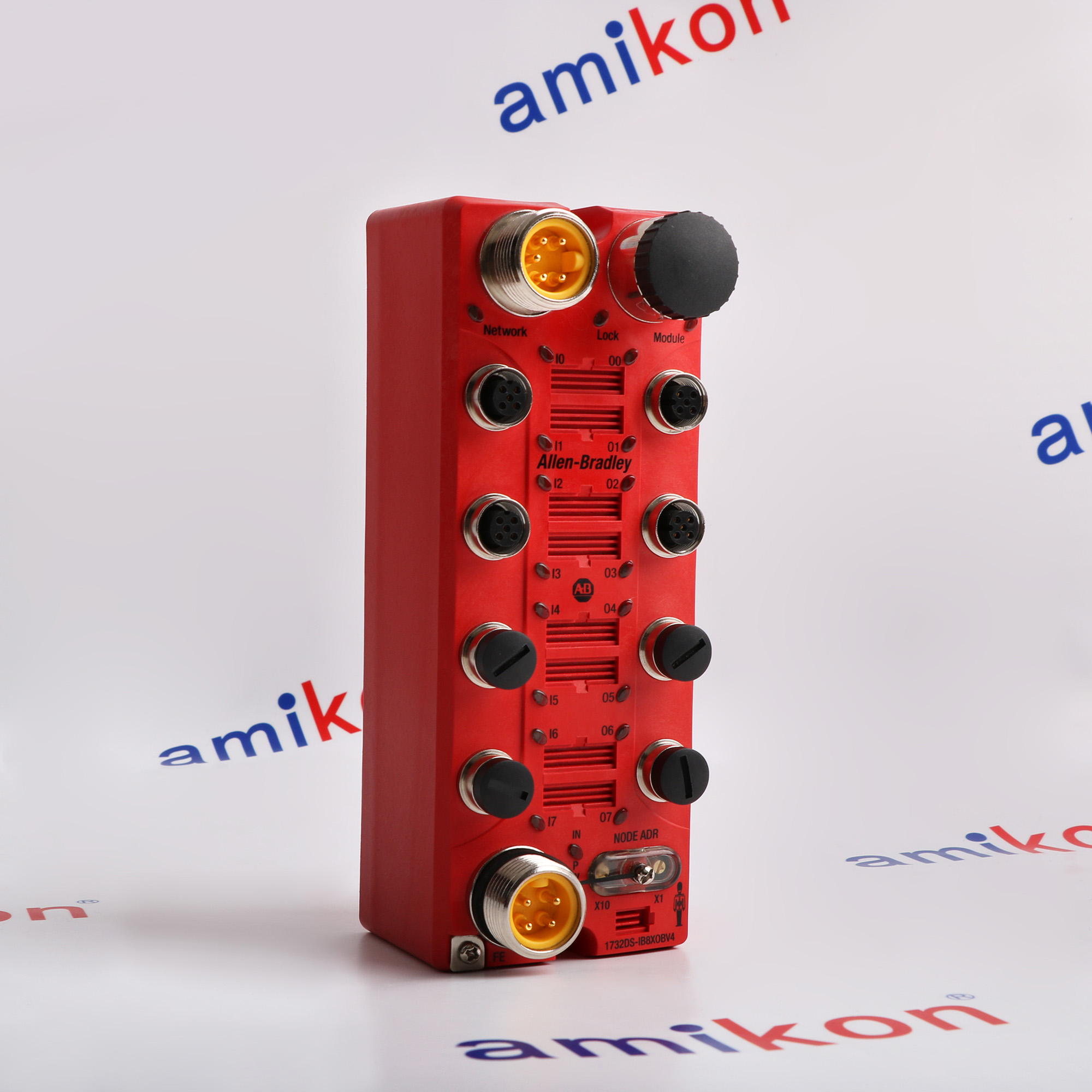

Guard I/O 16 Point Digital Comb Module

FIBER OPTIC BOARD

8019010001R
FIBER OPTIC BOARD
PKGD CUSTOMER OIB

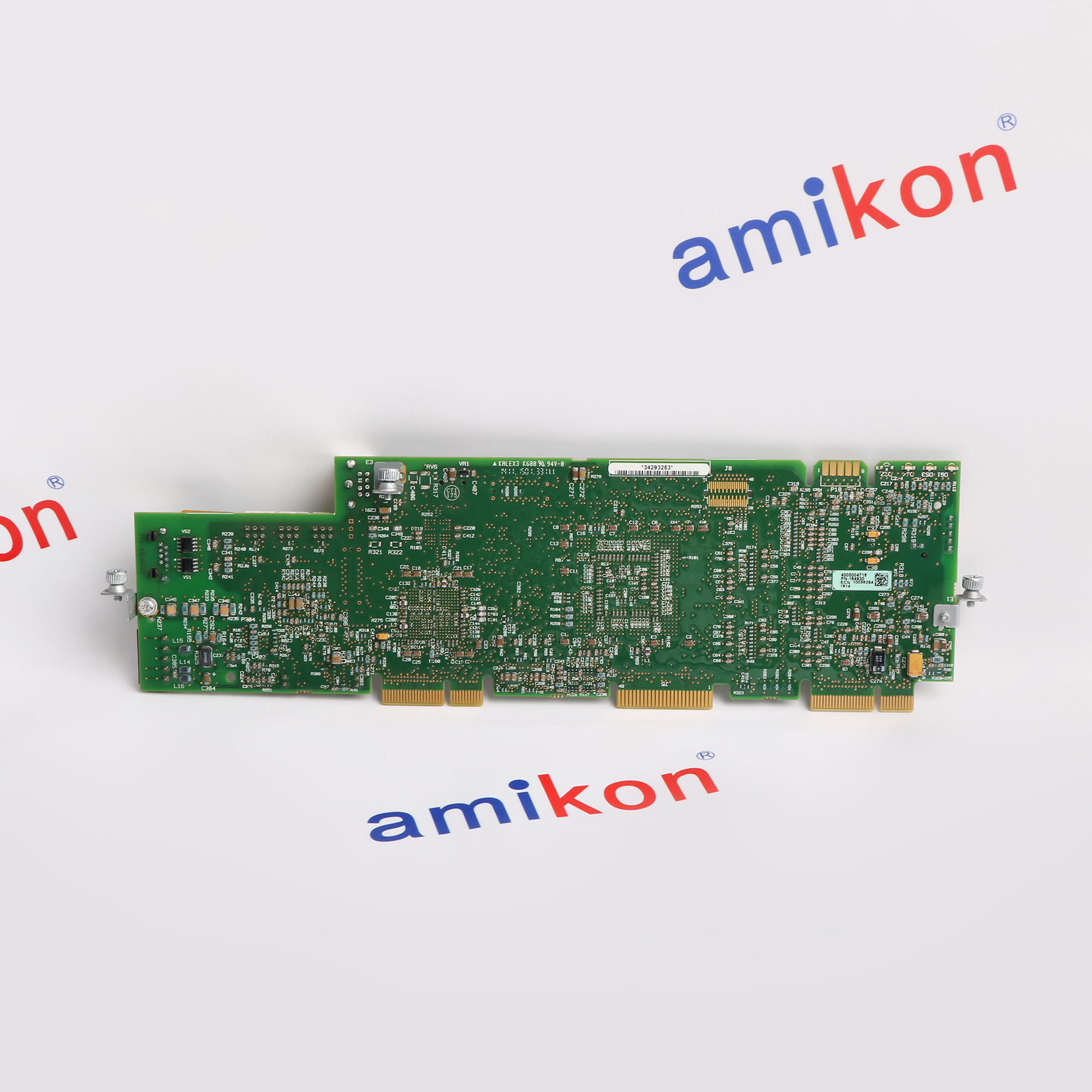

CONTROL BOARD MV DRIVE
PC BOARD
PCB BOARD
CONTROL BOARD
OPEN STYLE
MOUNTABLE

SMC PLUS 135 A Smart Motor Controller

MicroLogix 1100 Battery

PanelView Plus 7 Graphic Terminal

1715 8 Point Digital Output Module

Part Number/Catalog No:15-OB8DE
Product Line:Bulletin 1715 Redundant I/O module
Module Type:-Point Digital Output Module
I/O Module:8-Point Digital Output Module
Power Dissipation:3 Watts Maximum
Wire Size:18 to 16 AWG
Dimensions:166 x 42 x 118 millimeters
Weight:290 grams
Shock Rating:25 g when installed and operation
Mounting:DIN Rail
Output Signal:18 to 32 Volts DC

PanelView Plus 7 Touch Screen

Product Line:Panelview Plus 7
Product Type:Human-Module Interface
Input Type:Touchscreen
Memory:512 Mb
Input Voltage:24 Volts DC
Backlight:LED
Input Voltage range:18-30 VDC
Power Consumption:50 W max (2.1 A at 24V DC)
Display Type:Color active-matrix TFT
Display Size:12.1 in. ; wide screen

ControlLogix 10MB controller

Series:ControlLogix
Tasks:32
Module Type:Processor Module
Communications:USB, Ethernet
Communication Speed:12 MB-Second
Communication:1 port USB; Ethernet
Ethernet Nodes:100 or 250
Ethernet Communication Speed:10/100/1000 Mbps
Current Draw (1.2 Volts DC):5 milliamps

ControlLogix analog input module

Series:ControlLogix
Part Number:1756-IR12
Application:General purpose I/O
Module type:Analog input, 3-wire RTD connections
Number of channels:12, non-isolated
Data resolution:24-bit
Mounting:Chassis
Display:Status LED

PowerFlex 750 24V DC IO Option module

Guardmaster TLS-GD2 Guardlock Switch

1715 16 Point Digital Input Module

High-speed Analog I/O Module

Inputs:4 high speed sub-millisecond differential
Module Type:High Speed Analog Input / Ouptut Module
Outputs:2 high speed current-voltage
Input signals ranges:± 10V
0…10V; 0…5V; 0…20 mA
Input Resolution:14 bits across ±10.5V DC
12 bits across 21 mA
No. of Outputs 2 high speed current/ voltage
Output Resolution:13 bits across 21 mA = 2.8 µA/bit;
14 bits across 21.8V = 1.3 mV/bit
Output Signal Ranges:± 10V; 0…20 mA

ControlLogix Power Supply Bundle

Input Voltage:120/240VAC
Input Voltage Range:85-264VAC
Max Inrush Current:20 Amperes
Output Power:75 W @ 0…60 °C (32…140 °F)
Annunciator Power:240V AC 50/60 Hz, 240V DC, 50 mA, resistive only
Hold Up time:2 cycles @ 60 Hz; 2 cycles @ 50 Hz
Input Voltage:85-265 VAC
