Allen-Bradley

AC DRIVE ADJUSTABLE FREQUENCY

AC DRIVE
ADJUSTABLE FREQUENCY
POWERFLEX 70
480 VAC
3 PHASE
1.1 AMP
0.37 KW
0.5 HP
PANEL MOUNT
INTERFACE MODULE - FULL NUMERIC LCD
MANUAL
WITH BRAKE

SILICON CONTROLLED RECTIFIER

SILICON CONTROLLED RECTIFIER
350AMP
6.5KV

POWER SUPPLY

POWER SUPPLY
POWERFLEX 700
DC/DC
W/CONFORMAL COATED BOARDS

POWER SUPPLY

POWER SUPPLY
50W
DC/DC CONVERTER
CLASSIC
24 VDC
PS4

Snubber Resistor Assembly

PKG SNUBR RES ASSY
800W
45-OHM

PROCESSOR MODULE

PROCESSOR MODULE
PLC-5/40 CPU
48 K WORD SRAM
ETHERNET
DH+ / REMOTE I/O
RS-232-C / 422A / 423A

Analog Module with Fixed Terminal Block

INTERFACE MODULE
ANALOG
16 CHANNEL
FUSIBLE
10-30 VDC INPUT
24 VDC RATED
WITH BLOWN FUSE INDICATORS
3 TERMINALS PER INPUT
DIN-RAIL MOUNT

Interface Module

CONTROLLOGIX
CONTROLNET
128 CONNECTION
REDUNDANT COAXIAL MEDIA
2 CONTROLNET BNC CONNECTORS
USB NETWORK ACCESSPOINT
-25 TO +70 DEGREE C

ADJUSTABLE FREQUENCY

AC DRIVE
ADJUSTABLE FREQUENCY
POWERFLEX 40,240 VAC
1 PHASE
8 AMP
1.5 KW
2 HP
PANEL MOUNT - IP 20 NEMA TYPE OPEN
FIXED KEYPAD
NOT FILTERED
STANDARD BRAKE

Safety Controller

SAFETY PLC W/ MODBUS
24 DC INPUTS
8 DC OUTPUTS
8 ANALOG OUTPUTS
2 HIGH SPEED COUNTERS
GUARDPLC 1800

MicroLogix Controlle

PLC MODULE
MICROLOGIX-1000
20 INPUT / 12 OUTPUT
120/240 VAC
32 I/O
(20) 120V AC DIGITAL INPUT
(12) RELAY OUTPUT

PROGRAMMABLE CONTROLLER MODULE

PROGRAMMABLE CONTROLLER MODULE
CONTROLLOGIX 5580
3 MB USER MEMORY
2 GB SD CARD MEMORY
100 ETHERNET/IP NODE CAPACITY
1 USB PORT
1 ETHERNET/IP PORT
1200 MA AT 5.1 VDC/5 MA AT 1.2 VDC
0 TO 60 DEGREE C OPERATING TEMPERATURE

SAFETY CONTROLLER

SAFETY CONTROLLER
20MB STANDARD MEMORY
6MB SAFETY MEMORY
USB PORT
1 GB EMBEDDED ETHERNET PORT
250 ETHERNET/IPDEVICES
4 CHARACTER ALPHA/NUMERIC DISPLAY

SAFETY CONTROLLER

SAFETY CONTROLLER
GUARDLOGIX5580
WITH 3MB STANDARD MEMORY & 1.5 MB SAFETY MEMORY
USB PORT
1 GB EMBEDDED ETHERNET PORT
100 ETHERNET/IP DEVICES
4 CHARACTER ALPHA/NUMERIC DISPLAY

WIRING SYSTEMS MODULES

1492 SERIES
40 PINS
FUSIBLE
WIRING SYSTEMS MODULES
ISOLATED EXTRA TERMINALS FOR OUTPUTS
DIGITAL MODULE WITH FIXED TERMINAL BLOCK
TWOPER I/O CONNECTION

MicroLogix 1000 Controller

PLC MODULE
MICROLOGIX 1000
(10) DIGITAL INPUTS
24 VDC
(6) RELAY OUTPUTS
RS-232
1 KB

AXIS MODULE

AXIS MODULE
KINETIX 6200 / 6500
360 / 480 VAC
3.9 KW / 8.6 AMP INVERTER
WITH SAFE TORQUE-OFF FEATURE

POWERFLEX CONTROL BOARD

POWERFLEX CONTROL BOARD
9 PIN CONNECTOR
Voltage Class: 240V AC Input
Drive Model: PowerFlex 700S

Thyristor Unit

Gate Commutated Turn-off (GCT) Thyristor Unit

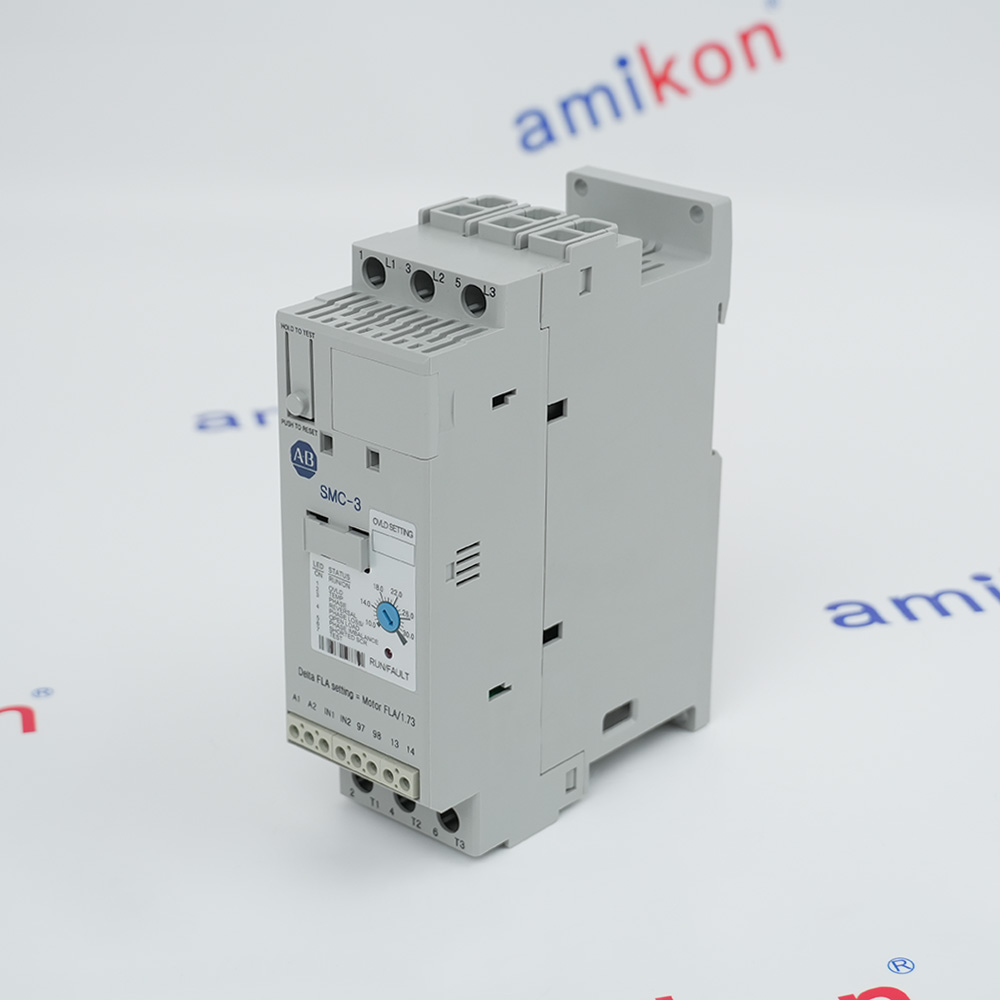

Allen-Bradley SMC™-3 Soft Starters
Rated Voltage: 110-120V AC
Rated Current: Typically 17 Amps
Power Rating: 110-120V AC

Thyristor Unit

Gate Commutated Turn-off (GCT) Thyristor Unit
Allen-Bradley SMC™-3 Soft Starters
Rated Voltage: 110-120V AC
Rated Current: Typically 17 Amps
Power Rating: 110-120V AC

Thyristor Unit

Gate Commutated Turn-off (GCT) Thyristor Unit
Allen-Bradley SMC™-3 Soft Starters
Rated Voltage: 110-120V AC
Rated Current: Typically 17 Amps
Power Rating: 110-120V AC

LOGIC MODULE

LOGIC MODULE
PANELVIEW PLUS
FOR USE WITH PANELVIEW PLUS 700-1500
SINGLE APPLICATION
VIEWPOINT COMPATIBLE
64 MB FLASH / 64 MB RAM
24 VDC

Redundant Power Supply

POWER SUPPLY BUNDLE
CONTROLLOGIX
19-32 VDC INPUT
5 VDC AT 13 AMP OUTPUT
2 REDUNDANT SUPPLIES
WITH 2 CABLES AND CHASSIS ADAPTOR

OPERATOR INTERFACE

OPERATOR INTERFACE
PANELVIEW PLUS 7
TOUCH SCREEN
12.1 INCH DISPLAY
1280 X 800 PIXELS
WIDE ASPECT-RATIO COLOR
EMBEDDED SWITCH/DLR
24 VDC INPUT
WINDOWS 10 IOT CORE

OPERATOR INTERFACE

OPERATOR INTERFACE
PANELVIEW STANDARD
KEYPAD & TOUCH
PANELVIEW 550
5.3 INCH DISPLAY
256 X 128 PIXELS
MONOCHROME DISPLAY
REMOTE I/O
RS-232
100-240 VAC INPUT
50/60 HZ
