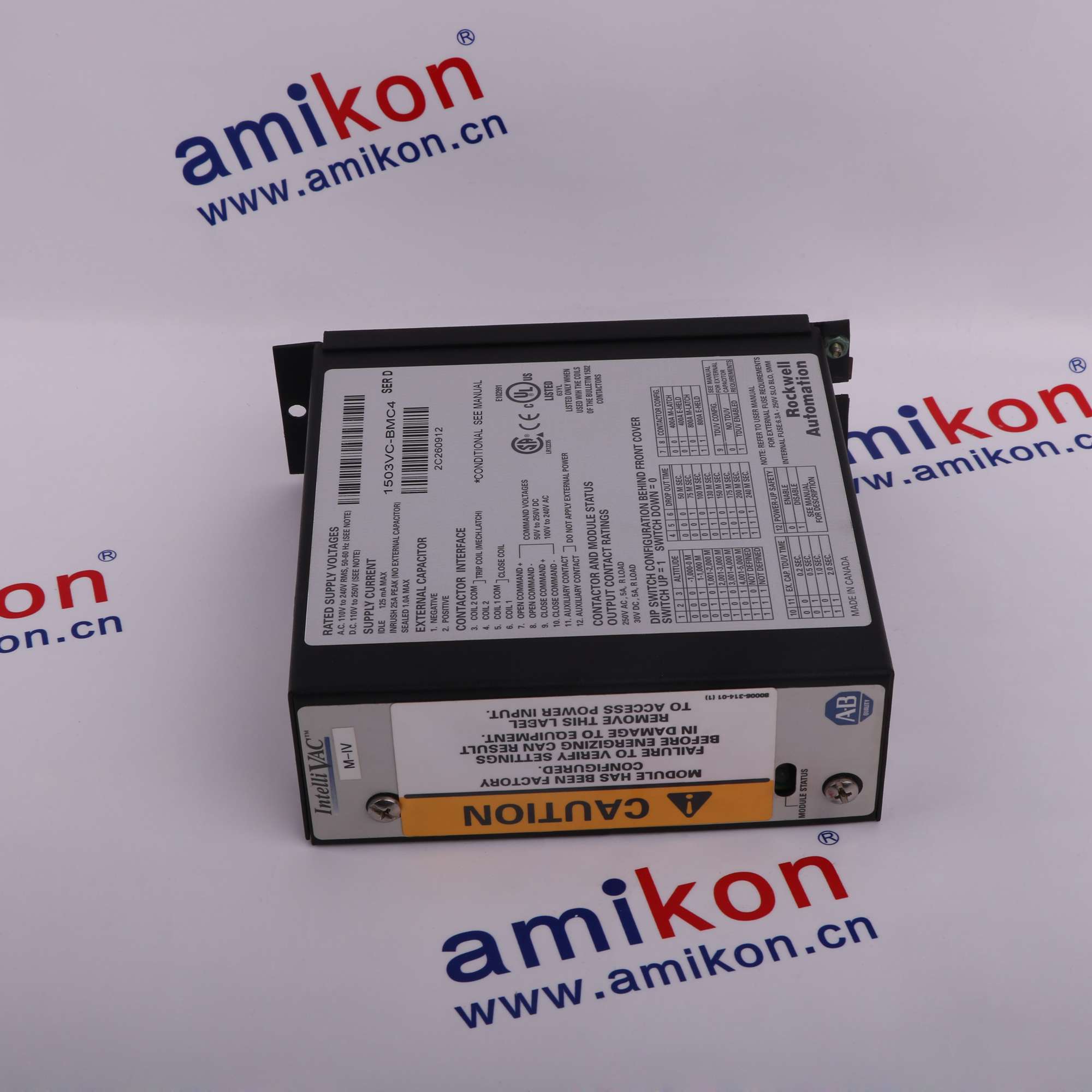

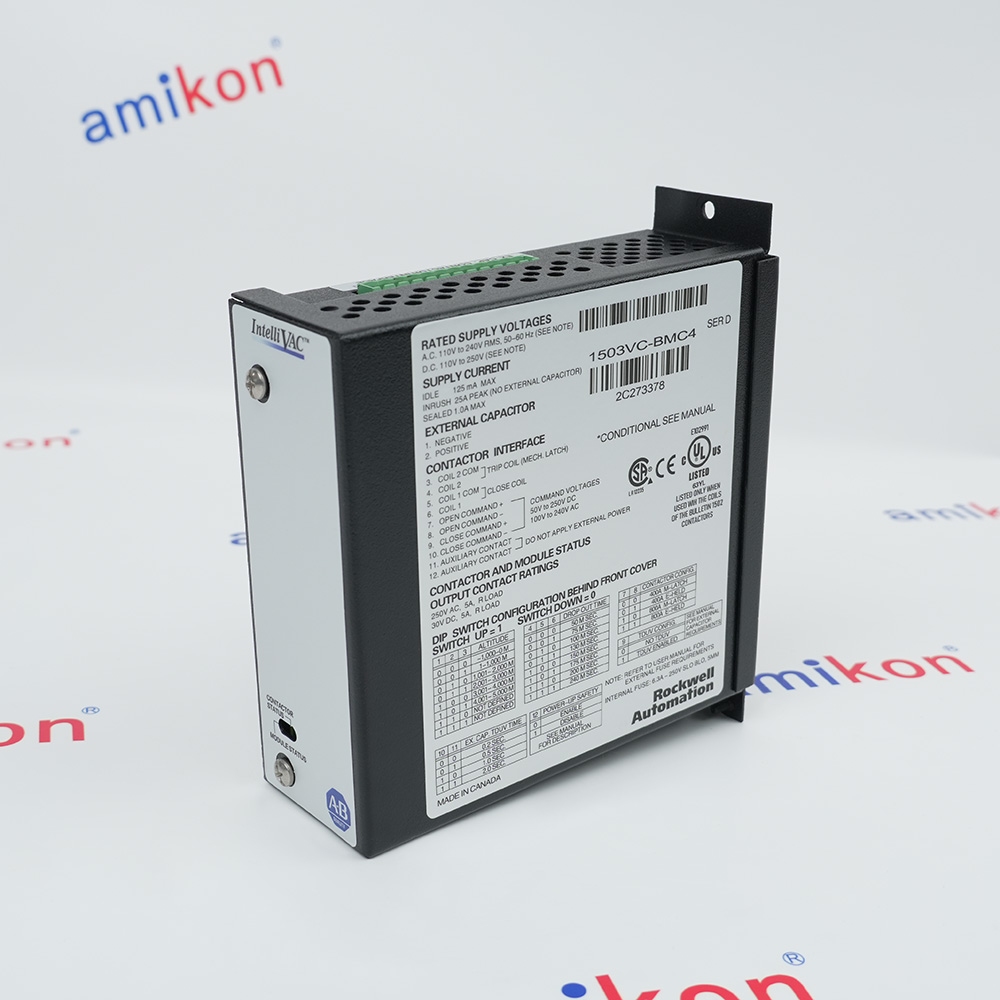

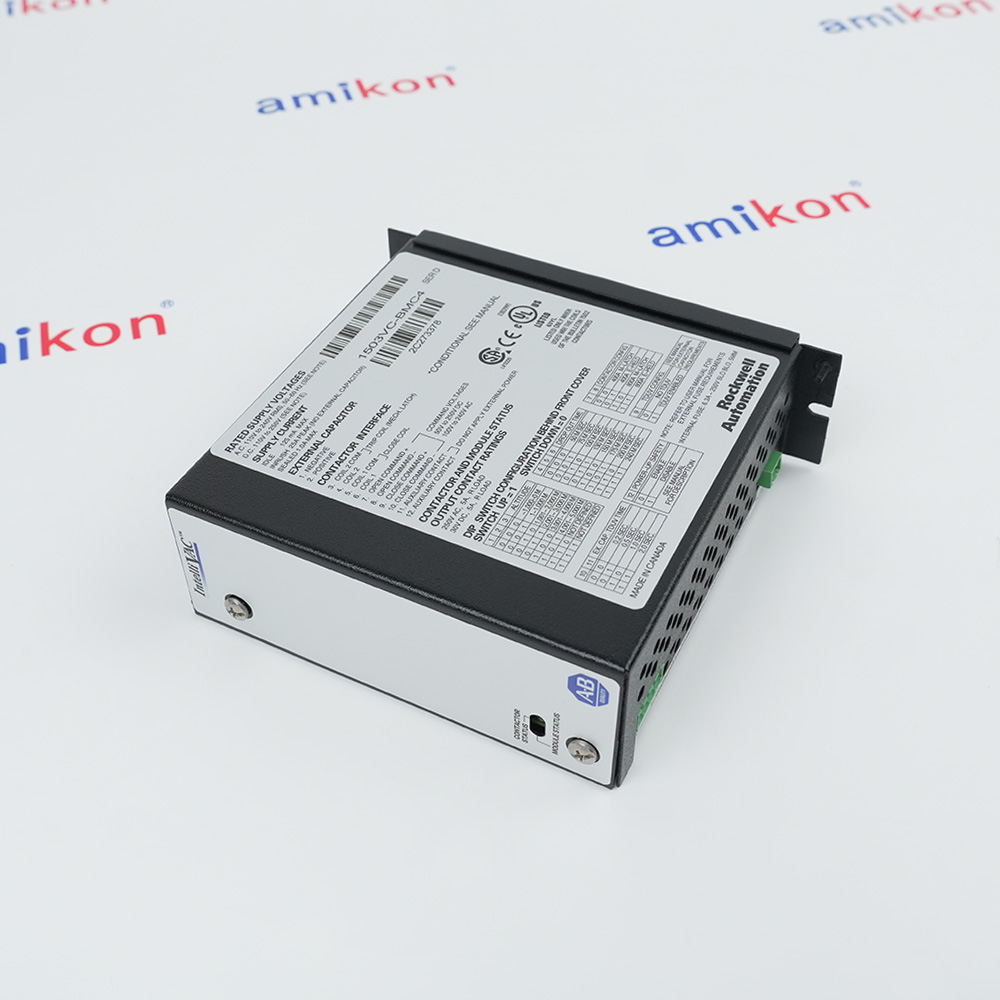

- 1503VC-BMC4
In Stock
Ships by Monday, August 10
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 1503VC-BMC4
-
Product Model1503VC-BMC4
-
Product ParametersIntelliVAC Vacuum Contactor Control Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6x17x18.5cm
-
ManufacturerAllen-Bradley
-
Weight1.25 kg
-
Inrush Current120/240 VAC
-
Idle Current120/240 VAC
-
Temperature-40° to 85°C
-
Altitude-1000 to 5000 meters
-
Humidity95% non-condensing
Description
The Allen-Bradley 1503VC-BMC4 is an IntelliVAC contactor control module for medium-voltage vacuum contactor applications. It is part of the Bulletin 1503VC IntelliVAC family, which provides scalable solutions for controlling Bulletin 1502 vacuum contactors rated at 400 A and 800 A up to 7,200 volts.
The module accepts a universal input voltage range of 110–240 V AC (50/60 Hz) or 110–250 V DC, enabling implementation across multiple applications and global power systems without requiring voltage-specific variants. Maximum idle current draw is 125 mA. Inrush current is limited to 25 A for one-half cycle. Close current duration is 200 ms with maximum close currents of 11.3 A for 400 A contactors and 4.8 A for 800 A contactors.
The module accepts a universal input voltage range of 110–240 V AC (50/60 Hz) or 110–250 V DC, enabling implementation across multiple applications and global power systems without requiring voltage-specific variants. Maximum idle current draw is 125 mA. Inrush current is limited to 25 A for one-half cycle. Close current duration is 200 ms with maximum close currents of 11.3 A for 400 A contactors and 4.8 A for 800 A contactors.
Information
Overview
Manuals
Engineering Considerations
Product Applications
Wiring and Connections
Features:
- 110‑240V AC, 110‑250V DC supply
- Consistent pick‑up time at given voltage
- Selectable drop‑out time for fuse coordination
- Electronic altitude comp (450A). Mechanical for 800A
- Power loss ride‑through (TDUV). May need capacitor
- Anti‑kiss & anti‑pumping protection
The 1503VC-BMC4 Allen-Bradley CONTACTOR CONTROL MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1503VC-BMC4 CONTACTOR CONTROL MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Anti-kiss and anti-pumping protection ensure that the vacuum contactor close–open sequence occurs as expected, avoiding rapid reclosure due to faulty control devices or contact bounce. Delayed restart protects the contactor by ensuring the rated duty cycle is not exceeded during rapid cycling conditions. A temporary jog function (electrically held contactors only) allows the motor to be positioned for process set-up without engaging the normal starting sequence.
The module is DIP switch configurable, allowing field adjustment of control parameters without programming tools or software. Status indication is provided through LEDs and relay outputs, enabling integration into higher-level control systems and aiding troubleshooting.
- Mining and Minerals:Crushers, conveyors & fans: robust vacuum for dust/harsh conditions
- Oil and Gas:High-capacity pumps & compressors in extraction/refining
- Water/Wastewater:Large pumping stations: precise control & high uptime
- HVAC and Infrastructure:Chillers & large air handlers for commercial/data centers
- Renewable Energy:Power conditioning & distribution for grid-scale projects
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Contactor Interface: Requires a specific wire harness (Catalog No. 1503-WHxxx) to link the module to the Bulletin 1502 vacuum contactor.Control Power: Connect the supply power (110–240V AC or 110–250V DC) to the designated "Main Input" terminals.Command Inputs: Typical wiring includes connections for "Start," "Stop," and "External Trip" signals.
Alternative Names
1503VC-BMCA
1503VC-8MC4
15O3VC-BMC4
I503VC-BMC4
1503VC BMC4
15O3VC BMC4
1503VC 8MC4
I503VC BMC4
1503VCBMC4
Technical notes
The 1503VC-BMC4 provides consistent vacuum contactor pick-up time at a given supply voltage, ensuring repeatable and synchronized switching performance. Selectable and repeatable drop-out times (50, 75, 100, 130, 150, 175, 200, or 240 ms) enable tighter coordination with upstream power fuses, improving system protection selectivity.
FAQs
-
What is the 1503VC-BMC4?
+The Allen-Bradley 1503VC-BMC4 is a Bulletin 1503 IntelliVAC™ Contactor Control Module, designed to control 400A and 800A vacuum contactors in Medium Voltage (MV) motor controllers and feeders. -
What are the power requirements?
+The module supports a wide range of supply voltages: 110–240V AC (50/60 Hz) or 110–250V DC -
What contactors is it compatible with?
+It is used with Bulletin 1502 400 A and 800 A vacuum contactors. -
How does it improve performance?
+It ensures consistent pick-up times and features selectable drop-out times for better coordination with upstream power fuses.
