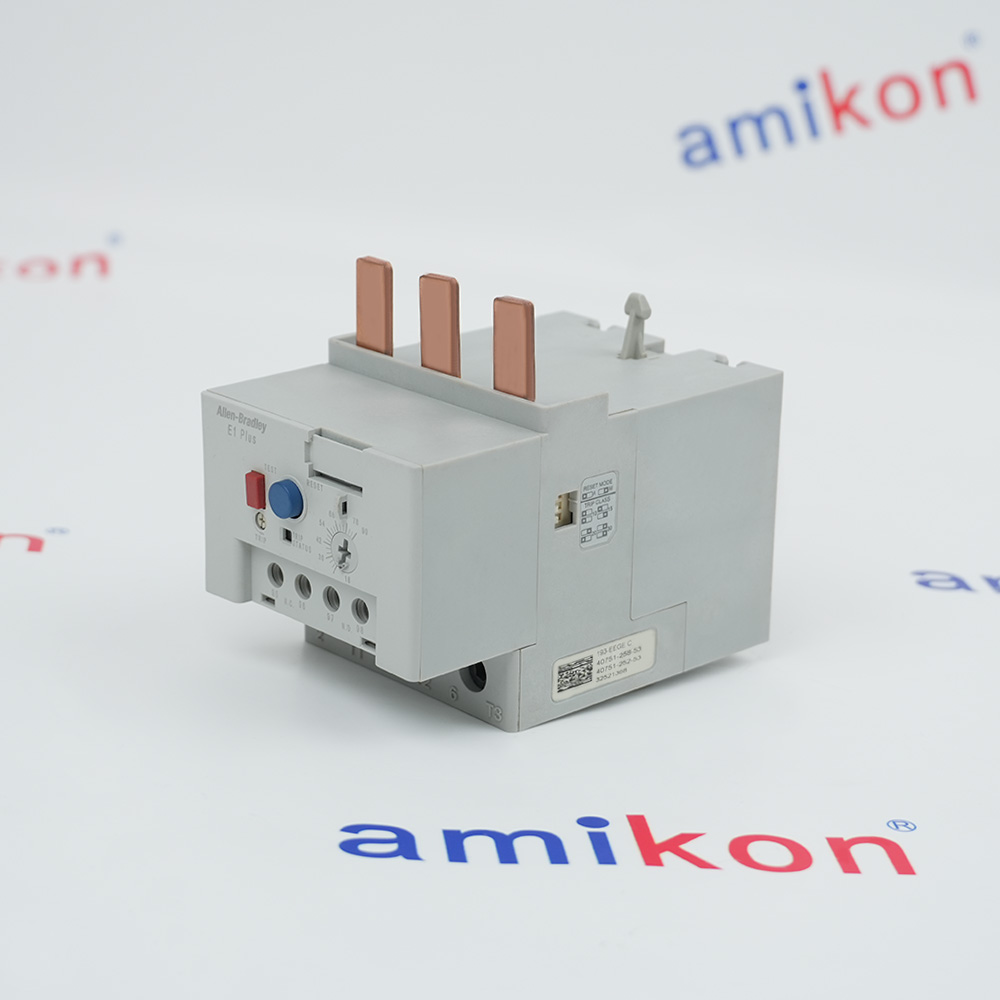

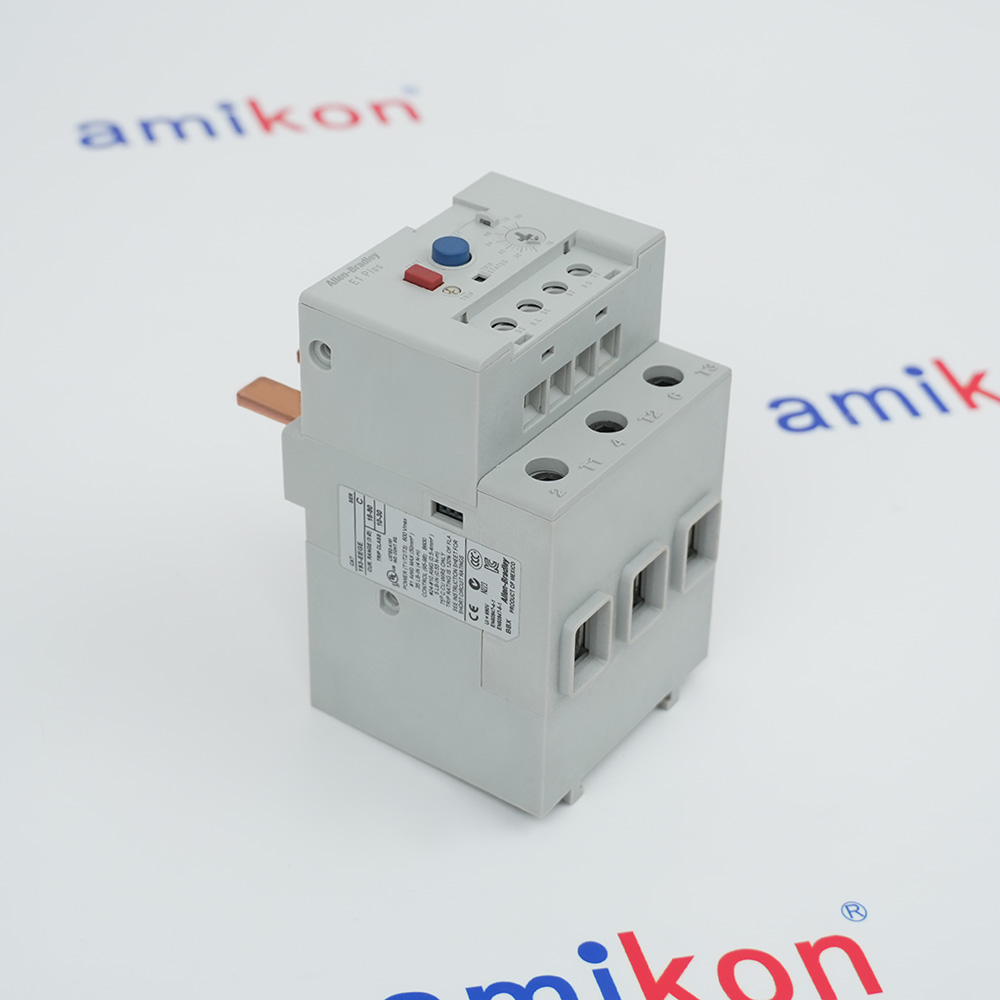

Technical specifications for 193-EEGE
-
Product Model193-EEGE
-
Product ParametersOVERLOAD RELAY
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12.2x10.7x3cm
-
ManufacturerAllen-Bradley
-
Weight0.3 kg
-
Product SeriesE1 Plus
-
Component Type Motor Control and DrivesElectronic Overload
-
Adjustment5 : 1
-
Current Range (A)18...90
-
kW Rating, AC-3, 415V, Min11 kW @415V min
-
kW Rating, AC-3, 415V, Max45 kW @415V max
-
Motor FLC, Min18 A, min
-
Motor FLC, Max90 A, max
Description
193EEGE
OVERLOAD RELAY
BULLETIN 193 IEC SERIES
THREE PHASE
SELECTABLE TRIP CLASS
18-90 A
C60-C97
REPLACED BY 193-1EFGE
OVERLOAD RELAY
BULLETIN 193 IEC SERIES
THREE PHASE
SELECTABLE TRIP CLASS
18-90 A
C60-C97
REPLACED BY 193-1EFGE
Information
Overview
Manuals
Technical notes
Product Applications
Control Circuit Wiring
Features:
- Wide Current Adjustment Range
- Microprocessor-Based Accuracy
- Low Power Dissipation
- Phase Loss Protection
- Integrated Auxiliary Contacts
The 193-EEGE Allen-Bradley E1 Plus Electronic Overload Relay may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 193-EEGE E1 Plus Electronic Overload Relay Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The E1 Plus Pass-thru consumes 48% less panel space than a standardE1 Plus mounted in a panel mount adapter. The design provides anintegrated DIN Rail mount and panel mounting holes and is intendedfor the following applications: DIN Rail and Panel MountApplications, Bulletin 100-K mini contactor, external currenttransformers, and for use with non Allen-Bradley contactors. The E1Plus Pass-thru Electronic Overload Relay provides the sameexpandable protection and communication capabilities as a standardE1 Plus, but does not require a separate panel mount adapter, whichsaves money and valuable panel space.
- Material Handling & Conveyance:Adjustable trip classes prevent nuisance tripping during belt startup
- Fluid & Gas Handling:Phase-failure detection (3 sec) protects pumps/fans/compressors from burnout
- Process Manufacturing Equipment:Accurate thermal modeling for mixers/grinders in varying ambients
- Machine Tools:17V/5mA contacts communicate fault stops directly to CNC/PLC
- Automotive Production:Continuous performance for robotic drives & stamping presses
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Trip Contact (95-96): Wire this Normally Closed (N/C) contact in series with the contactor coil. If a fault occurs, this contact opens, de-energizing the coil and stopping the motor.Alarm Contact (97-98): This Normally Open (N/O) contact closes upon a trip, typically used to trigger a status light, buzzer, or PLC input.
FAQs
-
What is the 193-EEGE?
+The Allen-Bradley 193-EEGE is a solid-state electronic overload relay designed to protect 3-phase electric motors from damage due to overloads, phase loss, and current imbalances. -
What does it do?
+It continuously monitors motor current in real-time. If the current exceeds safe thresholds, it trips, disconnecting the motor circuit to prevent overheating and equipment failure. -
Can it trip at different speeds?
+Yes, it features an adjustable trip class (Class 10, 15, 20, or 30) so you can match it to your motor's specific thermal capacity and startup requirements. -
Does it require external power?
+No. It is a self-powered unit, meaning it taps its operating power directly from the motor circuit when the motor is energized.
