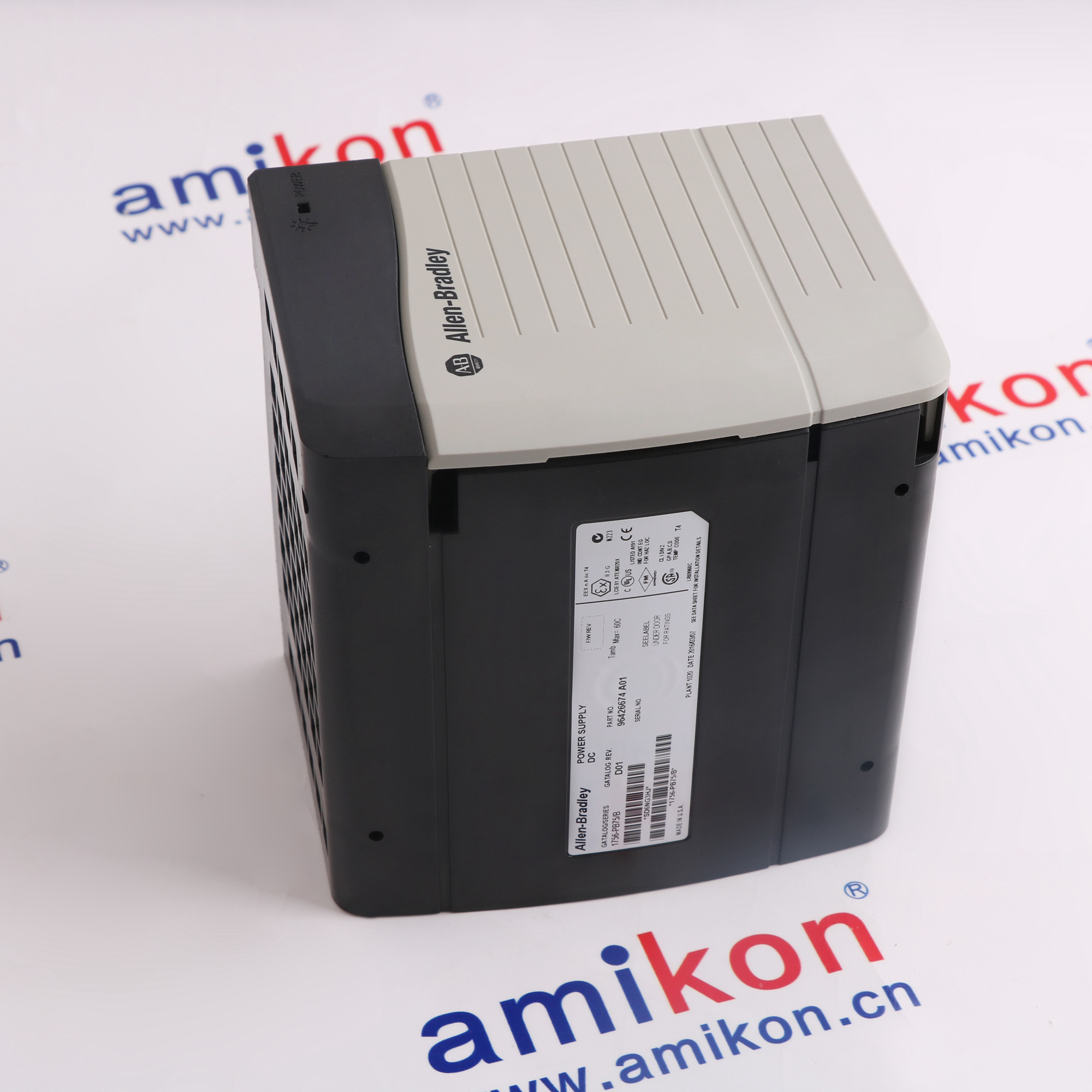

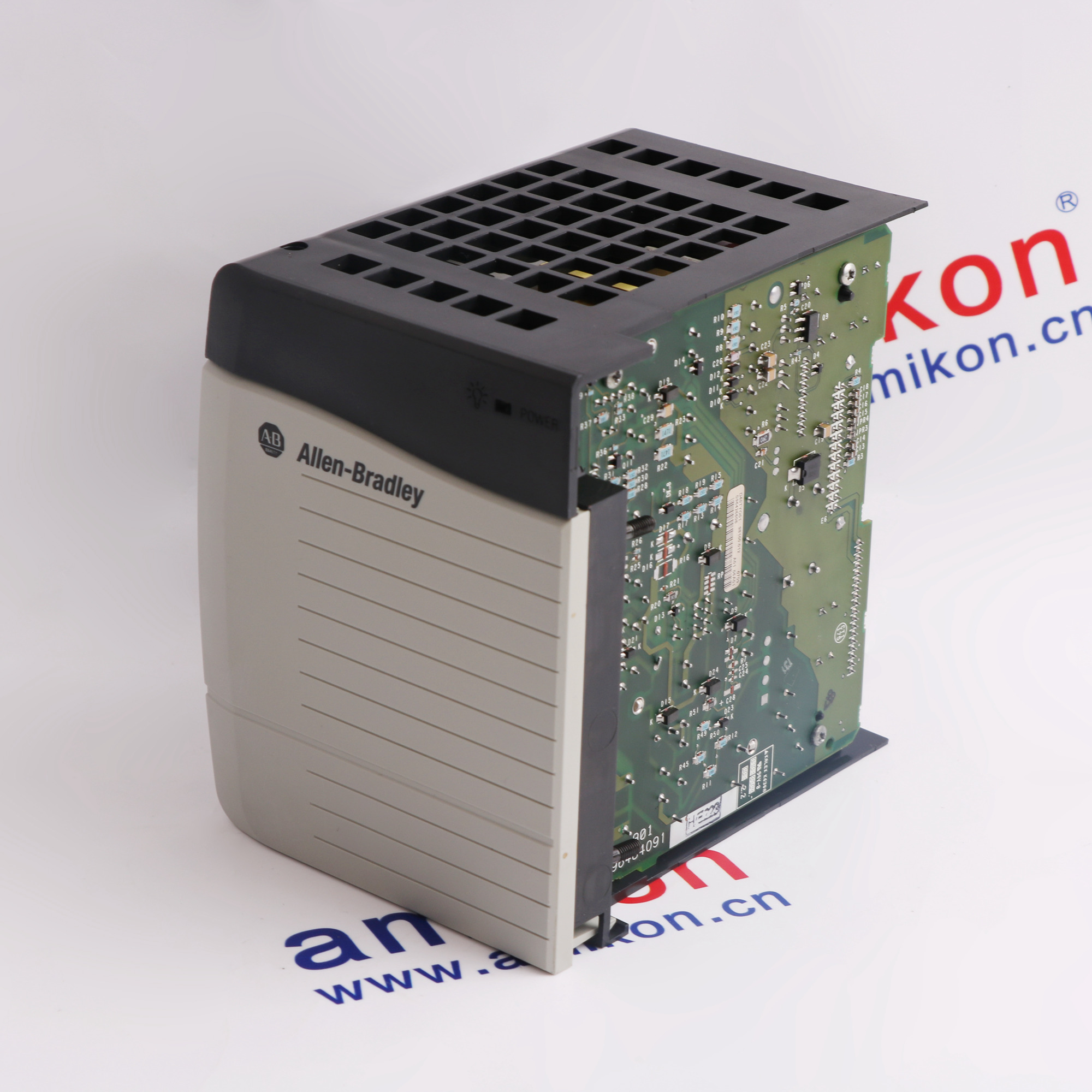

Technical specifications for 1756-PB75
-
Product Model1756-PB75
-
Spare Model1756PB75
-
Product ParametersPOWER SUPPLY
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size11x14.5x14cm
-
ManufacturerAllen-Bradley
-
Weight0.98 kg
-
Input Power95 W
-
Module TypeStandard Power Supply
-
Input Voltage24VDC
-
Input Voltage Range18-32VDC
-
Power Output75 Watts at 60 Celsius
Description
1756PB75
POWER SUPPLY
CONTROLLOGIX
18-32 VDC INPUT
24 VDC NOMINAL
95 WATTS
POWER SUPPLY
CONTROLLOGIX
18-32 VDC INPUT
24 VDC NOMINAL
95 WATTS
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- 75W Maximum Output Power
- Chassis-Mount Design
- Multi-Voltage Backplane Power
- Robust Isolation Voltage
The Power Supply Module 1756-PB75 by Allen Bradley serves effectively in applications requiring stable power input. Operating primarily at a nominal voltage of 24V DC, it handles a range of 18 to 32 volts DC. The unit is capable of supplying up to 95 watts of power on input, while it maintains a consistent output power of 75 watts within the operating temperature spectrum of 0 to 60 degrees Celsius.
The 1756-PB75 Allen-Bradley Power Supply Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-PB75 Power Supply Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module is engineered to occupy the dedicated slot on the far-left end of the standard 1756 chassis, leaving all remaining slots free for application-specific modules. It converts the incoming 24V DC input into four distinct voltage outputs required by the complex circuitry of different ControlLogix modules: 1.2V, 3.3V, 5.1V, and 24V DC. With a maximum output power rating of 75W, it provides sufficient current capacity to support demanding, fully populated chassis configurations. To protect the sensitive logic cards on the backplane, the 1756-PB75 features overcurrent and overvoltage safeguards, alongside a robust 250V continuous galvanic isolation barrier between the incoming power source and the backplane logic.
- Water and Wastewater Treatment:Controls dosing pumps & valves based on levels/flow
- Food and Beverage Production:Precise pasteurization temp & VFD bottling conveyor speed
- Chemical and Petrochemical Plants:High-precision PID for reactor/column pressure & temp
- HVAC and Climate Control:Regulates dampers & cooling tower fans for industrial climate
- Metals and Mining:Smooth high-res pressure/position for hydraulic presses
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The 1756-PB75 and 1756-PA75 are both high-capacity, standard Allen-Bradley ControlLogix power supplies. The core difference is their input voltage: the 1756-PA75 operates on AC power, while the 1756-PB75 operates on DC power. Both models deliver up to 75 watts of power to the chassis backplane.
FAQs
-
What is the Allen-Bradley 1756-PB75 ?
+The Allen-Bradley 1756-PB75 is a standard 75W ControlLogix DC power supply that mounts to the leftmost side of a 1756 chassis. -
Which ControlLogix chassis are compatible with the 1756-PB75?
+It fits standard 1756 Series B and C chassis, including the 1756-A4, A7, A10, A13, and A17 models. -
What is the difference between the 1756-PA75 and 1756-PB75?
+The 1756-PA75 is an AC power supply (85–264V AC), while the 1756-PB75 requires a 24V DC (18–32V DC) external source. -
Is it compatible with all ControlLogix chassis?
+It is compatible with standard Series B and C chassis, including models 1756-A4, A7, A10, A13, and A17.
