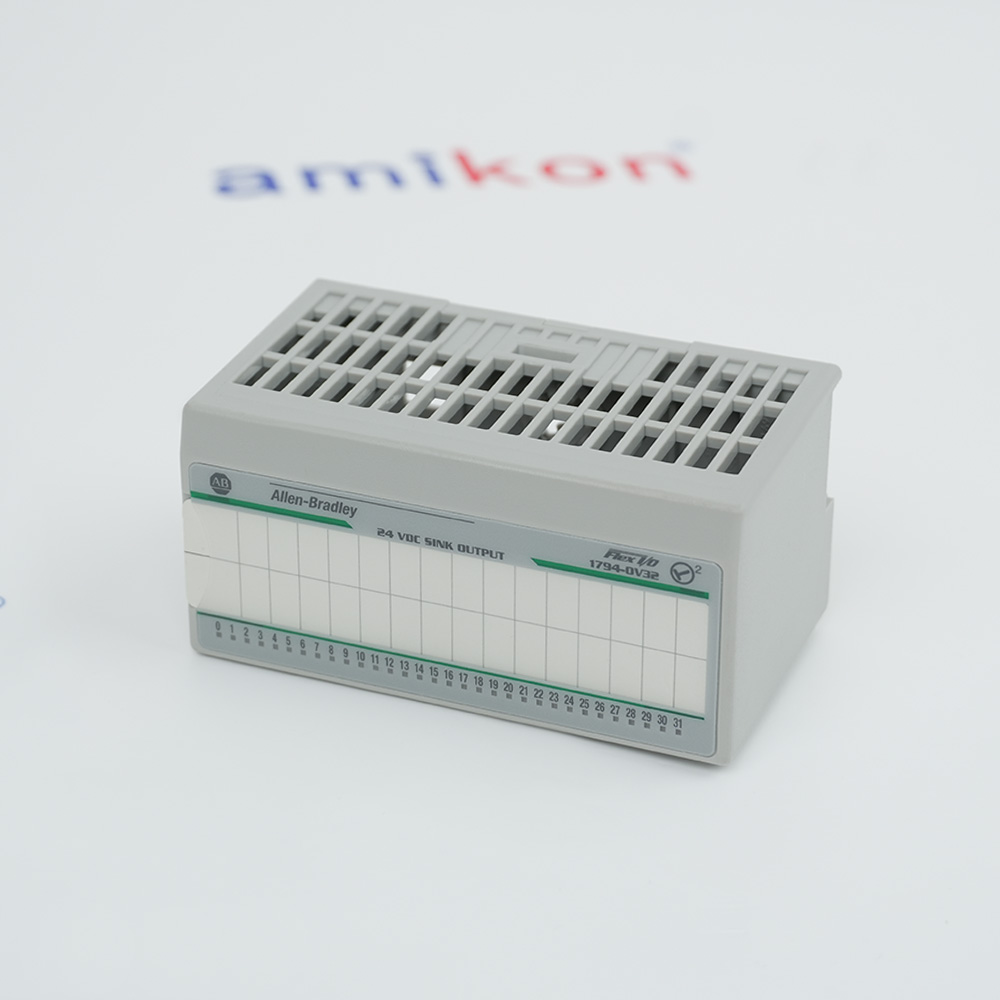

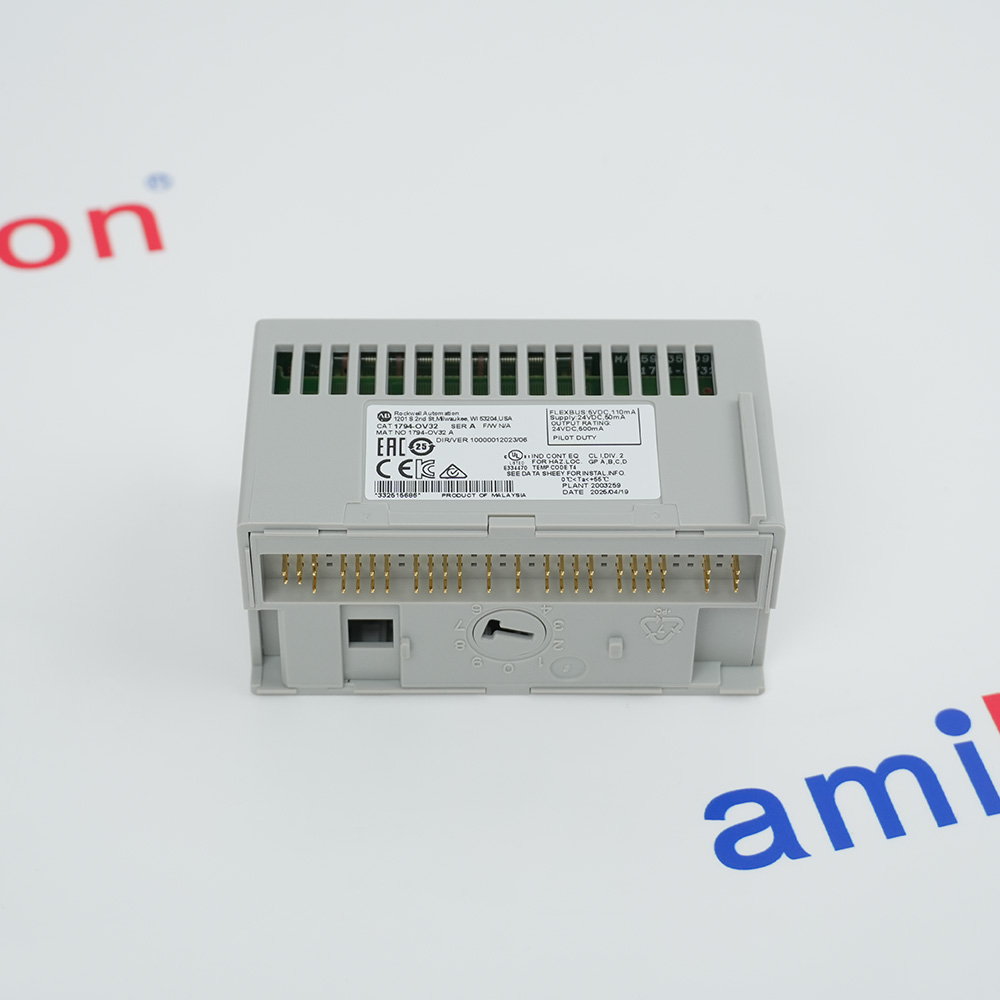

1794-OV32
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
1794OV32
OUTPUT MODULE
FLEX I/O
DISCRETE
DC
32 POINTS 24VDC SINKING OUTPUT
OPEN STYLE
DIN MOUNT
IP20
OUTPUT MODULE
FLEX I/O
DISCRETE
DC
32 POINTS 24VDC SINKING OUTPUT
OPEN STYLE
DIN MOUNT
IP20
Technical specifications for 1794-OV32
-
Product Model1794-OV32
-
Spare Model1794-OV32/A
-
Product ParametersOUTPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x13x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.16 kg
-
Number of outputs32, current, sinking
-
Output voltage, min10V DC
-
Output voltage, nom24V DC
-
Output voltage, max31.2V DC
-
Surge current2 A for 50 ms each, repeatable every 2 seconds
-
Off-state leakage, max0.5 mA
-
Isolation voltage50V
-
Flexbus current110 mA @ 5V DC
-
Power dissipation, max4.4 W @ 31.2V DC
-
Thermal dissipation, max8.53 BTU/hr @ 31.2V DC
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 1794-OV32?+The Allen-Bradley 1794-OV32 is a 32-point, 24V DC Sinking Output module within the FLEX I/O family
-
What type of outputs does the 1794-OV32 have?+It has 32 sinking outputs (24V DC) arranged in groups
-
What is the 1794-OV32 power supply?+It uses 24V DC power and can be powered by a FLEX power supply
-
Can modules be changed under power?+Yes, FLEX I/O modules allow for "Removal and Insertion Under Power" (RIUP), meaning you can swap them without disturbing the field wiring or system power.
Get a quick price fo 1794-OV32
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Step-by-Step Installation
Features:
- Current Sinking Configuration
- FLEX I/O Modular Flexibility
- Wide Operating Voltage Range
- Diagnostic Status Indicators
- Flexible Termination Options
The Allen Bradley 1794-OV32 is a discrete output module that integrates into the Flex I/O series, primarily designed for industrial and automation control. This output module supports 32 output points, providing flexibility for controlling multiple devices within a system.
Rated for a 24 VDC output voltage, this module is ideal for applications needing a reliable voltage specification. Its installation is facilitated by a DIN rail mounting style, a feature that simplifies system integration and management.
The 1794-OV32 Allen Bradley Digital Current Sinking Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 1794-OV32 Digital Current Sinking Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Designed in an open-style module format, this 1794-OV32 offers easy access for maintenance and monitoring. It is equipped with 32 LED indicators to provide instant visual feedback on the status of each output channel.Isolation of the module is configured as group isolated, enhancing safety by preventing faults from propagating through the device. The terminal base for installation is known as the FLEX I/O terminal base, further promoting seamless integration within larger control systems. Overall, the 1794-OV32 output module embodies functionality, safety, and ease of use in its design.
- Automotive Assembly Stations:Pneumatic valves, clamping cylinders & status lights
- Packaging and Bottling Lines:High-speed conveyors, sorting gates & labeling heads
- Material Handling Systems:Warehouse: palletizers, AS/RS & complex conveyors
- Textile and Paper Processing:Precise timing for actuators/tension in textile/paper
- Machine Tools (CNC & Metalworking):Coolant pumps, interlocks & turret positioning indicators
- HVAC Control Skids:Dampers, fans & status indicators for industrial HVAC
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Set the Keyswitch: On the terminal base, rotate the keyswitch clockwise to position 2 to match the 1794-OV32 module type.
Connect the Flexbus: Ensure the Flexbus connector is pushed all the way to the left to connect with the adjacent adapter or terminal base.
Align and Seat: Check that the pins on the bottom of the module are straight. Align the module's alignment bar with the groove on the terminal base and press down firmly until the latching mechanism locks.
Secure to DIN Rail: Hook the assembly onto a 35mm DIN rail and press down until the locking tab snaps into place.
