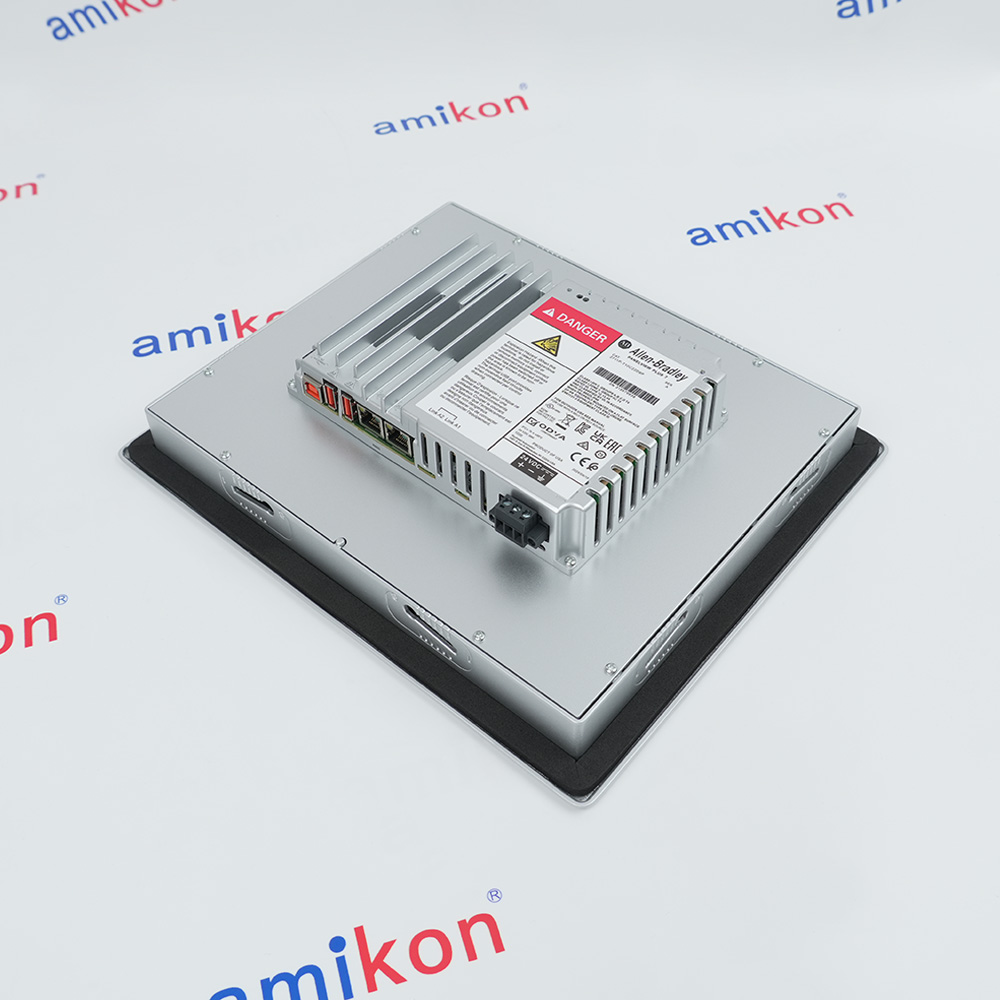

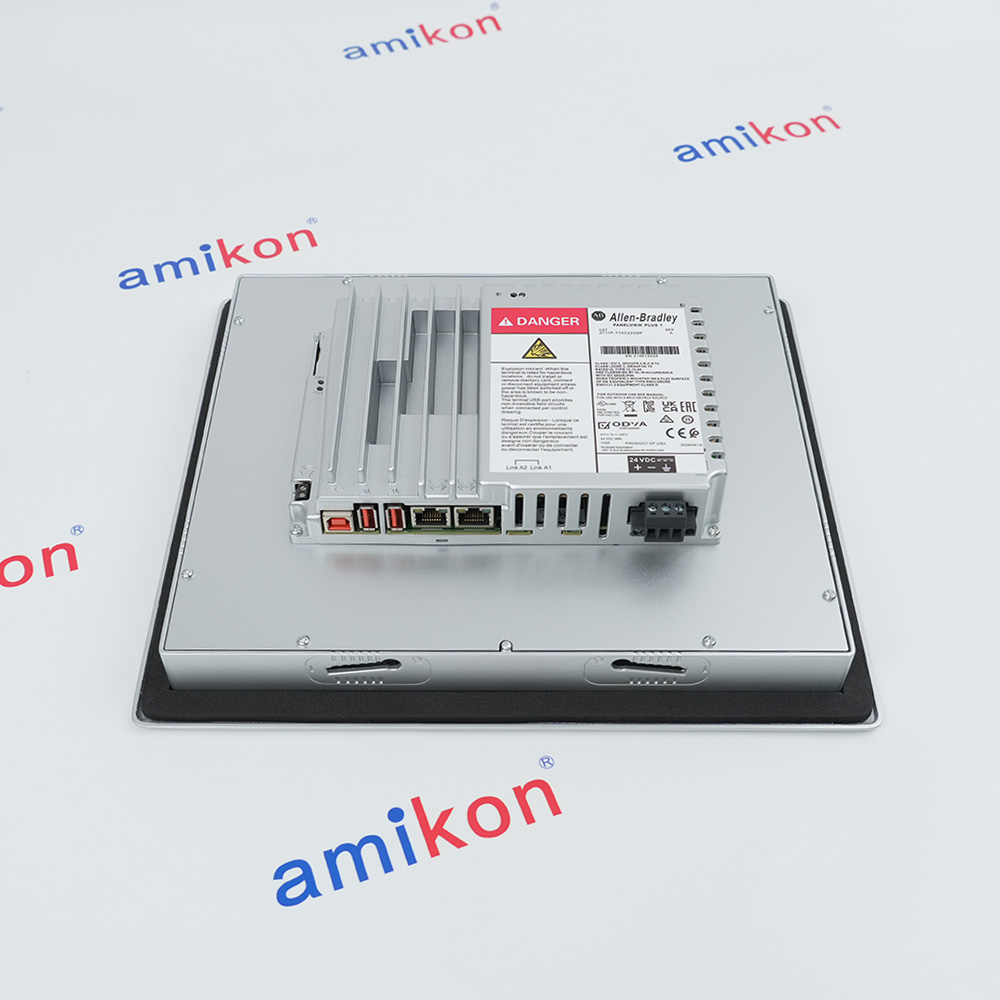

- 2711P-T10C22D9P
In Stock
Ships by Sunday, August 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 2711P-T10C22D9P
-
Product Model2711P-T10C22D9P
-
Spare Model2711PT10C22D9P
-
Product ParametersPanelview Plus 7 Performance Terminal
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size29.6x25.1x6.8cm
-
ManufacturerAllen-Bradley
-
Weight2.1 kg
-
Operator inputTouch
-
Display sizediagonalC 10.4-in
-
Brightness, typical300 cd/m2 (Nits) or more
-
Input voltage24V DC nom(18…30V DC)
-
Power consumption50 W max
-
Display typeTFT Color
-
Brightness, typical300 cd/m2 (Nits) or more
-
Power supply24V DC supplies
Description
The Allen-Bradley 2711P-T10C22D9P is a PanelView Plus 7 Performance graphic operator terminal manufactured by Rockwell Automation. It features a 10.4-inch color active matrix TFT LCD display with an 800 x 600 SVGA resolution and 18-bit color depth, delivering clear and detailed graphics for machine-level visualization and control.
The terminal incorporates an analog resistive touchscreen rated for over one million actuations with a 100-gram operating force, providing durable and responsive operator interaction. The display is illuminated by a solid-state white LED backlight with a minimum rated life of 50,000 hours at half-brightness; the backlight is non-replaceable.
Internally, the terminal is equipped with 512 MB of RAM and 512 MB of nonvolatile internal storage, with approximately 80 MB allocated as free user memory for application storage. External storage expansion is supported via an SD card slot compatible with the 1784-SDx series SD cards.
The terminal incorporates an analog resistive touchscreen rated for over one million actuations with a 100-gram operating force, providing durable and responsive operator interaction. The display is illuminated by a solid-state white LED backlight with a minimum rated life of 50,000 hours at half-brightness; the backlight is non-replaceable.
Internally, the terminal is equipped with 512 MB of RAM and 512 MB of nonvolatile internal storage, with approximately 80 MB allocated as free user memory for application storage. External storage expansion is supported via an SD card slot compatible with the 1784-SDx series SD cards.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Panel Insertion and Mounting
Features:
- 10.4-inch Color TFT Touchscreen Display
- Durable Analog Resistive Touchscreen
- High-Performance Memory Configuration
- Comprehensive Communication Ports
The 2711P-T10C22D9P is built with a robust memory architecture including 512 MB of RAM, 512 MB of internal storage, and 80 MB of dedicated user memory, providing sufficient capacity for demanding HMI applications and data logging. The 2711P-T10C22D9P also supports external storage expansion through an SD card slot compatible with 1784-SDx series cards, enabling additional application storage and data backup capabilities.
The 2711P-T10C22D9P Allen-Bradley PanelView Plus 7 Performance Terminal may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Performance Terminal Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 2711P-T10C22D9P features a solid-state white-light LED backlight with a minimum life expectancy of 50,000 hours, ensuring consistent display visibility over extended operational periods. The backlight on the 2711P-T10C22D9P is non-replaceable, designed for maintenance-free operation throughout the terminal's service life.
Powering the 2711P-T10C22D9P is a flexible 18–30V DC input range with a nominal 24V DC supply, drawing a maximum of 50W. The 2711P-T10C22D9P supports both PELV (Protective Extra-Low Voltage) and SELV (Safety Extra-Low Voltage) 24V DC power sources, accommodating various industrial power configurations.
- Automated Manufacturing: Monitors robotic arms, conveyors, and pick-and-place stations
- Food/Beverage: Manages mixing, pasteurization, batching, and high-speed packaging lines
- Water/Wastewater: Controls pumping stations, chemical dosing, and filtration monitoring
- Packaging/Handling: Interfaces with sorting, wrapping, and palletizing systems
- Pharmaceutical: Oversees environmental controls, pill pressing, and batch tracking operations
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cutout Dimensions: Prepare a cutout of 241 mm × 185 mm (9.48 in × 7.28 in) on a flat, NEMA/IP-rated enclosure.
Clearance: Ensure at least 102 mm (4 inches) of clearance on the bottom for cables and on the side for SD card access.
Mounting Levers: Slide the terminal into the cutout from the front. Insert the eight black 2711P-RMCP Mounting Levers into the slots around the perimeter of the aluminum bezel.
Locking & Sealing: The levers lock against the panel via a six-position notch system for panel thicknesses between 1.5 mm and 4.8 mm. Ensure the gasket compresses evenly to maintain your enclosure's IP rating.
Alternative Names
2711P-T1OC22D9P
2711PTI0C22D9P
27I1PT10C22D9P
27IIPTIOC22D9P
2711P-TI0C22D9P
271IP-T10C22D9P
27IIP-TI0C22D9P
2711PT10C22D9P
271IPT10C22D9P
27IIP-TIOC22D9P
2711PT1OC22D9P
27I1P-T10C22D9P
27IIPTI0C22D9P
Technical notes
Environmental ratings include NEMA 12, 13, and 4X, plus IP66 ingress protection as classified by UL. The terminal operates within a temperature range of 0 to 55°C and withstands vibration and shock conditions typical of industrial environments. Certifications include ATEX Zone 2/22, C-UL-us, CE (EMC and LVD), RoHS, EAC, and INMETRO.
FAQs
-
What is the 2711P-T10C22D9P?
+The Allen-Bradley 2711P-T10C22D9P is a PanelView Plus 7 Performance HMI terminal featuring a 10.4-inch color touchscreen. -
What are the communication and connectivity options?
+The terminal features two Ethernet ports supporting linear, star, and DLR topologies. It also includes dual USB 2.0 host ports, one USB device port, and an RS-232 serial port. An SD card slot is available for memory expansion, application backup, and restore operations. -
What are the power requirements?
+The unit requires an external DC power supply ranging from 18–30V DC (nominal 24V DC). It draws a maximum of ~50 W. -
What type of touchscreen is it?
+It utilizes an analog resistive touchscreen with an actuation rating of 1 million presses and an operating force of approximately 100 grams.
